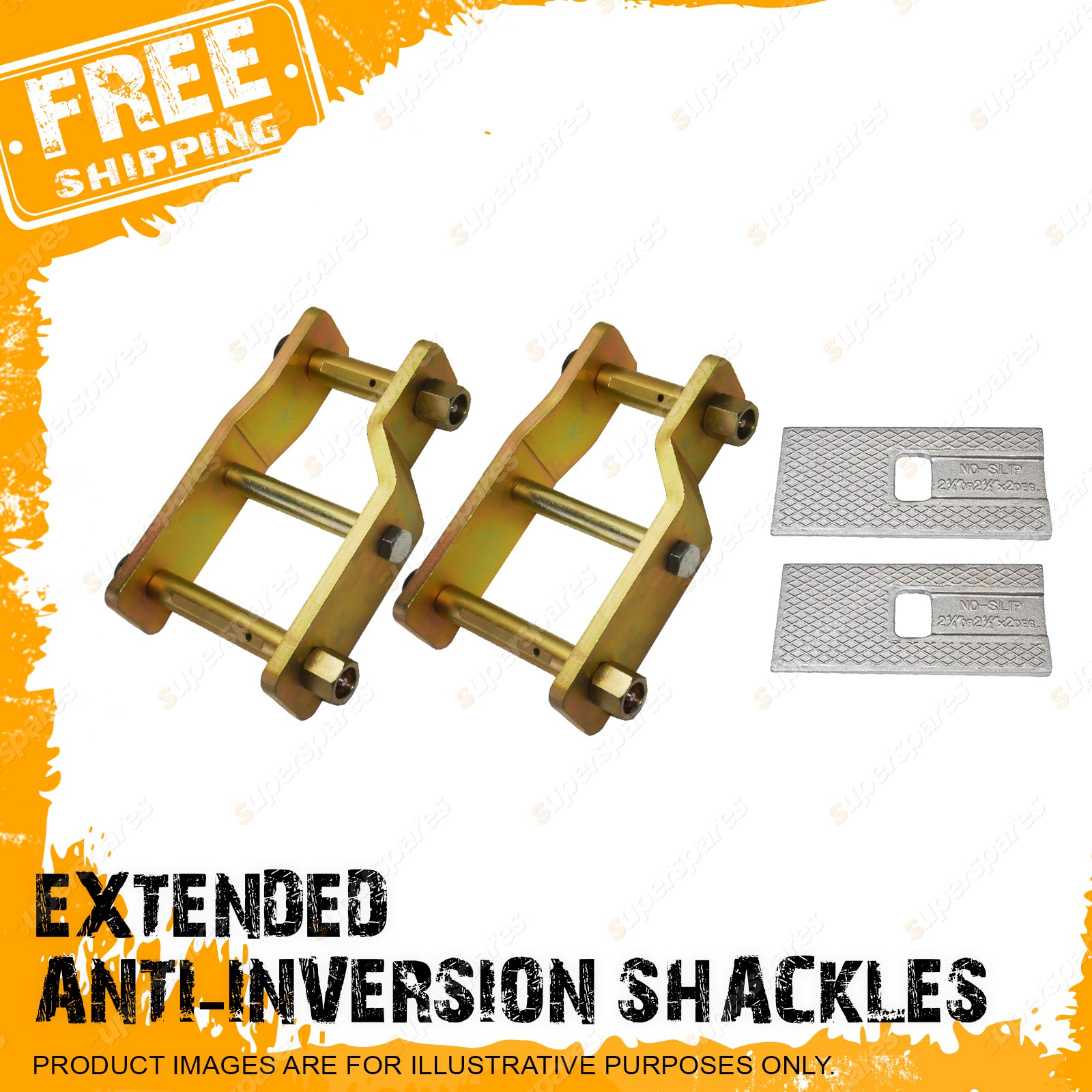

Rear Extended Shackles + Leaf Spring Wedges for Ford Ranger PX PY 11-On

Advantages:
1.Knowledgable and Experienced Staff
2.Friendly advice
3.Reliable Service
4.Fast deliveries
5.Competitive pricing
6.Large product range
7.Comprehensive cataloguing

If you are after more flex in your vehicles rear end, then Extended Shackles are an easy way to achieve it. Basically the extended shackle creates a greater sweeping arc of the shackle which in turn provides for more wheel travel and a nicer ride. Trupro Extended Shackles are engineered to the highest standard, with factory size Greasable Pins (to allow installation of factory bushings) and 50mm extended plates. All Trupro extended shackles incorporate a stepped bolt design, ensuring that the shackles cannot be overtightened, resulting in deformation of the bushings.

Trupro extended shackles incorporate a great design feature to protect the grease nipple against damage from rocks and debris that could be encountered in the installed position. Giving 50mm more length than the factory shackle you will also see a lift of between approx. 25-30mm (Depending upon application). Sold in Pairs.

A range of Trupro Leaf Spring 'Caster' Wedges have been developed to suit for universal applications. Used on vehicles with front and rear leaf springs, Leaf Spring Wedges aid in correcting the caster angle and work to eliminate driveshaft vibration issues. Trupro Leaf Spring Wedges are manufactured at 63mm wide, with centre hole to allow for proper positioning in the spring pack & diff. It is recommended to fit a 3deg wedge to the front when using extended shackles, with wedges also fitted to the rear where required. When fitting in the front the 'thickest' part of the wedge always goes toward the front of the vehicle. Trupro Leaf Spring Wedges are available in 4 sizes offering caster correction of 1, 2, 3 or 4 degrees.
