Webco Ultra Shock + Air Bag Load Assist Kit 2272kg for Ford F250 F350 4WD 01-09

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2023 Superspares. All rights reserved.

Please note at the moment our couriers can only deliver to business addresses, if you put a residential address we'll contact you for a business address for FREIGHT items. We can get it dropped at nearby depots for collection if that is more convenient. Calculated shipping price at checkout is for Metro Brisbane, Sydney, Melbourne ONLY. If you are out of these areas either contact us for freight quote or we will call you prior to shipping for the extra freight charge.

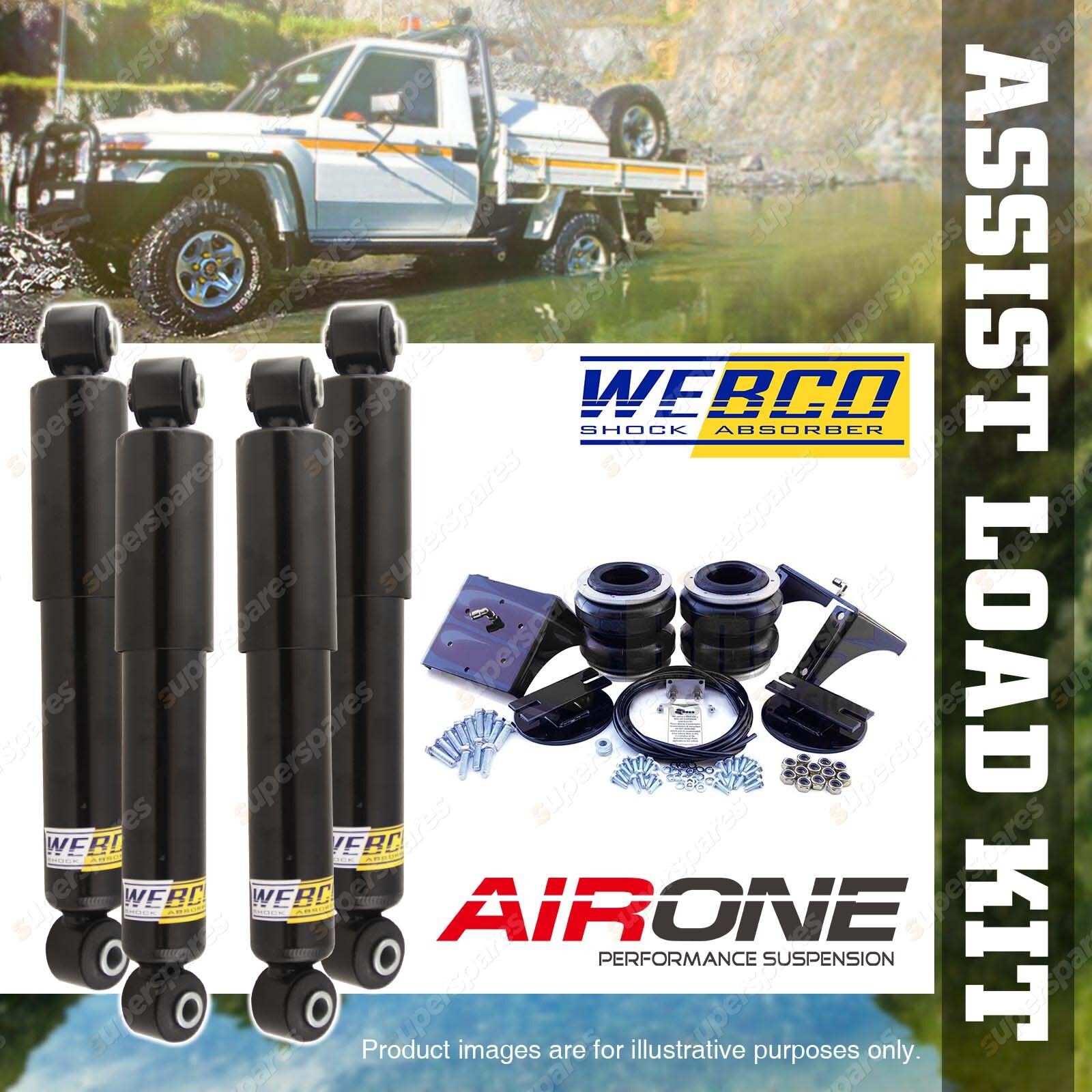

CONTENTS:

4 x Webco Ultra Gas Shock Absorbers

1 x Air Bag Load Assist Kit 2.27T

SUIT:

Ford F250 F350 4WD with 4 rear shock absorbers 1/2001-2009

The Air Bag Load Assist Kit comes with:

• 2 x Extreme Series Double Bellow Airbags
• 4 x brackets (2 upper & 2 lower)
• Mounting Hardware
• Quality SAE J844 Government Approved Airline
• Dual Schrader Valves Mounted in Stainless Panel
• Instructions for fitting

Strength & Specifications

* Support Wires - 9 High Tensile Central, 4 Each End

* Cured Natural rubber

* Ballistic woven reinforcing

* 6mm Zinc Plated Steel End Caps

* Burst Pressure - Over 600psi

* Independent Test Pressure - 480psi

* Recommended working range - 5psi - 160psi

* The Airone air bags have a recommended test pressure of 480psi. That meets the pressure vessel industry guidelines of 3 times the maximum working pressure.

* The Airone air bags are undeniably the strongest in the automotive industry and exceed any other airbag brands by nearly double.

* When The Airone air bags are utilised in the load assist applications it's virtually impossible to pull the bags apart. Since The air bags started manufacturing £¬There never had an airbag fail from bursting.

The Airone Extreme series airbags are rated at 2600lb or 1136kg per side and have been government approved tested to over 750psi.

Average dual cab ute will run around 15-45psi depending on load.

NOTE: This kit is not suitable for a lowered vehicle due to the limited space between the chassis and axle.
