Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2023 Superspares. All rights reserved.

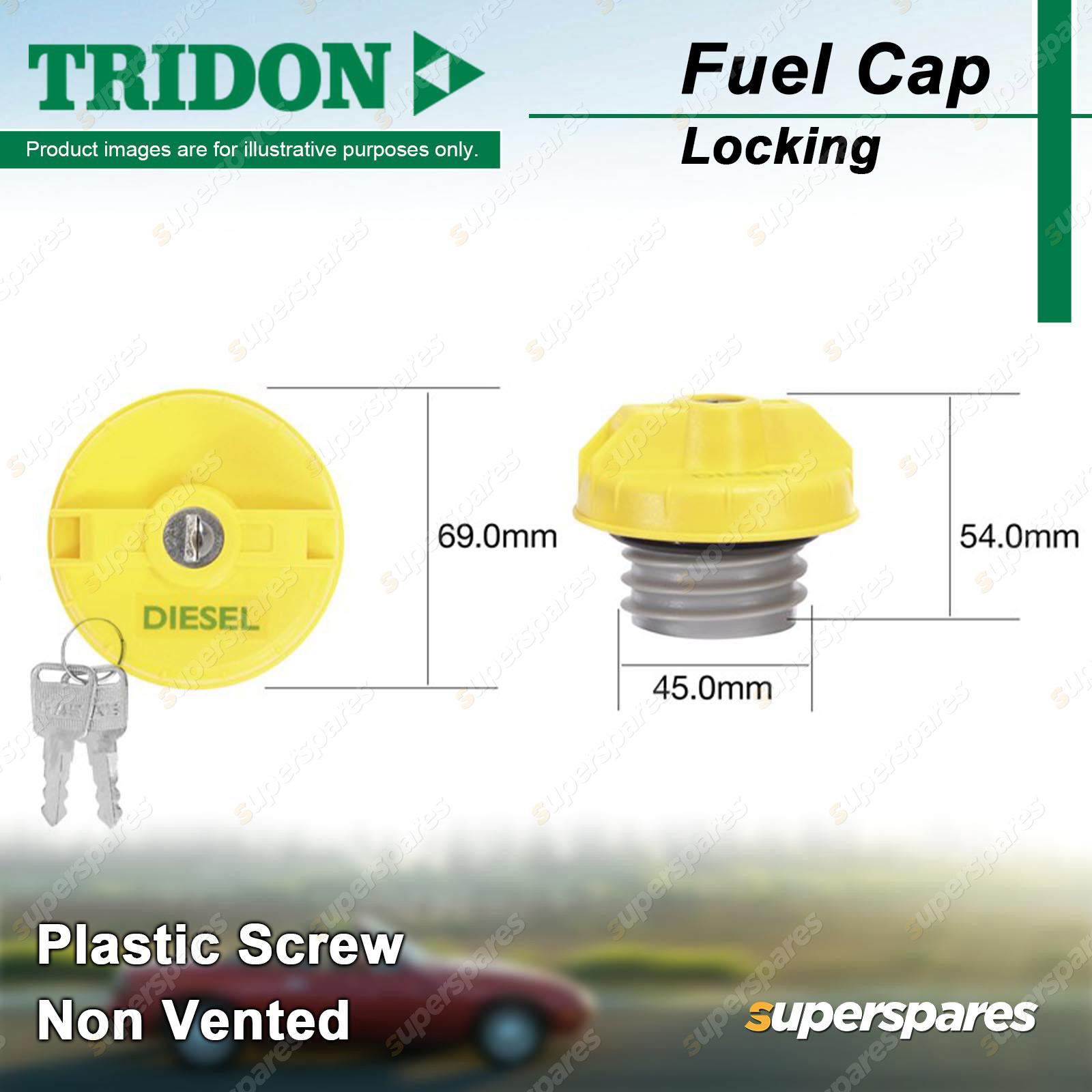

Content : 1 x Tridon Locking Fuel Cap
System : Non Vented
Cap Style : Plastic Screw |
Specifics:
Cap Width : 69.0mm
Cap Height : 54.0mm
Neck Diameter : 45.0mm |
Suit Vehicle:
Toyota Hiace (Diesel) KZH100 (NZ only) Turbo 3.0L 4Cyl 1KZTE SOHC 8V 01/1993-01/2002
Toyota Hiace (Diesel) LH51 - LH71 2.4L 4Cyl 2L SOHC 8V 01/1984-09/1989 Note 1
Toyota Hiace (Diesel) LH162R 3.0L 4Cyl 5L SOHC 8V 10/2000-10/2001
Toyota Hiace (Diesel) LH172 3.0L 4Cyl 5L SOHC 8V 01/2000-01/2005
Toyota Hiace (Diesel) LH172R 3.0L 4Cyl 5L SOHC 8V 07/1999-03/2007
Toyota Hiace (Diesel) KDH201 (Turbo) 3.0L 4Cyl 1KD-FTV DOHC 16V 01/2006-06/2011 Note 1
Toyota Hiace (Diesel) KDH200R - KDH222R (Turbo) 2.5L 4Cyl 2KD-FTV DOHC 16V 03/2005-10/2006
Toyota Hilux (Diesel) LN40 - LN55 2.2L 4Cyl L 01/1980-08/1984 Note 1
Toyota Hilux (Diesel) LN56 2.4L 4Cyl 2L SOHC 8V 09/1984-09/1988
Toyota Hilux (Diesel) LN85 2.4L 4Cyl 2L SOHC 8V 01/1988-01/1998
Toyota Hilux (Diesel) LN85R 2.4L 4Cyl 2L SOHC 8V 10/1988-08/1994
Toyota Hilux (Diesel) LN106 2.8L 4Cyl 3L SOHC 8V 01/1993-01/1998
Toyota Hilux (Diesel) LN107 2.8L 4Cyl 3L SOHC 8V 01/1991-01/1998
Toyota Hilux (Diesel) LN130 (NZ only) Turbo 2.4L 4Cyl 2LT(E) SOHC 8V 01/1989-01/1995
Toyota Hilux (Diesel) KZN165R - Turbo 3.0L 4Cyl 1KZ-TE SOHC 8V 11/2000-04/2005
Toyota Hilux (Diesel) KZN185 (NZ only) Turbo 3.0L 4Cyl 1KZ-TE SOHC 8V 01/1995-01/2000
Toyota Hilux (Diesel) KUN16R KUN26R (Incl. Turbo) 3.0L 4Cyl 1KD-FTV DOHC 16V 03/2005-09/2006
Toyota Hilux (Diesel) KUN26R - Turbo 3.0L 4Cyl 1KD-FTV DOHC 16V 10/2006-12/2010
Toyota Hilux Surf KZN130 - KZN185W (Turbo) 3.0L 4Cyl 1KZ-TE SOHC 8V 01/1993-04/2005
Toyota Hilux Surf KDN185 - KDN215 (Incl. Turbo) 3.0L 4Cyl 1KD-FTV DOHC 08/2000-06/2011
Toyota Landcruiser (Diesel) BJ74 - Turbo 3.4L 4Cyl 13B-T OHV 03/1986-12/1989 Note 1
Toyota Landcruiser (Diesel) HJ60 4.0L 6Cyl 2H OHV 11/1980-11/1984 Note 1
Toyota Landcruiser (Diesel) HJ60 4.0L 6Cyl 2H OHV 11/1984-04/1990 Note 1
Toyota Landcruiser (Diesel) HJ61 HJ75 (Incl. Turbo) 4.0L 6Cyl 12H-T 2H OHV 11/1984-12/1991 Note 1
Toyota Landcruiser (Diesel) PZJ70 PZJ73 3.5L 5Cyl 1PZ 03/1990-02/1991
Toyota Landcruiser (Diesel) HDJ80(R) - HDJ82 (Incl. Turbo) 4.2L 6Cyl 1HD(F)T SOHC 24V 01/1990-12/1998
Toyota Landcruiser (Diesel) HDJ100 (NZ only) Turbo 4.2L 6Cyl 1HDFTE SOHC 24V 01/1998-10/2000
Toyota Landcruiser (Diesel) HDJ100R - Turbo 4.2L 6Cyl 1HD-FTE SOHC 24V 01/2000-10/2007
Toyota Landcruiser (Diesel) HZJ70 HZJ73 4.2L 6Cyl 1HZ SOHC 12V 01/1990-09/1992
Toyota Landcruiser (Diesel) HZJ80R 4.2L 6Cyl 1HZ SOHC 12V 01/1990-02/1998
Toyota Landcruiser (Diesel) HZJ105R 4.2L 6Cyl 1HZ SOHC 12V 03/1998-08/2002
Toyota Hiace (Diesel) LH103(R) 113(R) 2.8L 4Cyl 3L SOHC 8V 10/1989-12/2006 Note 1
Toyota Hiace (Diesel) LH125R 2.8L 4Cyl 3L SOHC 8V 10/1989-10/2000 Note 1
Toyota Hiace (Diesel) LH184R 3.0L 4Cyl 5L SOHC 8V 10/2000-02/2005 Note 1
Toyota Hilux (Diesel) LN86R 2.8L 4Cyl 3L SOHC 8V 09/1991-11/1997 Note 1
Toyota Hilux (Diesel) LN106R 2.8L 4Cyl 3L SOHC 8V 10/1988-11/1997 Note 1
Toyota Hilux (Diesel) LN107R 2.8L 4Cyl 3L SOHC 8V 01/1992-11/1997 Note 1
Toyota Hilux (Diesel) LN111R 2.8L 4Cyl 3L SOHC 8V 10/1988-12/1997 Note 1
Toyota Hilux (Diesel) LN147 3.0L 4Cyl 5L SOHC 8V 11/1997-10/2000 Note 1
Toyota Hilux (Diesel) LN147R 3.0L 4Cyl 5LE SOHC 8V 12/2000-01/2004 Note 1
Toyota Hilux (Diesel) LN147R (NZ only) 3.0L 4Cyl 5LE SOHC 8V 12/2000-04/2005 Note 1
Toyota Hilux (Diesel) LN167R LN172R 3.0L 4Cyl 5L(E) SOHC 8V 11/1997-04/2005 Note 1
Toyota Hilux Surf LN130(G W)-LN131V (Incl. Turbo) 2.4L 2.8L 4Cyl 2L-T(E) 3L 04/1989-08/1993 Note 1
Toyota Landcruiser (Diesel) HDJ78R - Turbo 4.2L 6Cyl 1HD-FTE SOHC 24V 11/2001-02/2007 Note 1
Toyota Landcruiser (Diesel) HDJ79R - Turbo 4.2L 6Cyl 1HD-FTE SOHC 24V 11/2001-03/2007 Note 1
Toyota Landcruiser (Diesel) HZJ75R 4.2L 6Cyl 1HZ SOHC 12V 03/1990-10/1999 Note 1
Toyota Landcruiser (Diesel) HZJ78R 4.2L 6Cyl 1HZ SOHC 12V 11/1999-10/2001 Note 1
Toyota Landcruiser (Diesel) HZJ78R 4.2L 6Cyl 1HZ SOHC 24V 11/2001-02/2007 Note 1
Toyota Landcruiser (Diesel) HZJ79R 4.2L 6Cyl 1HZ SOHC 12V 11/1999-02/2007 Note 1
Toyota Landcruiser (Diesel) VDJ76R VDJ78R Turbo 4.5L V8 1VD-FTV DOHC 32V 03/2007-06/2011 Note 1
Note 1: Check illustrations for correct application.
Toyota Hiace KDH V4 3.0L 1KD-FTV DOHC Diesel 11/2006-01/2019 Location: Filler Neck
Toyota Hiace KDH201 V4 3.0L 1KD-FTV DOHC Diesel 11/2006-01/2019 Location: Filler Neck
Toyota Hilux KUN26 Turbo Diesel V4 3.0L 1KD-FTV DOHC Diesel 03/2005-2008 Location: Filler Neck Comments: Screw Type
Toyota Hilux KUN126, KUN26, KUN16 Turbo Diesel V4 3.0L 1KD-FTV DOHC Diesel 03/2005-2008 Location: Filler Neck Comments: Screw Type - check illustrations
Toyota Hilux KUN16 Turbo Diesel V4 3.0L 1KD-FTV DOHC Diesel 03/2005-09/2015 Location: Filler Neck Comments: Screw Type
Tridon fuel caps are manufactured using either metal or plastic design suitable for use on sealed (non vented) or open (vented) fuel systems to prevent evaporation and contamination, and are available in both locking and non-locking options in various styles including metal bayonet, plastic screw and push and turn designs. |
 |
There are two common styles of fuel caps, vented and non-vented. Vented fuel caps allow fuel pressure to be released from the fuel system (commonly used on vehicles pre 1985). Non-vented fuel caps are designed to maintain the integrity of the fuel system, they do not allow fuel pressure to be released from the system, required with the introduction of emission control regulations (vehicles manufactured post 1985). |
|
Fuel Cap (Locking) Replacement Key Guide
 |
• A range of replacement keys is available to suit Tridon Locking Fuel caps.
• A code number for the key is located on the outside barrel assembly.
• To order a replacement key check the code and contact us to order the correct key. |
Tridon Australia Pty Ltd is an Australian owned company incorporated in 1976 and supplies the automotive, original equipment, industrial and hardware markets in Australia and New Zealand.
Tridon is totally committed to quality and this helps tridon achieve world class status in manufacturing. |
 |
