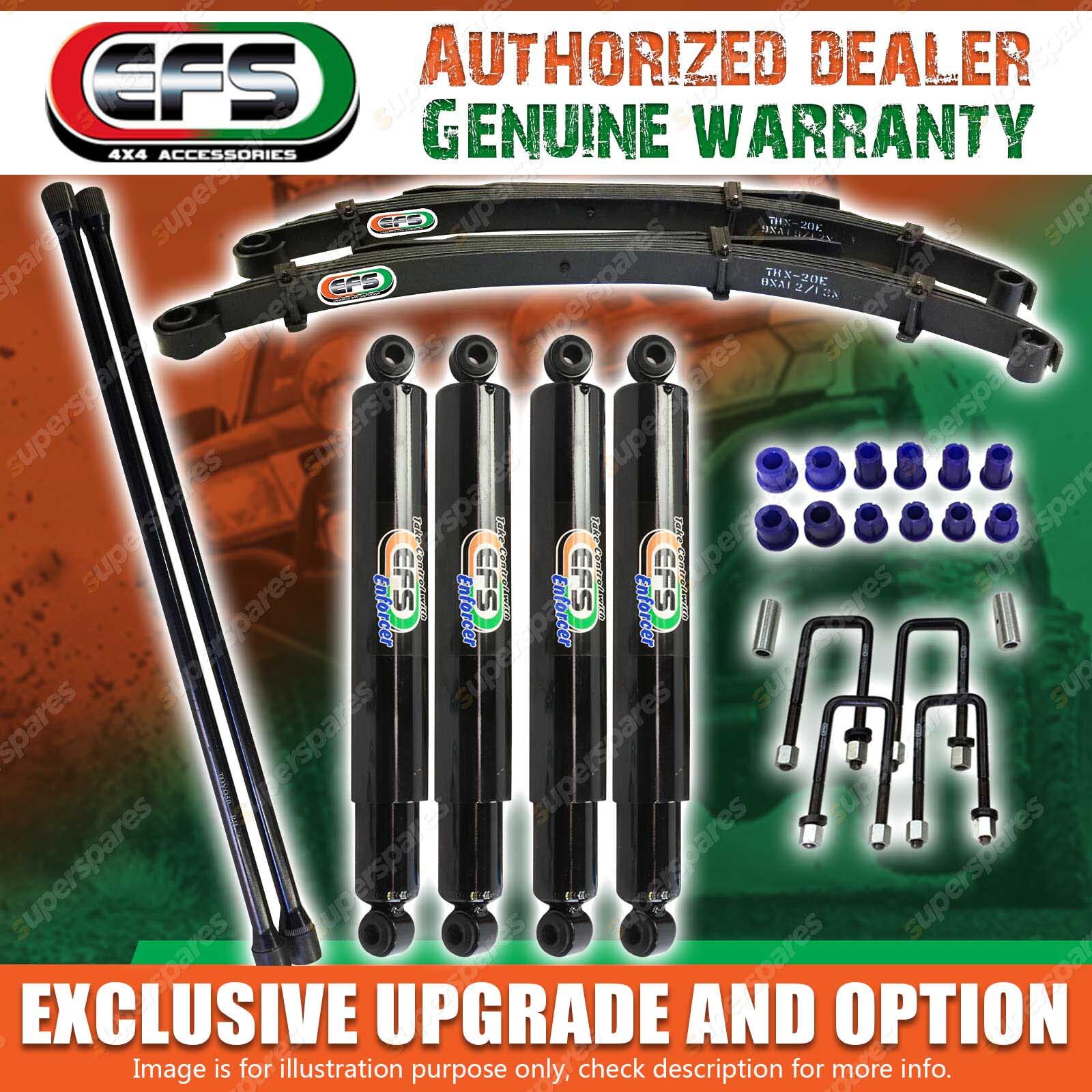

EFS 40mm SUSPENSION LIFT KIT CONTENTS: |
LOCATION | DESCRIPTION | QTY | NOTE |
| FRONT | EFS SHOCK ABSORBERS | 2 | Enforcer |
| FRONT | EFS TORSION BAR | 2 | 26mm OD - 1063mm Long |
| REAR | EFS SHOCK ABSORBERS | 2 | Enforcer |
| REAR | LEAF SPRING WITH U BOLT + BUSH | 2 | 0-300kg |
TOYOTA HILUX IFS YN63 YN67 1985-1989 |
Available Upgrade&Options:
LOCATION | SPRING RATING OPTION | QTY | PRICE | LINK |
| REAR | HD Leaf Springs Constant 300kg | 2 | +80 Pair | |
>| REAR | Extra HD Leaf Springs Constant 500kg | 2 | +120 Piar | |
| REAR | EFS SHACKLES | 2 | +80 Pair | UK733 |
| REAR | EFS PIN | 2 | +50 Pair | GR386 |
Specifications:
|
 | EFS Enforcer Shock Absorbers A no fuss application to get the job done. Great for the occasional 4WDer with great performance at a great price.
* Low Pressure Nitrogen Gas -To prevent the oil from cavitation (foaming)
* Long Travel Design -To maximise wheel travel when a vehicle is raised and increase articulation
* 32mm Piston, Twin Tube Construction - Greater control of the spring during the rebound and compression cycles
* 15mm Quality Hardened Chromed Piston Rod -Increased durability
* 1.2mm Outer and Inner Wall Thickness -For greater durability and strength
* Dynamic Motion Control Technology - Adjusts to different road and off road conditions
* High Quality Internal & External Components - To prevent fade under harsh conditions and long life poly bushes for durability.
|
EFS Torsion Bar The EFS Torsion Bar is increased in strength by 25% to 30% over the standard O.E Bar. Just as Coil Springs & Leaf Springs fatigue & sag so do Torsion Bars. The EFS Torsion Bar will provide you with increased handling & response from your vehicle & compensate for extra loads.
* Pre Stressed - To ensure longevity & durability
* Increased in Spring rate - To compensate for load bearing accessories
* Made from High Carbon Alloy Steel (XK-5160)
* Bars Feature - Machined Splines, Bar Peeled & Rolled to ensure strength & reliability
Note: The ends of all EFS Torsion Bars are painted with a colour code, when fitting these Bars the following applies.
Green to front of vehicle, Blue to left & Red to right. |  | |
 | EFS Leaf Springs EFS Multi-Leaf Springs are made from high quality Japanese grade SUP9 & SUP9A Alloyed Carbon spring steel.
* Tapered Leaf Ends - To reduce the inter-leaf friction & to improve pressure distribution in the load bearing area.
* Bolt Clip Liners - To reduce noise & friction.
* Inter-Leaf Graphite Coating - For further reduction of friction.
* Shot Peened & Scragged Tested - To reduce stress & ensure longevity.
* Leaf Inserts Pads - For further reduction of friction.
* Bolt Clips & Military Wraps - To prevent leaf spread & provide safety.
| |
EFS U-BOLTS
Powder coasted for protection against corrosion & made from quality carbon steels with rolled threads to increase strength, due to a uniform grain finish.Deep nuts are supplied for safety & strength with flat washers to provide a smooth contact surface area to reduce plate friction.EFS have a vast variety of U-bolts on offer for most Makes and Models of 4wd's. We also can custom bend U-Bolts to order.
|  |
 | EFS PINS & SHACKLES
Engineered to be stronger than the original equipment & greaseable for ease of service. The EFS Pins & shackles are made from medium & high grade carbon steels then case hardened & gold cadmium plated or black oxided for increased strength & corrosion protection EFS offers standard replacements and a small range of anti-inversion std and extended shackles.
* Engineered with increased strengthGreaseable for ease of maintenance
* Case hardened & gold cadmium plated
* Extended & standard anti-inversion shackles
* 3 years / 100, 000 km warranty
|
EFS POLYURETHANE BUSHES
EFS Polyurethane Bushes are made from high quality elastomers which gives the EFS Polyurethane Bush a high isolating strength & durable.
EFS poly bushes have an elastomer rating of 80 Duro to give improved suppleness & grease channels for increased distribution of lubrication.properties.
|  |
