TOP GUN Spiral Wire Ignition Lead Set for Subaru Forester Impreza Liberty Legacy

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2024 Superspares. All rights reserved.

CONTENT: Spiral Wire Spark Plug Ignition Leads Set

SUIT:

Subaru Forester X XS SG S11 SG9 02/2002-05/2005 4 Door Wagon 2.5 litre EJ251 F4 16v SOHC MPFI (112kW) AWD AT/MT Note 4

Subaru Impreza GG G11 GG9 04/2000-06/2007 4 Door Wagon 2.0 litre EJ201 F4 16v SOHC MPFI (92kW) AWD AT/MT Note 3

Subaru Impreza GX RX GC G10 GC8 03/1998-09/2000 4 Door Sedan 2.0 litre EJ201 F4 16v SOHC MPFI (92kW) AWD AT/MT Note 3

Subaru Impreza GX RX LUXURY GD G11 GD9 04/2000-06/2007 4 Door Sedan 2.0 litre EJ201 F4 16v SOHC MPFI (92kW) AWD AT/MT Note 3

Subaru Impreza LX GX RX SPORTSWAGON GF G10 GF8 03/1998-09/2000 4 Door Wagon 2.0 litre EJ201 F4 16v SOHC MPFI (92kW) AWD AT/MT Note 3

Subaru Impreza WRX GC G10 GC8 03/1998-09/2000 4 Door Sedan 2.0 litre EJ205 F4 16v DOHC I/C Turbo MPFI (160kW) AWD AT/MT Note 1

Subaru Impreza WRX GD G11 GDA 04/2000-10/2002 4 Door Sedan 2.0 litre EJ205 F4 16v DOHC I/C Turbo MPFI (160kW) AWD AT/MT Note 1

Subaru Impreza WRX GF G10 GF8 03/1998-09/2000 4 Door Wagon 2.0 litre EJ205 F4 16v DOHC I/C Turbo MPFI (160kW) AWD AT/MT Note 1

Subaru Impreza WRX GG G11 GGA 04/2000-10/2002 4 Door Wagon 2.0 litre EJ205 F4 16v DOHC I/C Turbo MPFI (160kW) AWD AT/MT Note 1

Subaru Impreza WRX GD G11 GDA 07/2002-07/2005 4 Door Sedan 2.0 litre EJ205 F4 16v DOHC I/C Turbo MPFI (168kW) AWD AT/MT Note 1

Subaru Impreza WRX GG G11 GGA 07/2002-07/2005 4 Door Wagon 2.0 litre EJ205 F4 16v DOHC I/C Turbo MPFI (168kW) AWD AT/MT Note 1

Subaru Impreza WRX WRP10 GD G11 GDA 04/2004-07/2005 4 Door Sedan 2.0 litre EJ205 F4 16v DOHC I/C Turbo MPFI (175kW) AWD AT/MT Note 1

Subaru Impreza WRX GD G11 GDA 08/2000-05/2005 4 Door Sedan 2.0 litre EJ205 F4 16v DOHC I/C Turbo MPFI (184kW) AWD AT/MT Note 1

Subaru Impreza WRX GG G11 GGA 08/2000-06/2007 4 Door Wagon 2.0 litre EJ205 F4 16v DOHC I/C Turbo MPFI (186kW) AWD AT/MT Note 1

Subaru Impreza WRX STI GD G11 GDB 04/2001-07/2005 4 Door Sedan 2.0 litre EJ207 F4 16v DOHC I/C Turbo MPFI (195kW) AWD MT Note 1

Subaru Impreza WRX GC G10 GC8 1998-09/2000 4 Door Sedan 2.0 litre EJ207 F4 16v DOHC I/C Turbo MPFI (206kW) AWD MT Note 1

Subaru Impreza WRX STI GM G10 GM8 03/1998-07/1999 2 Door Sedan 2.0 litre EJ207 F4 16v DOHC I/C Turbo MPFI (206kW) AWD MT Note 1

Subaru Impreza WRX STI GC G10 GC8 04/1999-09/2000 4 Door Sedan 2.0 litre EJ207 F4 16v DOHC I/C Turbo MPFI (206kW) AWD MT Note 1

Subaru Impreza WRX STI GD G11 GDB 10/2000-06/2007 4 Door Sedan 2.0 litre EJ207 F4 16v DOHC I/C Turbo MPFI (206kW) AWD MT Note 1

Subaru Impreza HX-20CS GC G10 GC8 1998-07/2000 4 Door Sedan 2.0 litre EJ20E F4 16v SOHC MPFI (100kW) AWD AT/MT Note 3

Subaru Impreza SPORTSWAGON GF G10 GF8 03/1996-04/1999 4 Door Wagon 2.0 litre EJ20E F4 16v SOHC MPFI (85kW) AWD AT/MT

Subaru Legacy BE B12 BE5 04/1998-06/2003 4 Door Sedan 2.0 litre EJ201 F4 16v SOHC MPFI (92kW) AWD AT/MT

Subaru Legacy BH B12 BH5 04/1998-06/2003 4 Door Wagon 2.0 litre EJ201 F4 16v SOHC MPFI (92kW) AWD AT/MT

Subaru Legacy 2 5i BL B13 BL9 04/2007-05/2009 4 Door Sedan 2.5 litre EJ253 F4 16v SOHC VT MPFI (127kW) AWD AT/MT Note 2

Subaru Legacy LIMITED BH B12 BH9 04/1998-06/2003 4 Door Wagon 2.5 litre EJ251 F4 16v SOHC MPFI (115kW) AWD AT/MT

Subaru Legacy Outback BP B13 BP9 01/2003-05/2009 4 Door Wagon 2.5 litre EJ253 F4 16v SOHC VVT MPFI (130kW) AWD AT Note 2

Subaru Legacy Outback 25I BR B14 BR9 02/2009-04/2012 4 Door Wagon 2.5 litre EJ253 F4 16v SOHC VVT MPFI (125kW) AWD CVT Note 2

Subaru Liberty 2 5i BL B13 BL9 04/2007-05/2009 4 Door Sedan 2.5 litre EJ253 F4 16v SOHC VVT MPFI (127kW) AWD AT/MT Note 2

Subaru Liberty 2 5i BP B13 BP9 04/2007-05/2009 4 Door Wagon 2.5 litre EJ253 F4 16v SOHC VVT MPFI (127kW) AWD AT/MT Note 2

Subaru Liberty GX BE B12 BE5 04/1998-06/2003 4 Door Sedan 2.0 litre EJ201 F4 16v SOHC MPFI (92kW) AWD AT/MT

Subaru Liberty GX BH B12 BH5 04/1998-06/2003 4 Door Wagon 2.0 litre EJ201 F4 16v SOHC MPFI (92kW) AWD AT/MT

Subaru Liberty RX HERITAGE BE B12 BE9 04/1998-06/2003 4 Door Sedan 2.5 litre EJ251 F4 16v SOHC MPFI (115kW) AWD AT/MT

Subaru Liberty RX HERITAGE BH B12 BH9 04/1998-06/2003 4 Door Wagon 2.5 litre EJ251 F4 16v SOHC MPFI (115kW) AWD AT/MT

Subaru Outback BH B12 BH9 04/1998-06/2003 4 Door Wagon 2.5 litre EJ251 F4 16v SOHC MPFI (115kW) AWD AT/MT Note 2

Subaru Outback 2 5i BP B13 BP9 05/2003-06/2007 4 Door Wagon 2.5 litre EJ253 F4 16v SOHC MPFI (121kW) AWD AT/MT Note 2

Subaru Outback 2 5i BP B13 BP9 08/2007-08/2009 4 Door Wagon 2.5 litre EJ253 F4 16v SOHC VVT MPFI (127kW) AWD AT/MT Note 2

Subaru Outback 2 5i BR B14 BR9 05/2009-06/2012 4 Door Wagon 2.5 litre EJ253 F4 16v SOHC VVT MPFI (123kW) AWD MT/CVT Note 2

Note 1:has Post Coil Take off Straight - Central On Top Of Motor and Long Single Piece Rubber S. P. Boot With Right Angle Top
Note 2:has Post Coils and Long Single Piece Rubber Spark Plug Boot With Rght Angle Top
Note 3:Long Single Piece Rubber S/P Boot With Right Angle Top
Note 4:Post Coils With Long Single Piece Rubber S/P Boot With Right Angle Top

Through the use of the latest Spiral Wire Technology for ultimate engine performance. Manufactured from the very best materials to the most exacting tolerances our ignition lead Kits fit and perform perfectly and are backed with a 2 Year / 50,000km replacement warranty.

Burnt Ignition Leads Keep cable well clear of the exhaust manifold and other 'hot spots'.	Rodent Attack Drought conditions and lack of food have caused rodents to seek alternate food and warm living conditions.	Burnt Spark Plug Boots Keep boots well clear of the exhaust manifold and other 'hot spots'.
Voltage Flash Over Some engines are prone to misfire problems caused by voltage leakage across the surface of the spark plug ceramic. Voltage 'flash over' is seen in an etched mark down the side of the spark plug ceramic and scorching inside the spark plug boot. Spark plug leads and spark plugs are recommend to be replaced. Spark plug gaps may need to be reduced.	Terminals Pulling Off Always pull the leads by the boot and not the cable. Do not try to remove the boots off the lead as it may damage terminals and conductor inside the cable.	Chemical Attack Ensure no cleaning agents (degreaser) are sprayed directly onto the cable or boots. If battery acid is spilled onto leads it is important to wash all acid off immediately, failure to do so will cause leads to split and fail.

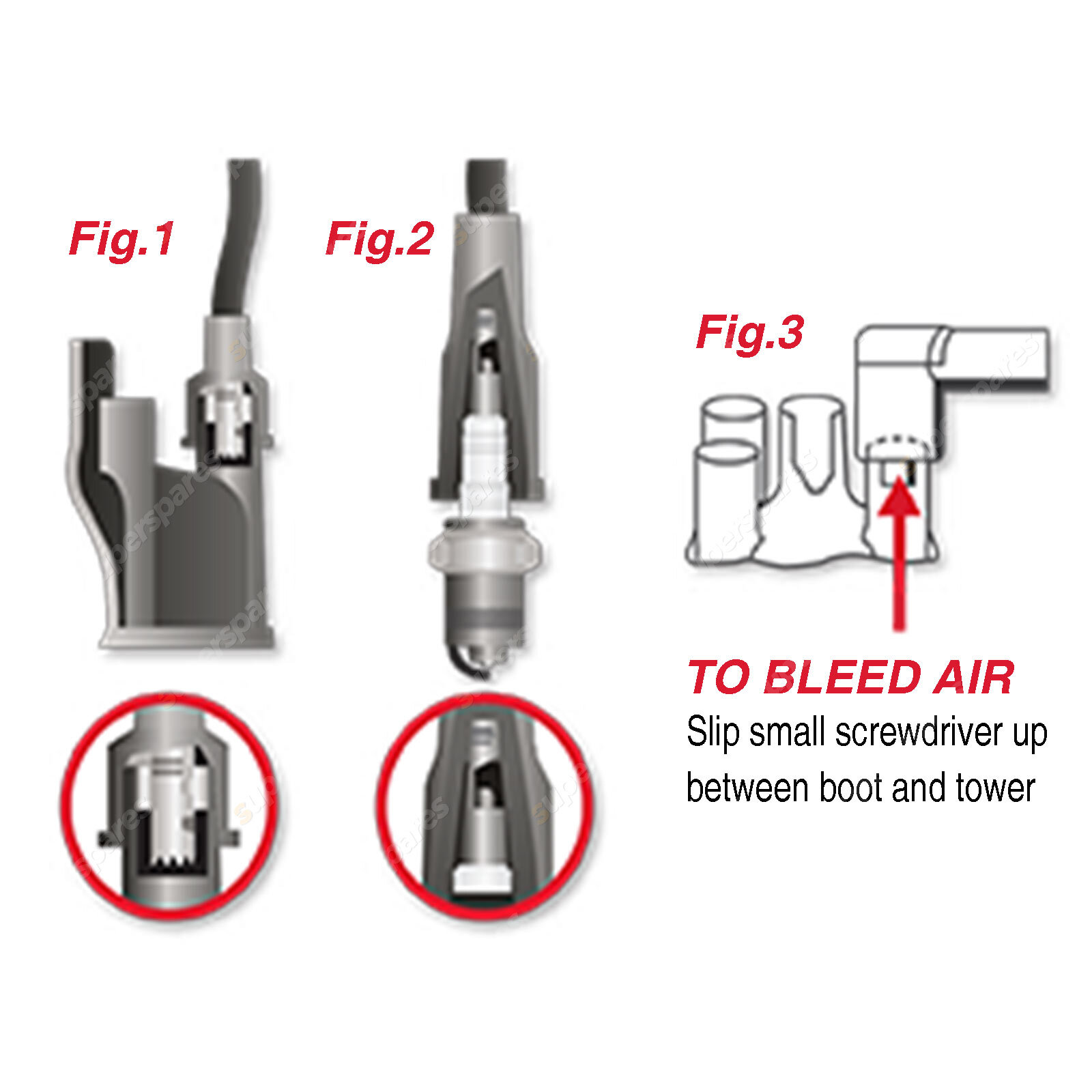

Standard Kits Change leads one at a time, starting from the longest, to ensure proper firing sequence is maintained. Push plug end on firmly and ensure a good connection is made. The terminal should 'click' over spark plug. Experience has shown that many failures occur from terminals incorrectly connected at either the spark plug end or the distributor/coil end. (See fig.1 and fig.2) Push distributor and coil end carefully, ensuring a positive connection is made.

Multi-Valve Kits When replacing integral cap and lead sets it is important to also check and/or change the rotor button. If the tube assembly keeps 'popping off' the plug after installation, then check that the vent hole in the top cavity cover is unblocked. Pass a piece of thin wire through this hole to remove any blockages. Ensure no water or oil is in the plug chambers, as this will cause the tube assembly to break down or deteriorate.
