Toledo Timing Tool Kit for Mazda 3 Mazda 6 CX-7 MX5 Tribute 2.0 2.3 2.5

Toledo Timing Tool Kit - Ford & Mazda

Suitable for popular Ford and Mazda 1.4L 2.5L DOHC petrol and 1.6L 2.0L diesel engine applications
For the locking of the camshaft, crankshaft and tensioners during the removal and installation of the engine timing belt or chain along with other engine servicing and repairs
ATTRIBUTES
Fuel Type Petrol & Diesel
Suits Citroen
C4 (Diesel) 1.6L 2006 - 2011

Ford:
Fiesta (WP - WS) 1.4L - 2.0L 2004 - 2010
Fiesta (WS - WT) 1.6L (Diesel) 2009 - 2012
Focus (LR - LW) 1.6L - 2.0L 2000 - 2012
Mondeo (HA - MC) 2.0L, 2.3L 1995 - 2012
Ford Ecosport BK V4 1.5L 1.5 V DOHC Petrol 12/2013-12/2017
Ford Escape ZD V4 2.3L L3 V DOHC Petrol 04/2008-01/2012
Ford Fiesta WT Econetic V4 1.6L TZJB DOHC Diesel 10/2010-08/2012
Ford Fiesta WT CL, LX V4 1.6L TSJ DOHC VVT Petrol 10/2010-07/2013
Ford Fiesta WT CL, LX, Zetec V4 1.6L HXJ DOHC VVT Petrol 10/2010-07/2013
Ford Fiesta WT Econetic, LX, Zetec V4 1.6L HHJ DOHC Diesel 10/2010-07/2013
Ford Fiesta WT LX V4 1.6L HHJ DOHC Diesel 10/2010-07/2013
Ford Fiesta WZ V4 1.5L UEJ V DOHC Petrol 08/2013-06/2014
Ford Focus LW V4 1.6L Duratec DOHC Petrol 07/2011-09/2015
Ford Focus LW V4 2.0L Duratorq DW10C (163ps) DOHC Diesel 07/2011-09/2015 Comments: Suits models with timing belt
Ford Kuga TF V4 2.0L TXMA (163ps) DOHC Diesel 02/2013-01/2015 Comments: Suits models with timing belt
Ford Kuga TF V4 2.0L T8MB DOHC Diesel 01/2015-12/2016 Comments: Suits models with timing belt
Ford Mondeo MB,MC TDCi V4 2.0L D4204T7 (163ps) DOHC Diesel 05/2010-04/2015 Comments: Suits models with timing belt
Ford Mondeo MC V4 2.3L Duratec V DOHC Petrol 11/2010-04/2015
Ford Mondeo MD TDCi V4 2.0L T8CF (180ps) DOHC Diesel 05/2015-ON Comments: Suits models with timing belt
Ford Ranger PX V4 2.5L DPAT DOHC Petrol 09/2011-05/2015

Honda:
Integra 1.8L (B18) 1993 - 2001

Mazda:
CX-7 2.3L (MZR) 2006 - 2009
Mazda 2 1.5L (ZY) 2007 - 2012
Mazda 3 2.0L, 2.3L 2004 - 2012
Mazda 6 2.0L - 2.5L 2002 - 2012
MX5 2.0L (MZR) 2005 - 2012
Tribute 2.3L (L3) 2004 - 2008
Mazda CX-3 DK SKYACTIV-D V4 1.5L S5-DPTS DOHC Diesel 03/2015-ON
Mazda CX-3 DK V4 2.0L PE-VPS V DOHC Petrol 03/2015-01/2016
Mazda CX-3 DK V4 2.0L PE-VPS DOHC VVT Petrol 03/2015-01/2016
Mazda CX-5 KE V4 2.0L PE-VPS DOHC Petrol 02/2012-03/2017
Mazda CX-5 KE V4 2.5L PY V DOHC Petrol 03/2013-03/2017
Mazda CX-7 ER V4 2.3L MZR DISI / L3 DOHC Petrol 11/2006-01/2012
Mazda CX-7 ER ER5 V4 2.5L L5 V DOHC Petrol 10/2009-01/2012
Mazda Mazda2 DE MY11 V4 1.5L ZY V DOHC Petrol 05/2010-10/2013
Mazda Mazda2 DJ V4 1.5L P5 DOHC VVT Petrol 11/2014-ON
Mazda Mazda3 BL V4 2.0L LFDE V DOHC Petrol 04/2009-01/2014
Mazda Mazda3 BL SP25 V4 2.5L L5 V DOHC Petrol 04/2009-01/2014
Mazda Mazda3 BL MPS Turbo V4 2.3L L3 DOHC Petrol 07/2009-01/2014
Mazda Mazda3 BL Skyactiv V4 2.0L SkyactiveG V DOHC Petrol 10/2011-01/2014
Mazda Mazda3 BM V4 2.0L PE-VPS V DOHC Petrol 01/2014-07/2016
Mazda Mazda3 BM V4 2.5L L5 V DOHC Petrol 01/2014-07/2016
Mazda Mazda6 GJ V4 2.5L PY DOHC Petrol 12/2012-09/2016
Mazda Mazda6 GJ V4 2.0L LFVE V DOHC Petrol 03/2013-09/2016
Mazda MX5 NC V4 2.0L MZR / LDFE DOHC Petrol 09/2005-01/2015
Mazda MX5 ND V4 1.5L P5 DOHC VVT Petrol 08/2015-ON

Volvo:
C30 (TDi) 1.6L (D4164T) 2010 - 2012
C30, S40, V50 (TDi) 2.0L (D4204T) 2009 - 2010

*Abbreviated list only, for complete vehicle application listings please use the Tridon Part Finder

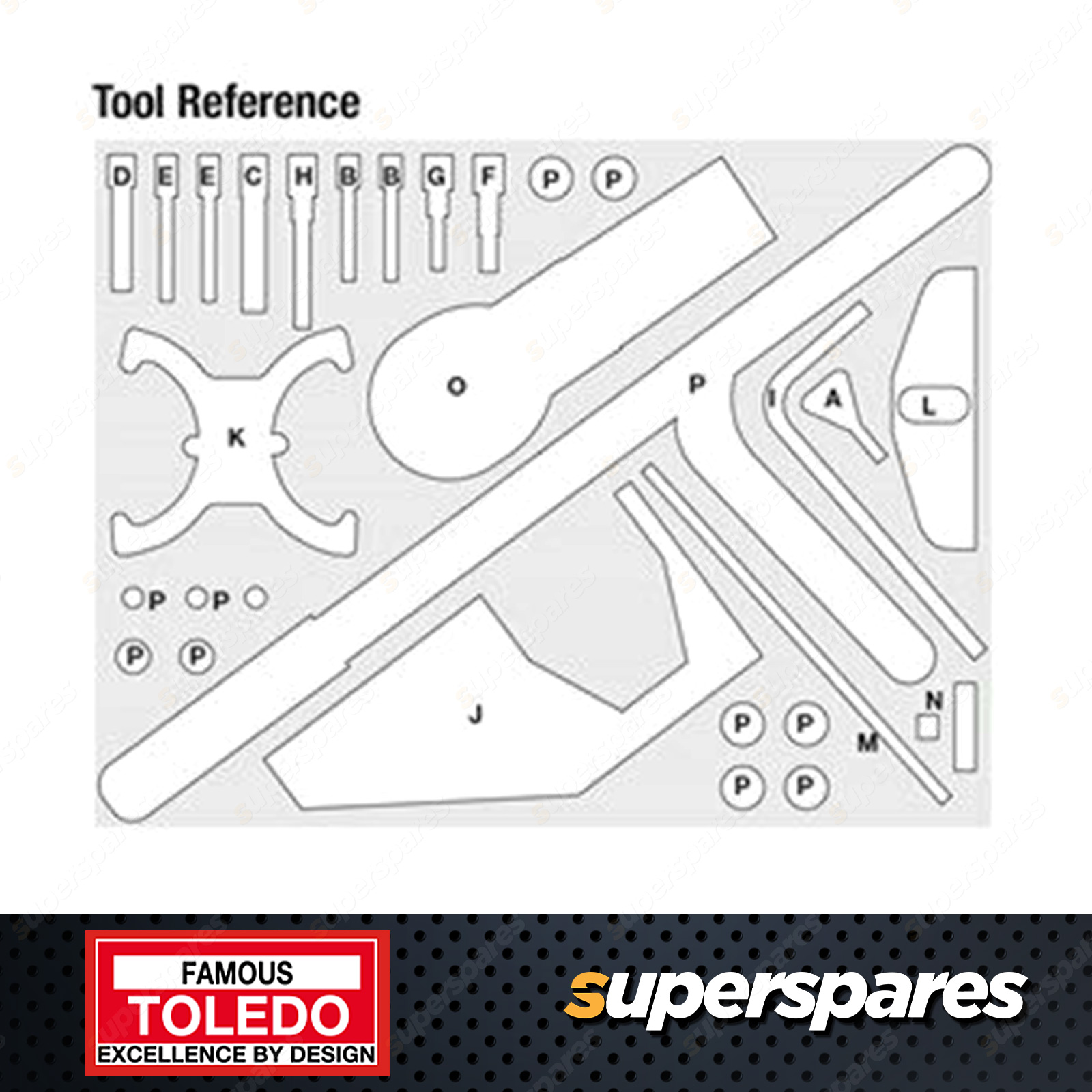

ITEM CONTENTS

Name Qty
A - Chain Tensioner Locking Pin
B - Locking Pin
C - Crankshaft Locking Pin
D - Camshaft Locking Pin
E - Camshaft Timing Pins
F - Crankshaft Alignment Pin
G - Camshaft Timing Pin
H - Crankshaft Timing Pin
I - Flywheel Timing Pin
J - Camshaft Alignment Tool
K - Camshaft Sprocket Locking Tool
L - Flywheel Locking Tool
M - Camshaft Setting Bar
N - Flywheel Locking Tool Adaptors
O - Crankshaft Pulley Holding Tool
P - Universal Sprocket Holding Tool 1
