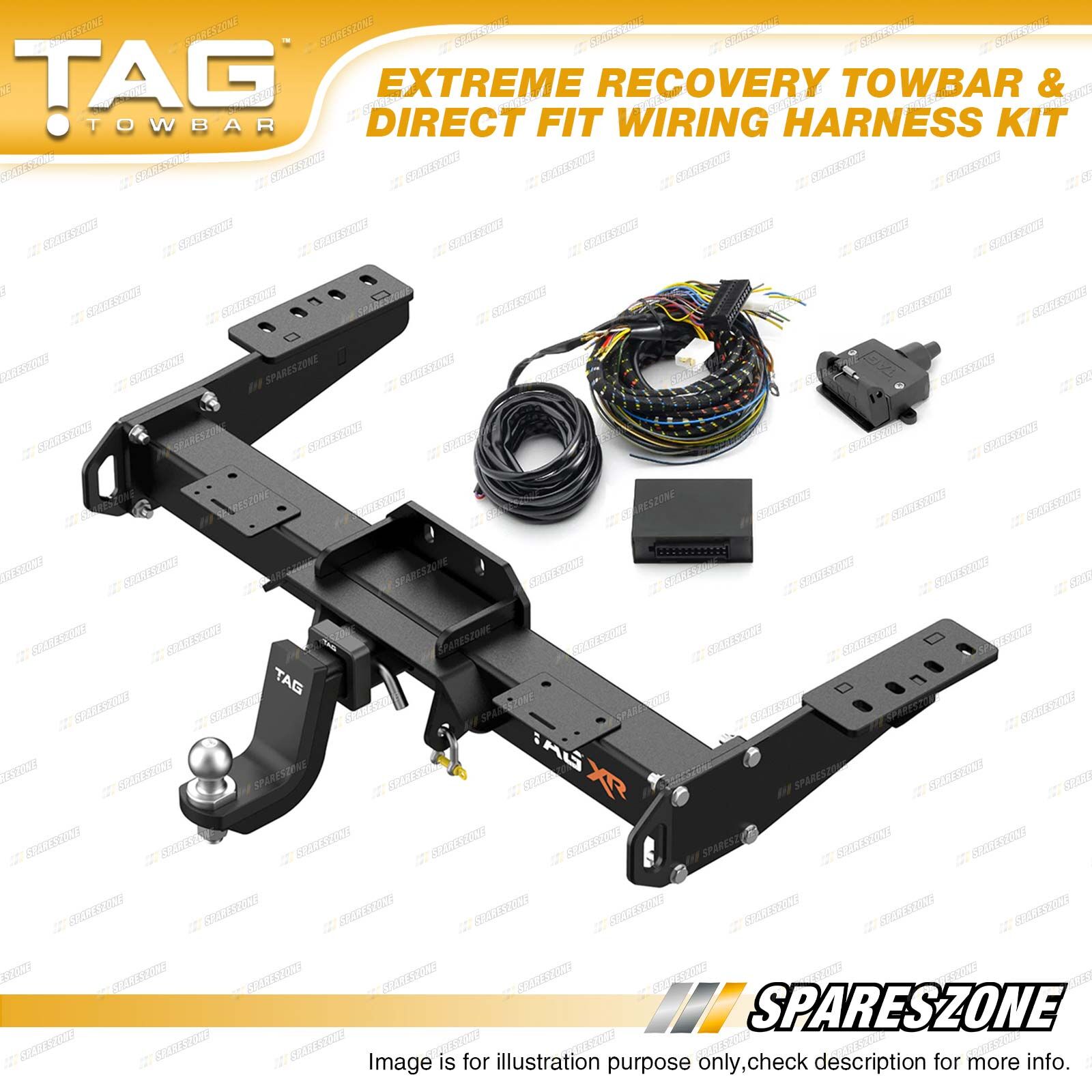

TAG Extreme Recovery Towbar Kit Brink Wiring for Ford Ranger PY T6.2 Cab Chassis

Wiring Option: CANBUS Direct Fit Wiring

Diagnostic Coding: Optional For All Features

Reverse Sensor Cut Off: Coding required

Fitting Time Approx: 1 hr

Fog Cut Off: Automatic

Plug Connection: 7 Pin Flat Socket

Towbar Class: Heavy Duty 4x4 Recovery

Towbar Capacity: 3500kg

Ball Weight: 350kg

Recovery Load-tested: 4500KG WLL

Recovery Points: 2

Tow Ball Mount: L4171

Coating: Powder Coated

Bumper Removed During Fitment: No

Bumper Cut Out Required: No

Exposure: Exposed

Hitch Type: 50mm Square Hitch Receiver

TAG Extreme Recovery Towbar:

• 89mm x 89mm Extreme Duty Reinforced Crossbar
• Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
• Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
• Highly durable, textured Extreme Duty Powder Coated Finish
• Dual top-mounted Trailer & Anderson Plug Mounts
• Class 4 Towbar - 50mm Square Hitch Receiver
• TAG Limited Lifetime Warranty
• Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles.

Wiring Harnress:

• No special tools or soldering required.
• Compatible with Trailer Stability Programming (TSP), Lane Collision Avoidance systems, Park Distance Controls (PDC).
• Does not interfere with brake lights, turning signals and live wire connection.
• TAG Limited Lifetime Warranty.
• Each wiring kit includes harness, ECU module, 7-Pin Flat Socket, installation instructions and connection guide.

Full trailer light functionality and no fault codes without coding tool. For wiring harness to work with all factory sensors and features coding is required.
