Tools Included in This Tool Kit1/4"Dr Sockets & Accessories- 12pt - 4, 5, 6, 7, 8, 9, 10, 11, 12 & 13mm
- 12pt - 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16 & 1/2"
- Torx - T10, T15, T20 & T25
- Inhex - 3, 4, 5 & 6mm, 1/8, 5/32, 3/16, 7/32 & 1/4"
- 45T Ratchet, Flex Handle & Universal Joint
- Extension Bars - 50 & 150mm
3/8"Dr Sockets & Accessories- 12pt - 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 & 22mm
- 12pt - 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16 & 7/8"
- 12pt - Deep - 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm
- 12pt Deep - 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16 & 3/4"
- Deep 12pt - 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm
- Deep 12pt - 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16 & 3/4"
- Torx - T27, T30, T40, T45, T50 & T55
- Inhex - 6, 7, 8, 9 & 10mm, 3/16, 7/32, 1/4, 5/16 & 3/8"
- Spark Plug Sockets - 5/8 & 13/16"
- 45T Ratchet, Flex Handle & Universal Joint
- Extension Bars - 75 & 150mm
- Adaptors - 3/8Fx1/4M (x2) & 3/8Fx1/2M
1/2"Dr Sockets & Accessories- 12pt - 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30 & 32mm
- 12pt - 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8,1-3/16 & 1-1/4"
- Spark Plug Sockets - 5/8 & 13/16"
- 45T Ratchet, Flex Handle & Universal Joint
- Extension Bars - 75, 125 & 150mm
- Adaptor - 1/2Fx3/8M
Spanners- Quad Drive Combination Spanners - 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19,20, 21, 22, 23, 24, 25 & 26mm
- Quad Drive Combination Spanners - 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4,13/16, 7/8, 15/16 & 1"
- Flare Nut Spanners - 10x11, 12x13, 14x17 & 19x22mm
- Flare Nut Spanners - 3/8x7/16, 1/2x9/16, 5/8x11/16 & 3/4x7/8"
TOOLS- Screwdrivers - 3.0x75, 5.5x100, 6.5x38, 6.5x100, 6.5x150 & 8.0x150mm
- Screwdrivers - #0x75, #1x75, #2x38, #2x100, #2x150 & #3x150mm
- Screwdrivers - T8, T10, T15, T20, T25, T27, T30 & T40
- Precision Screwdrivers - 2.0x50, 2.5x50, 3.0x50, #0x50, #00x50 & #000x50mm
- Technicians Bit set - 71pc
- Ratchet Driver Bit Set - 31pc
- Impact Screwdriver Set - 13pc
- Hex Keys - 1.5, 2, 2.5, 3, 4, 5, 6, 8 & 10mm
- Hex Keys - 1/16, 5/64, 3/32, 1/8, 5/32, 3/16, 1/4, 5/16 & 3/8"
- Torx Keys - T10, T15, T20, T25, T27, T30, T40 & T50
- Hex Keys Stubby - 2, 2.5, 3, 4, 5, 6, 8 & 10mm
- Hex Keys Stubby - 5/64, 3/32, 1/8, 5/32, 3/16, 1/4, 5/16 & 3/8"
- Torx Keys Stubby - T8, T10, T15, T20, T25, T30, T40 & T50
- Pliers - Combination, Long Nose, Multigrip (x3) & Locking
- Circlip Pliers Set - 4pc
- Cutters - Diagonal - 2pc
- Adjustable Wrenches - 3pc
- Hammers - Ball Pein 16oz & 24oz, Dead Blow, Soft/Hard Head - 40mm
- Pin Punch & Chisel Set - 10pc
- Gasket Scraper Set - 3pc
- Screw Extractor Set - 5pc
- Thread Files - 2pc
- Electrical Digital Multimeter
- Circuit Tester
- Pick Set - 4pc
- Tweezers Set - 4pc
- Wire Brush Set - 3pc
- Magnetic Pick-up Tool
- Inspection Mirror
- Tape Measure
- Hacksaw
- Knife

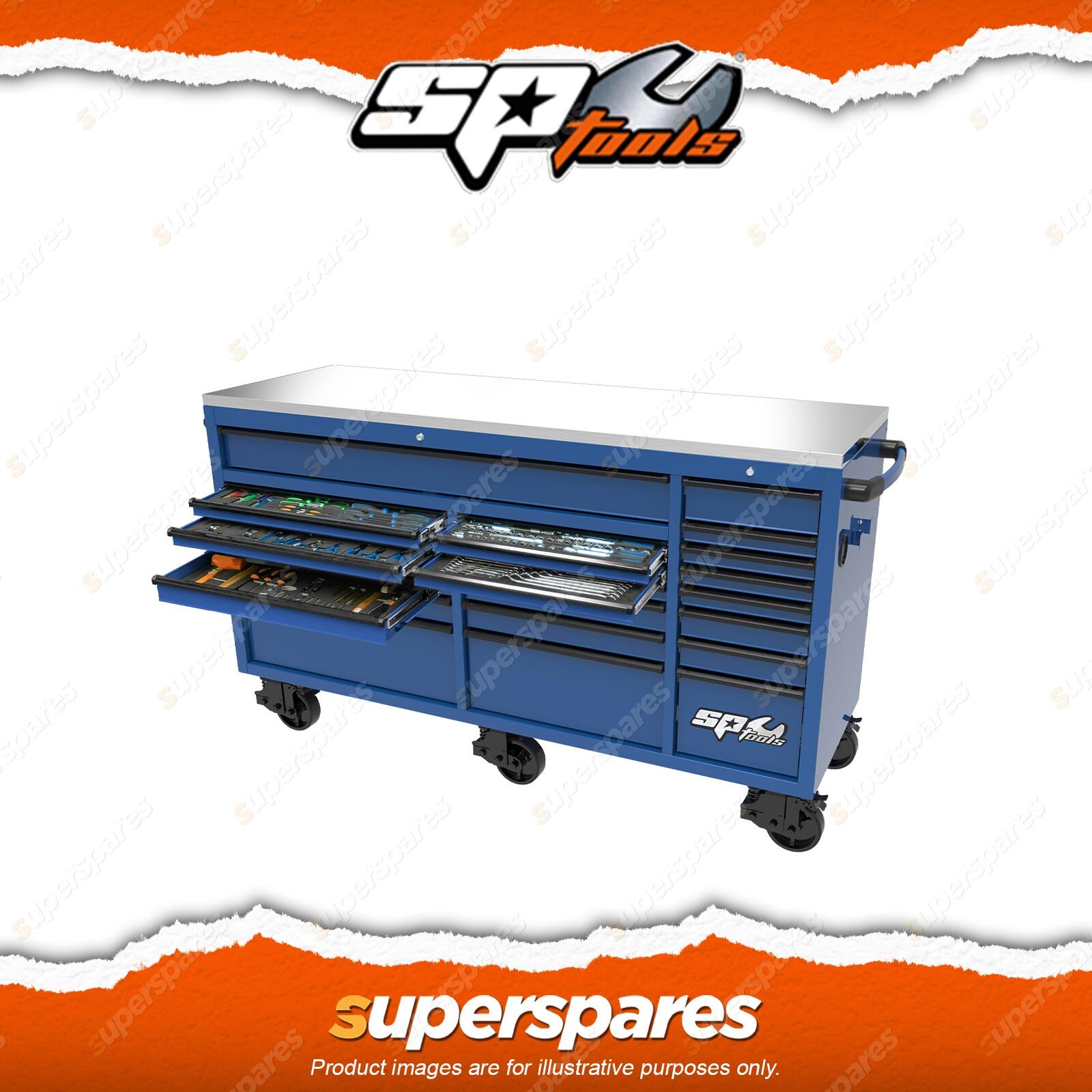

- USA Sumo Series 73" Roller Cabinet - 21 Drawer
New Features Across The Usa Sumo Series Range- Double Wall Super Duty Construction ¨C all USA Sumo Series boxes use 1.5mm (14.5ga) steelconstruction as standard. That's more steel than likefor like competitors
- Extra Height ¨C technicians seem to be gettingtaller every generation. SP Tools has stepped it upand increased the head clearance height on our USASumo Series Hutches. We have set the new clearanceat 1855mm (6'1").
- On-Board Power ¨C charge and store all your cordlesstools, lighting, and diagnostic equipment. SP Toolshas created a unique on-board magnetic attachmentsystem so you can move and use your Power whereever you need.
- Super Duty Casters ¨C all USA Sumo Series storagesystem use the unique spring-loaded super duty caster.Each caster is capable of supporting 400kg.
- Sp Max Bbs Drawerslides ¨C the Drawerslides inthe new USA Sumo series have lifted us to a new levelof capacity over and above our existing BBS. They arerated at 60Kg per Drawer and 120kg per Drawer on thewider and deeper Drawers
- Sp One-Touch Cliklok ¨C the new Drawer retentionsystem has an easy one touch single handed releaseand open function. The perfect combination to keepthe Drawers securely closed, but easy to open
- UV Powder Coating ¨C the USA Sumo Series uses thelatest technology in Ultraviolet (UV) Powder Coating.We have combined the advantages of thermosettingpowder coatings with those of liquid ultraviolet curecoating technologies.
73" USA Sumo Series Roller Cabinet21 Drawer - Heavy duty steel wall construction
- Stainless steel work top
- Extra long deep top Drawer
- Triple Drawer bank
- Soft Close Drawers with heavy duty full extension ball bearing Drawerslides
- SP Cliklok Drawer locking system ensures Drawers stay closed and secureInternal locking system for extra security
- Extreme duty spring castors - 2x lockable swivel
- Top Drawer load weight: 120Kg
- Standard Drawer load weight: 60Kg
- Bottom Drawers load weight: 120Kg
Magnetic Mount Power BoardUnique to SP ToolsPosition your Power boards anywhere on your tool kit. All USA Sumo Series roll cabs, top hutches and side cabinets include several built-in cable access points, strategically positioned to allow you to Power or charge your tools and USB Powered devices as conveniently as possible. Each Power board Includes 4 individually switched surge protected Power outlets and 4 USB ports. 128" TOOL KIT COMBINED Dimensions:3250w x 622d x 1752h (1954h with castors)(6'1" Head Clearance) 73" USA Sumo Series 21 Drawer Roller Cabinet1850w x 622d x 888h (1954h with castors)(mm) - 1x Drawer : 1367w x 575d x 115h
- 3x Drawers: 736w x 575d x 45h
- 2x Drawers : 736w x 575d x 73h
- 1x Drawer : 736w x 575d x 240h
- 3x Drawers: 566w x 575d x 45h
- 2x Drawers : 566w x 575d x 73h
- 1x Drawer : 566w x 575d x 240h
- 1x Drawer : 301w x 575d x 100h
- 4x Drawers: 301w x 575d x 45h
- 2x Drawers: 301w x 575d x 73h
- 1x Drawer : 301w x 575d x 240h
|
