Sony Bluetooth Media Receiver with WebLink Cast 178 x 100 x 139mm - XAVAX5500

Contents :

1 x Sony Bluetooth Media Receiver with WebLink Cast

Description

Enjoy smartphone connectivity enhanced with screen mirroring. Thanks to dual USB ports, you can connect your smartphone and USB device at the same time. A flush bezel-less 6.95" diagonal (17.6cm) capacitive touchscreen gives you intuitive control over music, communications and more.

Specifications

Size & Weight
DIMENSIONS (W X H X D) : 178x100x139mm
WEIGHT : 1.0kg

General Features
EQUALIZER : 10-band Graphic Equalizer
EXTRA BASS : Yes (Off / 1 / 2)
FIRMWARE UPGRADABILITY : Yes
OUTPUT POWER : 55W x 4
PRE OUT : 3 Pre (Front / Rear / Sub x 1)
REAR VIEW CAMERA IN : Yes
DSO (DYNAMIC STAGE ORGANIZER) : Yes
USB : Yes (Rear x2)

Tuner Features
AUTO MEMORY : BTM
PRESET : FM18 / AM12
RDS / EON : Yes (RDS)

Bluetooth® Profile
A2DP : Yes (1.3)
AVRCP : Yes (1.3)
HFP : Yes (1.6)
PBAP : Yes (1.1)

Bluetooth® Feature
ALPHABETICAL PHONEBOOK SORTING : Yes
BATTERY REMINDER : Yes
CALL VOLUME LEVEL CONTROL : Yes
EXTERNAL MICROPHONE : Supplied
LAST DIALED CALL : Yes (select from the dialed call history)
PHONEBOOK ACCESS VIA PBAP : Yes
RECENT CALLS (# OF) : Yes
RING VOLUME LEVEL CONTROL : Yes
SIGNAL STRENGTH INDICATION : Yes
SPEED DIAL : Yes (6 memories)

Bluetooth® Audio Feature
AUDIO CODEC (BLUETOOTH AUDIO) : SBC / AAC
AUDIO LEVEL ADJUSTMENT : Yes ( -6dB to +6dB)
CUE / REV : Yes
GROUP (FOLDER) +/- : Yes
META DATA INDICATION : Yes
PAUSE (BLUETOOTH AUDIO) : Yes
REPEAT CONTROL (AUDIO DEVICE SIDE) : Yes
SHUFFLE CONTROL (AUDIO DEVICE SIDE) : Yes
TRACK +/- : Yes

Panel Design
KEY ILLUMINATION : Yes (White)
PANEL SURFACE FINISH COLOR : Black

Monitor(AVC)
BRIGHTNESS : 500cd / m2
CONTRAST RATIO : 400
DIMMER : Yes
LCD TYPE : TFT Active Matrix
RESOLUTION (DOT) : 800 x 480
SCREEN ASPECT : 17:9
SCREEN DIAGONAL (INCH / CM) : 6.95 inch

Display Panel
DIMMER ADJUST : Yes
KEY ILLUMINATION INITIAL : Yes (White)

User Interface
ASPECT RATIO SELECT : Yes
GESTURE COMMAND : Yes
PARKING CONTROL : Yes
PARKING LINE ADJUST : Yes
REAR VIEW CAMERA-IN MARKER SETTING : Yes
REMOTE COMMANDER : RM-X170
TOUCH PANEL : Yes / Capacitive

USB Mass Storage Device Control Feature
USB DEVICE CONTROL (AUDIO CODEC) : USB1: PCM / MP3 / WMA / AAC / FLAC, USB2: MP3 / WMA / FLAC
USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION) : USB1: .wav / .mp3 / .wma / .m4a / .flac, USB2: .mp3 / .wma / .flac
USB DEVICE CONTROL (PAUSE) : Yes
USB DEVICE CONTROL (REPEAT) : TRACK / FOLDER / DRIVE
USB DEVICE CONTROL (RESUME PLAY) : Yes
USB DEVICE CONTROL (SHUFFLE) : OFF / FOLDER / DEVICE
USB DEVICE CONTROL (VIDEO CODEC) : Only USB1: MPEG4-SP / AVC (H.264 Baseline) / WMV / MKV / XviD
USB DEVICE CONTROL (VIDEO PLAYABLE FILE EXTENSION) : Only USB1: .mp4 / .wmv / .mkv

Multi-Language
CAUTION : English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
ID3 TAG : English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
MENU : English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian

Connectivity
BLUETOOTH® : Yes

What's In The Box
External Microphone / Remote / Instruction Manual

Features

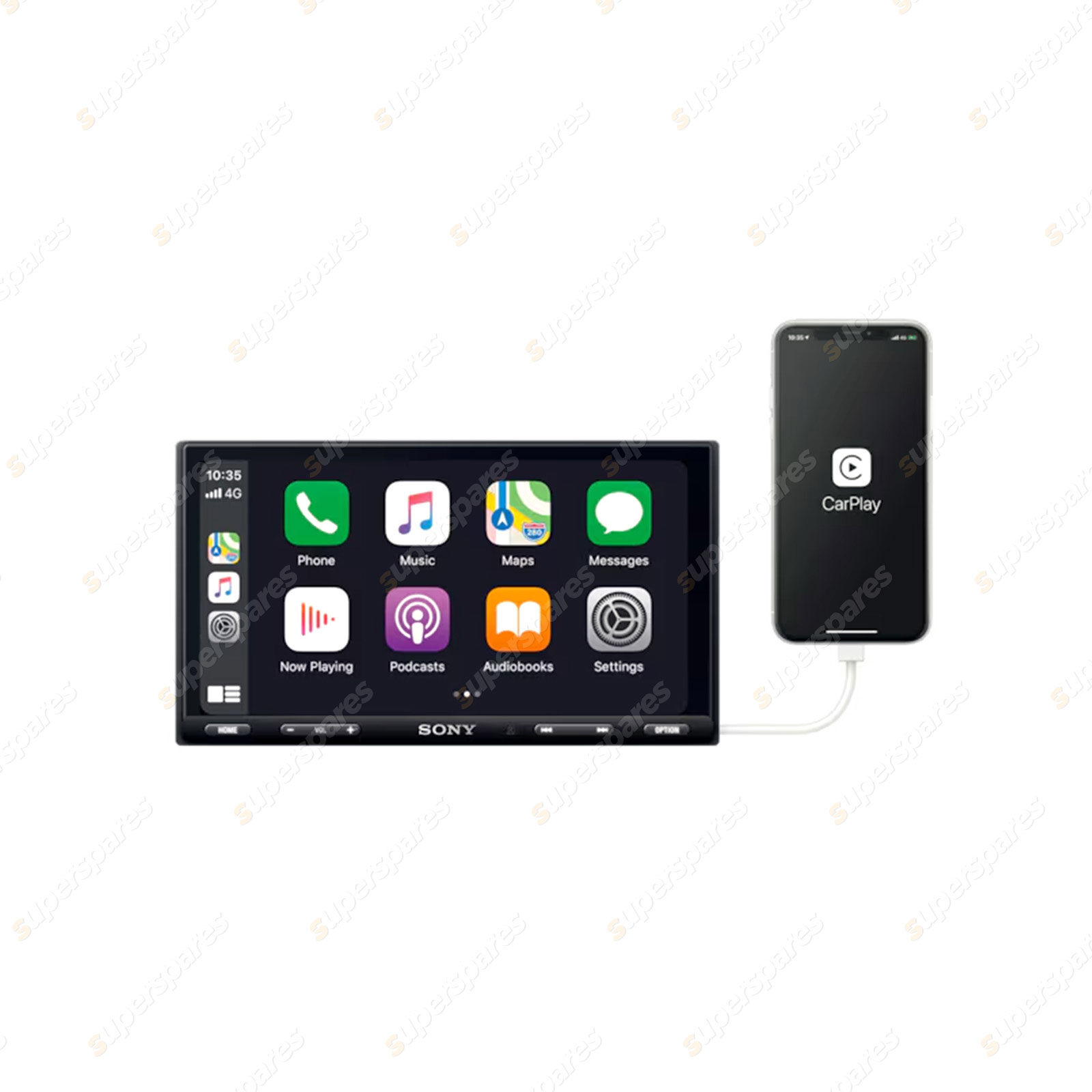

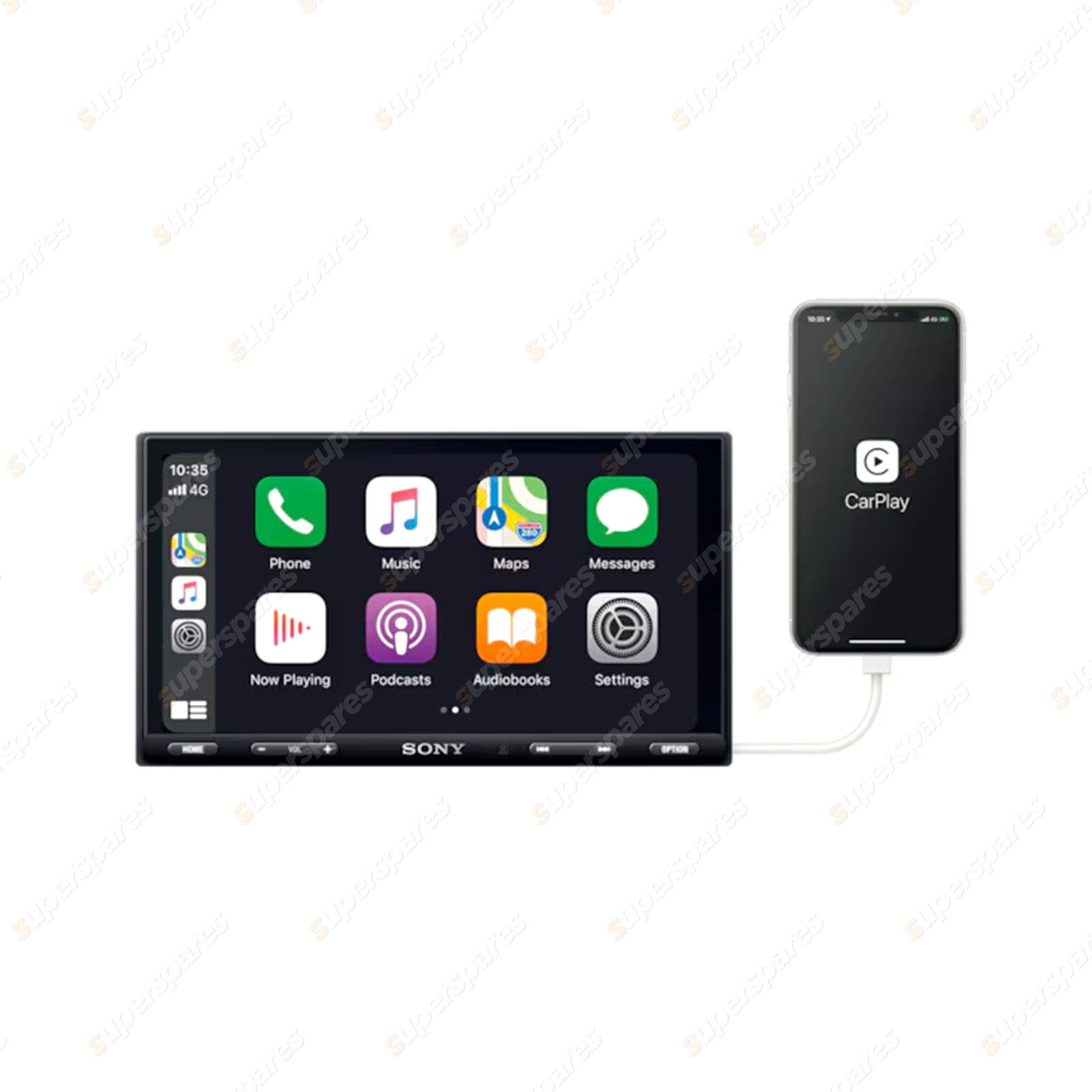

Siri with Apple CarPlay
Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control.

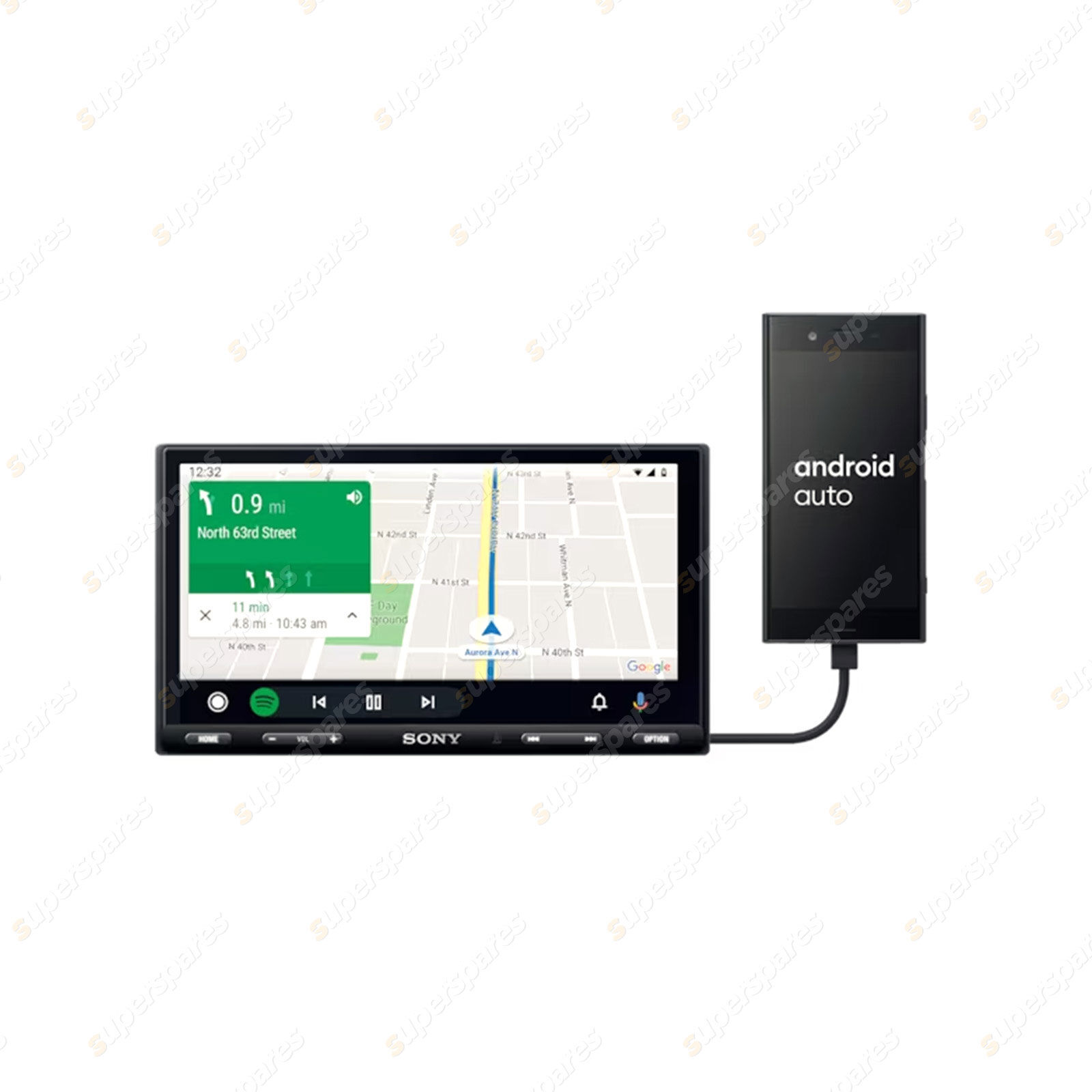

Voice Control with Android™ Auto
Use voice commands to dictate messages, take phone calls or get help from Google Maps. You can even control music playback, just by talking.

WebLink™ Cast compatible
WebLink™ is a lightweight app delivery platform designed especially for in-vehicle use. Using the Android or iOS device connection, it is now possible to mirror your smartphone screen right on the car audio display - for reliable, responsive infotainment anytime on the road.

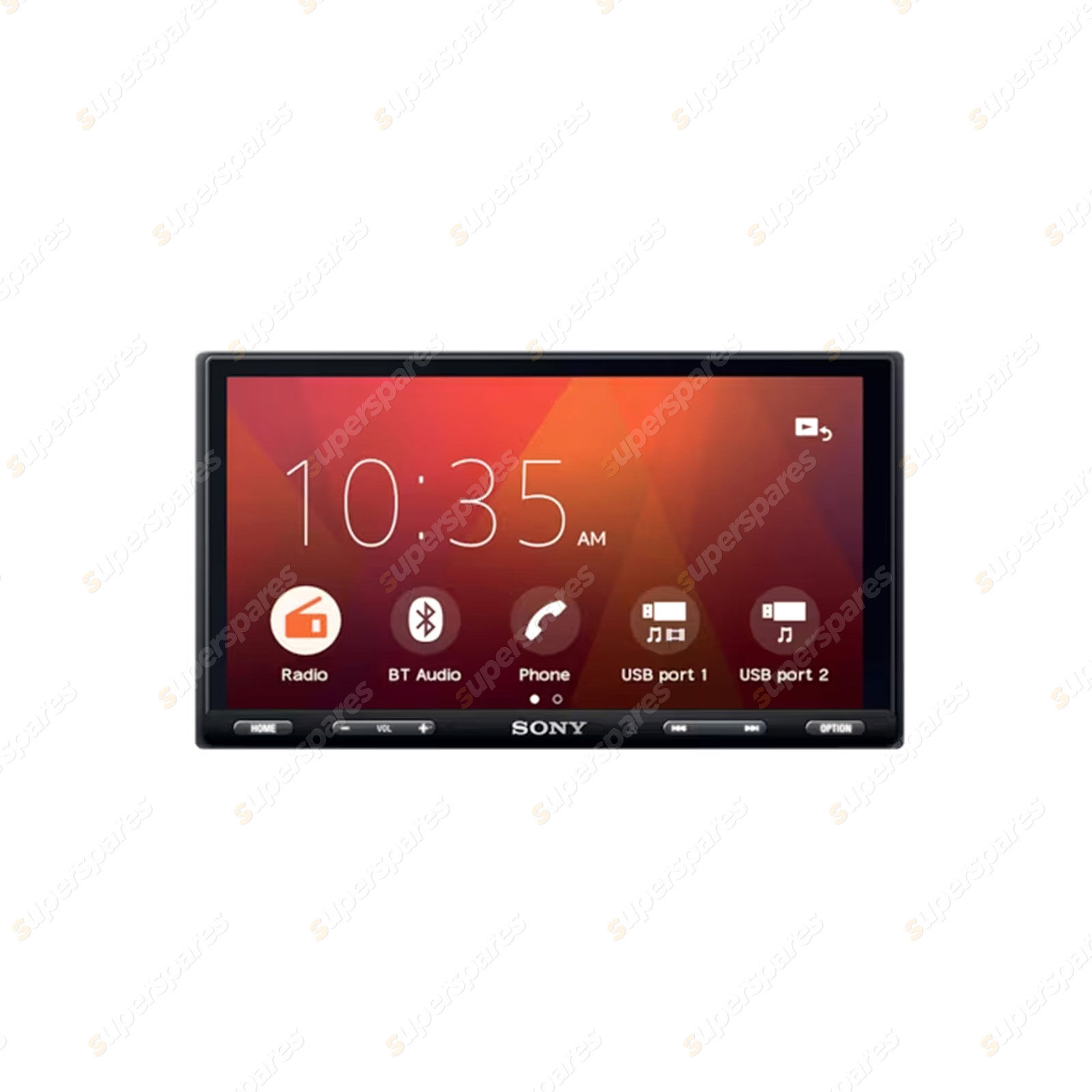

See and control everything on a flush 6.95" (diag.) touchscreen
Bring up maps, sort through playlists, and make phone calls - all with just a quick tap on the touch controls. The ultra-slim 6.95" (diag.) (17.6cm) display uses a bezel-less panel, for a smooth fit on the dashboard that blends seamlessly with your car interior.

Easy installation with a compact rear chassis
Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation, and leaves plenty of room for cabling and other accessories in the space behind the display.

Dual USB ports
Enjoy all the greatest hits from your music library while your phone handles directions. Thanks to dual USB ports, you can connect your smartphone and USB device at the same time.

3 X 5V pre-outs
Sony's head unit with high voltage pre-out gives a strong 5-volt signal that provides clearer sound for optimal connection to external power amplifiers.

Rear camera ready for easy reversing
If you've got a rear camera installed, you can use it to help you park. Whenever you tap the rear camera icon or put your vehicle in reverse, the video feed instantly comes up on screen. Customisable guidelines help you to back in smoothly and safely.

Bluetooth® wireless technology
Make hands-free calls and stream wireless audio from your smartphone with Bluetooth®.

4 x 55W amplification for clear, powerful sound
The Dynamic Reality Amp 2 gives you 4 x 55W of power, so you can play music as loudly or softly as you like. The amp has 47% less internal resistance than conventional units, for increased output and clear, natural sound at any volume.

Dynamic Stage Organiser creates virtual speakers on your dashboard
Sound waves are directional, especially in the higher frequencies - so if your speakers are positioned low in your doors, high frequency sounds are often lost, reducing clarity and instrument separation. Dynamic Stage Organiser uses digital signal processing to lift the sound, improving stereo positioning so music sounds like it's coming from right in front of you.

FLAC compatible
FLAC compatibility lets you play lossless audio files, so you can enjoy every detail of the music.
