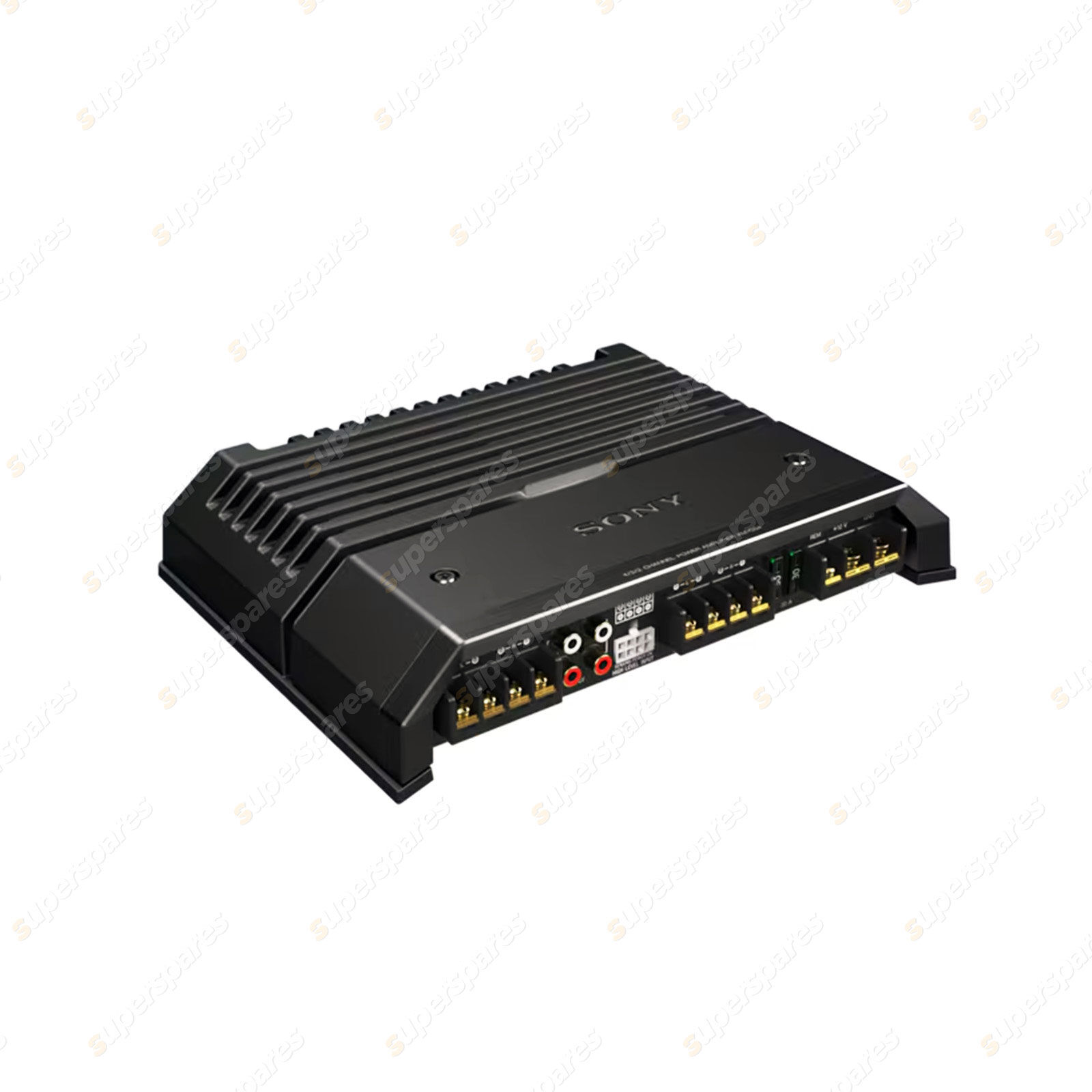

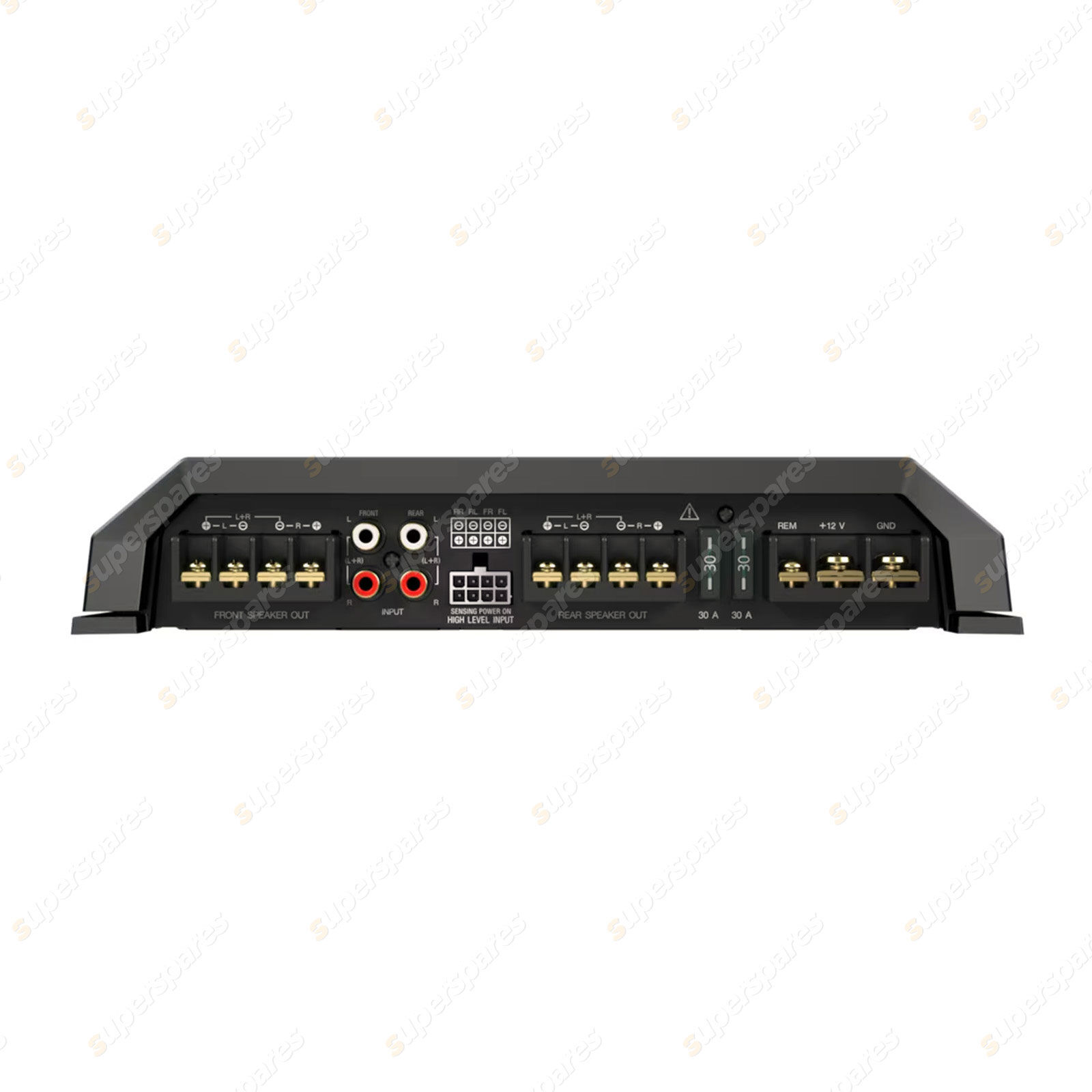

Sony 4-Channel Stereo Amplifier 100kHz Ultra-Wide Frequency Range - XMGS4

Contents : 1 x Sony 4-Channel Stereo Amplifier

Description

The XM-GS4 4-channel amplifier is engineered to enhance every track ¨C including High-Resolution Audio files, thanks to an ultra-wide frequency range that extends up to 100kHz. A range of premium circuit components work together for ultimate efficiency and pitch-perfect sound reproduction, so you can give every road trip the soundtrack it deserves.

Specifications

Size & Weight

DIMENSIONS (W X H X D) : 272 x 51 x 202
WEIGHT : 2.7 kg

Amplifier

CHANNEL CONFIGURATION : 4ch/3ch/2ch
HIGH PASS FILTER : 50-300Hz(Variable)
HIGH PASS FILTER SLOPE : 12dB/oct
LOW PASS FILTER : 50-300Hz(Variable)
LOW PASS FILTER SLOPE : 12dB/oct

Rated Output Power, RMS 20 - 20000 Hz

MAX. CHANNEL CONFIGURATION AT 4 OHM (W) / THD (%) : 70W x 4 / 1.0%
MAX. CHANNEL CONFIGURATION AT 2 OHM (W) / THD (%) : 80W x 4 / 1.0% (1kHz)
MAX. CHANNEL CONFIGURATION AT 4 OHM (W) / THD (%) : 160W x 2/ 1.0% (1kHz)

Maximum Output Power (1 kHz)

MAX. CHANNEL POWER CONFIGURATION AT 4 OHM : 150W x 4
MAX. CHANNEL CONFIGURATION AT 4 OHM BTL (BRIDGE-TIED LOAD) : 350W x 2
MAX. CHANNEL POWER CONFIGURATION AT 2 OHMS : 175W x 4

General Features

FREQUENCY RESPONSE : 10-100 k Hz
TOLERANCE : +0.5/-3dB
SIGNAL TO NOISE RATIO : 100dB
TOTAL HARMONIC DISTORTION AT 1 KHZ (%) : 0.0005

Details

CTA POWER OUTPUT : 70W x 4
CTA SN RATIO : 93dBA
LOAD CAPABILITY (OHM) : 2ohm(Yes)
MOSFET : Power supply(Yes)
SUBSONIC HIGH PASS FILTER : Yes
BASS BOOST: FREQUENCY (0 - 10 DB) : 40Hz, 0-10dB
SPEAKER LEVEL INPUT : Yes
LINE IN: INPUT SENSITIVITY : 0.3-6
GOLD PLATED CONNECTORS : Yes
CURRENT DRAIN (A) - RATED OUTPUT POWER AT 4 OHMS : 33A

What's In The Box : Warranty card / Instruction Manual

Features

High-Resolution Audio for uncompromised sound

Experience digital music to the fullest with High-Resolution Audio. By capturing music at a higher rate than CD, increasing both audio samples per second and the bit-rate accuracy of each sample, High-Resolution Audio offers an uncompromised rendition of an artist¡¯s music. Savour every breath and subtle movement for a truly emotional experience.

Ultra-wide frequency response for full-range sound

The XM-GS4¡¯s wideband frequency range ¨C ranging from 10Hz to 100kHz ¨C is designed for today¡¯s broad variety of music styles. The lower end of the frequency range offers more than enough latitude for even the deepest sub-bass notes. At the high-end, you¡¯ll be able to feel subtle sub-harmonies, giving your music more life and realism.

4 channels create a versatile sound stage

With a 70W x 4 RMS power output, this 4-channel stereo amplifier gives you a broader range of options as to how you set up your in-car sound. Using bi-amplification, you can separate bass frequencies from highs or ultra-highs, eliminating distortion that occurs when they play through the same channel. You can also independently adjust the volume of different frequencies to find the perfect balance for each song.

Schottky-barrier diodes for smooth, stable sound

Conventional diodes have a voltage drop of between 0.6 and 1.7v, whilst Schottky-barrier diodes tend to have a maximum drop of 0.45v. This means that they can deliver faster switching and high-efficiency operation, so you¡¯ll enjoy consistently stable power without noise from internal interference.

MOS FET transistor for efficient power delivery

The metal-oxide-semiconductor field-effect transistor (MOS FET) is engineered to deliver a high output from a low-current input. This allows it to provide power to the amplifier¡¯s circuits quickly and efficiently, for more responsive operation.

Dedicated control section for fine-tuned audio

The amplifier¡¯s control section, located just under the external cover, provides users with the ability to manually adjust aspects of their in-car sound ¨C including resistance and the level of power flowing through each individual component. The XM-GS4¡¯s carefully selected components are highly reliable and noise-resistant, minimising unwanted distortion. The twisted wire structures help to further cancel in-car noise, providing a cleaner overall sound.

Aluminium case absorbs external vibrations

The heavy duty, heat sink integrated aluminium body of this amplifier is designed to prevent external vibrations, for jitter-free sound that stays true to the source.
