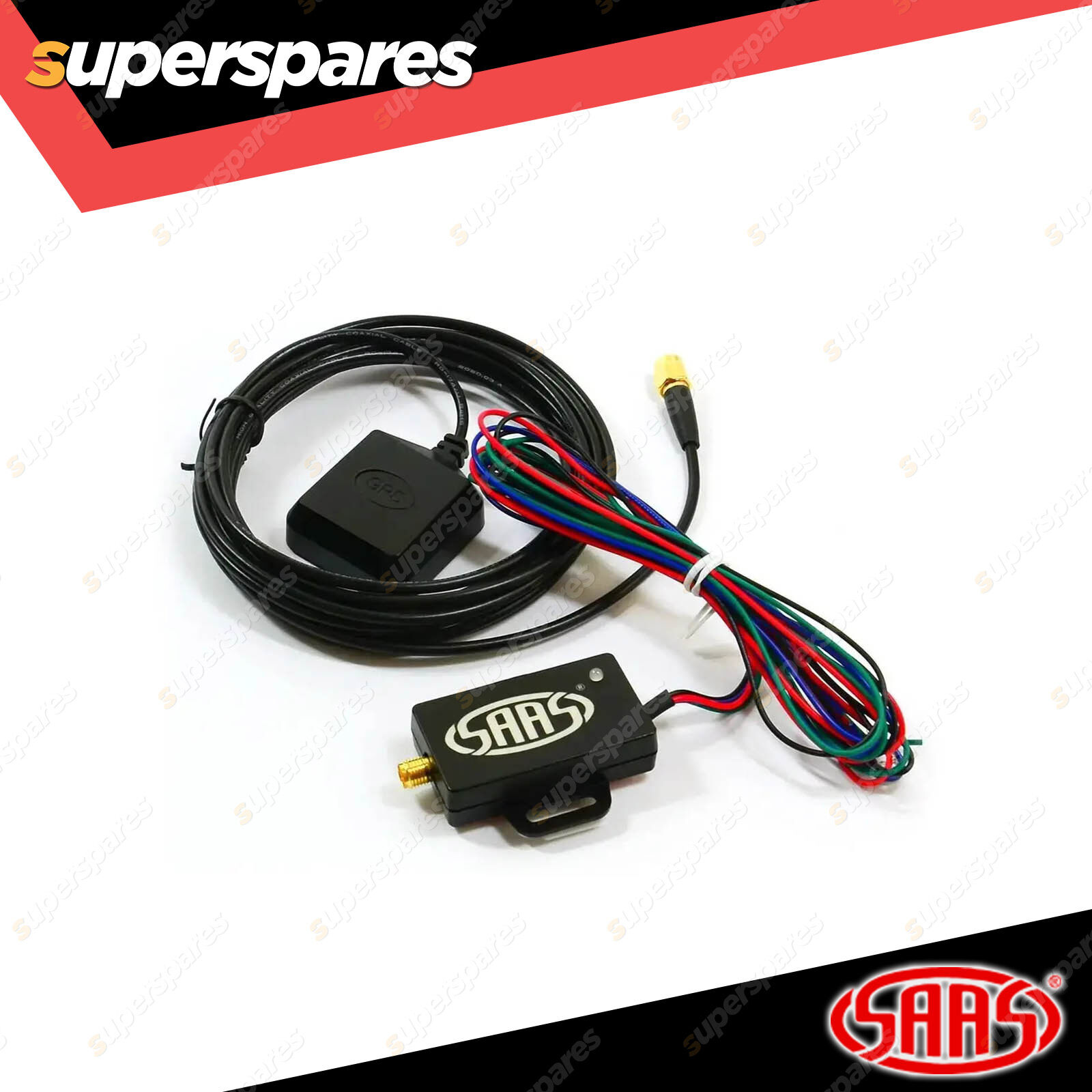

SAAS Speedometer GPS Sensor and Antenna SG31650 - Universal Speed Sender

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2025 Superspares. All rights reserved.

Contents : SAAS Speedometer GPS Sensor and Antenna SG31650 - Universal Speed Sender

Product Information:

The perfect companion to our in-dash electronic Speedometer, our SG31650 Universal GPS Speed Sender can actually mate to any Speedometer, Odometer or Tachograph that requires an accurate speed signal (pulse) where there is the absence of a traditional VSS.
If you have an older vehicle that does not have a Vehicle Speed Sender (sometimes also known as hall effect), then it can be both difficult and expensive to find a suitable solution. The SAAS GPS Sender provides a calibration free unit which uses data received from the Global Positioning Satellite network. It calculates 3 dimensional ground speed and provides a pulsed output with a high degree of accuracy. You may need to check with your local authorities regarding using a GPS signal source as a sole source for speed.
Cable Assignment:
RED: Power + DC 8-32V (may require resistor in higher V installs)
BLACK: Ground/Earth
GREEN: Speed Pulse Signal +ve output
BLUE: Speed Pulse Signal -ve output

Features:

• Direct match to SAAS in-dash speedometers
• Super fast and easy install (when mated to SAAS Speedometers)
• High Accuracy with 0.2% deviation (cable drive speedos are typically 3-5%)
• Velocity < 0.06m/sec (at approx 0.22 kph)
• Altitude to within 10m
• Horizontal to within 5m
• Anti GPS Drift technology
• Shockproof and circuit protected
• Pulse compensation for when driving through tunnels (5000 pulses per km)
• Low current draw
• Fast satellite acquisition time
• First time setup < 60sec
• Temporary power loss < 13 sec
• Loss of satellite lock < 2sec
