Rear Heavy Duty Air Bag Suspension Load Assist Kit for LDV T60 Steed 2WD 4WD Ute

Contents:

1 x Rear Heavy Duty Air Bag Suspension Load Assist Kit (2.27T)

Suit:

LDV T60 & Steed 2WD 4WD Ute

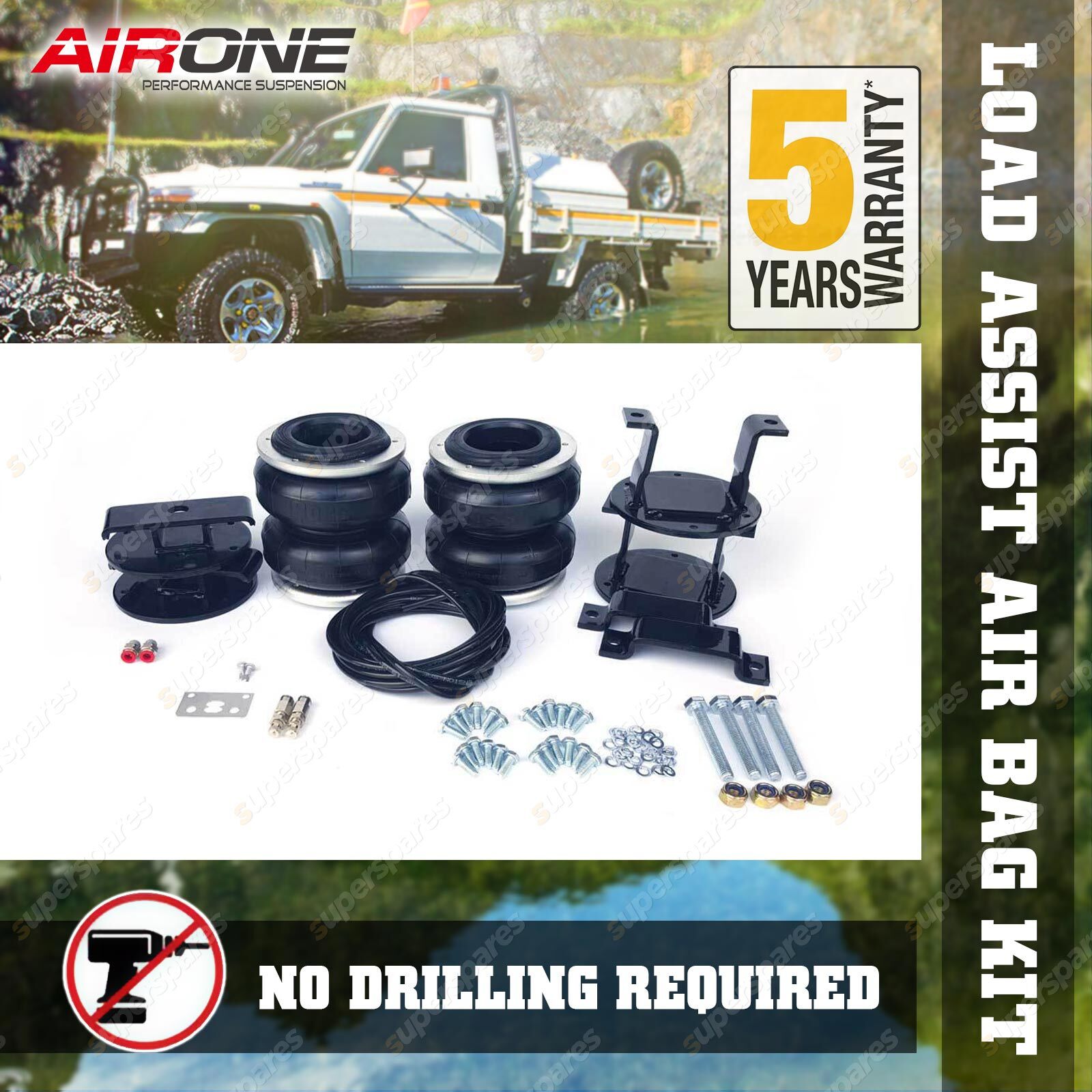

The Load Assist Kit comes with:

• 2 x Extreme Series Double Bellow Airbags
• 4 x brackets (2 upper & 2 lower)
• Mounting Hardware
• Quality SAE J844 Government Approved Airline
• Dual Schrader Valves Mounted in Stainless Panel
• Instructions for fitting

Strength & Specifications

* Support Wires - 9 High Tensile Central, 4 Each End

* Cured Natural rubber

* Ballistic woven reinforcing

* 6mm Zinc Plated Steel End Caps

* Burst Pressure - Over 600psi

* Independent Test Pressure - 480psi

* Recommended working range - 5psi - 160psi

* Airone air bags have a recommended test pressure of 480psi. That meets the pressure vessel industry guidelines of 3 times the maximum working pressure.

* Airone air bags are undeniably the strongest in the automotive industry and exceed any other airbag brands by nearly double.

* When Airone air bags are utilised in the load assist applications it's virtually impossible to pull the bags apart. Since The Airone air bags started manufacturing ,There never had an airbag fail from bursting.

The Airone Extreme series airbags are rated at 2500lb or 1136kg per side and have been government approved tested to over 750psi.

Average dual cab ute will run around 15-45psi depending on load.

NOTE: This kit is not suitable for a lowered vehicle due to the limited space between the chassis and axle.
