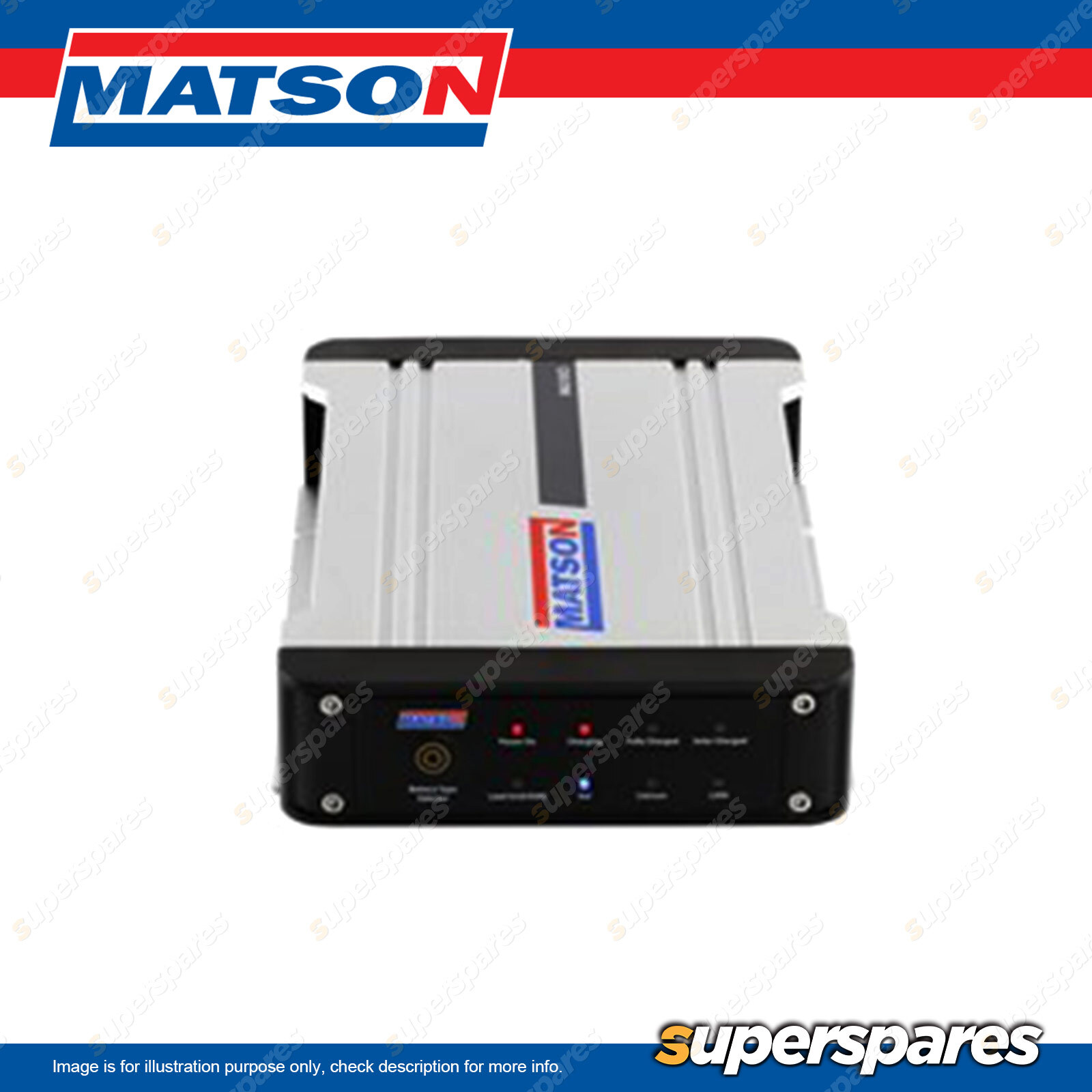

Matson 20 amp Dc to DC Charger with Solar Input - Dual Input - Alternator/Solar

Matson 20 amp Dc to Dc MPPT Charger comes prewired with 50 amp Anderson connectors

Different coloured wires for different purposes so no confusion

Under Bonnet ready - rated for IP65 water ingress

LiFePO capable

Front panel indicator lights make it easy to see whats happening

Chemistry Selectable

MPPT Charging Profile

Dual Input - Alternator/Solar

Suits Smart and Conventional Alternators

Pre fitted Anderson connectors make it so easy to use. Mount the unit in place. Plug in Alternator charge, plug in solar charge (optional), plug in feed to 2nd battery and select battery type. Ready to go

Case Construction : Aluminium

Charging Current : 20 Amp

Charging Lead Length : N/A

Charging Stage : Multi

Charging Voltage - AGM/Lead Acid : 14.7V

Charging Voltage - Calcium : 15.3V

Charging Voltage - Gel : 14.3V

Charging Voltage - LiFePO : 14.4V

Cut In Voltage (Standard Alternator) : 13.0V

Cut In Voltage (Variable Alternator) : 11.5V

Cut Out Voltage (Standard Alternator) : 12.4V

Cut Out Voltage (Variable Alternator) : 10.8

Dimensions : 207 x 135 x 37 (mm)

Equalisation : Yes

Fan Cooled : No

Float Charge Current : 100 (mA)

Float Charge Voltage : 13.5V

Input Voltage - DC : 10.8V - 16.0V

Input Voltage - Solar : 13.5V - 25.0V

IP Rating : IP65

Min Start Voltage : 2V
