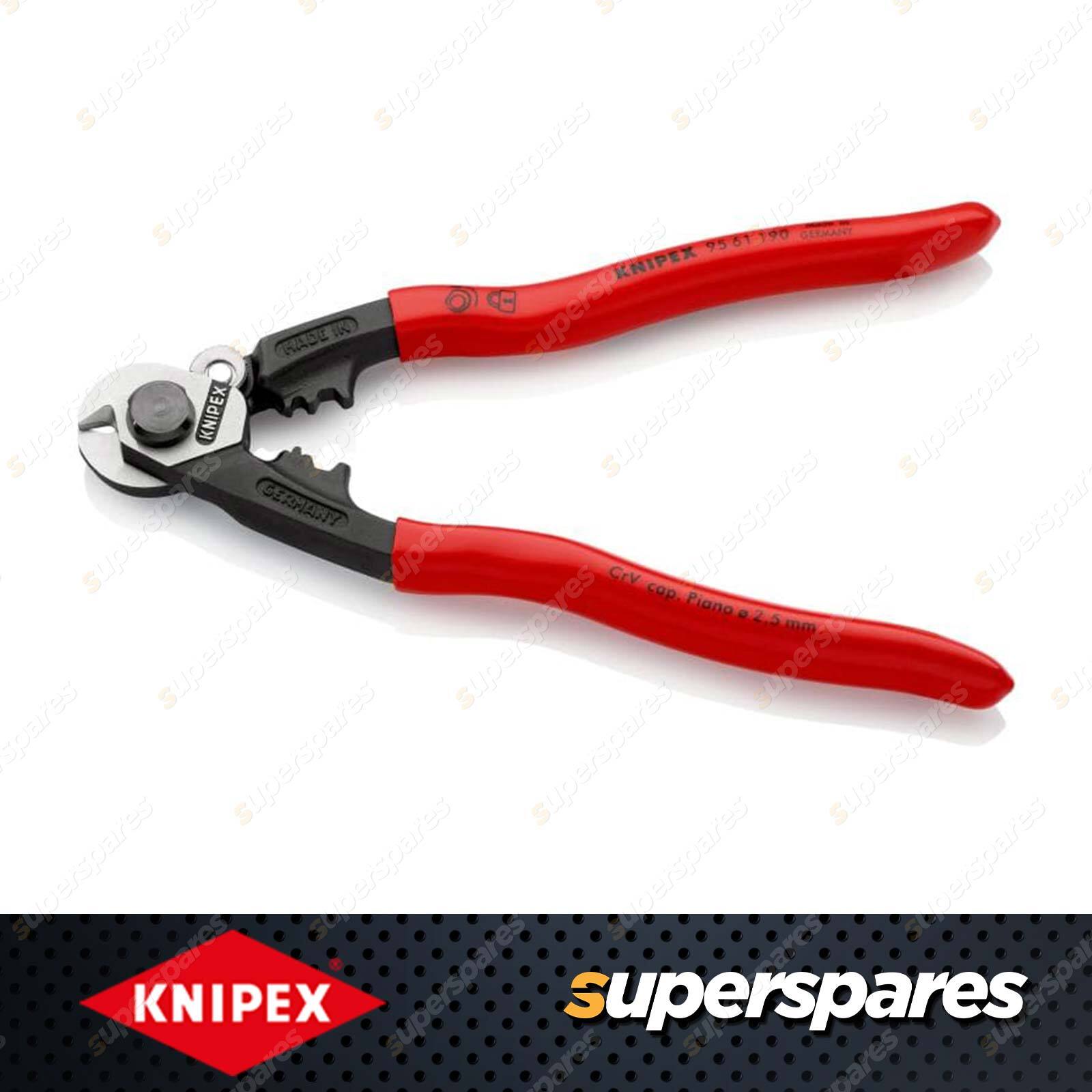

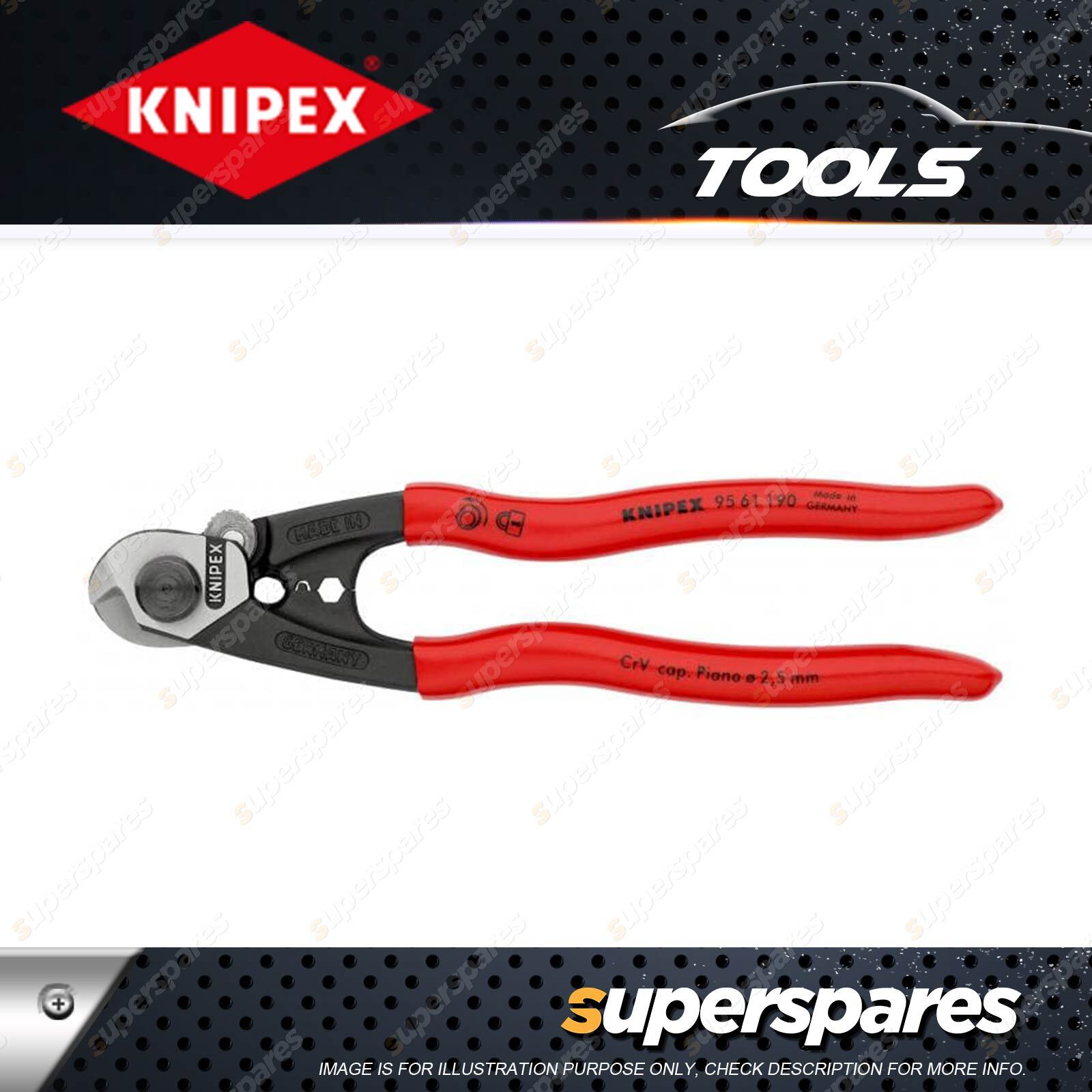

Contents : Knipex Wire Rope Cutter
- With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables
-
Comfortable work thanks to handy, slim design and internal opening spring
-
Bolted joint for precise blade guidance, re-adjustable
-
High leverage for reduced effort
-
Cutting edge hardness approx. 64 HRC
-
Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
- Head : polished
-
Handles : plastic coated
-
Weight : 310 g
-
Dimensions : 190 x 60 x 20 mm
-
REACH compliant : does not contain SVHC
-
RoHS compliant : not applicable
-
Cutting capacity copper cable, multiple-stranded : 10 mm²
-
Cutting capacity copper cable, multiple-stranded (diameter) : Ø 7.0 mm
-
Cutting capacity copper cable, fine-stranded (diameter) : Ø 6.0 mm
-
Cutting capacities wire rope (diameter) : Ø 5.0 mm
-
Cutting capacities medium hard wire (diameter) : Ø 4.0 mm
-
Cutting capacities piano wire (diameter) : Ø 2.5 mm
-
Cutting capacites iron (diameter) : Ø 4 mm
-
AWG : 8

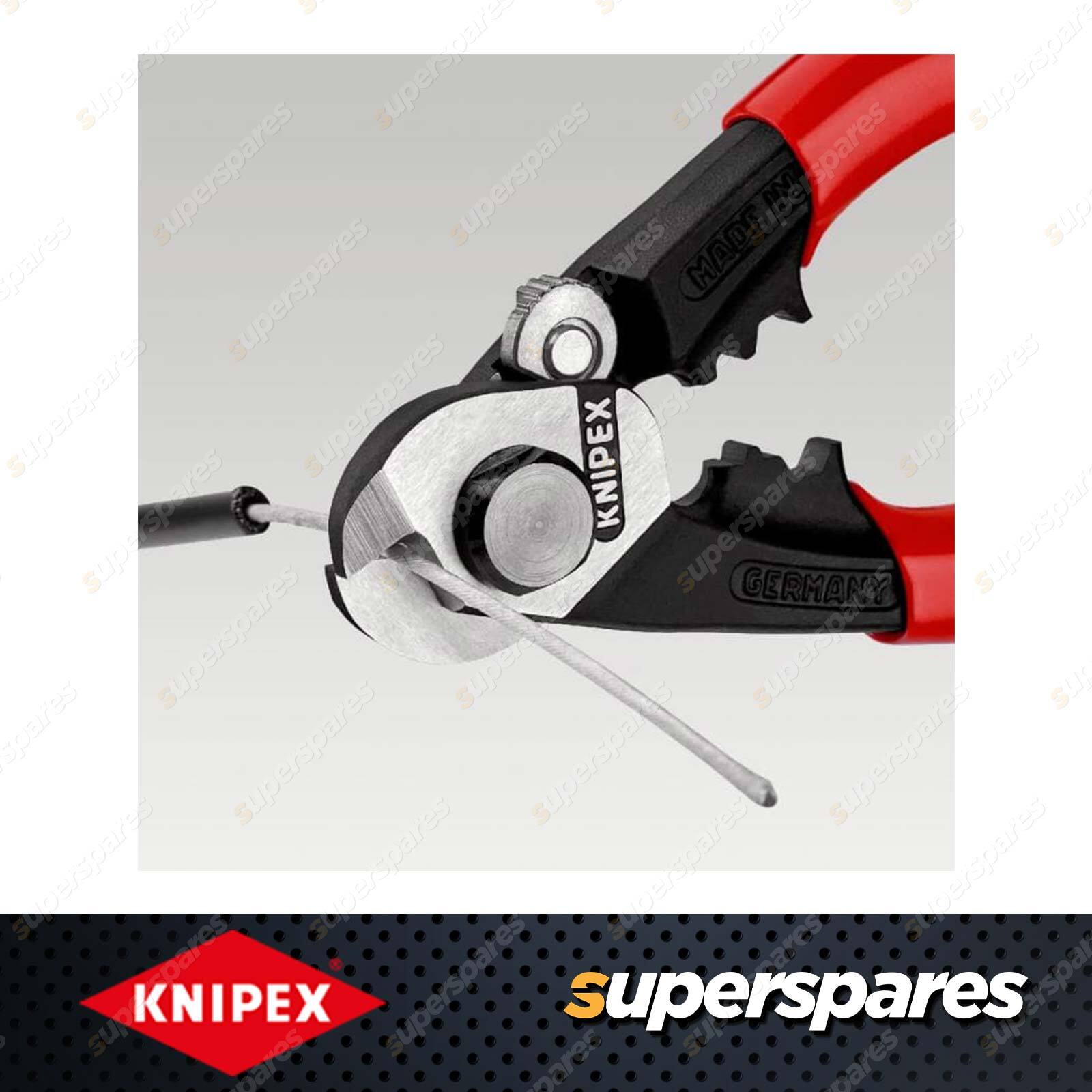

Professionally cut all wire ropes and crimped end sleeves and end caps
The high-performance tool for repairs, structural steelwork, trade fair construction etc.
Typical application areas of the Knipex wire rope cutters include the following: the broken clutch cable of the classic car is replicated because no original parts are available. New handbrake cables on truck trailers are produced from cable sold by the metre. These wire rope cutters from Knipex are the ideal tool in these and many other cases. With cutting capacities of up to Ø 7 mm in the case of stranded Cu cable and up to Ø 5 mm with wire rope, they are suitable for all installation work and work in workshops.
Press end caps on cables and end sleeves on Bowden sleeves
Two valuable additional functions on the Knipex wire rope cutters replace two tools. With the accurately shaped crimping dies for end sleeves and end caps, Bowden cables and Bowden cable sleeves can be directly assembled after cutting. After shortening, end sleeves are pressed on to Bowden cable sleeves to prevent the risk of injuries.
Comfort installed: adjustable bolted joint, opening spring and pawl
The space-saving, inset opening spring provides added comfort, saving the user one hand movement during each cutting operation. As soon as manual force is withdrawn, the spring opens the pliers automatically. Those who cut wire rope frequently will quickly learn to value this feature. For transport, the wire rope cutters are secured using the pawl to prevent inadvertent opening. The adjustable bolted joint permits accurate, permanently zero backlash operation.
| |
Knipex specialises in the development and production of high quality pliers and is Europe's leading manufacturer of these products.
With over a thousand separate styles and sizes Knipex offers a complete range of pliers for many applications. In the tough and demanding world of everyday use, Knipex pliers are designed to function as heavy duty tools and deliver high load bearing capacity and long service life. |
| |
|
