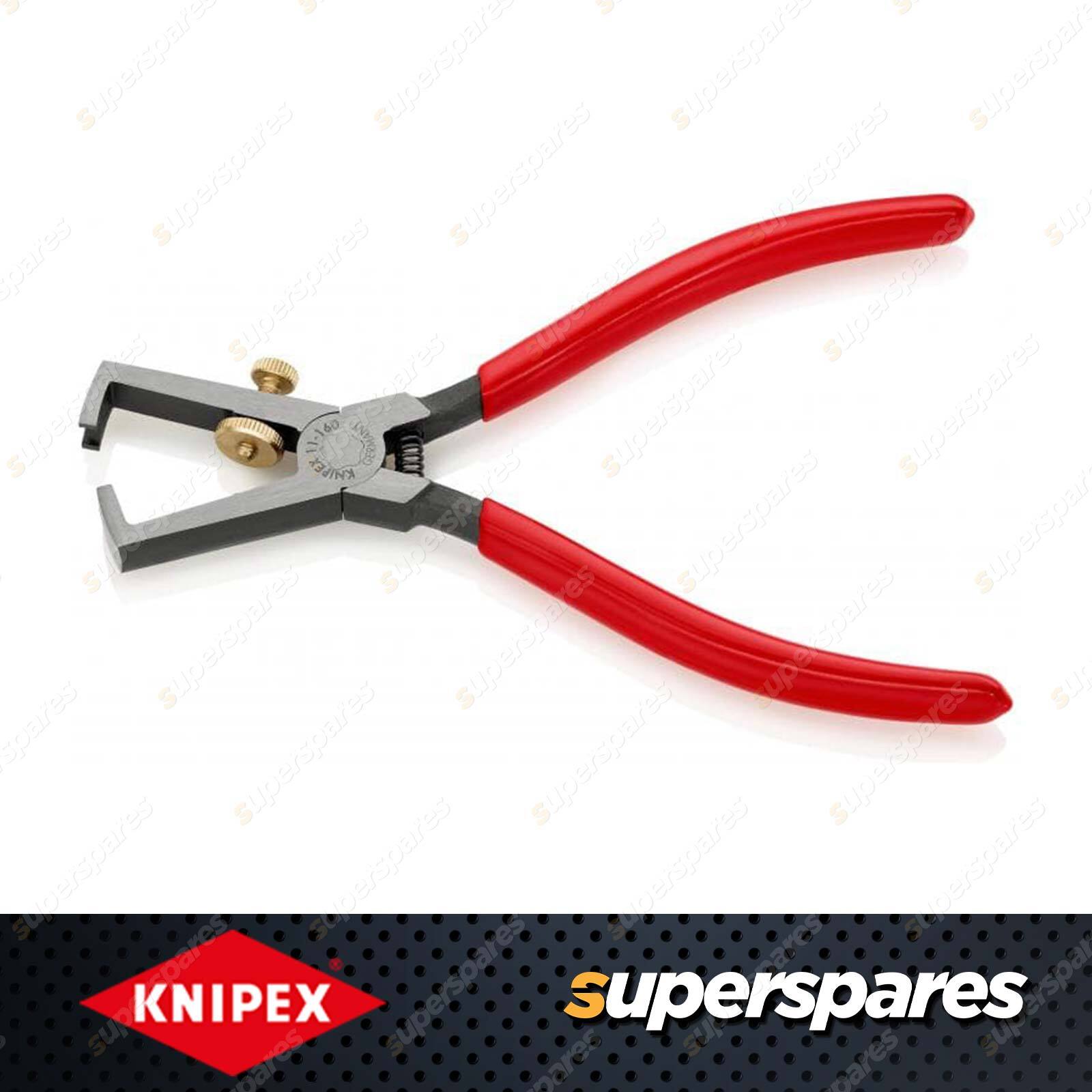

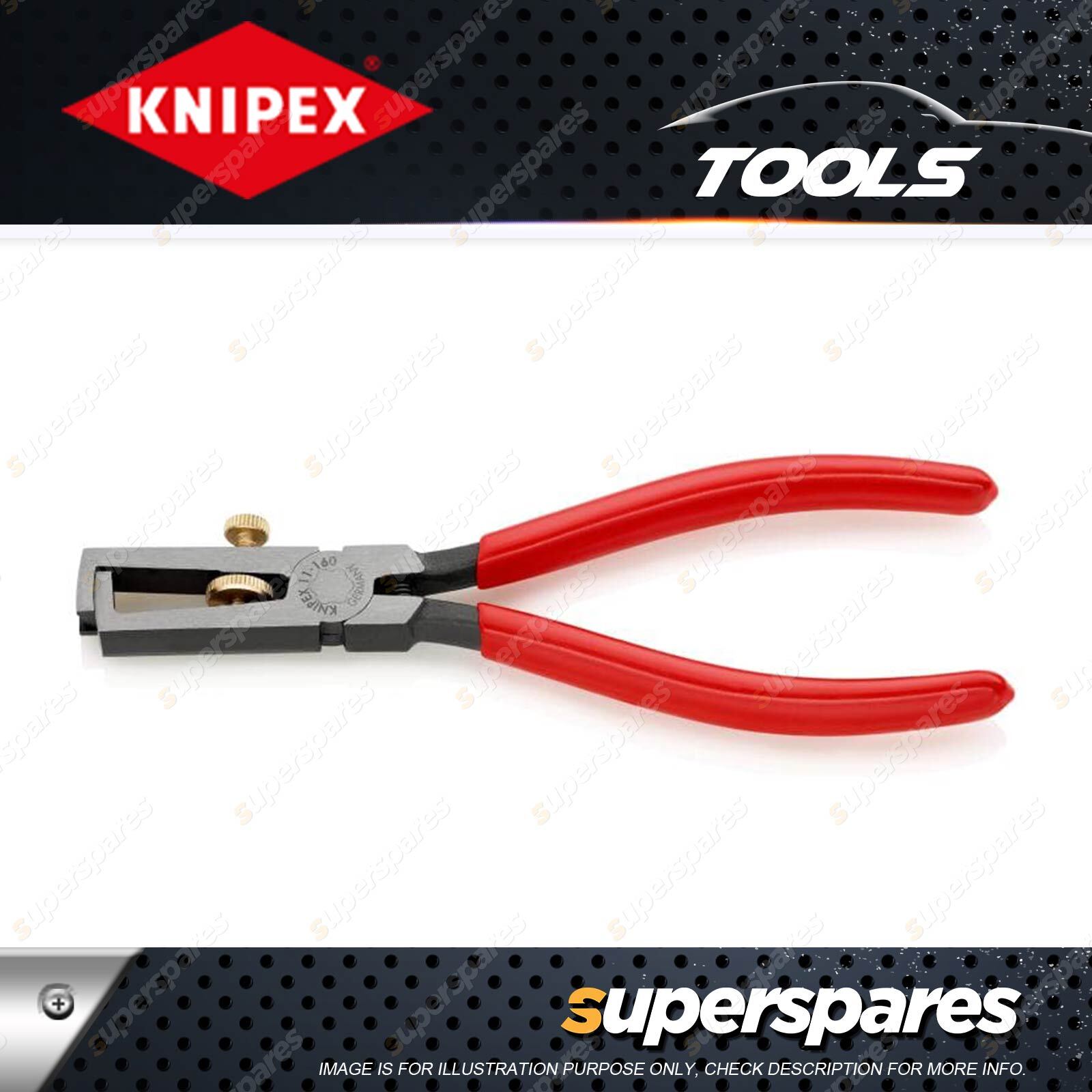

Knipex Universal Wire Stripper - Plastic Coated Handles Length 160mm

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Universal Wire Stripper

• For single, multiple and fine stranded conductors with plastic or rubber insulation up to Ø 5.0 mm or 10 mm²
• Easy adjustment to the required diameter of solid or stranded wire with knurled screw and lock nut
• Special tool steel, forged, oil-hardened

• Pliers : black atramentized
• Head : polished
• Handles : plastic coated
• Weight : 131 g
• Dimensions : 160 x 74 x 12 mm
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Stripping capacities in square millimetres : 10 mm²
• Stripping capacities (diameter) : Ø 5.0 mm
• AWG : 8

Standard wire strippers for standard insulation

For plastic and rubber insulation materials

As standard wire strippers, the Knipex Wire Strippers are mainly used for wiring frequently laid NYM cable (NYM stands for "standardised cable / PVC wire insulation / sheathed cable"). Fitters who want to wire a large number of sockets in one work step while consistently stripping wires with 1.5 mm², for example, have the right tool to hand for plastic and rubber insulation up to Ø 5 mm or a 10 mm² conductor cross-section. These pliers are also the right tool for stripping flexible conductors in rubber cable as connection or extension lead.

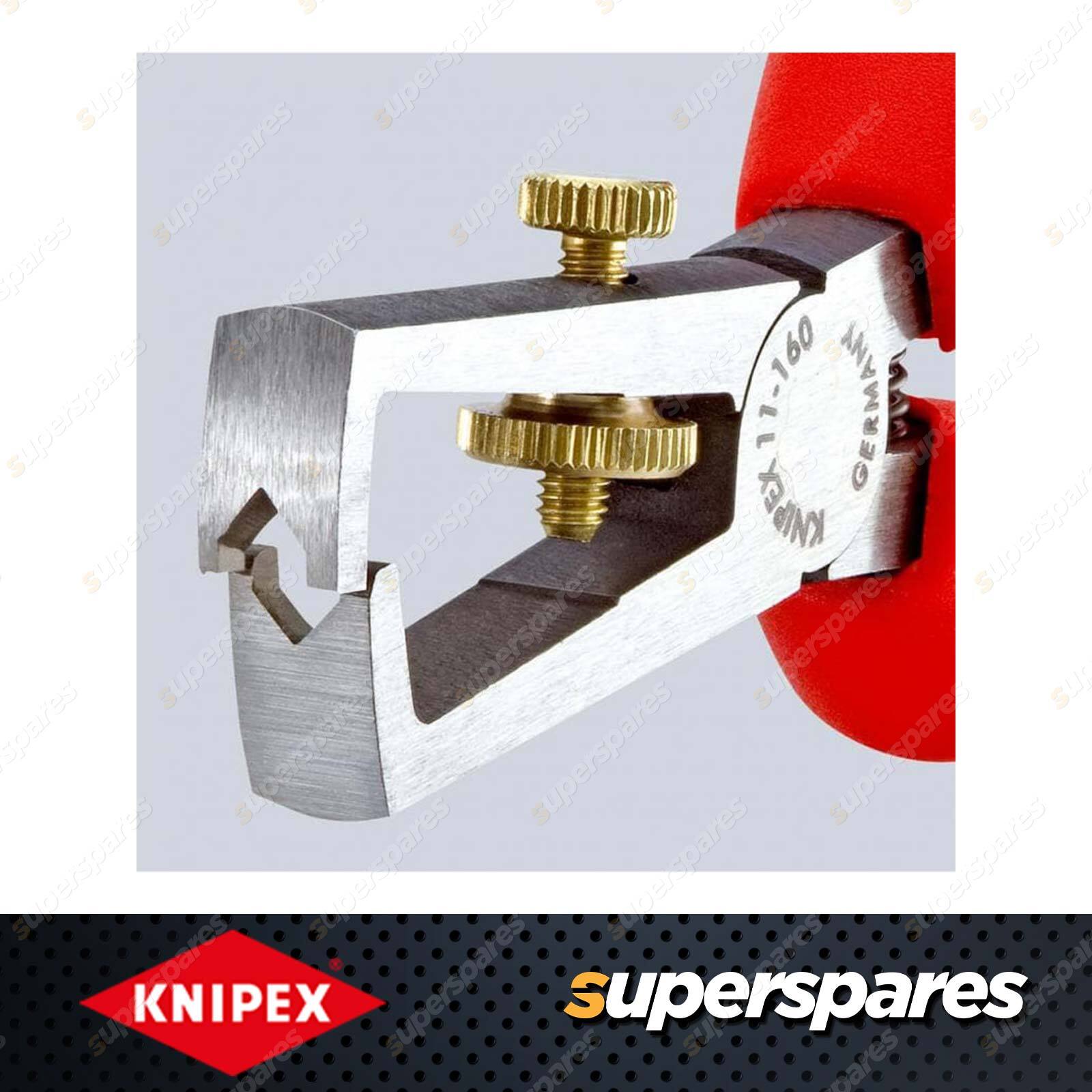

Proven knurled screw for adjusting the conductor cross-section

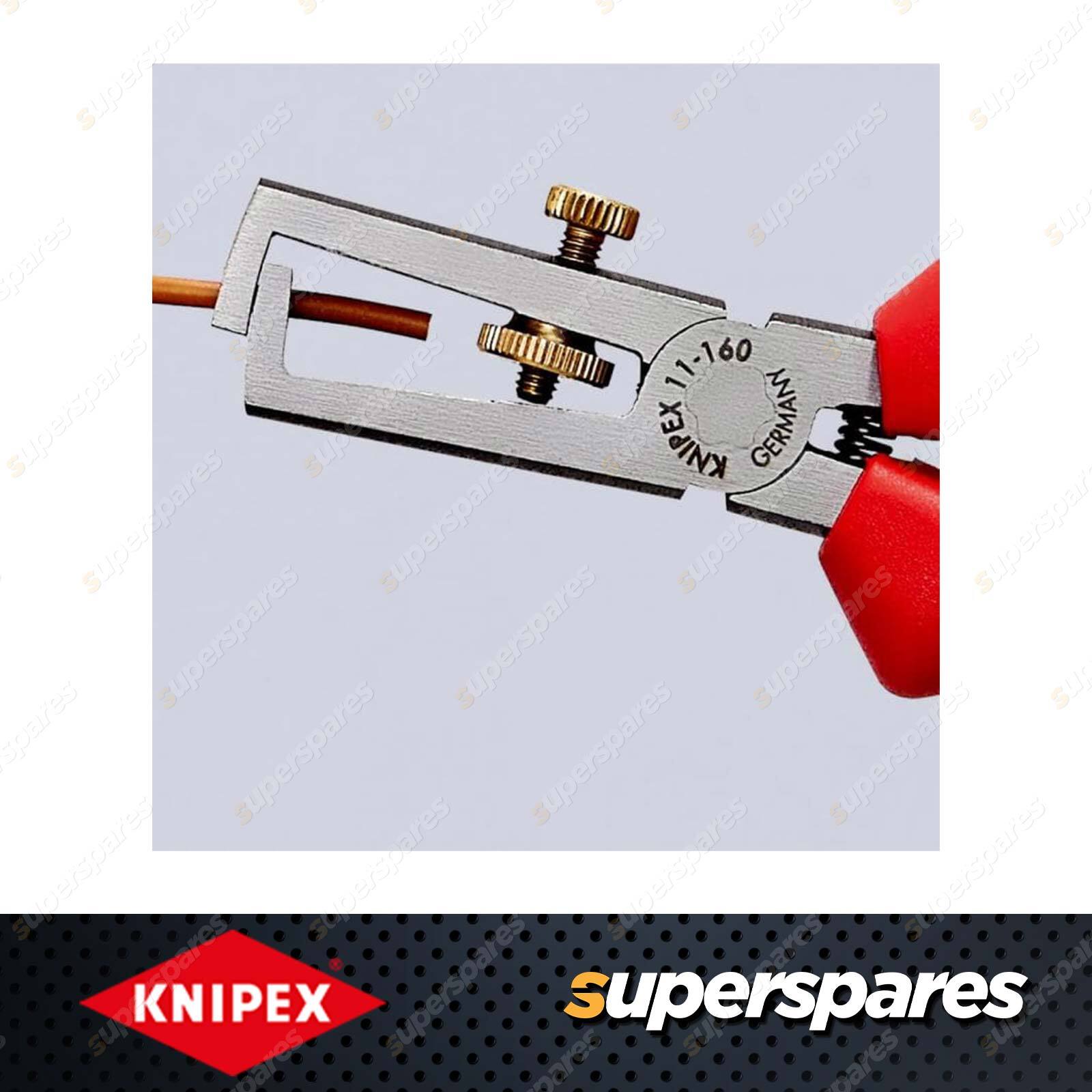

The pliers are set to the conductor cross-section using the knurled screw so that only the insulation is cut into without damaging the conductor. The knurled screw is secured with the inset lock nut to maintain the precise adjustment even during longer periods of work. This simple technology has been tried and tested for decades.

With strong construction for long tool life, convenient to use

The Knipex wire strippers are forged from special tool steel and additionally oil-hardened. As a basic protection against rust, the wire strippers are phosphate-treated in black. The head of the pliers has a precision finish. Thanks to this machining and finishing step, when used correctly this prepares the pliers for a long tool life. The handles with non-slip plastic coating sit comfortably in the hand.

For plastic or rubber insulation up to Ø 5 mm or 10 mm² conductor cross-section
