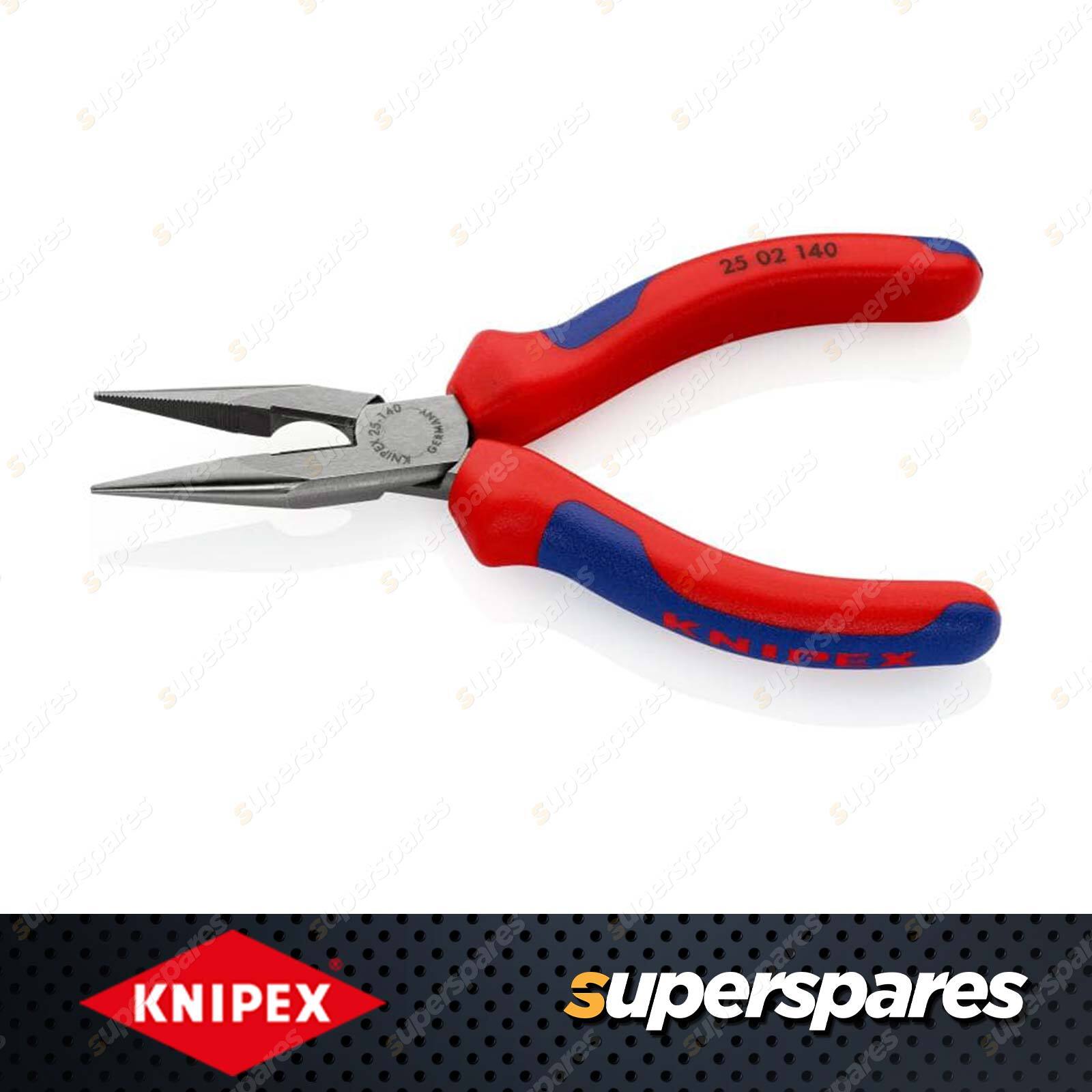

Knipex Snipe Nose Side Cutting Plier - 160mm with Multi-component Grips Handles

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Snipe Nose Side Cutting Plier

• Suitable for finer gripping and cutting work
• Half-round, long, tapered jaws
• Knurled gripping surfaces
• With cutting edges for soft, medium-hard and hard wire
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
• Straight jaws
• Vanadium electric steel, forged, multi stage oil-hardened

• Pliers : black atramentized
• Head : polished
• Handles : with multi-component grips
• Weight : 144 g
• Dimensions : 160 x 55 x 19 mm
• Standard : DIN ISO 5745
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities medium hard wire (diameter) : Ø 2.5 mm
• Cutting capacities hard wire (diameter) : Ø 1.6 mm

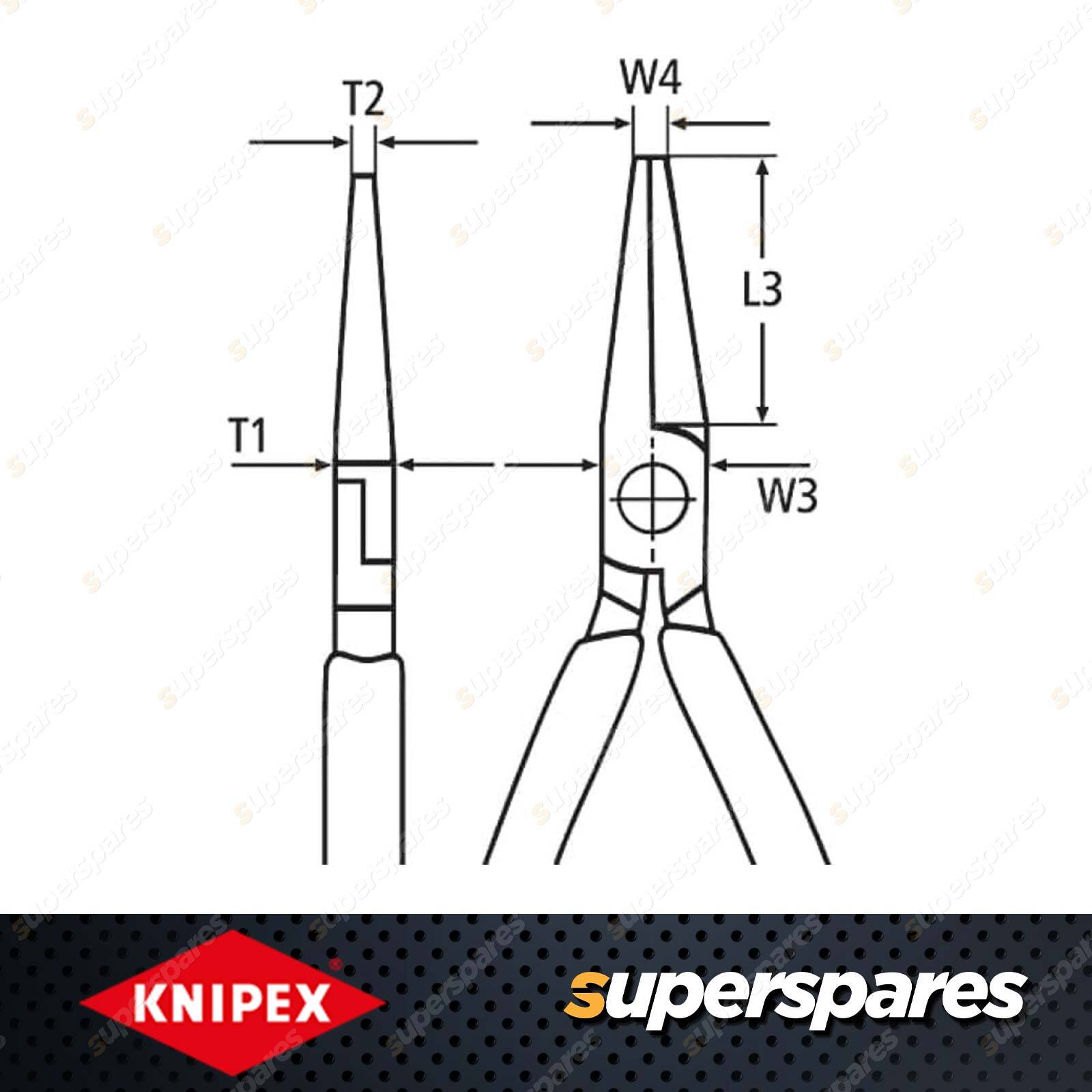

• Jaw thickness (joint) (T1) : 9.0 mm
• Tips width (W4) : 3.0 mm
• Tips thickness (T2) : 2.5 mm
• Jaw length (L3) : 50.0 mm
• Head width (W3) : 16.5 mm

Needle nose pliers with cutting function for electricians and fitters

Pliers for gripping, positioning and cutting

The jaws of the pliers are pointed at the front. Thanks to this design, the needle nose pliers are suitable for a wide range of tasks: for fine, well measured gripping and holding of components. A cutting function is integrated for the efficient cutting of cable and wire. The shape of the cutting edges of the plier produces an efficient bite type cut.

Thanks to additional induction hardening of the blades (cutting edge hardness approx. 61 HRC), the user can cut cable, soft and medium-hard wire (cutting capacity Ø 2.5 mm) as well as hard wire (cutting capacity Ø 1.6 mm).

Stable needle nose pliers - also when twisting and during powerful cutting

The precision tips of the plier are elastic and remain stable when twisted. This is an advantage when securely holding larger components, but also when holding and guiding smaller parts. The user can always measure the manual force deployed. Little effort is required when cutting because the cutting edges are in a favourable position near the joint of the pliers. Manual force is ideally transmitted to the material to be cut.

Work well in confined spaces

This needle nose plier has been specially developed for work in confined spaces. With the jaws that are pointed at the front, the user can grip and hold components and wire firmly. These pliers are therefore valued as a particularly useful tool during repairs, maintenance work and installations.
