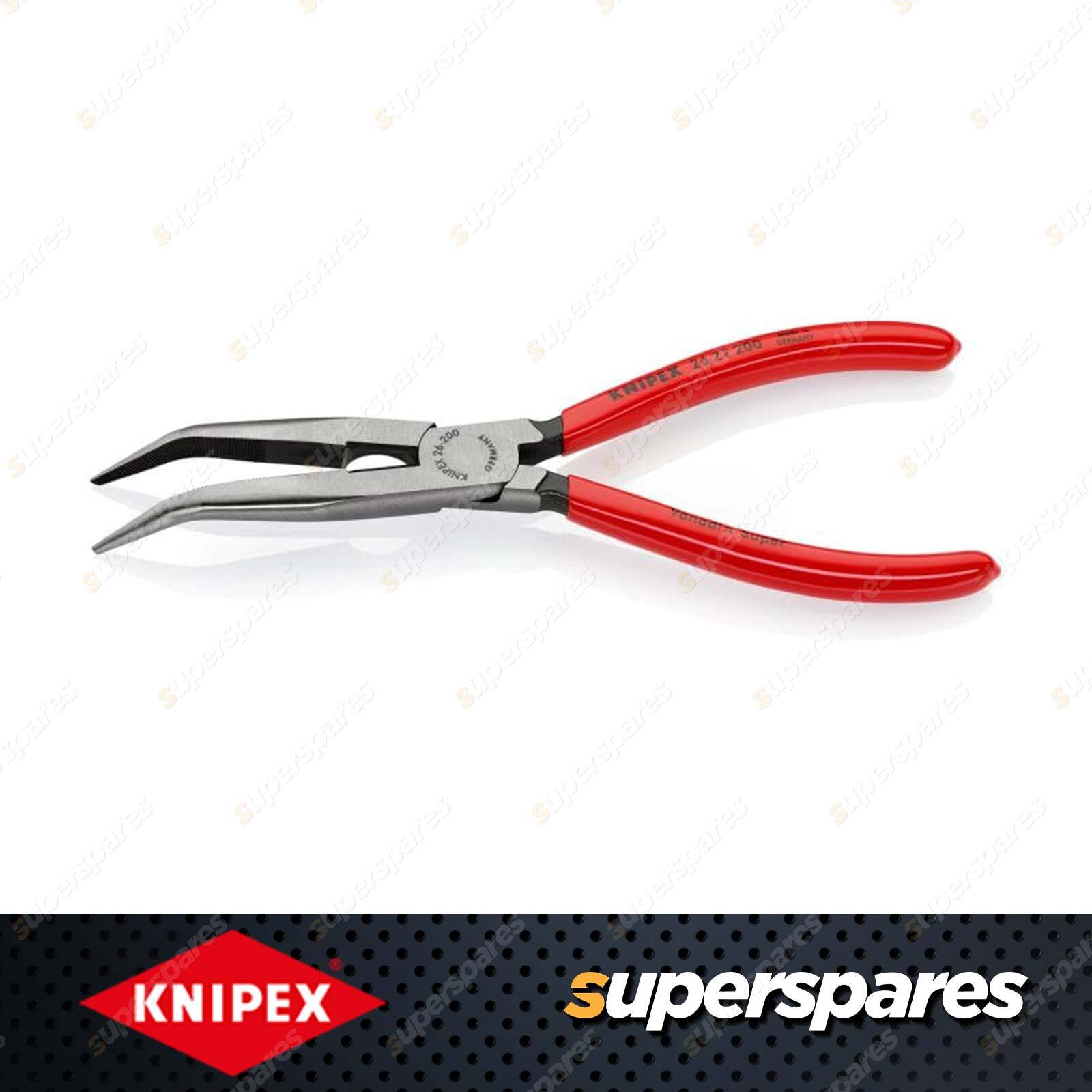

Knipex Snipe Nose Plier Bent - 40 Deg Angled Half-round Long Tapered Jaws 200mm

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Snipe Nose Plier Bent

• Elastic tips: dimensionally stable even when twisted
• Distortion-tolerant, elastic precision tips
• Half-round, long, tapered jaws
• With cutting edges for soft, medium-hard and hard wire
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
• 40° angled jaws
• Vanadium electric steel, forged, multi stage oil-hardened

• Pliers : black atramentized
• Head : polished
• Handles : plastic coated
• Weight : 171 g
• Dimensions : 200 x 47 x 13 mm
• Standard : DIN ISO 5745
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities medium hard wire (diameter) : Ø 3.2 mm
• Cutting capacities hard wire (diameter) : Ø 2.2 mm
• Jaw thickness (joint) (T1) : 9.5 mm
• Tips width (W4) : 3.0 mm
• Tips thickness (T2) : 2.5 mm
• Gripping surface length (L4) : 23.0 mm
• Jaw length (L3) : 73.0 mm
• Head width (W3) : 18 mm

For professional users from the electrical, motor and commercial vehicle sectors

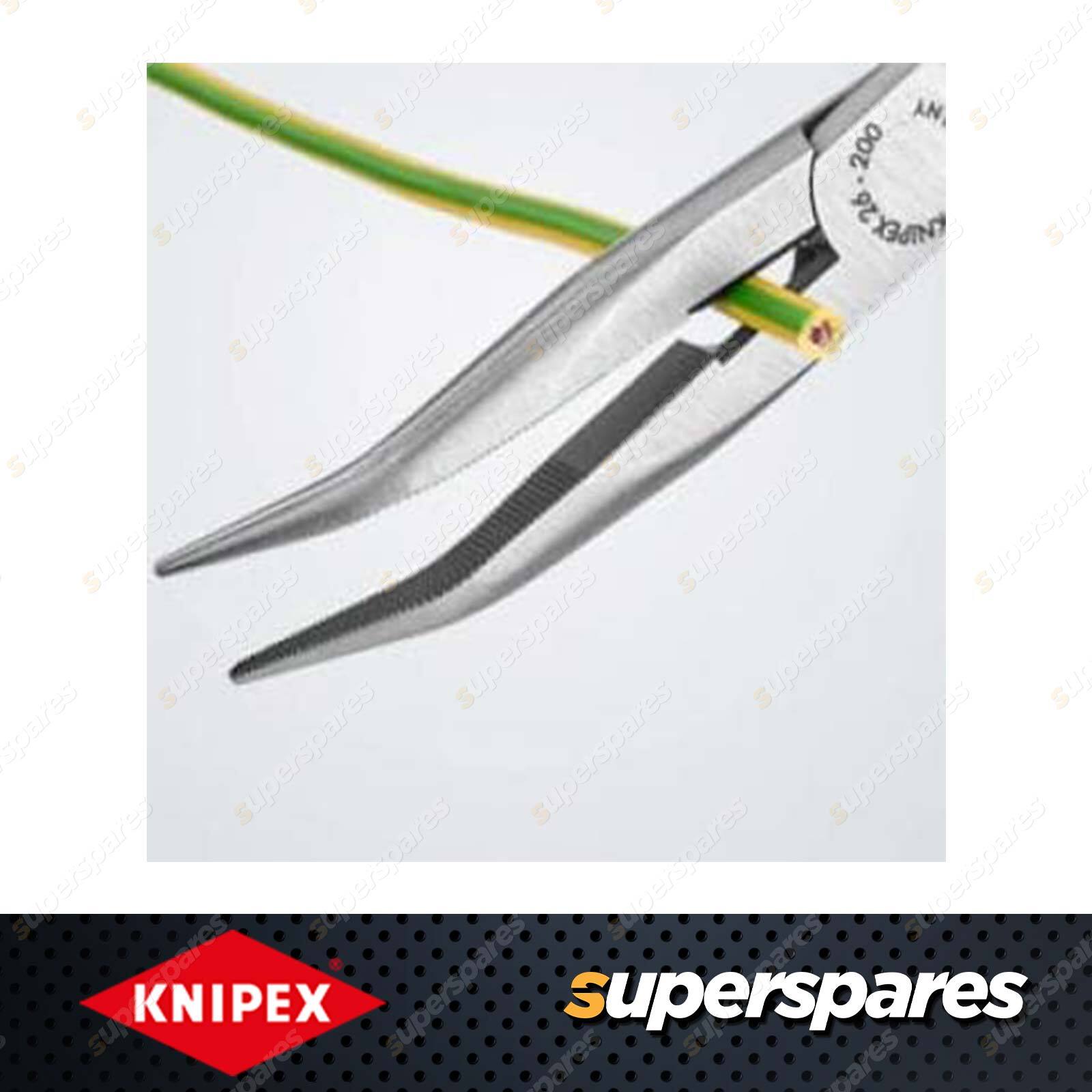

Pliers for gripping, aligning and installation work and for cutting

This plier needle nose pliers are primarily used for gripping, aligning and installation work. Because these types of work often involve cutting wire or conductors, a cutting function has been integrated. The sharp blades of the plier which have also been hardened to 61 HRC are shaped to produce a bite type cut.

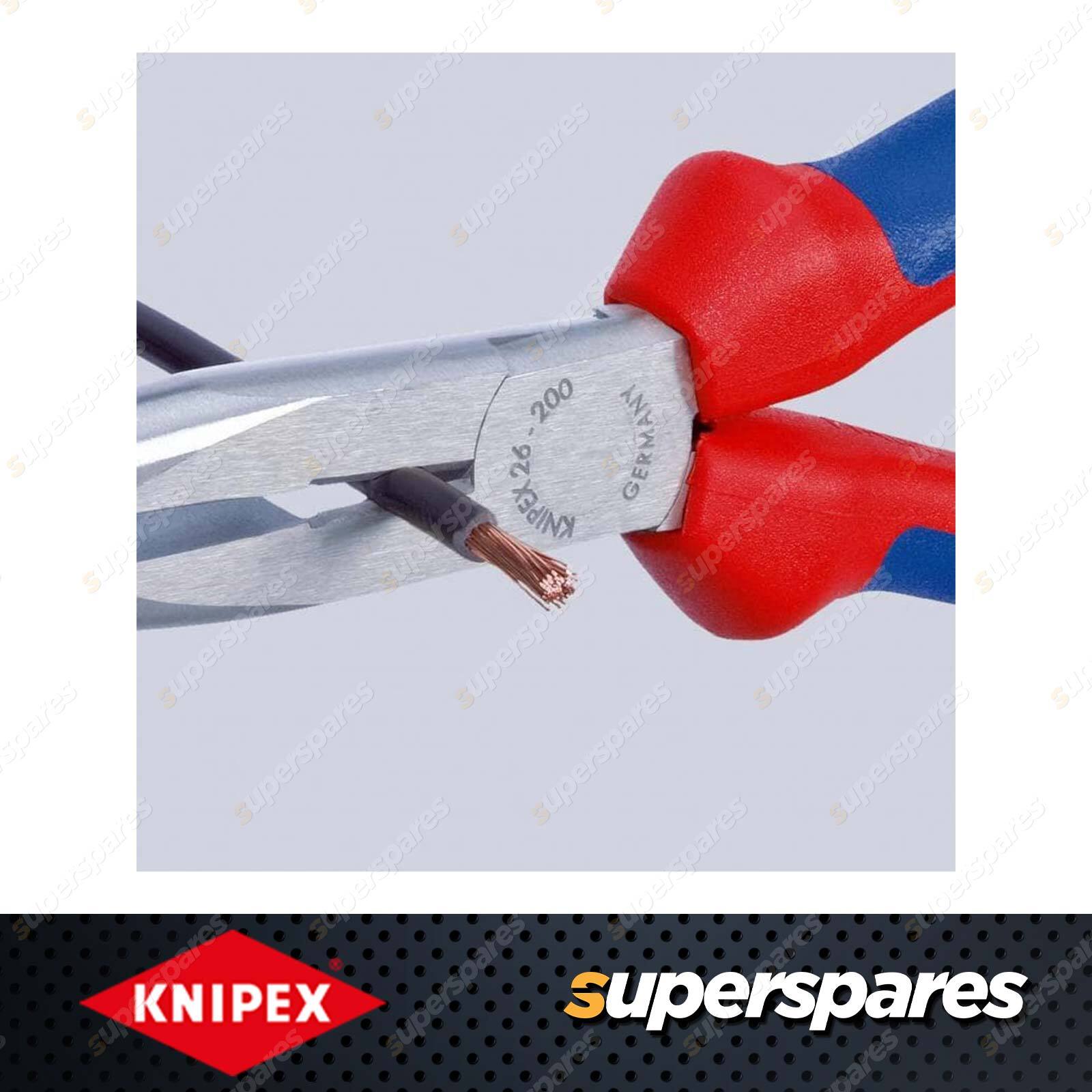

Strong when gripping and cutting - inherently stable also where there is twisting

The elastic precision tips of the needle nose pliers von Knipex remain stable when twisted. This allows the manual force deployed to be well measured - forcefully where necessary. The position of the cutting edges near the joint is very advantageous for the transmission of force. Cutting capacities of Ø 3.2 mm (medium-hard wire) and Ø 2.2 mm when cutting hard wire can be achieved.

Poorly accessible areas can be reached easily

The very long tips of the pliers make it possible to grip components that are hard to reach accurately and powerfully. The benefits of these snipe nose side cutting pliers can be seen immediately when difficult to reach components in technical assemblies, on engines and machinery are positioned, held, installed and modified. A tool that is suitable equally for delicate work and for powerful holding and cutting.
