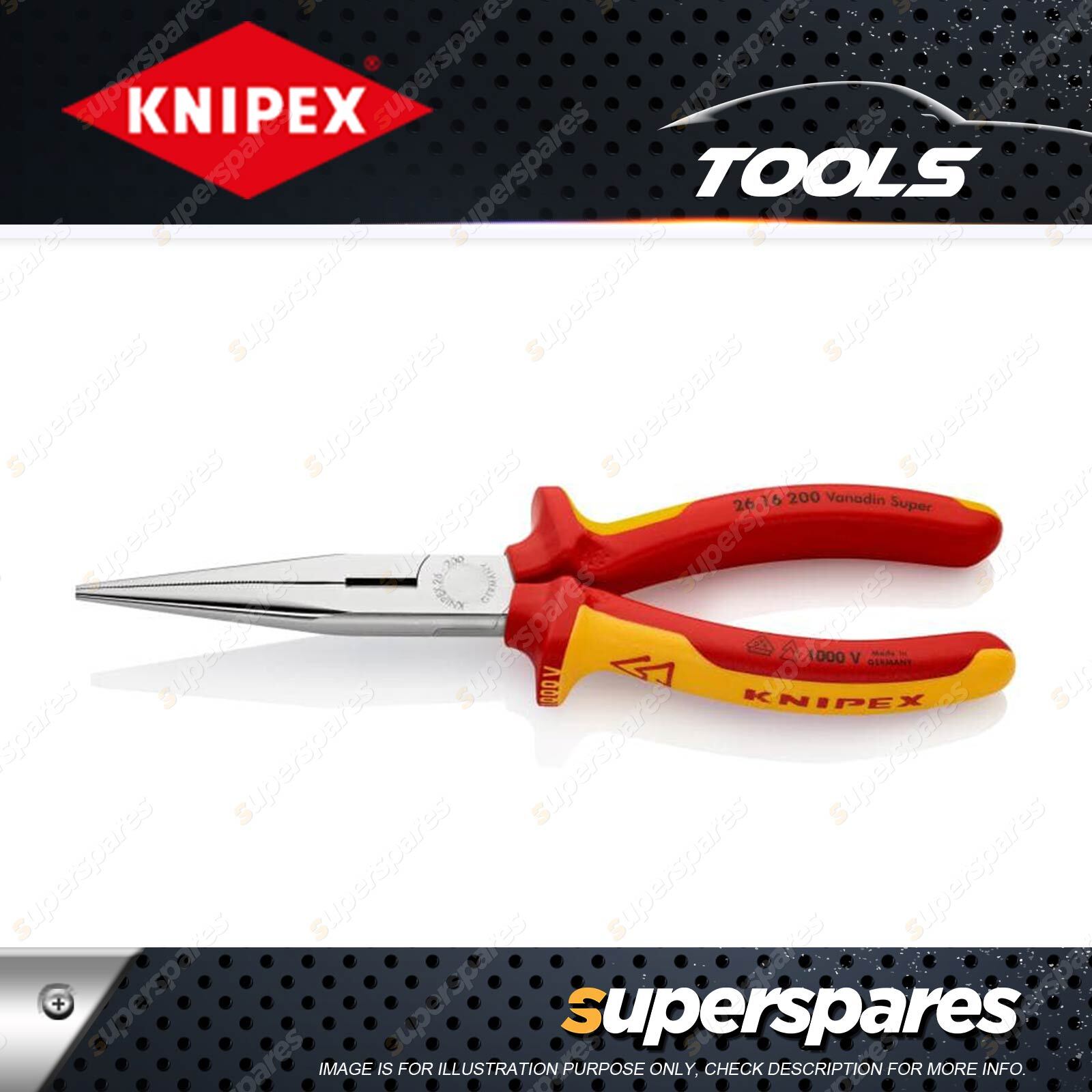

Knipex Snipe Long Nose Side Cutting Plier - 200mm Chrome-plated Head & Pliers

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Snipe Long Nose Side Cutting Plier

• Elastic tips: dimensionally stable even when twisted
• Distortion-tolerant, elastic precision tips
• Half-round, long, tapered jaws
• With cutting edges for soft, medium-hard and hard wire
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
• Straight jaws
• Vanadium electric steel, forged, multi stage oil-hardened

• Pliers : chrome-plated
• Head : chrome-plated
• Handles : insulated with multi-component grips, VDE-tested
• Weight : 206 g
• Dimensions : 200 x 56 x 19 mm
• Standard : DIN ISO 5745 DIN EN 60900 IEC 60900
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities medium hard wire (diameter) : Ø 3.2 mm
• Cutting capacities hard wire (diameter) : Ø 2.2 mm
• Jaw thickness (joint) (T1) : 9.5 mm
• Tips width (W4) : 3.0 mm
• Tips thickness (T2) : 2.5 mm
• Jaw length (L3) : 73.0 mm
• Head width (W3) : 18 mm
• VDE tested : yes

VDE tested needle nose pliers for electricians and fitters

The pliers for professional installation and assembly work, and for cutting

This plier is primarily used by electricians carrying out installation, wire feeding and assembly work and who also want a professional cutting function on the pliers. The cutting edges of the pliers are shaped to produce a bite type cut. The cutting edges are additionally induction hardened to approx. 61 HRC so that the pliers can even be used to cut hard wire.

Inherently stable also where there is twisting and very strong when cutting

The precision tips made of vanadium electric steel are elastic and stable when twisted. This allows the manual force deployed using these pliers to be well measured, which is a particular benefit with delicate components. The needle nose pliers can also be used for powerful gripping and holding - and for cutting. Thanks to the position of the cutting edges near the joint which is advantageous for the transmission of force, good cutting capacities are achieved. Medium-hard wire can be cut up to Ø 3.2 mm and hard wire up to Ø 2.2 mm.

Components and wire in unfavourable positions can also be reached well

In the control cabinet, on a machine, on an electric motor, when feeding and connecting wire to terminals, in junction boxes, in control cabinet construction: this VDE tested plier is in its element wherever space is tight. The qualities of the snipe nose side cutting pliers from Knipex will be immediately apparent when lines and wires need to be held, fed and cut. The quality chrome plating offers good protection against dirt and corrosion. This corrosion resistance makes special sense when the pliers are kept permanently in the service vehicle, where they may be exposed to condensation caused by temperature changes.
