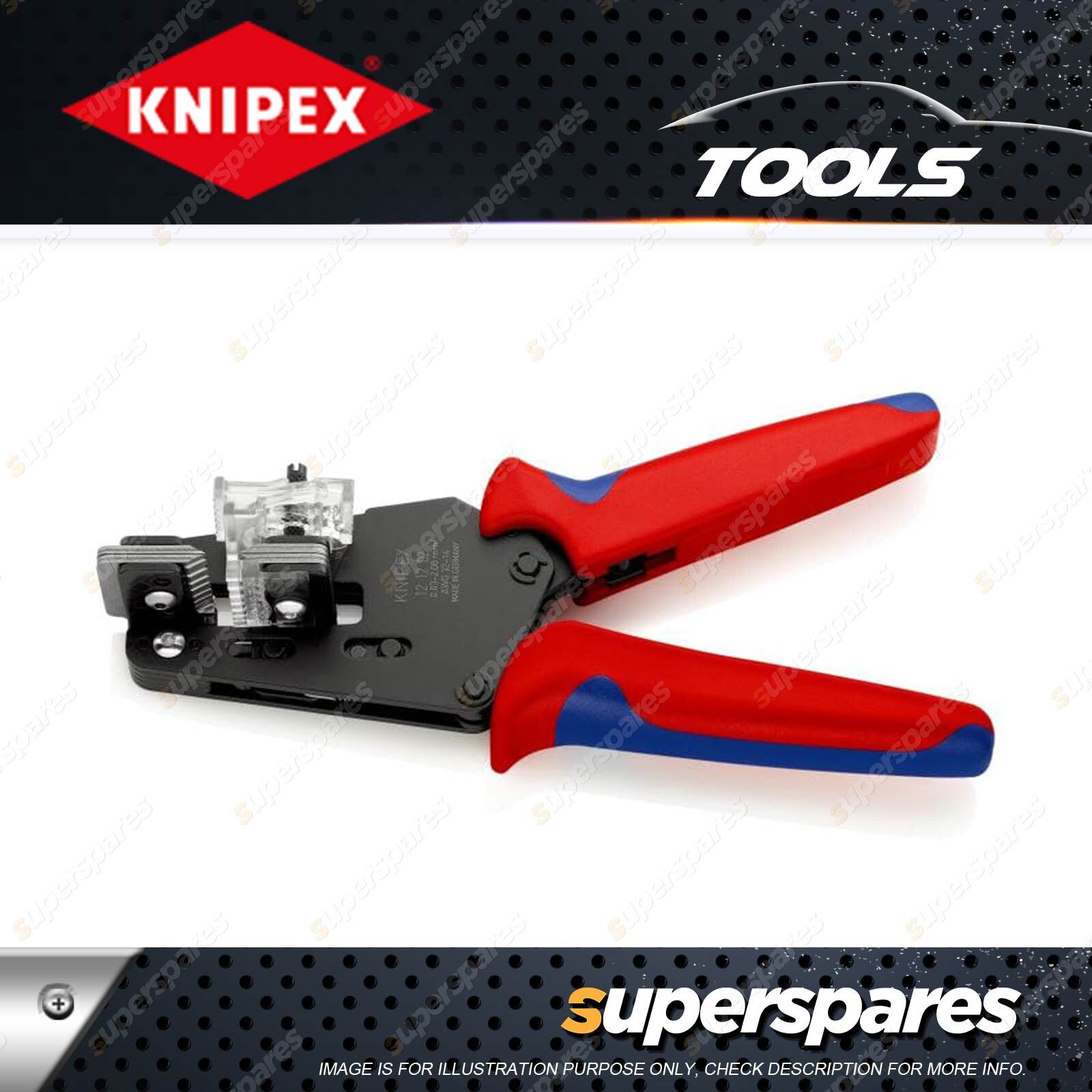

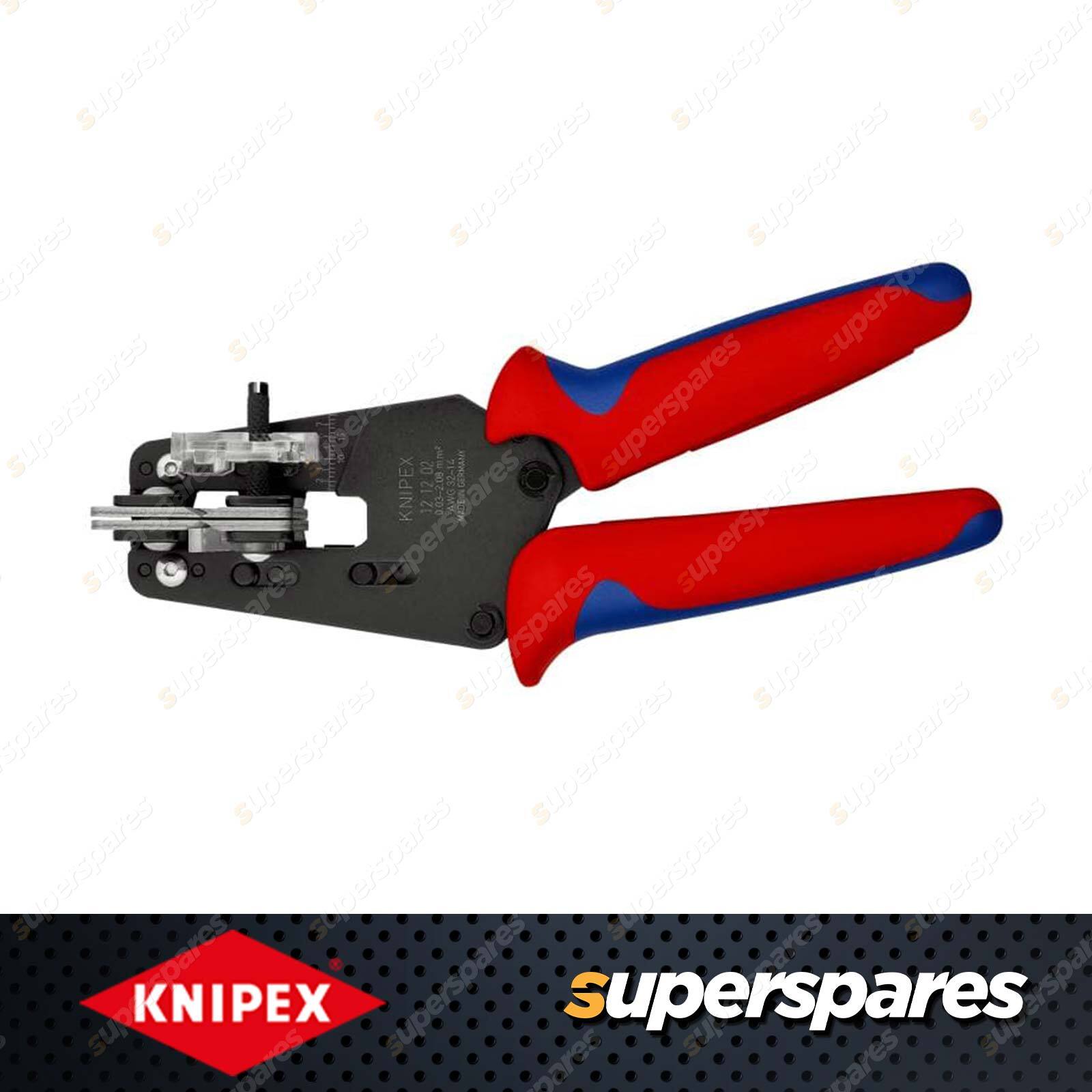

Contents : Knipex Precision Insulation Stripper

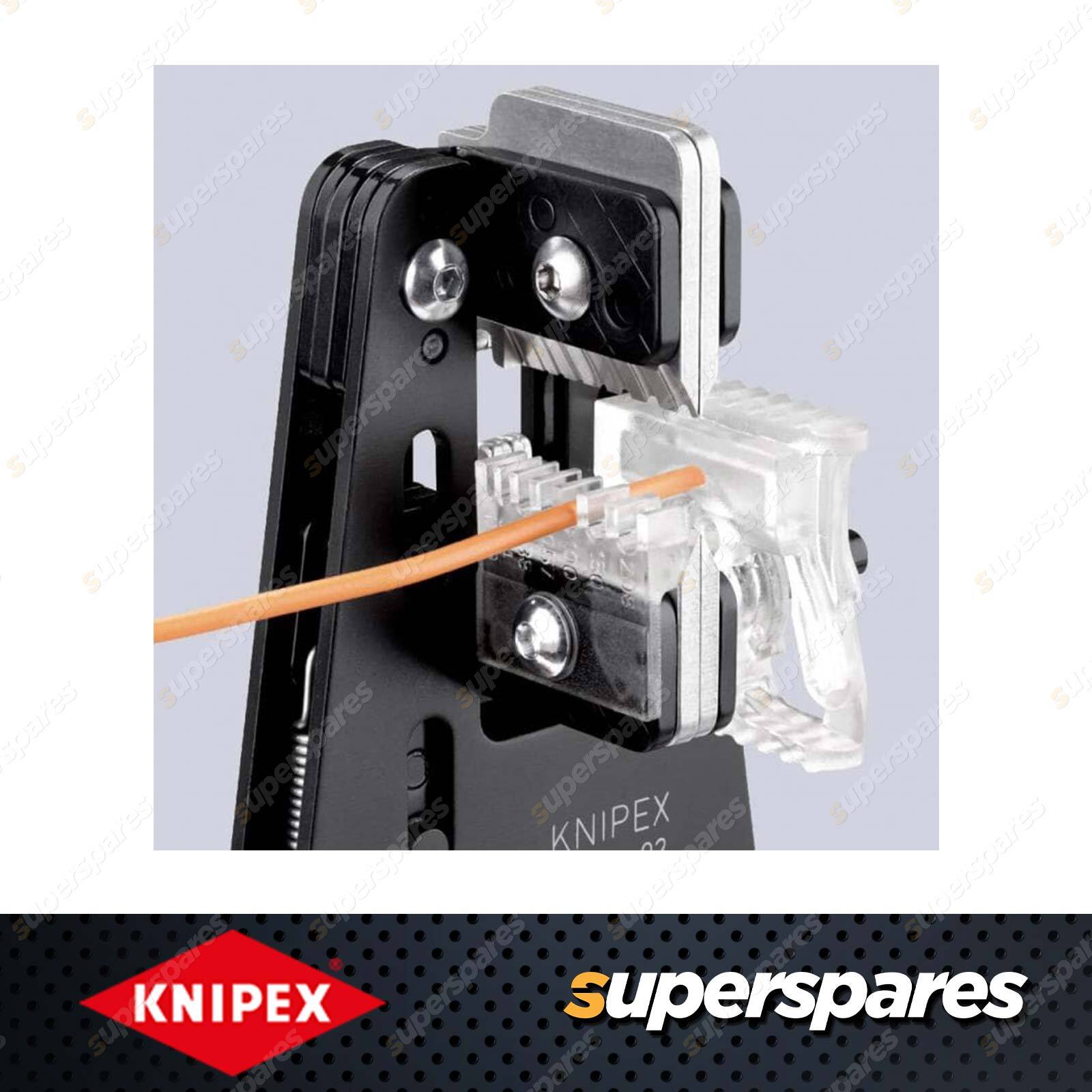

• With additional cable guide for exact positioning of the cable in the stripping area of the blade
• Form-fit stripping of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber; multi-layer too
• A second pair of blades holds the remaining insulation reliably in place
• Replaceable shaped blade adapted precisely to the respective conductor cross-section
• With length stop for constant stripping length during repetitive work
• Blade: special tool steel, oil-hardened
• Pliers body: steel

• Pliers : burnished
• Handles : with multi-component grips
• Weight : 447 g
• Dimensions : 195 x 69 x 20 mm
• REACH compliant : contains SVHC
• RoHS compliant : not applicable
• Stripping capacities in square millimetres : 0.03-0.09 / 0.14 / 0.38 / 0.57 / 1.0 / 1.5 / 2.08 mm²

Precision-wire strippers for special insulation materials

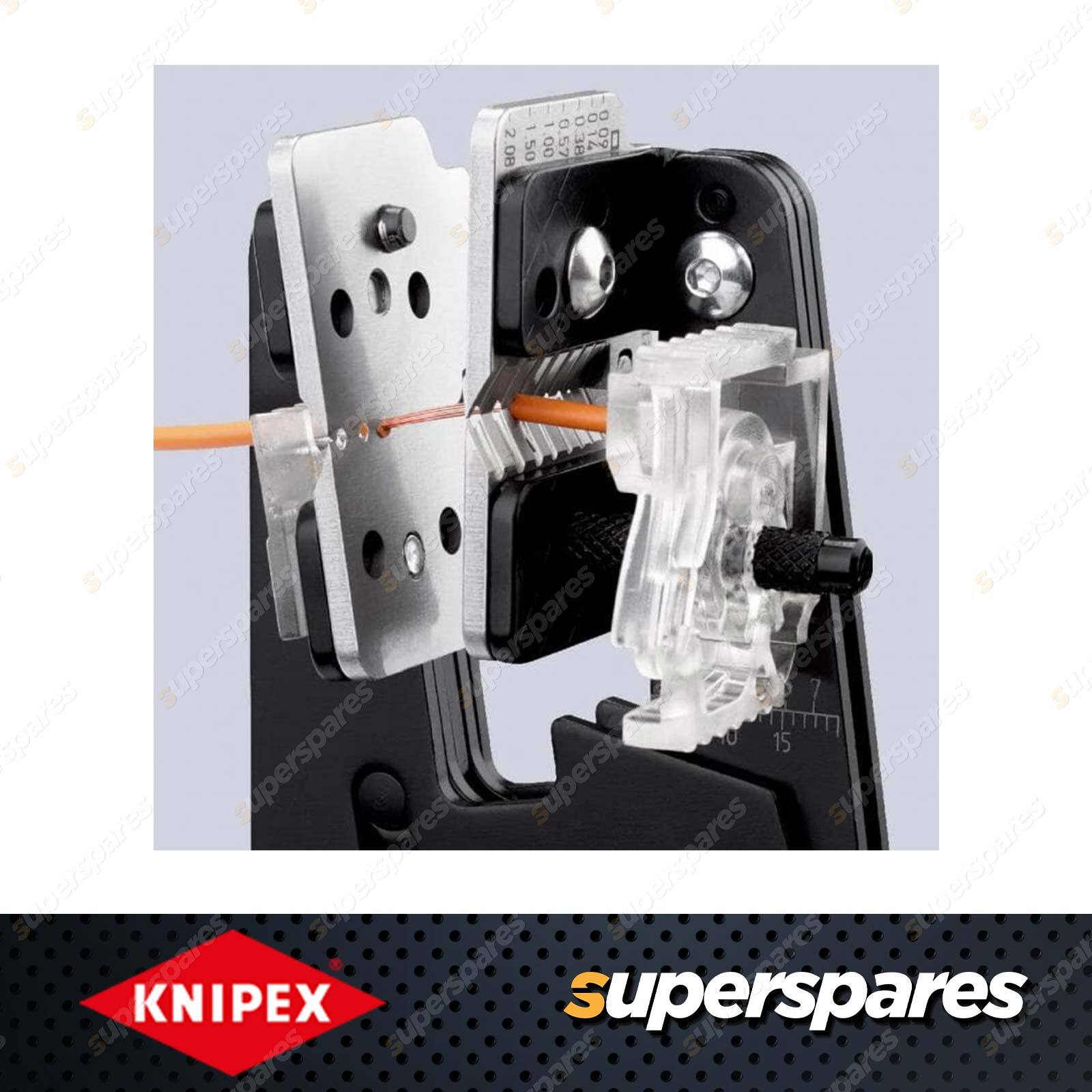

Two pairs of blades: division of labour for the desired result

This Knipex wire strippers have been specially developed for very tough and hard insulation materials which need to almost be cut through entirely so that they can be pulled off. Two pairs of blades cut into the entire circumference of the cable insulation. The blades have been shaped and ground so that the cut gets very close to the conductor. After scoring, one of the pairs of blades remains still and secures the insulation that has been cut into. The other pair of blades strips the insulation from the cable.

With adjustable length stop for consistent wire stripping lengths in series production work

Length stop for reproducible stripping results

The insulation involved here must withstand a great deal, such as being heat-resistant and tough. Cutting insulation like this from the single conductors during stripping is equally challenging. With conventional wire stripping tools it is difficult and often quite impossible to achieve a clean wire stripping result. With these special wire strippers, by contrast, even hard to remove insulation is removed accurately and reliably, and in a single work step. This wire strippers shown here has an additional insertion aid for precisely positioning the cable on the wire stripping points of the blade.

Insert cable, press pliers closed - cable is stripped

The work saved by these wire strippers is immense. After inserting the cable, the entire wire stripping process takes place as if by itself with one press of the hand. Even insulation materials that are difficult to process are reliably removed with precise and, thanks to the length stop, accurate repeat measurements: an advantage for fitters, e.g. in the areas of energy technology, plant and automotive engineering.
