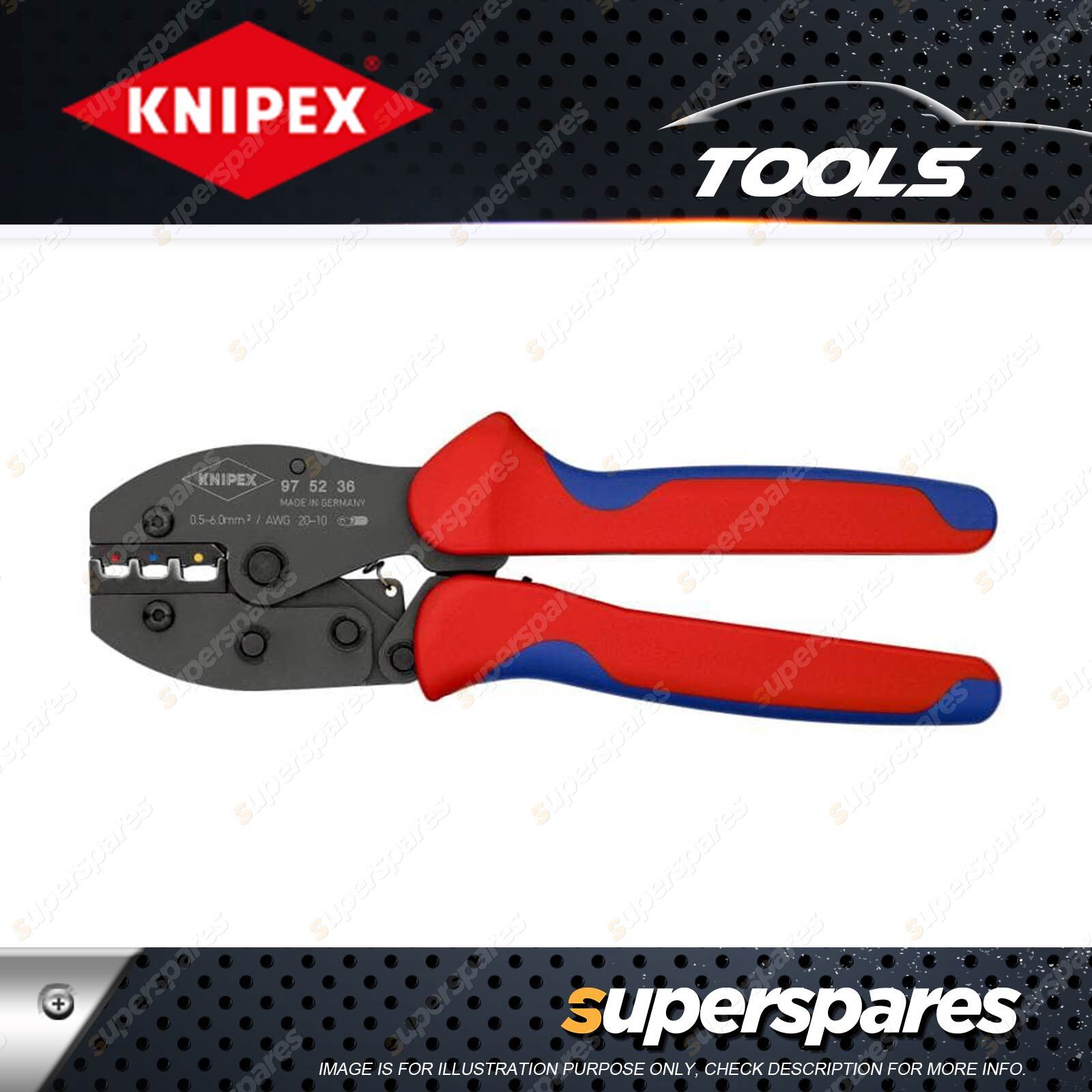

Knipex Preciforce Crimping Plier - 3 Crimping Positions Length 220mm

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Crimping Plier

• Consistently high crimping quality thanks to precision dies and ratchet mechanism (unlockable)
• Tools have been set precisely (calibrated) in the factory
• Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
• Good handling thanks to favourable handle position, low weight, compact design and ergonomically shaped handles
• Special quality chrome vanadium electric steel, oil-hardened

• Pliers : burnished
• Handles : with multi-component grips
• Weight : 487 g
• Dimensions : 220 x 63 x 23 mm
• REACH compliant : contains SVHC
• RoHS compliant : not applicable
• Application : insulated terminals, plug connectors + butt connectors
• Capacity in square millimetres : 0.5-6.0 mm²
• Number of crimping positions : 3
• AWG : 20-10

Crimping pliers especially for insulated cable lugs, plug and butt connectors

Precise crimping - which is why they are called Knipex PreciForce

Crimping is high-precision work. Crimp profile and crimping pressure must be precisely matched to the connectors and corresponding cable used to create a connection that is permanently mechanically and electrically safe and secure. The Knipex PreciForce Crimping Plier is impressive - also with frequently repeated crimping - due to the light, compact design with toggle lever reinforcement of manual force and precision crimp profile. The ideal, hand-friendly amount of pressure is exerted with precision on the connector being connected to the cable.

Accurately repeated crimping due to automatic opening of pliers after completed crimping operation

With the Knipex PreciForce, the user can carry out repeated tasks accurately because the pliers do the job of measuring manual force for him. The PreciForce Crimping Plier is ideally set (calibrated) in the factory to insulated cable lugs, plug connectors and butt connectors. The integral lock blocks premature opening of the pliers before the set upper limit has been achieved using hand pressure. The pliers open automatically only on reaching the set crimping pressure, enabling the user to concentrate completely on crimping. The integral lock can be released where necessary, and the pressure of the pliers can be adjusted manually.

Accurately machined, durable crimp profiles

With the Knipex PreciForce range of pliers, every crimp application has its own version with specially machined crimp profile. One specialist pair of pliers, one application. The Knipex PreciForce is manufactured from special high-grade chrome vanadium electric steel and is oil-hardened. The Knipex PreciForce Crimping Plier is therefore a purchase that will last for a long time and for a special field of application: crimping insulated cable lugs, plug connectors and butt connectors of between 0.5 and 6.0 mm².
