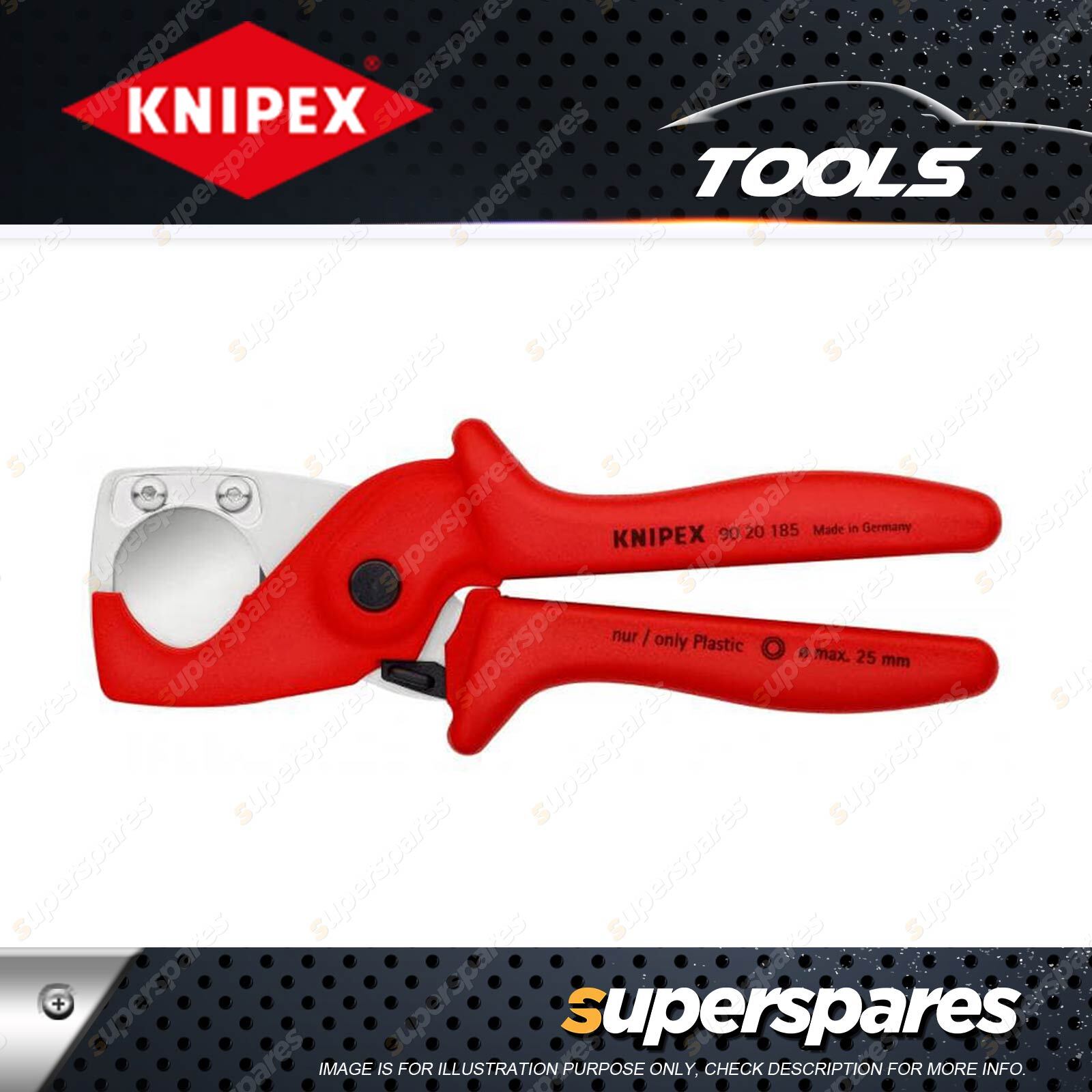

Knipex Hose & Tube Cutter - 185mm for Flexible Hoses & Plastic Conduit Pipes

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Hose & Tube Cutter

• For cutting thin walled plastic pipes (conduit plastic pipes) and flexible hoses, also with fabric reinforcement, of plastic and rubber up to Ø 25 mm / 1"
• Not suitable for cutting cables
• With opening spring and locking device
• Blades: special tool steel, oil-hardened, interchangeable
• Tool body: glass fibre reinforced plastic

• Head : chrome-plated
• Handles : glass fibre reinforced plastic handles
• Weight : 172 g
• Dimensions : 185 x 70 x 25 mm
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities (diameter) : Ø 25 mm
• Cutting edge length (mm) : Ø 25 mm

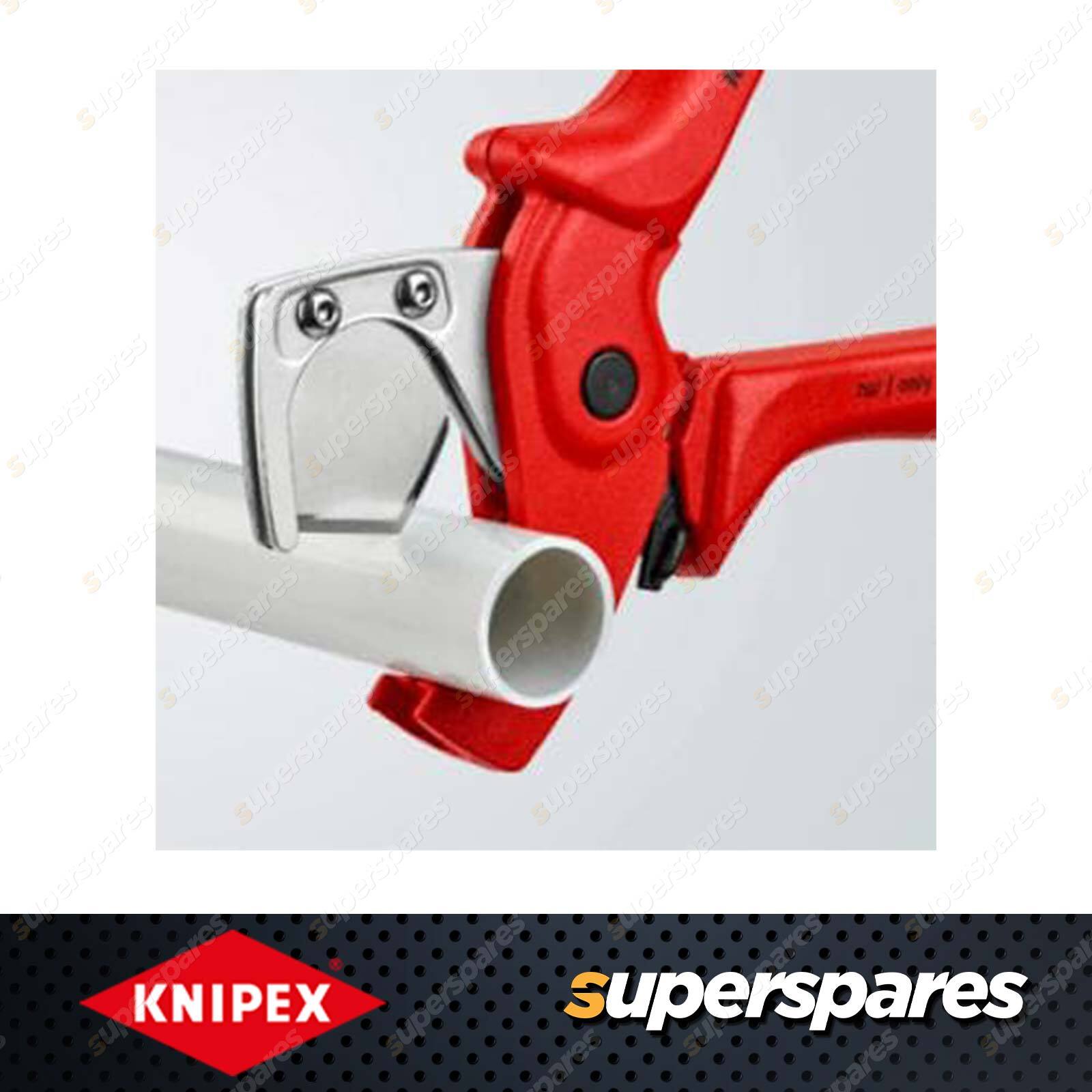

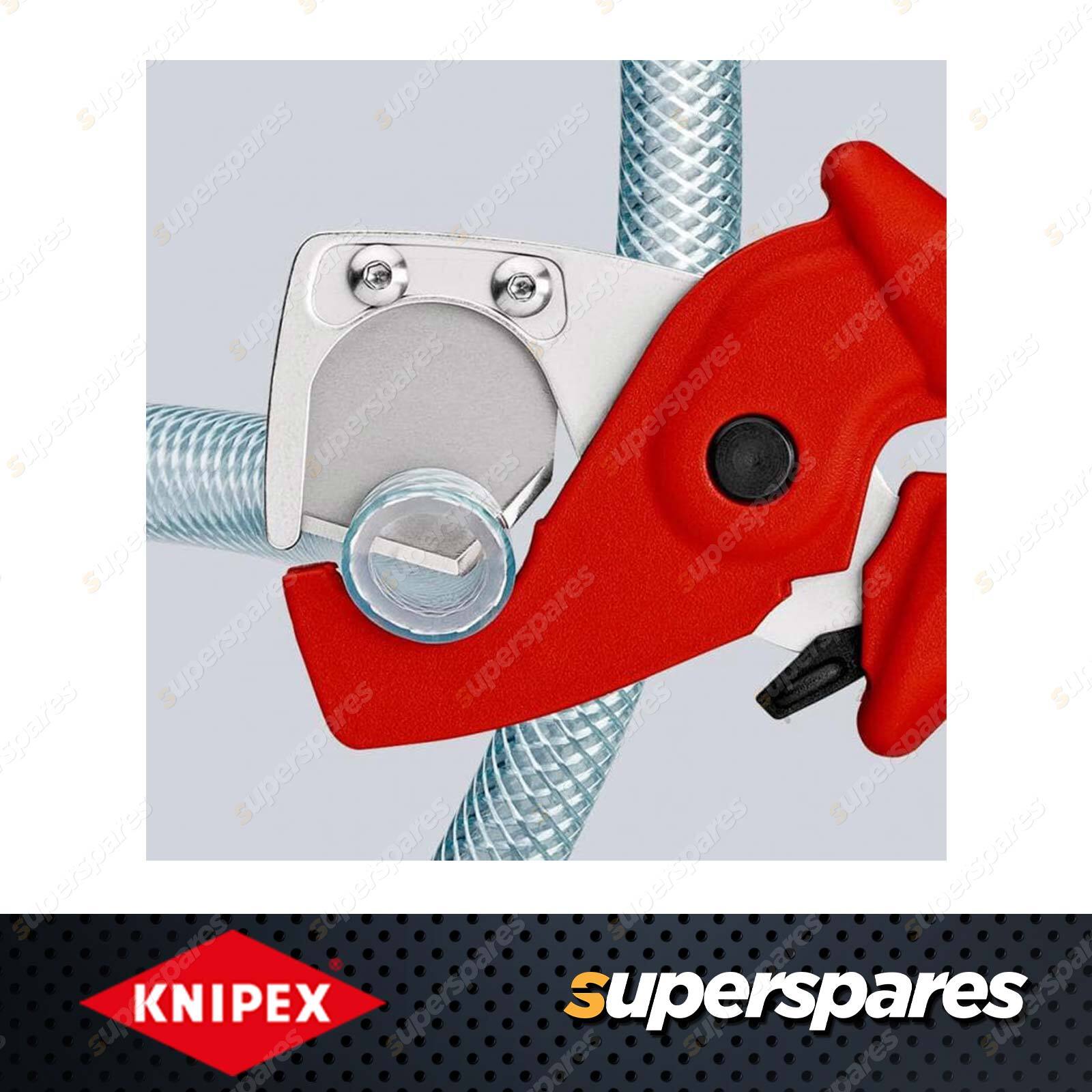

For plastic pipes, plastic armoured pipes and hoses (also fabric reinforced)

Trapezoidal blade cuts two cut edges simultaneously

Thanks to the trapezoidal shape, the blade firstly cuts wedge-shaped into the material. The manual force initially acts on the tip of the blade and, during the cutting process, follows the shape of the material in a circular (radial) way from the inside out and onto the material. This prevents distortions as can arise when cutting using a conventional shearing action with two straight cutting edges.

Right-angled, clean cuts - with little physical effort

Due to the exact positioning of the material in the hose and protective pipe cutter and the wedge-shaped blade, the Knipex pipe cutter automatically produces right-angled cuts. After cutting, no finishing (e.g. deburring) is required on the cut edges. Whether cutting plastic armoured pipes or fabric-reinforced hoses - e.g. for compressed air: the effort required is low due to the favourable angle of entry of the blade. Little effort is needed because the material has already been cut into.

Fast, convenient work thanks to opening spring, positioning and fastening

The opening spring assumes the work of opening for the user during each cutting operation. The spring presses the handles apart and opens the shears while reducing manual force. This is a great advantage, especially during large projects with several work processes. A pawl is integrated for transport. The material to be cut is positioned and secured in the wide, half round support. The pipe cutter for hoses and protective pipes ensure the right-angled position of the material to the blade. This enables cuts to be made in quick sequence using the pipe cutter for hoses and protective pipes.
