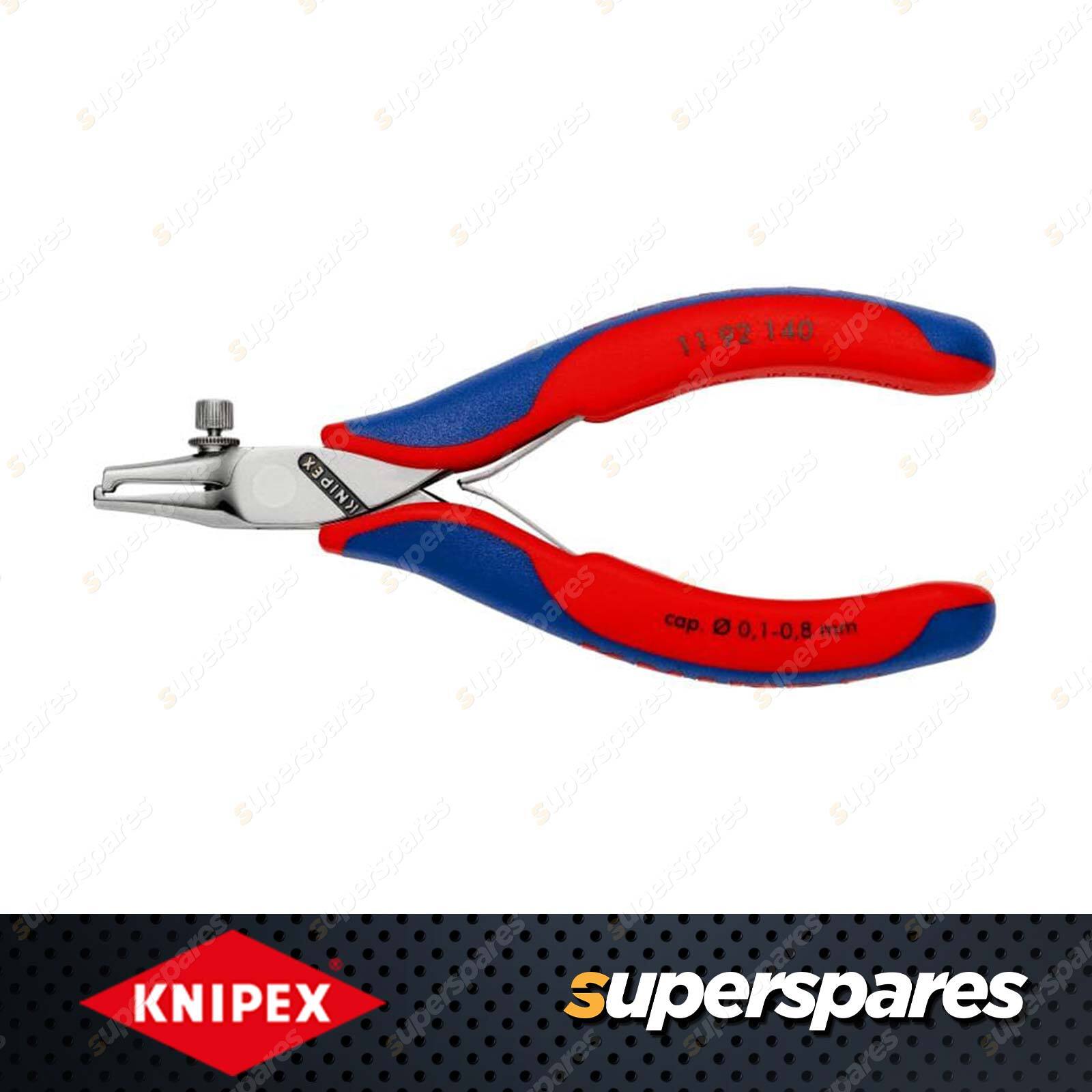

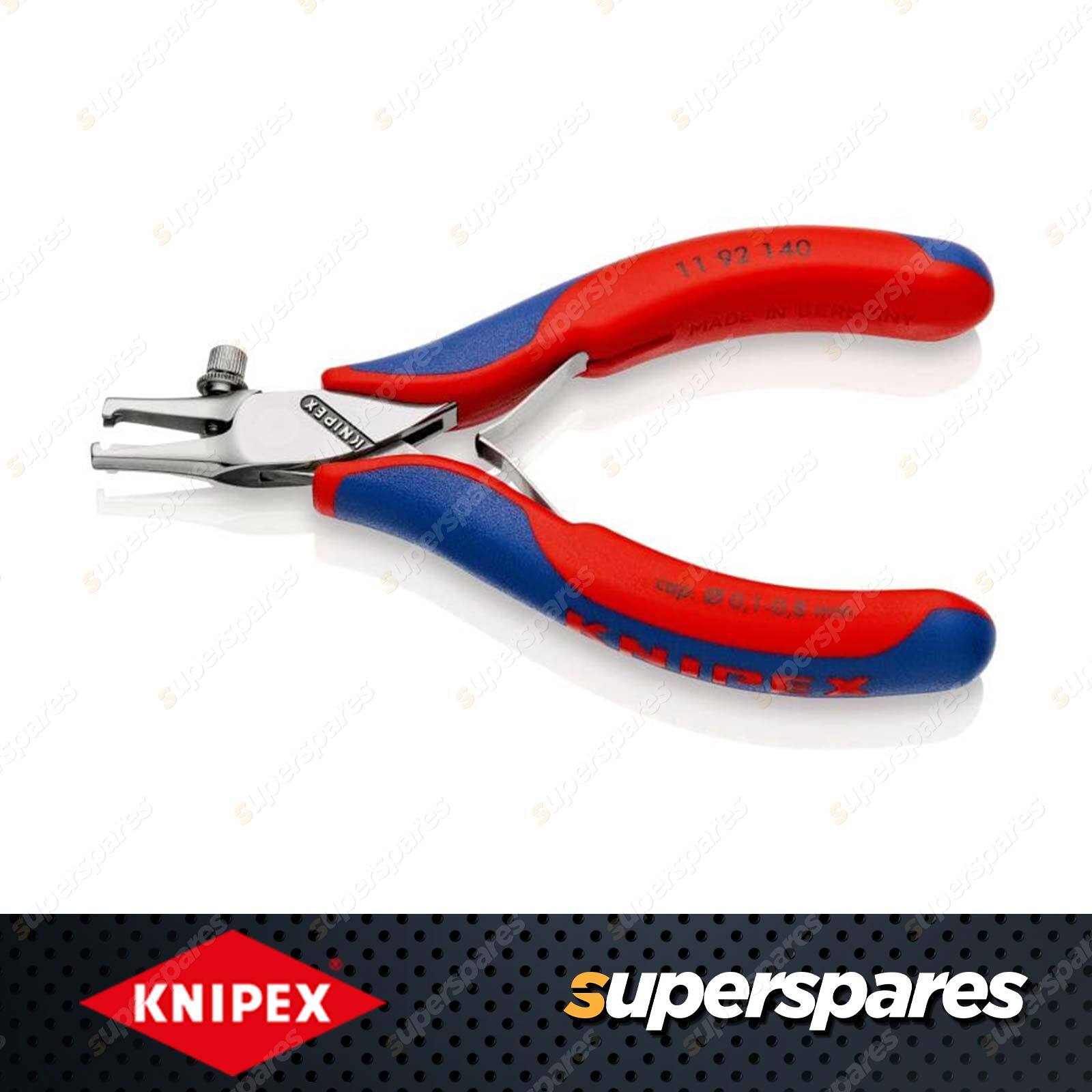

Knipex Electronics Wire Stripper - Mirror Polished Head Length 140mm

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Electronics Wire Stripper

• For single, multiple and fine stranded cables having a diameter from 0.1 up to 0.8 mm, with plastic or rubber insulation
• Easy adjustment to the required diameter of solid or stranded wire with knurled screw and lock nut
• With opening spring
• The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
• Special tool steel, forged, oil-hardened

• Head : mirror polished
• Handles : with multi-component grips
• Weight : 70 g
• Dimensions : 140 x 70 x 17 mm
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Stripping capacities (diameter) : Ø 0.1-0.8 mm

Electronics wire strippers for everyday use

For plastic and rubber insulation materials with a diameter of 0.1 to 0.8 mm

The Knipex electronics wire strippers are principally used for repairs on electronic components and devices. They are also a good, tried and tested tool for standard installation and wiring work, e.g. information and communication technology. Solid, multicore and finely stranded conductors with plastic or rubber insulation and conductor diameters of 0.1 - 0.8 mm can be reliably stripped with this tool.

Proven knurled screw for adjusting the conductor cross-section

The pliers are set to the conductor cross-section using the knurled screw so that only the insulation is cut into without damaging the conductor. The knurled screw is secured with the inset lock nut to maintain the precise adjustment even during longer periods of work. This simple principle has been tried and tested for decades.

With strong construction for long tool life, convenient to use

This Knipex wire strippers are forged from special tool steel and additionally oil-hardened. The opening spring nestles the pliers gently in the user's hand, thereby substantially reducing strain in hand muscles when holding the pliers tight. As rust protection, these pliers are mirror-polished and covered with a fine oil film to prevent sensitive circuits being damaged by any pieces of chrome that peel off. Thanks to this machining and finishing step, when used correctly the electronic wire strippers are suitable for a long tool life. With their multi-component grips, they sit comfortably in the hand, and at just 99 g are pleasantly light.
