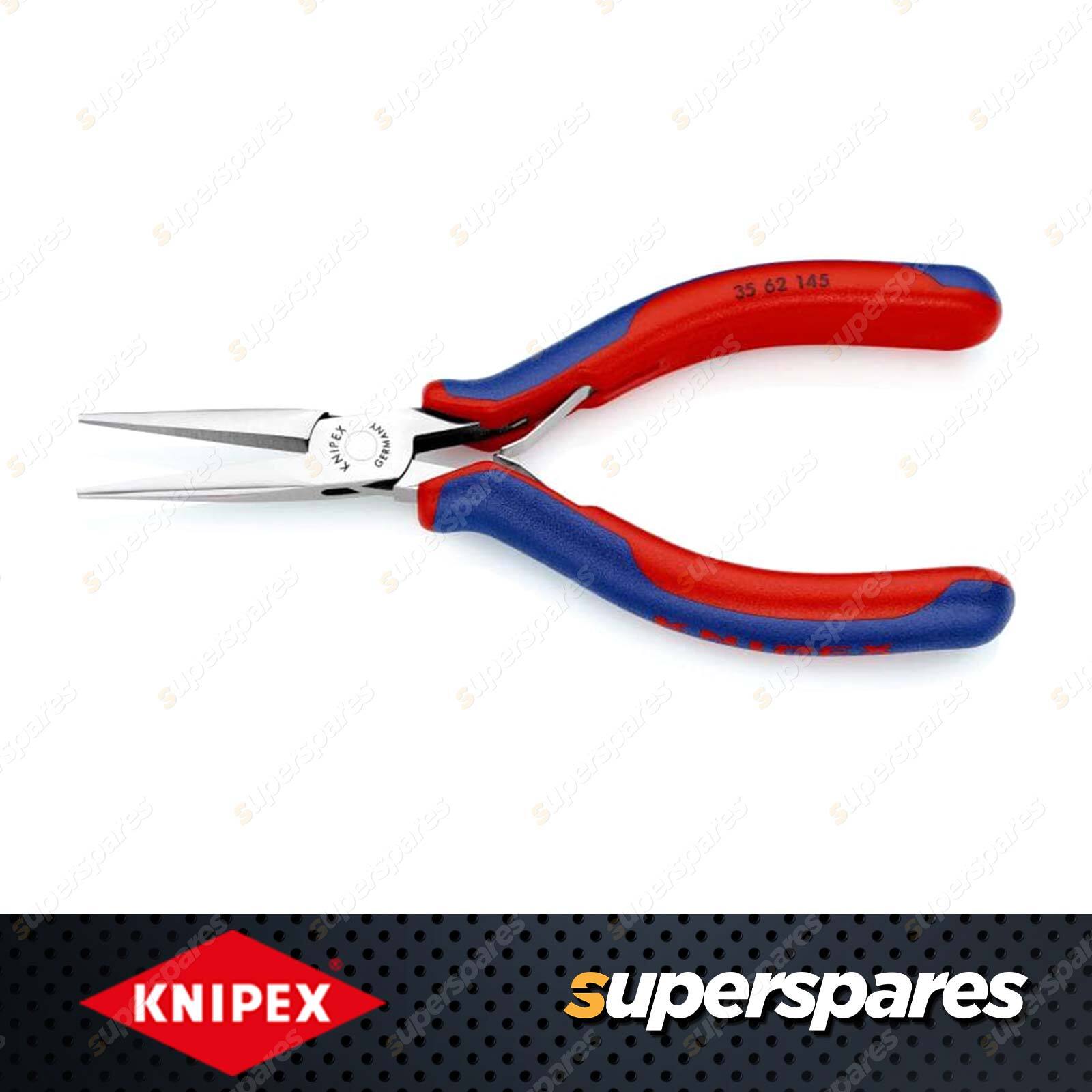

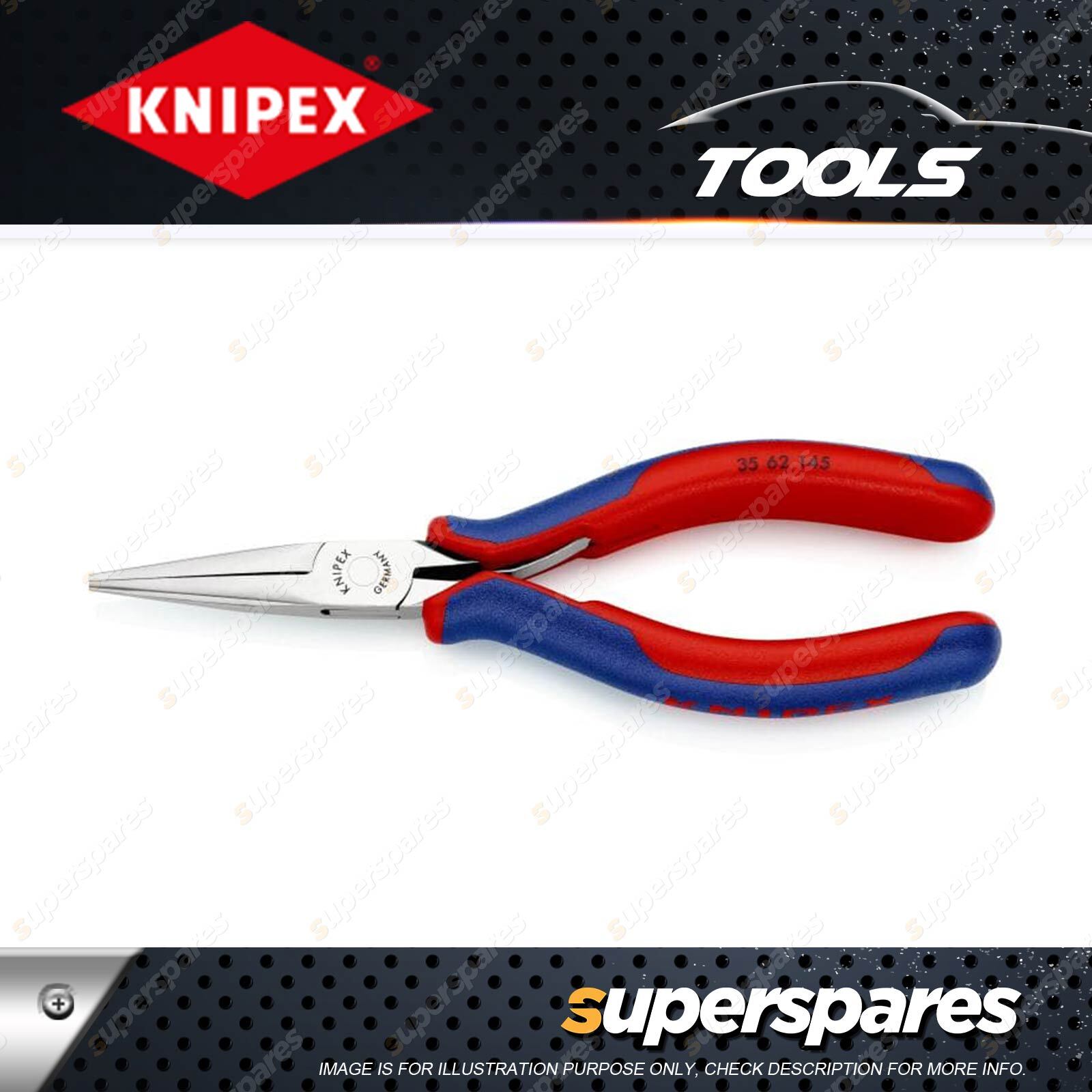

Knipex Electronics Precision Pliers - Length 145mm with Half-round Long Jaws

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Electronics Precision Pliers

• Precision pliers for fine assembly work, e g. in electronics and fine mechanics
• For gripping, holding and bending
• Sturdy, zero backlash box joint
• Smooth ground gripping surfaces
• Edges carefully deburred
• Low-friction double spring for gentle and even opening
• The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
• Half-round, long jaws
• Ball bearing chrome steel, oil hardened

• Head : mirror polished
• Handles : with multi-component grips
• Weight : 103 g
• Dimensions : 145 x 60 x 19 mm
• Standard : DIN ISO 9655
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable

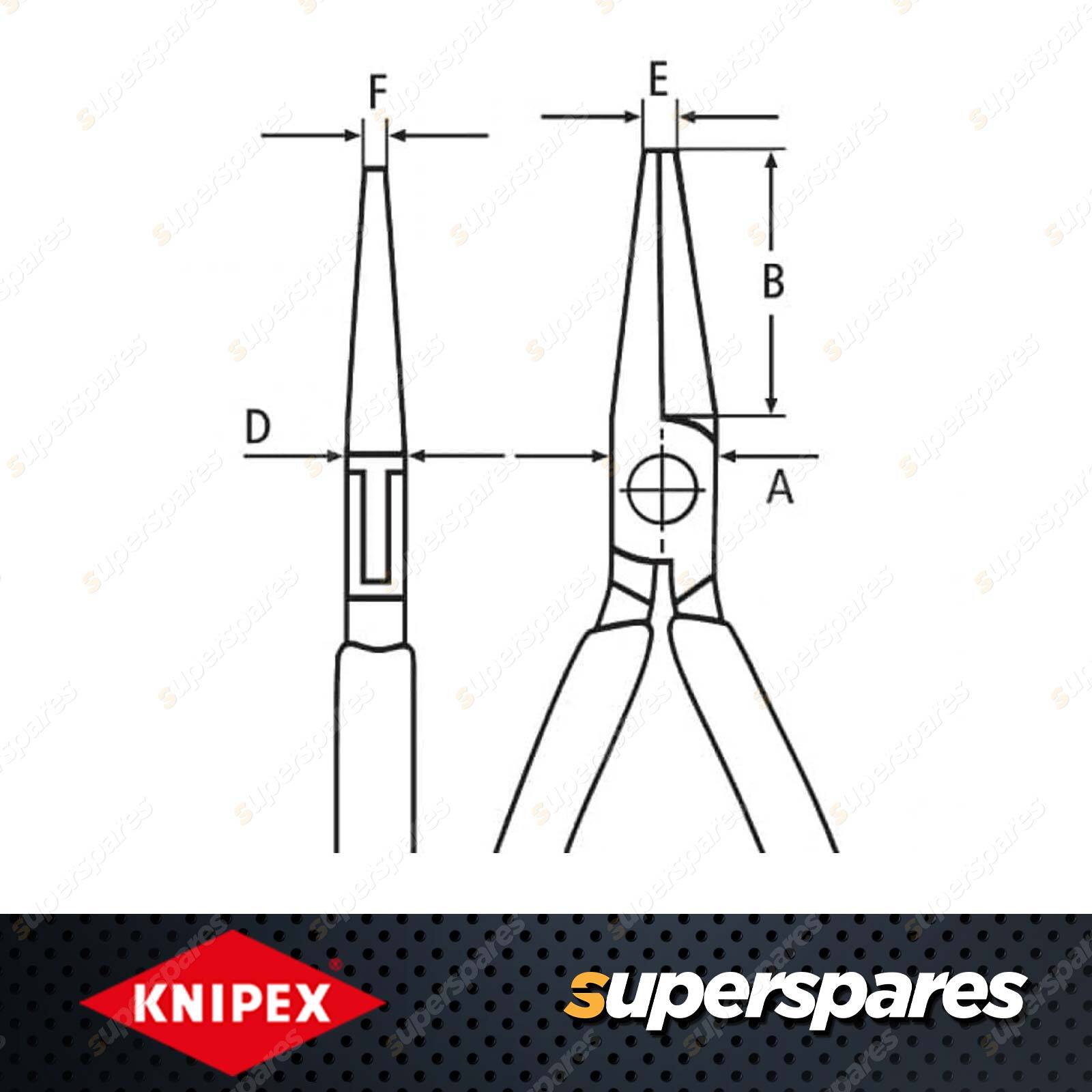

• Jaw length (B) : 40.0 mm
• Jaw thickness (joint) (D) : 7.5 mm
• Tips width (E) : 2.5 mm
• Tips thickness (F) : 1.5 mm
• Head width (A) : 12.0 mm

Small, fine and safe: the electronics pliers for fine installation work

Long, round gripping surfaces for plenty of freedom of movement even where space is restricted

Electronic equipment, printed circuit boards and precision constructions such as measuring equipment or delicate apparatus are usually built in tight spaces. A compact tool is therefore needed which can also be used to work well even in poorly accessible areas. The round gripping surfaces of these precision gripping pliers are very long for ideal access also to concealed parts. With an overall length of 145 mm and their long, slim and flat head, the electronics pliers from Knipex are the ideal tool for the delicate gripping, holding and bending of sensitive components. The gripping surfaces are smooth ground to protect sensitive surfaces.

Smooth operating and accurate, with box joint design and double spring

The accurate, well-measured transmission of manual force to the component is decisive to working successfully on small and sensitive components. The mechanics of the plier are therefore very finely adjusted. The box joint is solid and smooth operating. The inner handle is guided on both sides by the outer handle. This ensures precise running without any tilting effect. The low friction double spring supports the gentle opening of the pliers, which greatly relieves strain for the user during frequently recurring hand movements.

High Knipex quality standards and safety rust protection

Quality in production, quality results in everyday work: the handles of the electronics pliers are forged from special tool steel, oil-hardened, carefully deburred, mirror-polished and completed with opening spring and rivet to produce gripping pliers in accordance with the Knipex quality standard. For safety reasons, chrome-plating is not used as rust protection with these gripping pliers. Peeling pieces of chrome could result in damage to printed circuit boards. Without chrome-plating there is no such risk. A mirror polish in conjunction with a fine oil film applied in the factory protects the pliers. This corrosion protection is perfectly adequate for workshop operation if the oil film is replaced occasionally.
