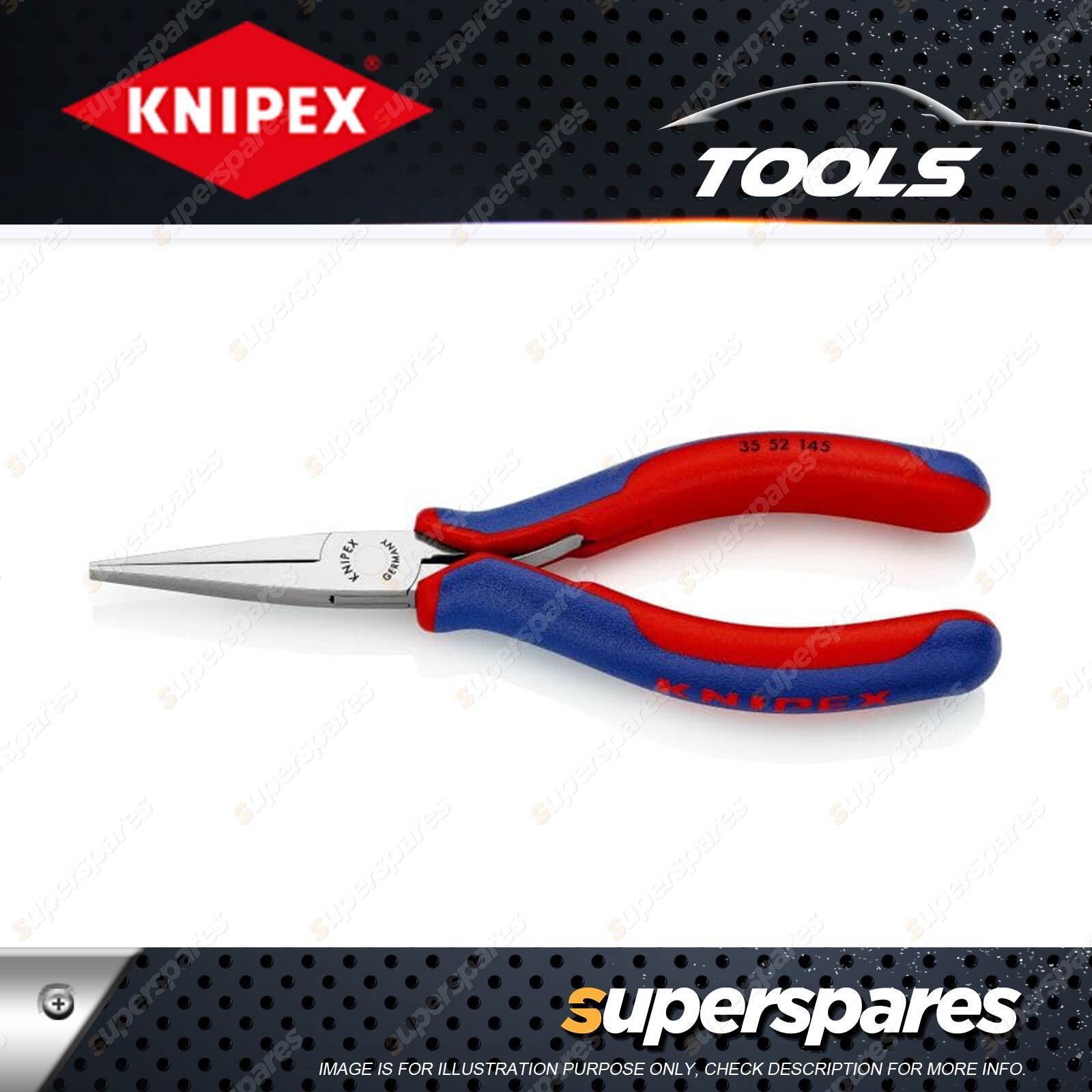

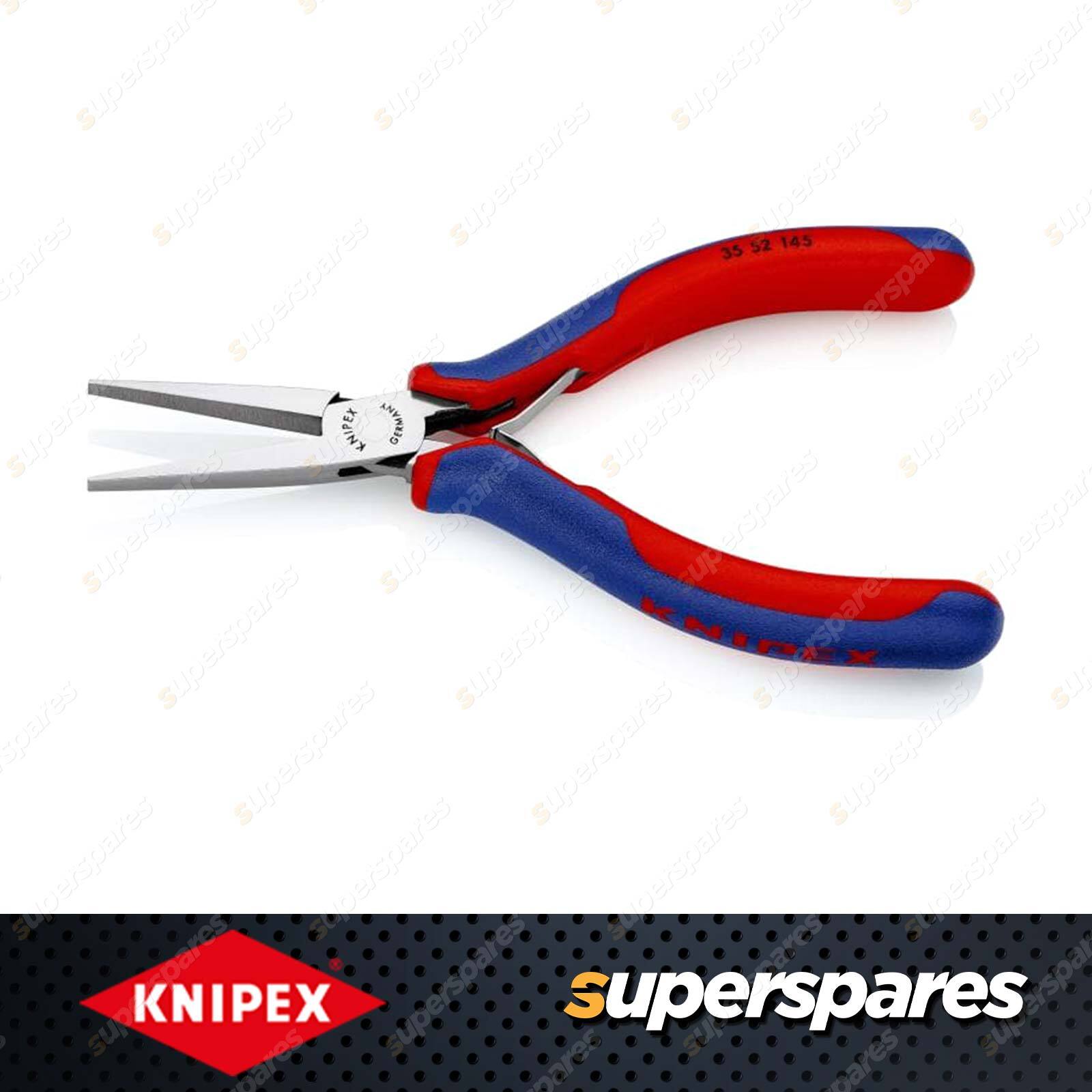

Knipex Electronics Precision Pliers - Length 145mm with Long Trapezoidal Jaws

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Electronics Precision Pliers

• Precision pliers for fine assembly work, e g. in electronics and fine mechanics
• For gripping, holding and bending
• Sturdy, zero backlash box joint
• Smooth ground gripping surfaces
• Edges carefully deburred
• Low-friction double spring for gentle and even opening
• The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
• Long, trapezoidal jaws
• Ball bearing chrome steel, oil hardened
• Handles
• Multi-component grips
• Length
• 145 mm

• Head : mirror polished
• Handles : with multi-component grips
• Weight : 102 g
• Dimensions : 145 x 58 x 19 mm
• Standard : DIN ISO 9655
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable

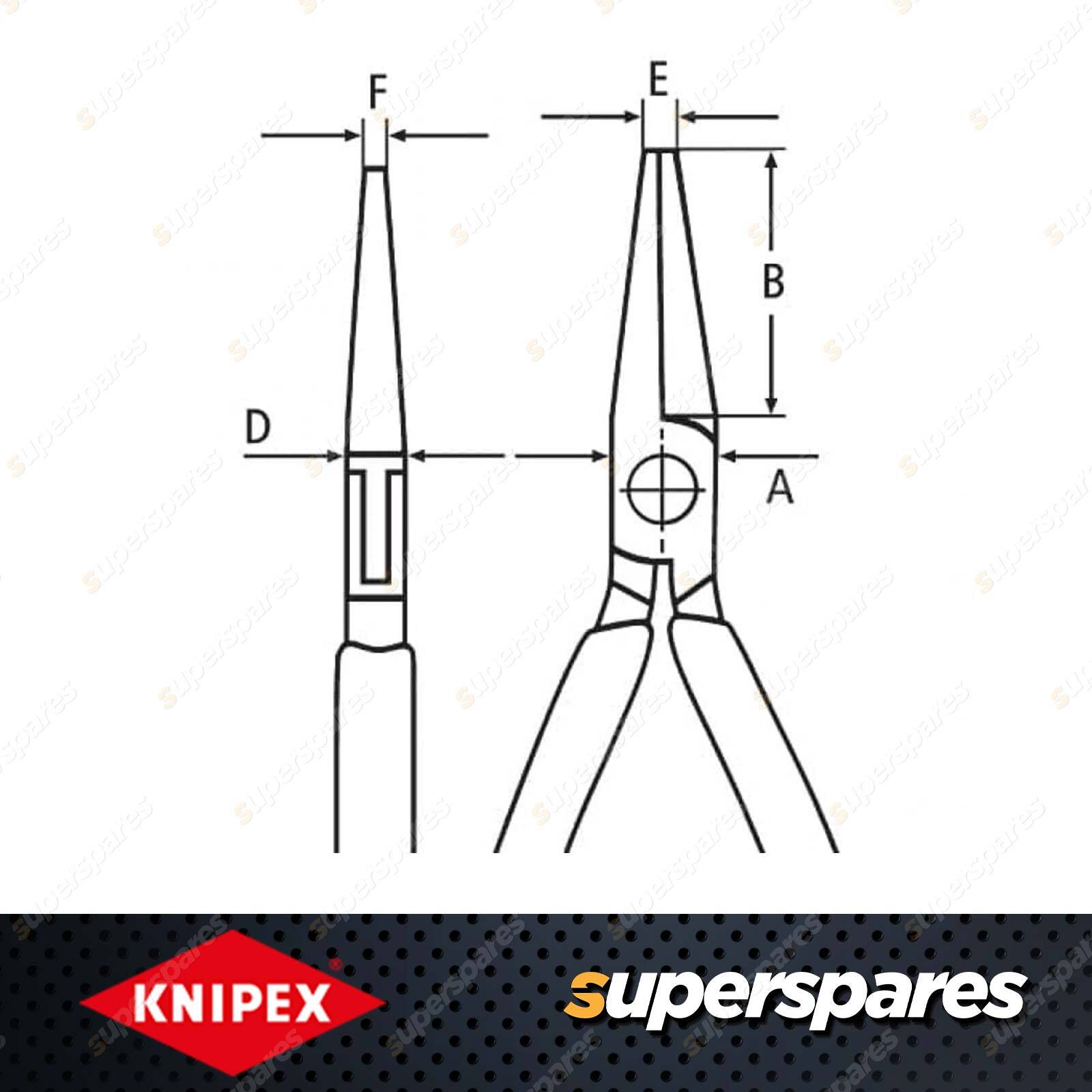

• Jaw length (B) : 40.0 mm
• Jaw thickness (joint) (D) : 7.5 mm
• Tips width (E) : 1.5 mm
• Tips thickness (F) : 4.0 mm
• Head width (A) : 12.0 mm

Small, fine and safe: the electronics pliers for fine installation work

Very long tips: a great deal of freedom of movement even where space is restricted

Those who want to reach electronic equipment, printed circuit boards and precision constructions such as measuring equipment and delicate apparatus well need slim and compact tools. This is why the slim tips of the electronics pliers are very long at 40 mm. With a total length of 145 mm, these electronics pliers from Knipex are the ideal tool for the delicate gripping, holding and bending of sensitive components that are difficult to reach. The gripping surfaces are smooth ground to protect sensitive surfaces.

Smooth operating and accurate, with box joint design and double spring

The accurate, well-measured transmission of manual force to the component is crucial with gripping pliers for small and sensitive components. The mechanics of the plier are very finely adjusted. The box joint is solid and smooth operating. The inner handle is guided on both sides by the outer handle. This stabilisation ensures precise running without any tilting effect. The low friction double spring supports the gentle opening of the pliers.

High Knipex quality standards and safety rust protection

The handles of the electronics pliers are forged from special tool steel, oil-hardened, carefully deburred, mirror-polished and completed with opening spring and rivet to produce precision gripping pliers. Because printed circuit boards react very sensitively to foreign bodies, the rust protection on these pliers is achieved using a mirror polish together with a fine oil film. The advantage over chrome-plating is that nothing can peel off and fall onto printed circuit boards. The oil film applied in the factory provides perfectly adequate corrosion protection for the pliers during workshop use. It is sufficient if the oil film is replaced occasionally.
