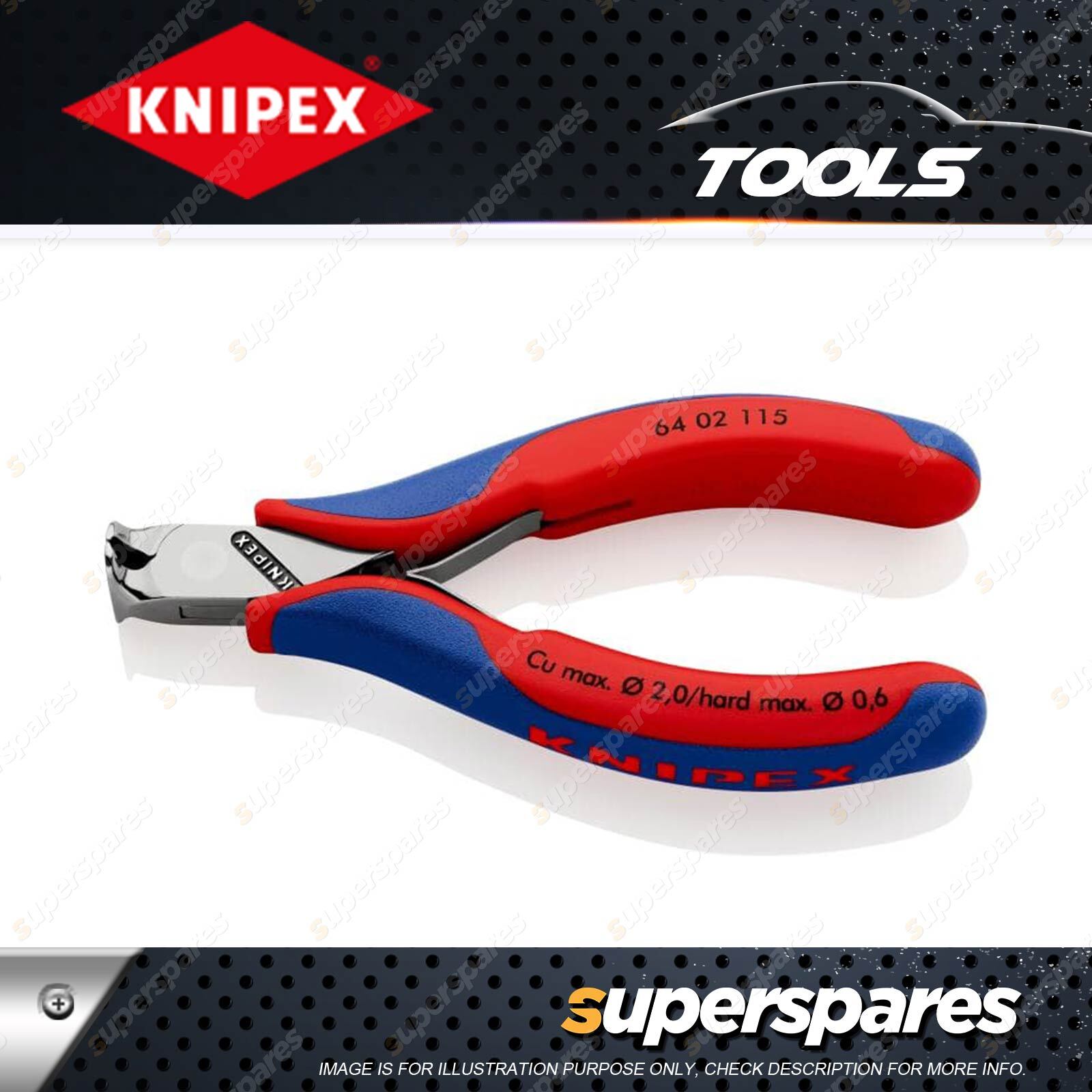

Knipex Electronics End Cutting Nipper - Length 115mm with Small Bevel

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Electronics End Cutting Nipper

• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Sturdy, zero backlash box joint
• Low-friction double spring for gentle and even opening
• The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
• Cutters additionally laser hardened, cutter hardness at least 56 HRC

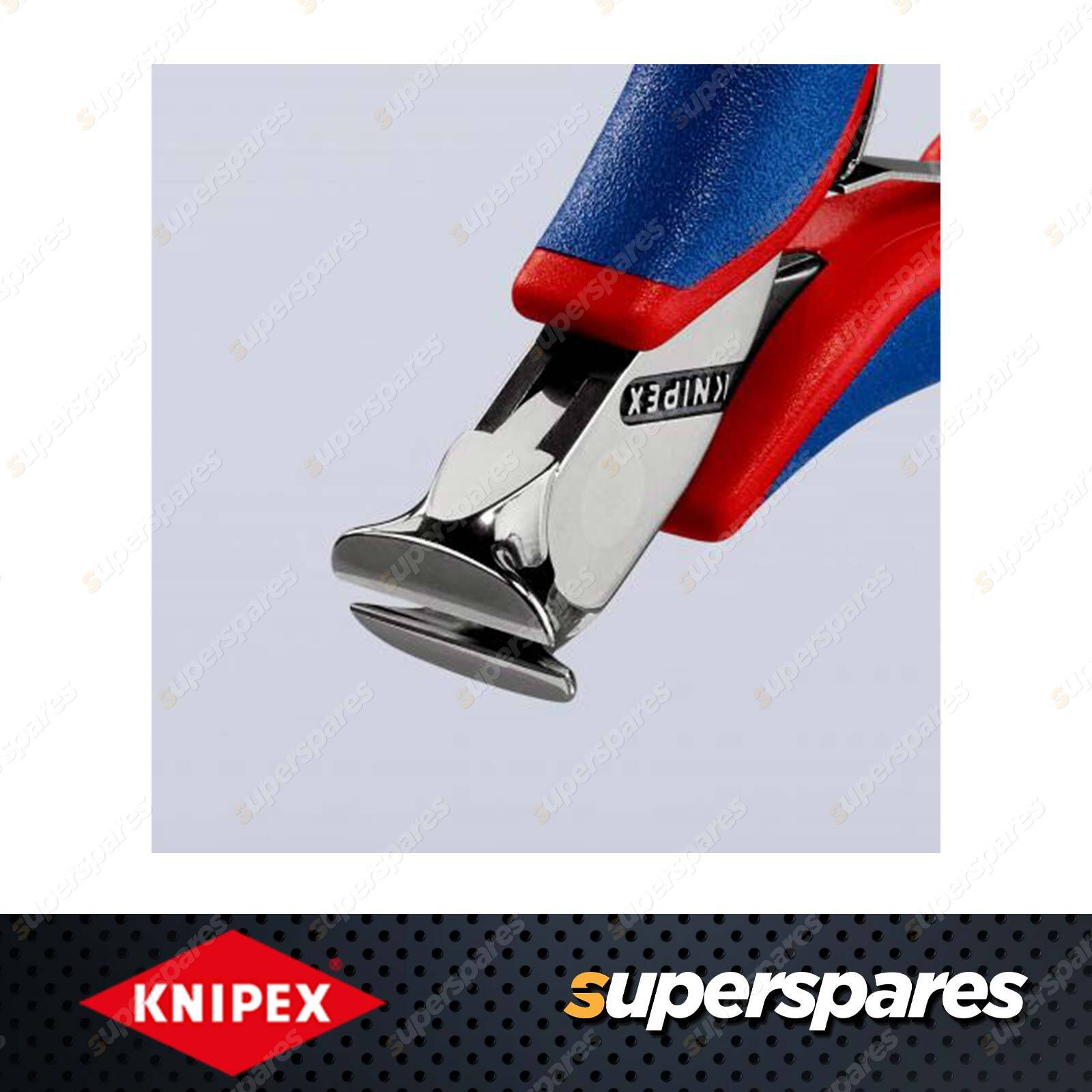

• End Cutter, with small bevel
• Ball bearing chrome steel, oil hardened

• Head : mirror polished
• Handles : with multi-component grips
• Weight : 70 g
• Dimensions : 115 x 62 x 17 mm
• Standard : DIN ISO 9654
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities soft wire (diameter) : Ø 2.0 mm
• Cutting capacities medium hard wire (diameter) : Ø 1.0 mm
• Cutting capacities hard wire (diameter) : Ø 0.6 mm

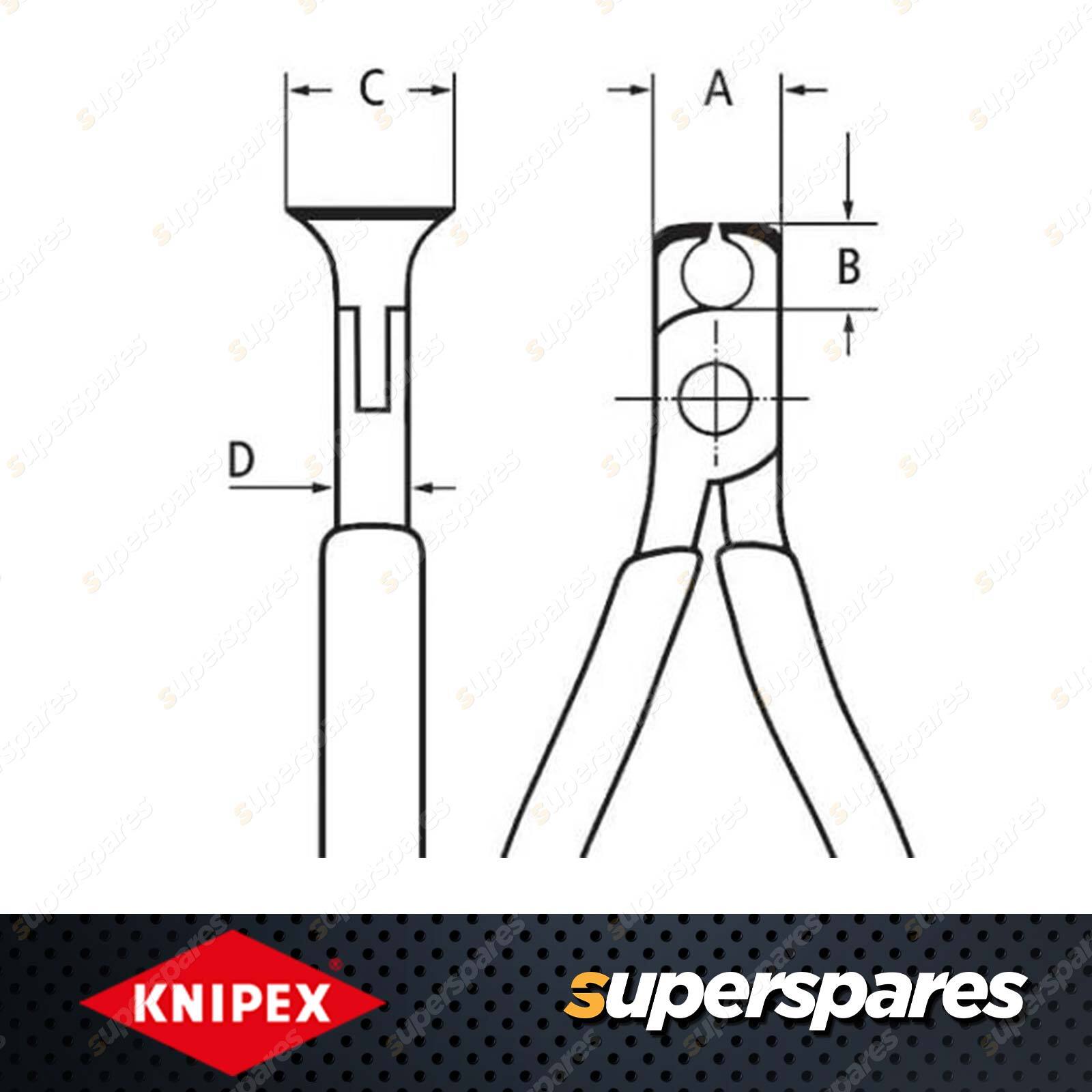

• Head width (A) : 11 mm
• Jaw length (B) : 6 mm
• Jaw thickness (joint) (D) : 7.5 mm
• Cutting edge length mm (C) : 16 mm

Cut fine wire and cable vertically to surfaces

Cutting vertically and so from the front

In tight spaces, e.g. on printed circuit boards, cutting is often best done from above. Unlike with diagonal cutters, where the cutting edges are a relatively straight extension of the handle, the electronics end cutting nippers from Knipex have cutting edges at right angles to the handles.

This permits work that is almost vertical to surfaces from which wire, cable or components are protruding. In tight spaces, e.g. on printed circuit boards, cutting is often best done from above. The power delivery to the cutting edges and the measuring of manual force are both excellent thanks to the good leverage resulting from the short pliers head.

Sophisticated design - designed for ergonomics and durability

These Knipex end cutting nippers have a smooth operating box joint with zero backlash. Box joints are characterised by the fact that the inner handle is guided on both sides by two extensive bearing surfaces. This prevents the tilting movements which are typical with lap joints, and has a positive effect on the quality of cutting processes and tool life because the cutting edges are always at the best angle to each other. In addition to oil hardening of the entire pliers, the cutting edges are induction hardened to at least 60 HRC. The low friction double spring is an advantage ergonomically. It produces a gentle, steady opening after cutting.

High Knipex quality standards and safety rust protection

Instead of chrome-plating, this end cutting nippers have a mirror polish and a fine oil film as corrosion protection. With occasional re-oiling of the surface, this rust protection is completely sufficient for workshop operation. As a result, these electronics pliers are also ideal for sensitive electronics environments for safety reasons. There are no pieces of chrome that could peel off and damage circuits. The quality machining of the pliers meets the requirements present in electronics and micromechanics: precision, function and reliability are of paramount importance.
