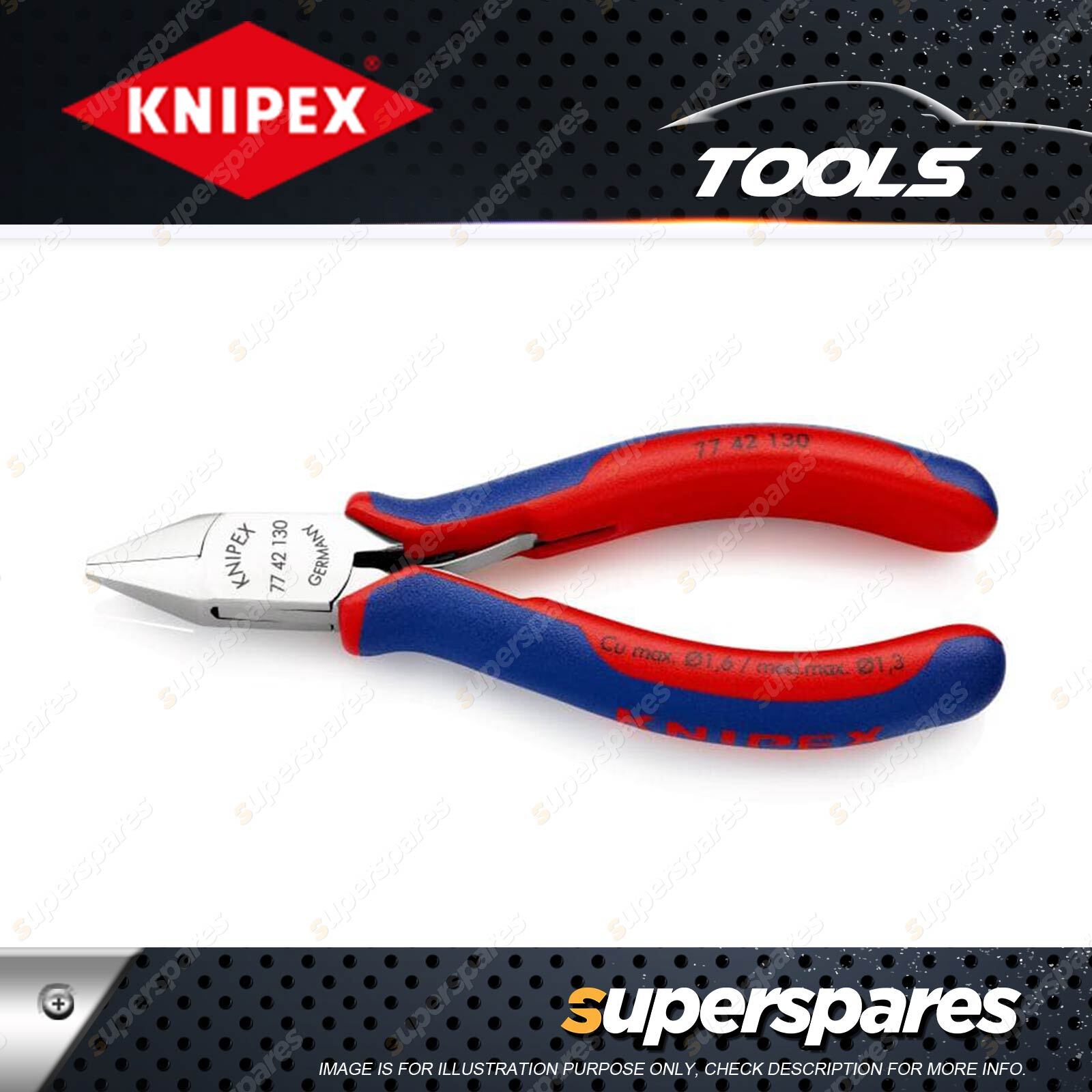

Knipex Electronics Diagonal Cutter - Length 130mm Pointed Head without Bevel

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Electronics Diagonal Cutter

• Pointed head, without bevel
• Cutting edge hardness approx. 57 HRC
• For fine cutting work, e.g. in electronics and fine mechanics
• Load-optimised for a more direct feel when working
• Sturdy, zero-backlash box joint
• Low-friction double spring for gentle and even opening
• The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
• Cutters additionally laser hardened, cutter hardness at least 60 HRC
• Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
• Ball bearing chrome steel, oil hardened

• Head : mirror polished
• Handles : with multi-component grips
• Weight : 122 g
• Dimensions : 130 x 61 x 18 mm
• Standard : DIN ISO 9654
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities medium hard wire (diameter) : Ø 1.3 mm
• Cutting capacities soft wire (diameter) : Ø 0.3 - 1.6 mm

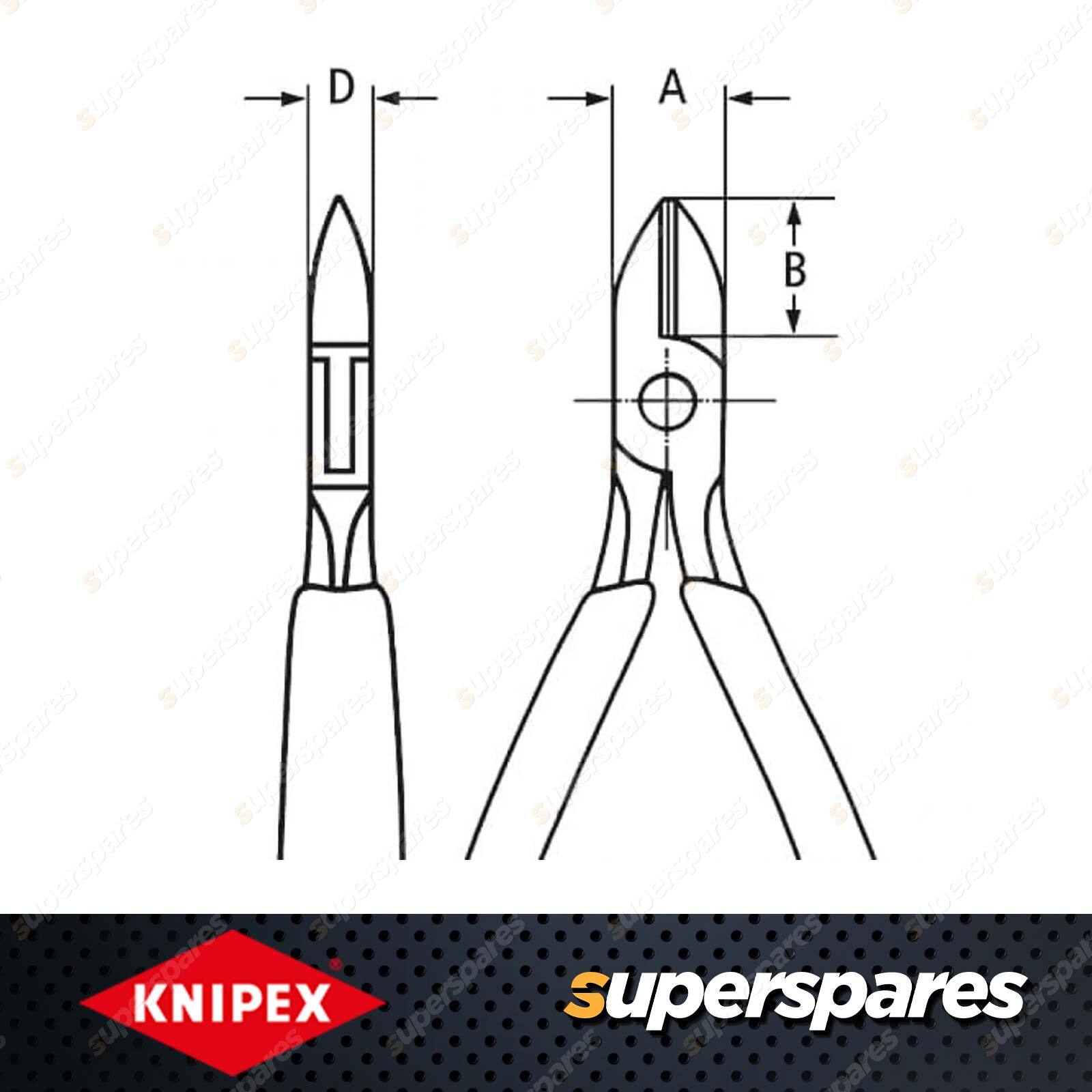

• Jaw length (B) : 18 mm
• Jaw thickness (joint) (D) : 9.5 mm
• Head width (A) : 15 mm

Precise cutting of fine wires and cables - even soft wires up to Ø1.6 mm

Narrow head, no-bevel cutting edge. Flush cutting also possible

Unlike a diagonal cutter for domestic installations, electronics diagonal cutter is a real precision tool. With a length of 130 mm and weighing 122 g, it is extremely compact and lightweight, making it ideal for confined spaces, e.g. often found in PCBs or precision equipment. Cutting edge hardness approx. 57 HRC it cuts soft wires up to Ø1.6 mm. The short pliers head offers strong leverage. This makes it perfect for power delivery on the cutting edges and controlling manual force. Due to its design, the electronics diagonal cutter is only suitable for soft and medium-hard wires. As the cutting edges are not bevelled, flush cutting is possible.

Zero-backlash box joint for high cutting quality and service life

The Knipex electronics diagonal cutter has a box joint. The inside of both pliers handles is guided. This prevents tilting. Rivets only undergo shearing stress. Result: higher-quality cutting operations, long service life. The tool is oil-hardened, while the cutting edges are induction-hardened to approx. 57 HRC.

High Knipex quality standards and corrosion protection

The Knipex electronics diagonal cutter is forged and multistage oil-hardened. The high-grade workmanship meets the requirements for electronics and precision equipment. Precision, function and reliability are the key concerns. The meticulously crafted pliers are ideally suited to sensitive electronic environments, e.g. for work on PCBs.
