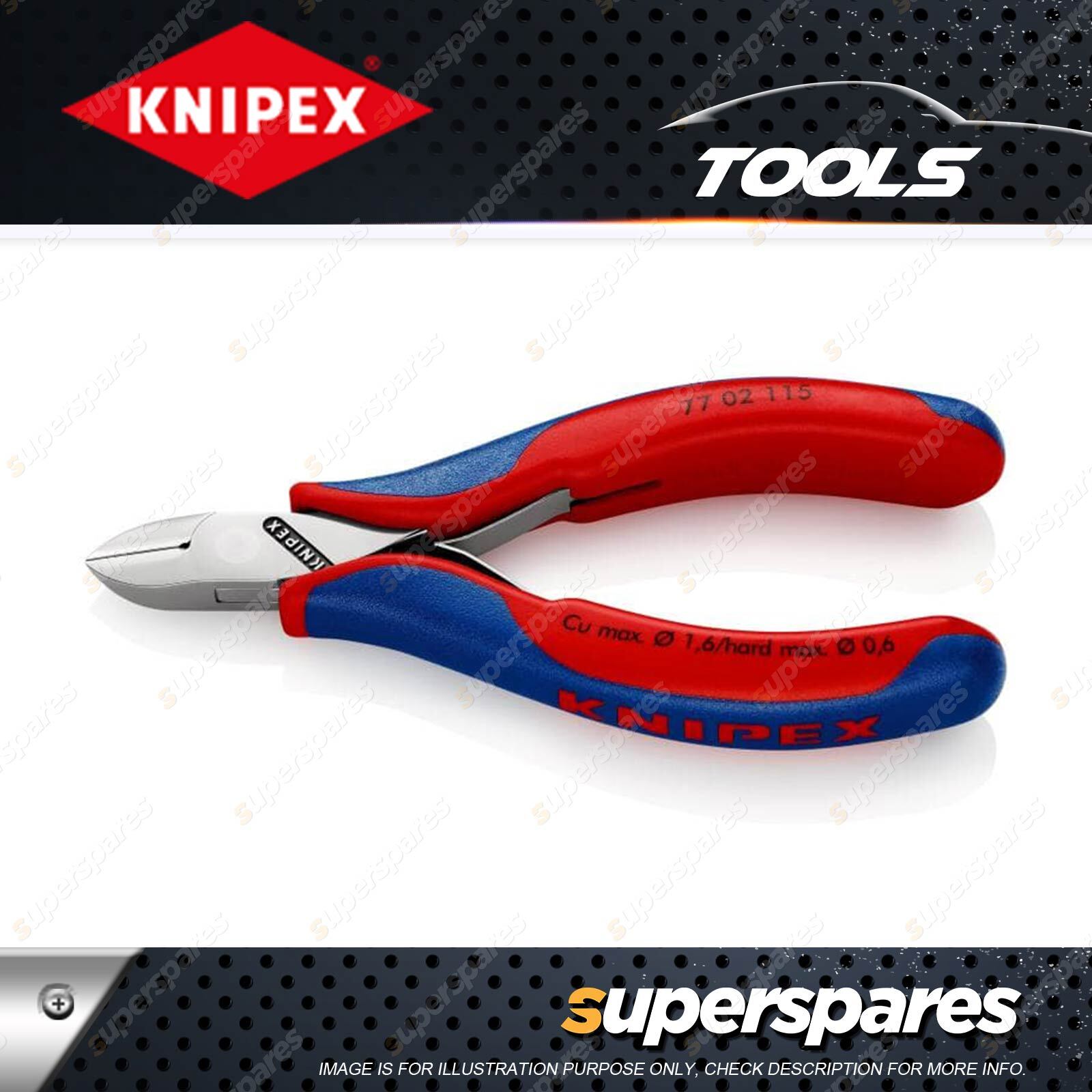

Knipex Electronics Diagonal Cutter - Length 115mm Round Head with Small Bevel

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Electronics Diagonal Cutter

• Round head, with small bevel
• Cutting edge hardness approx. 60 HRC
• For fine cutting work, e.g. in electronics and fine mechanics
• Load-optimised for a more direct feel when working
• Sturdy, zero-backlash box joint
• Low-friction double spring for gentle and even opening
• The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
• Cutters additionally laser hardened, cutter hardness at least 60 HRC
• Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
• Ball bearing chrome steel, oil hardened

• Head : mirror polished
• Handles : with multi-component grips
• Weight : 70 g
• Dimensions : 115 x 70 x 17 mm
• Standard : DIN ISO 9654
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities medium hard wire (diameter) : Ø 1.2 mm
• Cutting capacities hard wire (diameter) : Ø 0.6 mm
• Cutting capacities soft wire (diameter) : Ø 0.3 - 1.6 mm

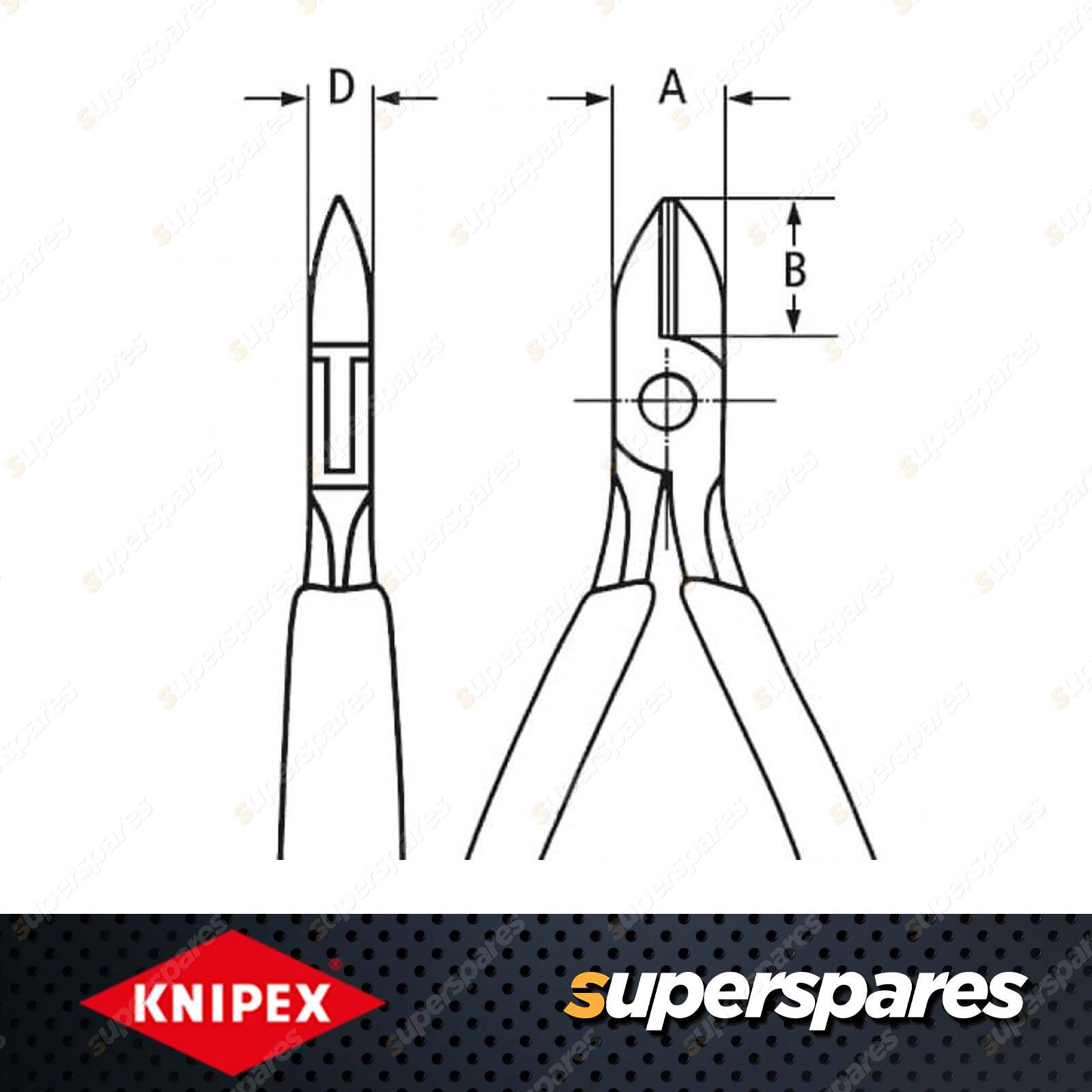

• Jaw length (B) : 14 mm
• Jaw thickness (joint) (D) : 7.5 mm
• Head width (A) : 11 mm

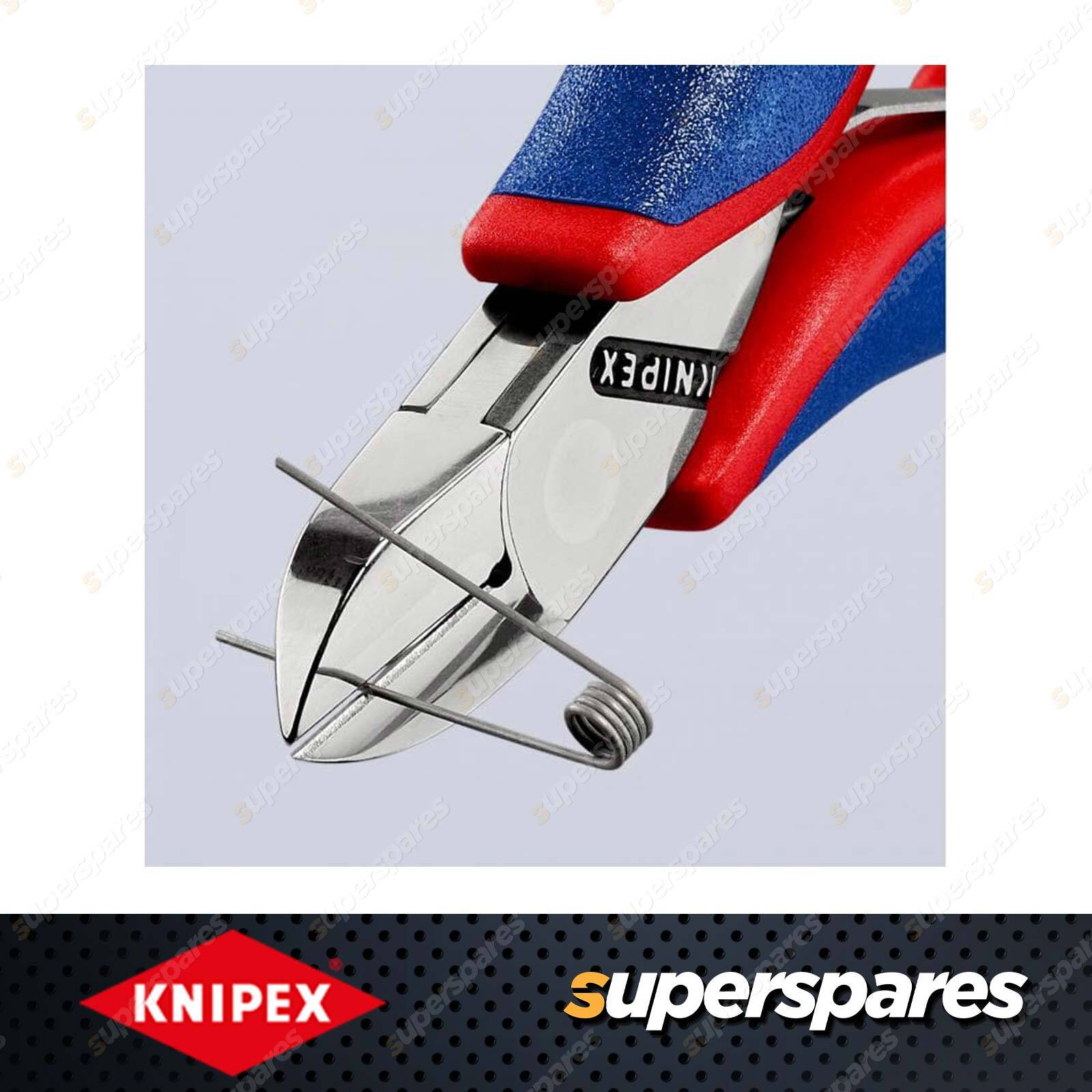

Precise cutting of fine wires and cables - even soft wires up to Ø1.6 mm

Small dimensions - large cutting capacity

It differs from traditional diagonal cutters for domestic installations. This electronics diagonal cutter from Knipex is a genuine precision tool. 115 mm long and 80 g, it is extremely compact and lightweight. This makes it ideal for confined spaces, e.g. for PCBs or precision equipment.

Cutting edge hardness approx. 60 HRC lets it cut soft wire up to Ø1.6 mm and hard wire up to Ø0.6 mm. The short pliers head offers strong leverage. This makes it perfect for power delivery on the cutting edges and controlling manual force.

Zero-backlash box joint. High cut quality and durability

The Knipex electronics diagonal cutter has a smooth box joint for stability and precision. The inside of both pliers handles is guided. This prevents tilting. Rivets only undergo shearing stress. Result: higher-quality cutting operations, long service life. Cutting edges are also induction-hardened to approx. 62 HRC.

High Knipex quality standards and corrosion protection

Knipex electronics diagonal cutter for impressive precision, functionality & reliability. It is ideally suited to sensitive electronic environments, e.g. for work on printed circuit boards. Instead of a chrome finish it is mirror polished to prevent corrosion. This corrosion protection is sufficient for workshop use in combination with a fine film of oil.
