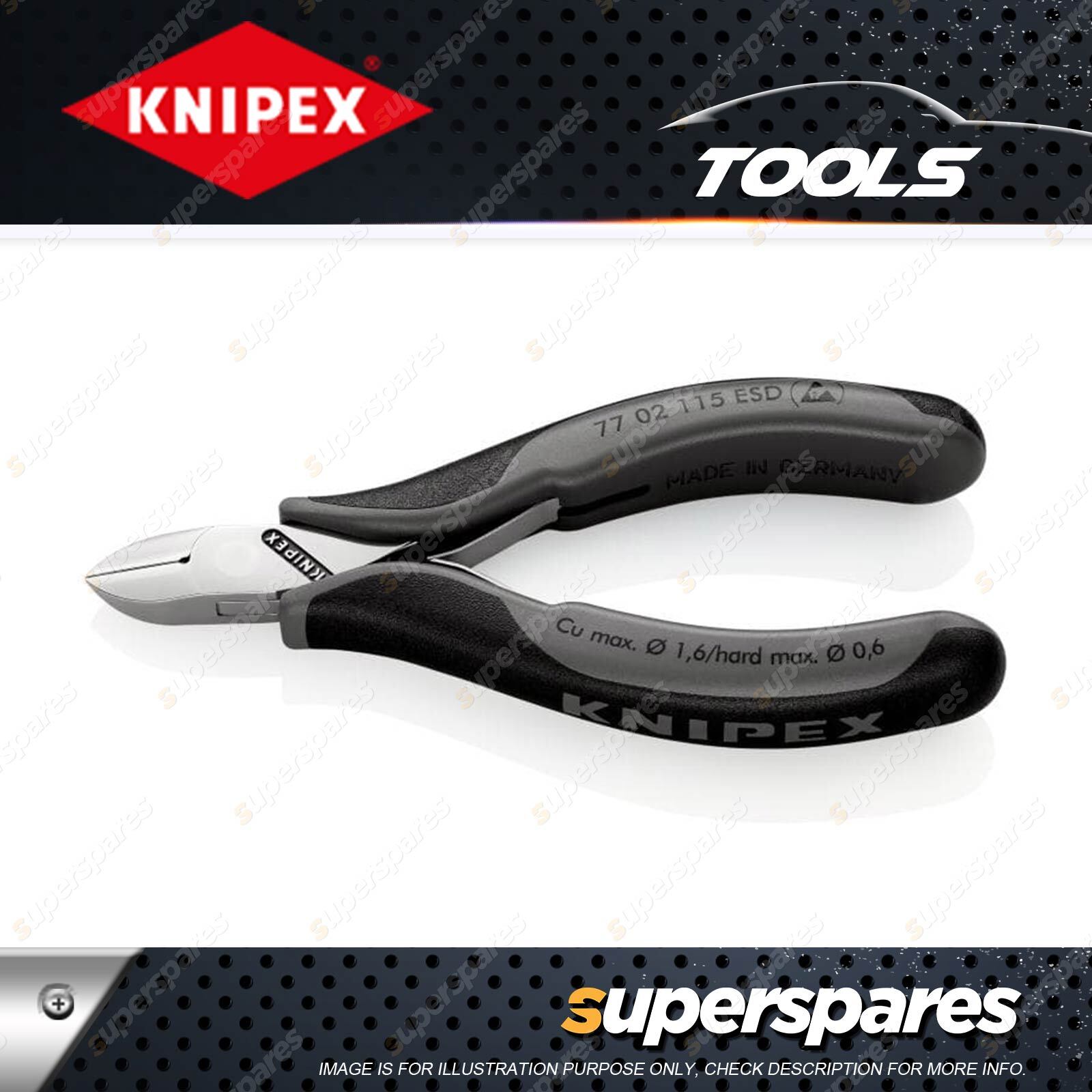

Knipex Electronics Diagonal Cutter ESD - 115mm Long Round Head with Small Bevel

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Electronics Diagonal Cutter

• Round head, with small bevel
• Cutting edge hardness approx. 60 HRC
• For fine cutting work, e.g. in electronics and fine mechanics
• Electrically discharging handles - dissipative
• Sturdy, zero-backlash box joint
• Low-friction double spring for gentle and even opening
• The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
• Handles with two-colour multi-component grips black/grey
• Ball bearing chrome steel, oil hardened

• Head : mirror polished
• Handles : with multi-component grips
• Weight : 70 g
• Dimensions : 115 x 71 x 17 mm
• Standard : DIN ISO 9654 DIN EN 61 340-5
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities medium hard wire (diameter) : Ø 1.2 mm
• Cutting capacities hard wire (diameter) : Ø 0.6 mm
• Cutting capacities soft wire (diameter) : Ø 0.3 - 1.6 mm
• Jaw length (B) : 14 mm
• Jaw thickness (joint) (D) : 7.5 mm
• Head width (A) : 11 mm
• ESD : yes

Precise cutting of fine wires and cables - even soft wires up to Ø1.6 mm

Small dimensions - large cutting capacity

It differs from traditional diagonal cutters for domestic installations. This electronics diagonal cutter from Knipex is a genuine precision tool. 115 mm long and 82 g, it is extremely compact and lightweight. This makes it ideal for confined spaces, e.g. for PCBs or precision equipment.

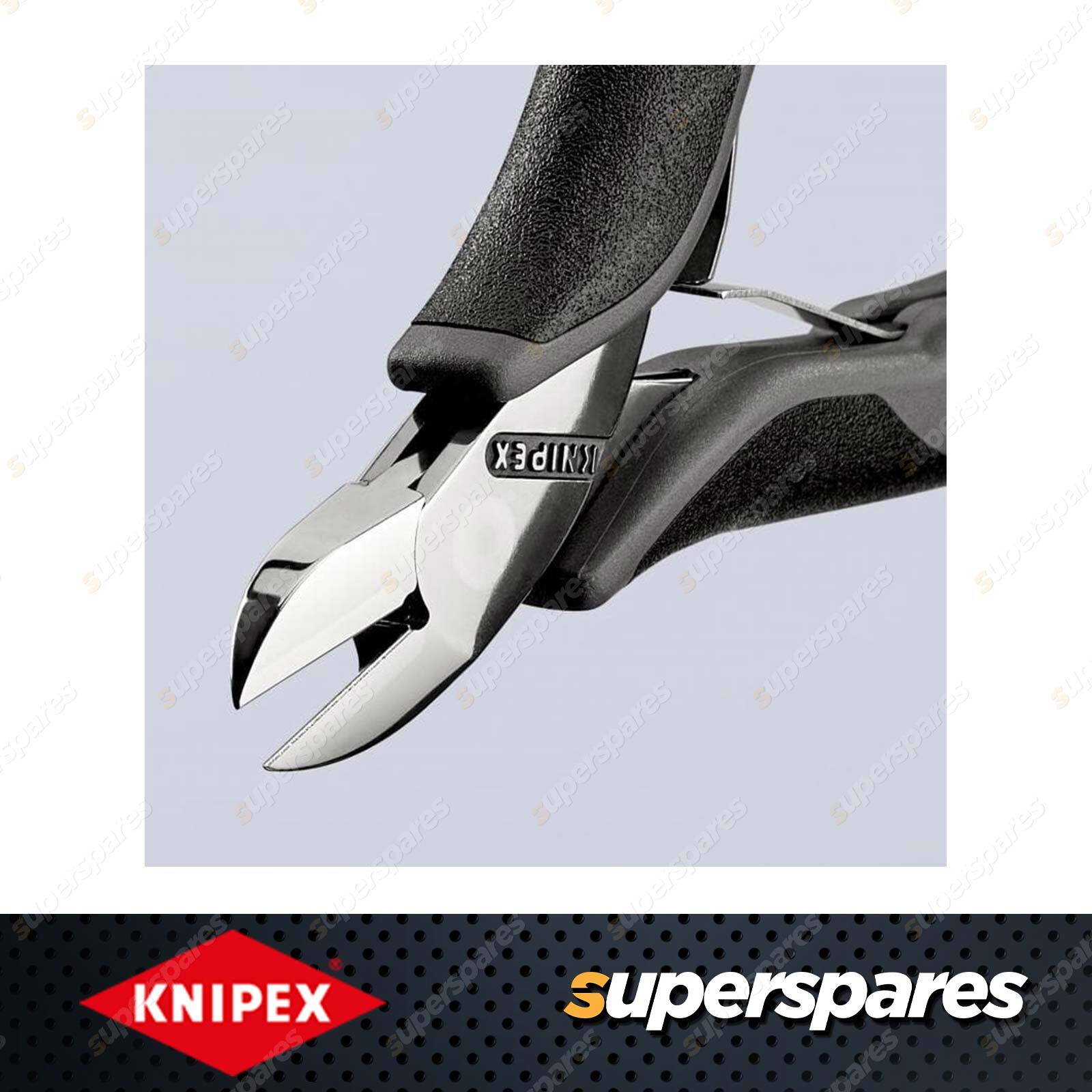

Zero-backlash box joint. High cut quality and durability

The Knipex ESD electronics diagonal cutter has a smooth box joint for stability and precision. The inside of both pliers handles is guided. This prevents tilting. Rivets only undergo shearing stress. Result: higher-quality cutting operations, long service life. Cutting edges are also induction-hardened to approx. 62 HRC.

ESD protection against electrostatic discharges; corrosion protection

In diag. cutter ESD electrost. energy discharges via handles. The corrosion protection is also safe for sensitive electronic components. Instead of chrome plating, the meticulously crafted electronics diagonal cutter is mirror polished with a fine film of oil to protect against corrosion.
