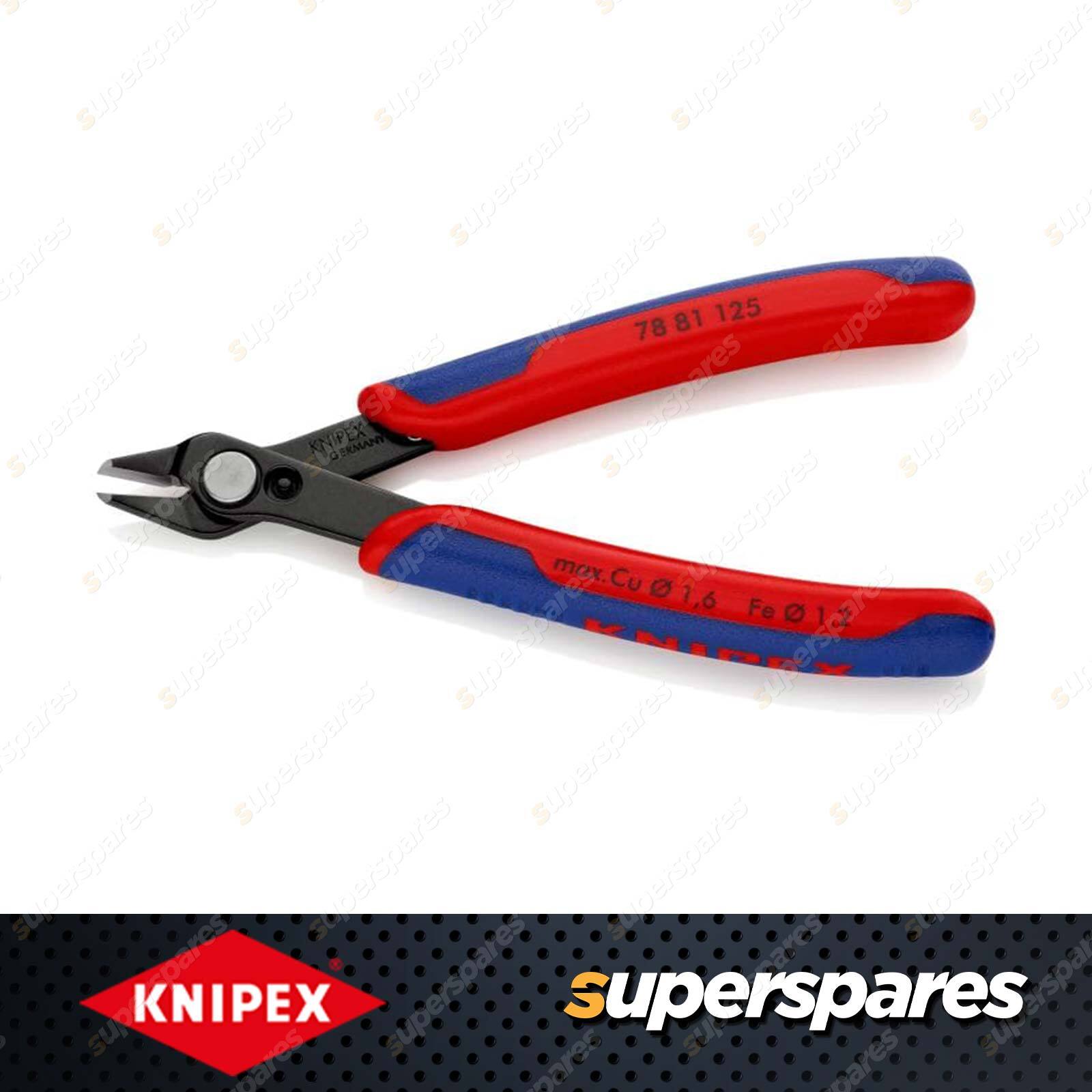

Knipex Electronic Super Knips - Length 125mm with Small Bevel Precision Pliers

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Electronic Super Knips

• Precision-ground cutting edges with very small bevel suitable also for hard wire
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
• Special tool steel, burnished
• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Ground, very sharp cutting edges without bevel
• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
• Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
• Joint with stainless steel rivet
• Extremely smooth movement for minimum operator fatigue
• With opening spring and opening limiter

• Pliers : burnished
• Head : burnished
• Handles : with multi-component grips
• Weight : 57 g
• Dimensions : 125 x 50 x 16 mm
• Standard : DIN ISO 9654
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities medium hard wire (diameter) : Ø 1.2 mm
• Cutting capacities hard wire (diameter) : Ø 0.6 mm
• Cutting capacities soft wire (diameter) : Ø 0.2 - 1.6 mm

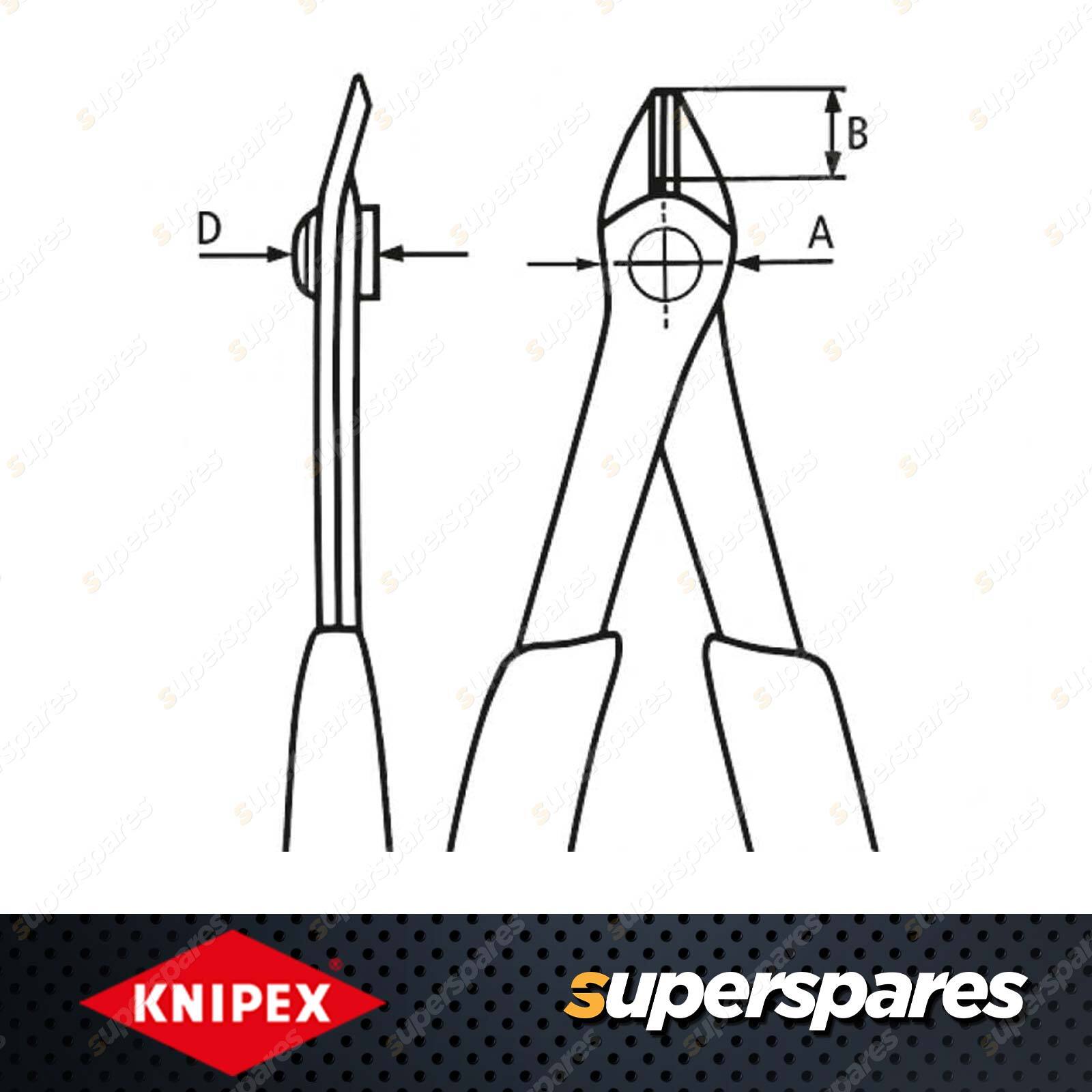

• Jaw length (B) : 9 mm
• Jaw thickness (joint) (D) : 7.5 mm
• Head width (A) : 13.5 mm

Accurately cut abutting, fine wire - and hard wire

Sharp cutting edges made of induction hardened, special tool steel

The Knipex Electronic Super Knips is manufactured from special tool steel and polished.

The cutting edges are ground with a very small bevel for almost flush cutting of even hard wire and are induction hardened to approx. 64 HRC.

Accurately cut fine wires, e.g. that are touching enclosures and components, thanks to precision tips.

Work involving dexterity: low weight and smooth operation

Great dexterity is needed when working on electronic components and in precision mechanics.

Due to its frictionless handle spring, the Knipex Electronic Super Knips is so smooth-running that energy can be metered out very precisely - with dexterity. Opening spring and opening restrictor simplify work further.

The tough model among the fine pliers

In the Electronic Super Knips, Knipex has produced extremely manageable, light, slim electronic diagonal cutters with best accessibility that focus on cutting thin and harder components. These continue to be cut almost flush.

The minimal external bevel gives this Knipex Super Knips the necessary strength.
