Knipex Electronic Super Knips - Length 125mm with Burnished Narrow Head

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Electronic Super Knips

• With narrow head
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 60 HRC
• Special tool steel, burnished
• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Ground, very sharp cutting edges without bevel
• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
• Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
• Joint with stainless steel rivet
• Extremely smooth movement for minimum operator fatigue
• With opening spring and opening limiter

• Pliers : burnished
• Head : burnished
• Handles : with multi-component grips
• Weight : 55 g
• Dimensions : 125 x 60 x 13 mm
• Standard : DIN ISO 9654
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities soft wire (diameter) : Ø 0.2 - 1 mm

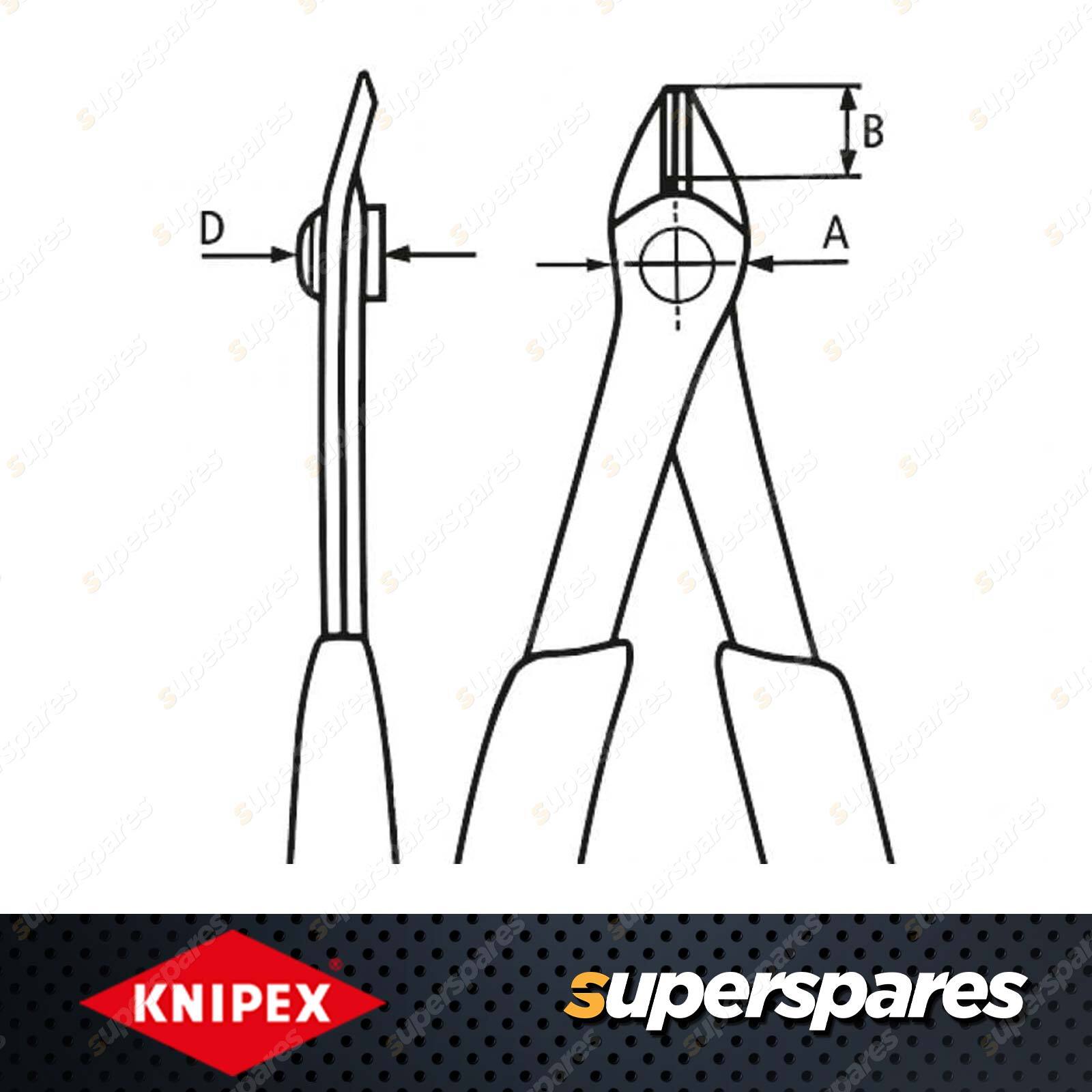

• Jaw length (B) : 9 mm
• Jaw thickness (joint) (D) : 7.5 mm
• Head width (A) : 12.5 mm

Also cut abutting, fine wires accurately

Extremely sharp cutting edges made of induction hardened special tool steel

The Knipex Electronic Super Knips is manufactured from special tool steel and polished. The cutting edges are ground without bevel for flush cutting and are induction hardened to approx. 60 HRC. Thanks to the precision tips, it is also possible to cut fine wire accurately, e.g. wire touching enclosures and components.

Work involving dexterity: low weight and smooth operation

Great dexterity is needed when working on electronic components and in precision mechanics.

Due to the handle springs without friction, operation of the Knipex Electronic Super Knips is so smooth that force can be very finely and sensitively metered. The opening restrictor simplifies work further.

The head of the pliers has a very slim design: for optimum work, also in confined spaces, e.g. on densely packed printed circuit boards.

A special detail ensures an accurate cut and long service life

These precision pliers have been designed so that the user is able to concentrate completely on his work, also when working continuously, without the need to consider the tool.

One special detail permits the most precise shear cuts on even the thinnest of wire, and at the same time gives the pliers a long service life: the extremely sharp cutting edges on the Electronic Super Knips are protected against bumping into each other after cutting by the micro cutting edge misalignment.

It will therefore be clear to all professional users that these pliers with their multi-component grips will sit comfortably in the hand for many years.
