Contents : Knipex Electronic Pliers

• Cutting edge hardness approx. 54 HRC
• INOX tool steel
• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Electrically discharging handles - dissipative
• Ground, very sharp cutting edges without bevel
• Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
• Joint with stainless steel rivet
• Extremely smooth movement for minimum operator fatigue
• With opening spring and opening limiter

• Head : polished
• Handles : with multi-component grips
• Weight : 55 g
• Dimensions : 125 x 61 x 13 mm
• Standard : DIN ISO 9654 DIN EN 61 340-5
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities medium hard wire (diameter) : Ø 1.0 mm
• Cutting capacities soft wire (diameter) : Ø 0.2 - 1.6 mm

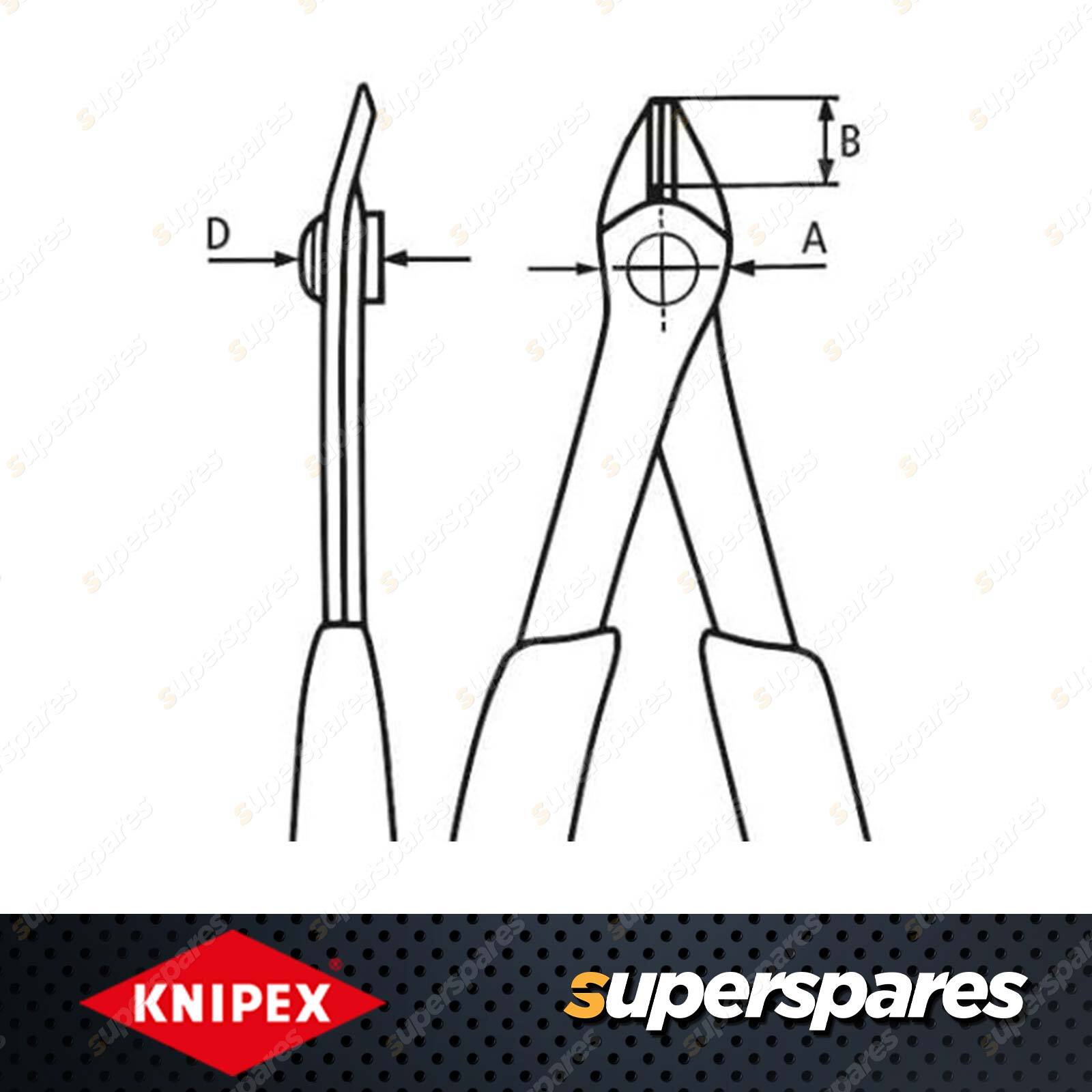

• Jaw length (B) : 9 mm
• Jaw thickness (joint) (D) : 7.5 mm
• Head width (A) : 13.5 mm
• ESD : yes

Also cut abutting, fine wire accurately - ESD protection for electronics

Extremely sharp cutting edges made of stainless, air-hardened INOX steel

The Knipex Electronic Super Knips is made from surgical steel (INOX steel). The cutting edges are ground without bevel for flush cutting.

Thanks to the precision tips, it is also possible to cut fine wire accurately, e.g. wire touching enclosures and components.

Work involving dexterity: low weight and smooth operation

Great dexterity is needed when working on electronic components and in precision engineering. Due to its frictionless handle spring, the Knipex Electronic Super Knips ESD is so smooth-running that energy can be dispensed very precisely - with dexterity. Opening spring and opening restrictor simplify work further.

ESD protection to prevent uncontrolled electrostatic discharge

Sudden discharge resulting from electrostatic charging differences is a concern especially in electronics. With the Knipex electronics pliers, electrostatic energy is discharged in a constant, controlled manner via the handles. The handles are conductive - they are not insulating - and therefore permit a slow charge equalisation. With the ESD protection through dissipative discharge, the Knipex ESD Electronic Super Knips satisfies the strict standards IEC TR 61 340-5, DIN EN 61 340-5 and SP Method 2472.
