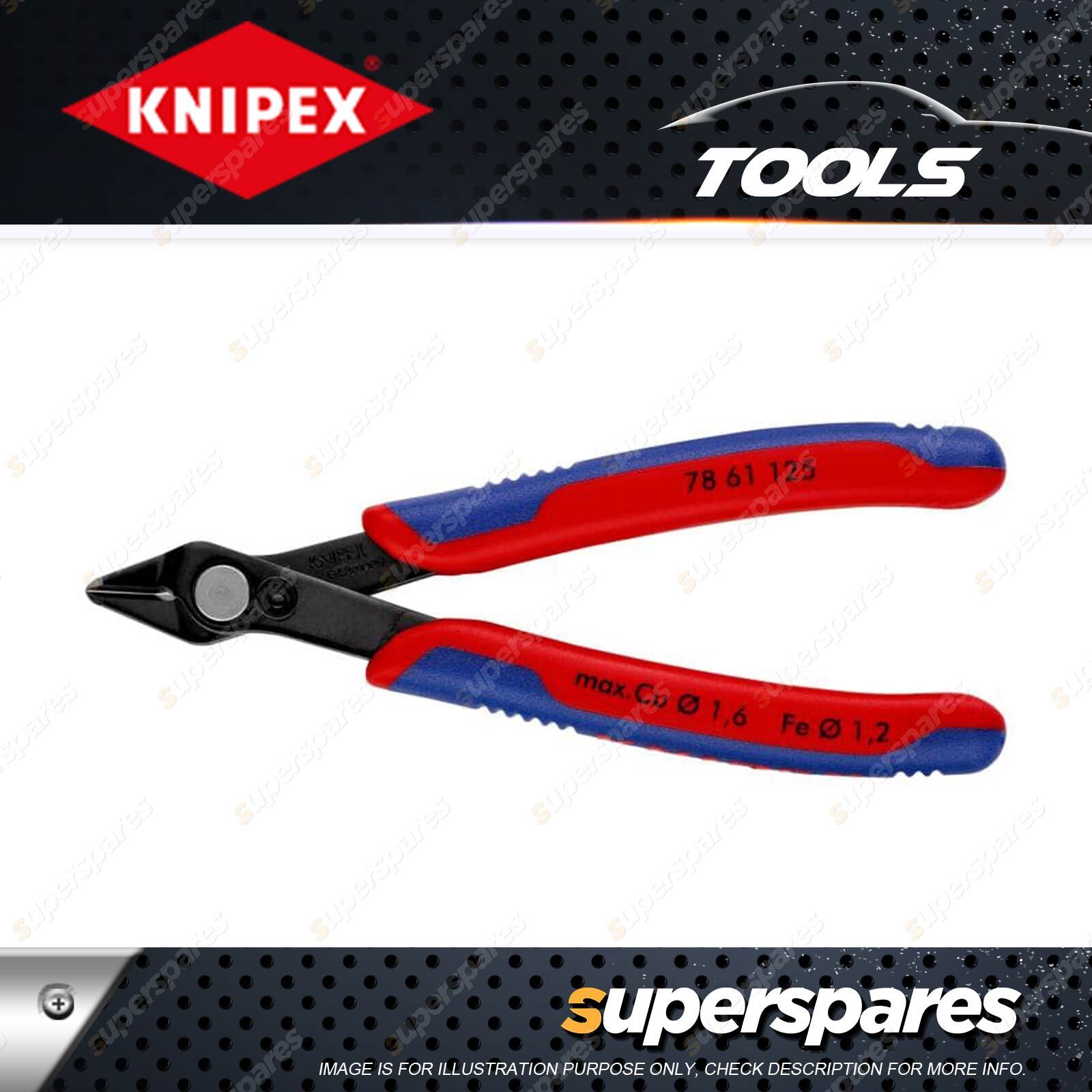

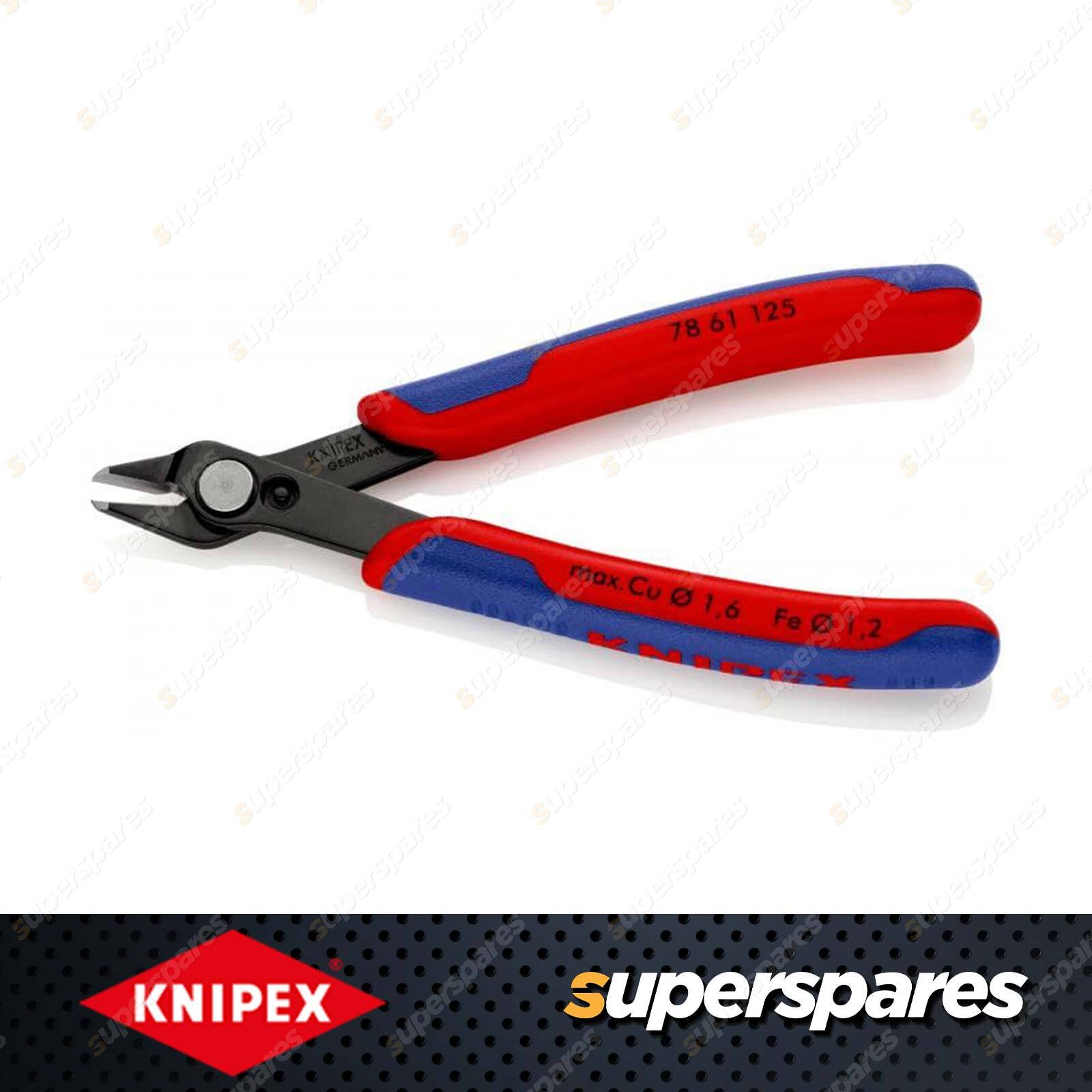

Knipex Electronic Super Knips - 125mm Ground Sharp Cutting Edges without Bevel

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Electronic Super Knips

• Also suitable for cutting fibre optic cable
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
• Special tool steel, oil hardened in multiple stages
• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Ground, very sharp cutting edges without bevel
• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
• Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
• Joint with stainless steel rivet
• Extremely smooth movement for minimum operator fatigue
• With opening spring and opening limiter

• Pliers : burnished
• Head : burnished
• Handles : with multi-component grips
• Weight : 56 g
• Dimensions : 125 x 62 x 13 mm
• Standard : DIN ISO 9654
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities medium hard wire (diameter) : Ø 1.2 mm
• Cutting capacities soft wire (diameter) : Ø 0.2 - 1.6 mm

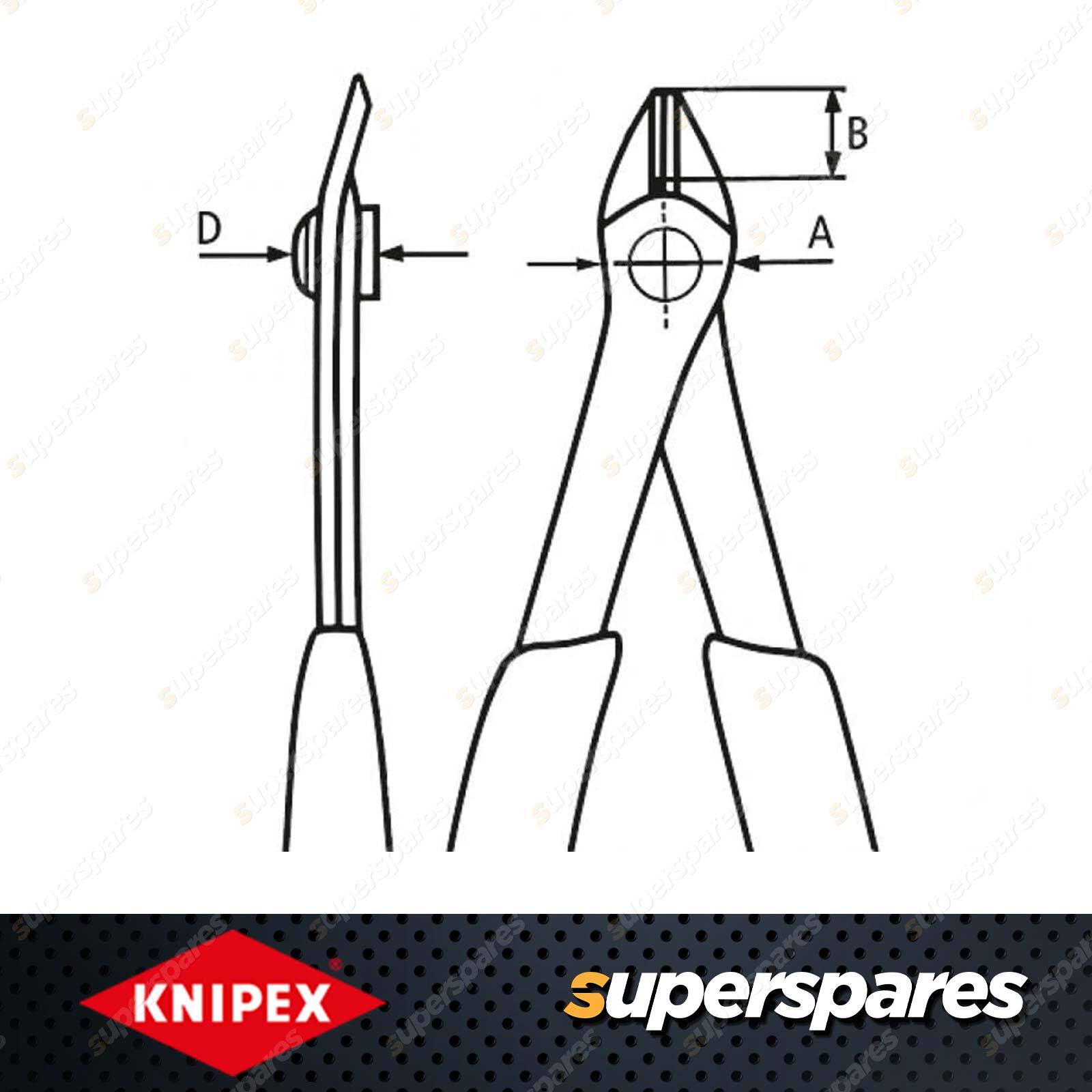

• Jaw length (B) : 9 mm
• Jaw thickness (joint) (D) : 7.5 mm
• Head width (A) : 13.5 mm

Accurately cut abutting, fine wire and fibre optic cables

Extremely sharp cutting edges made of induction hardened special tool steel

The Knipex Electronic Super Knips is manufactured from special tool steel and polished. The cutting edges are ground without bevel for flush cutting and are induction hardened to approx. 64 HRC.

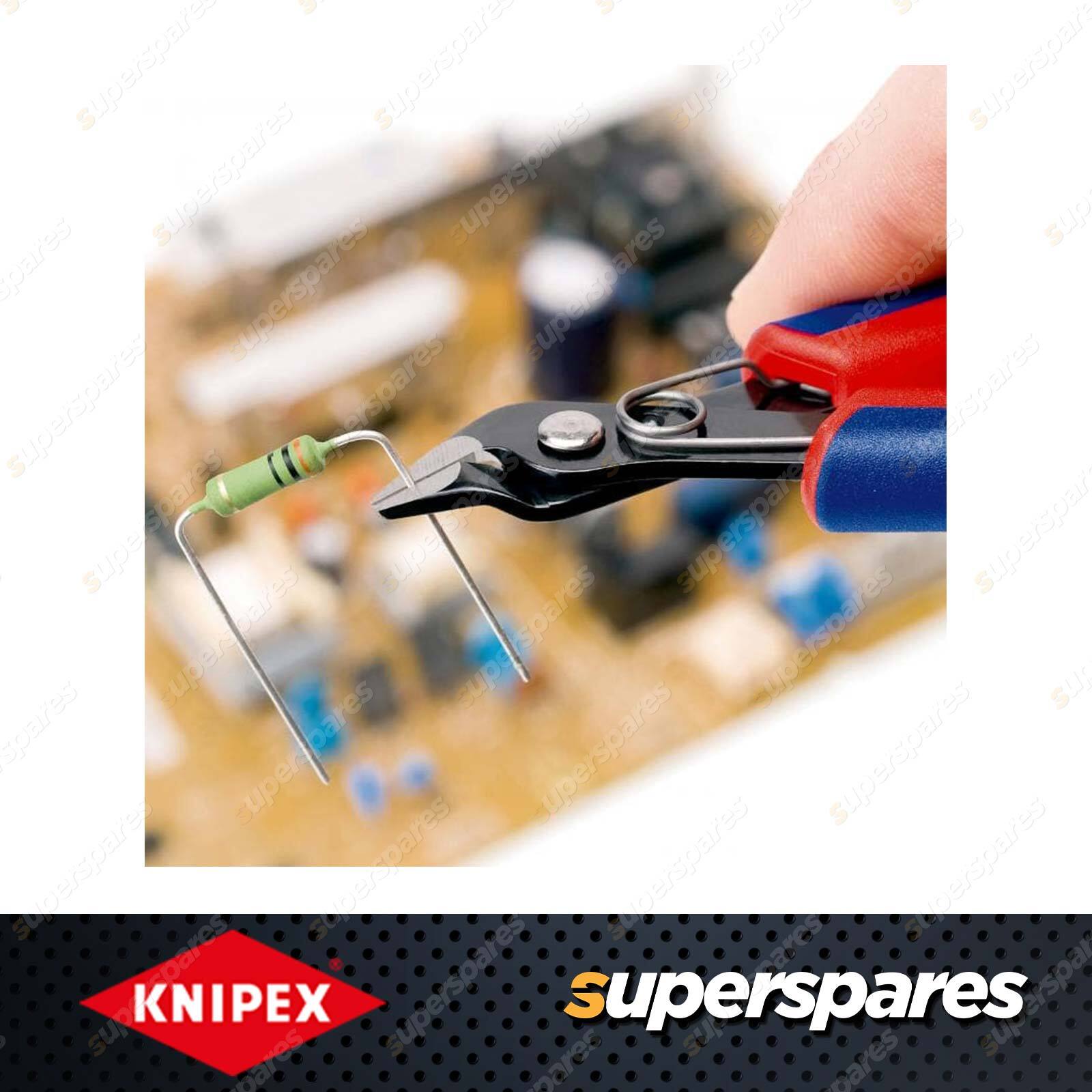

Accurately cut fine wires, e.g. that are touching enclosures and components, thanks to precision tips.

Work involving dexterity: low weight and smooth operation

Great dexterity is needed when working on electronic components and in precision mechanics.

Due to its frictionless handle spring, the Knipex Electronic Super Knips is so smooth-running that energy can be metered out very precisely - with dexterity. Opening spring and opening restrictor simplify work further.

A special detail ensures an accurate cut and long service life

These precision pliers have been designed so that the user is able to concentrate completely on his work, also when working continuously, without the need to consider the tool.

One special detail permits the most precise shear cuts on even the thinnest of wire, and at the same time gives the pliers a long service life: the extremely sharp cutting edges on the Electronic Super Knips are protected against bumping into each other after cutting by the micro cutting edge misalignment.
