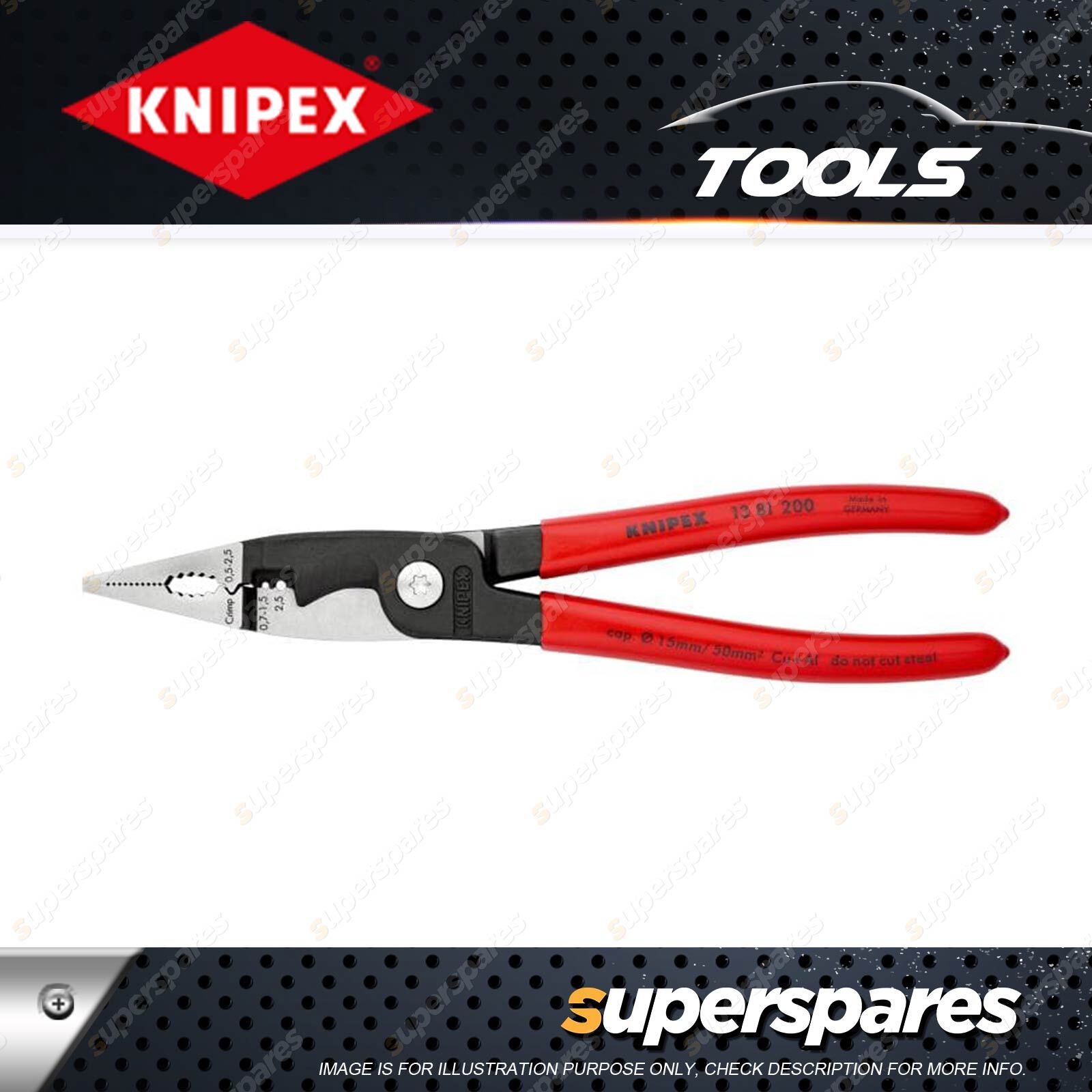

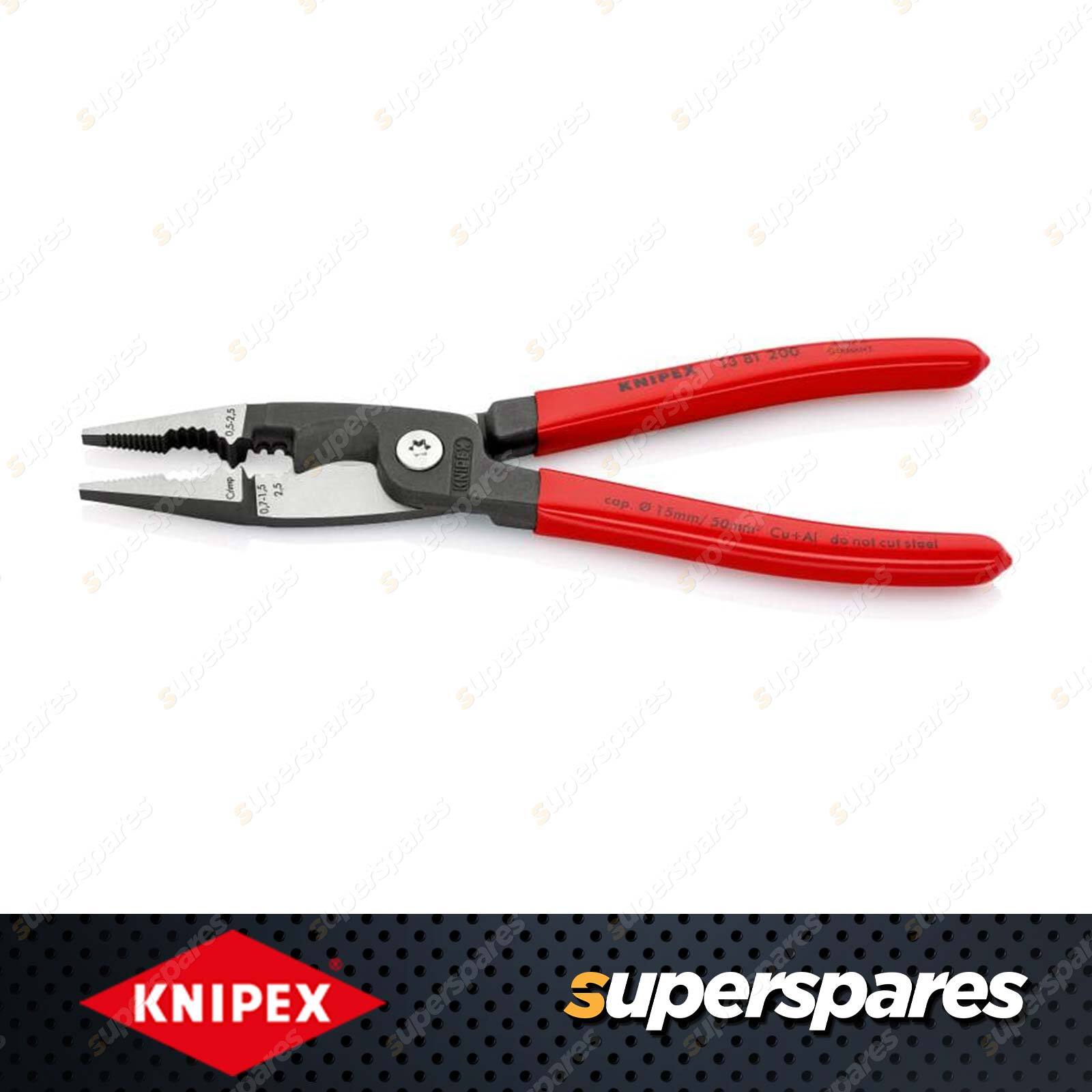

Knipex Elec Installation Plier - 6 Fuction in 1 Plastic Coated Handles 200mm

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Pliers

• 6 functions in one pair of pliers
• Multifunctional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules
• Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material

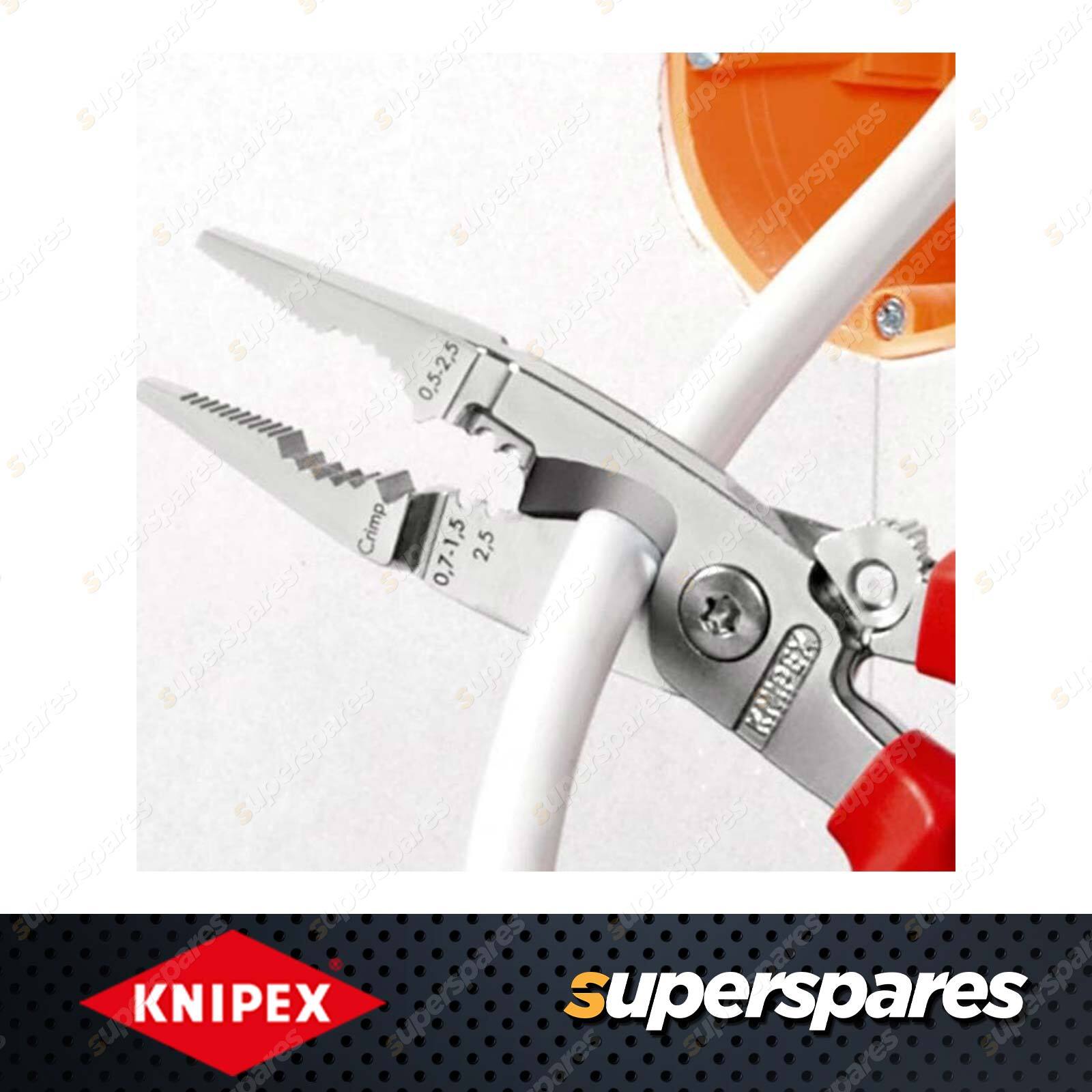

• Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes
• Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²

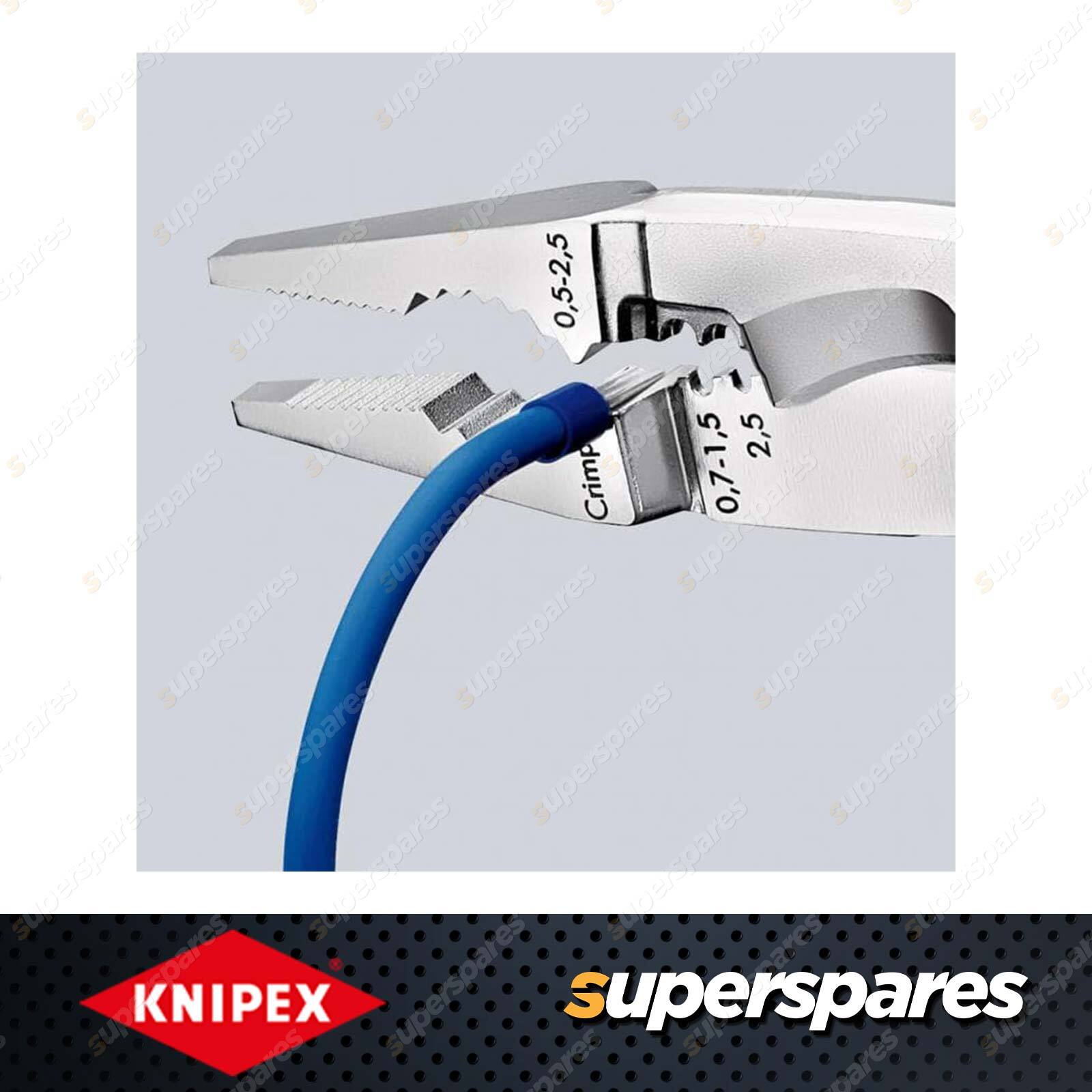

• Crimping die for wire ferrules 0.5 - 2.5 mm²
• Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
• Slim dimensions for easy access
• Bolted joint: precise, zero backlash operation of pliers
• High-grade special tool steel, forged, multi stage oil-hardened

• Pliers : black atramentized
• Head : polished
• Handles : plastic coated
• Weight : 265 g
• Dimensions : 200 x 85 x 20 mm
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacity copper cable, multiple-stranded : Ø 15 mm
• Cutting capacity copper cable, multiple-stranded : 50 mm²
• Stripping capacity for cross-sections : 0.75-1.5 mm² / 2.5 mm²
• Capacity in square millimetres : 0.5-2.5 mm²
• AWG : 1 / 0

The multifunctional tool for electricians

For cutting cable, for wire stripping, deburring, bending, gripping and crimping

Due to their many functions, these universal pliers mean there is no need to constantly change tools. Just one tool is adequate for the most important, recurring work steps in electrical installation.

Good ideas practically built in

The electrical installation pliers save time, space and weight. With a length of 200 mm, they fit in any tool bag and with a weight of just 265, they are light weight, particularly compared to lots of individual tools

Versatile tool for professional users

The gripping surfaces of the installation pliers are smooth at the tip, enabling single conductors to be held and positioned without being damaged. There are profiled gripping surfaces and a pipe grip for gripping flat and round material. The induction hardened precision cutting edges produce clean cuts on Cu and Al cables up to Ø 15 mm. The non-slip handles with plastic coating sit firmly in the hand.
