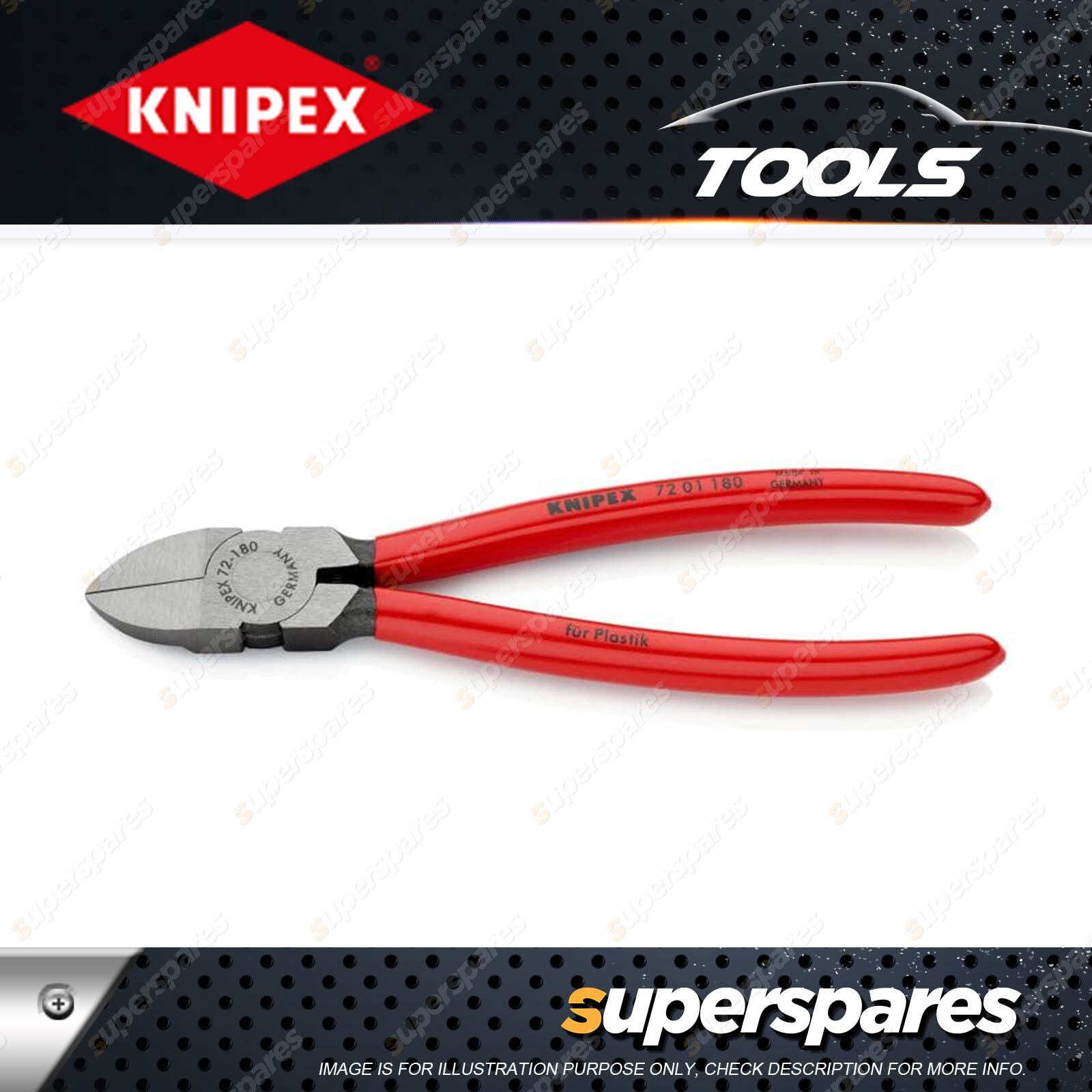

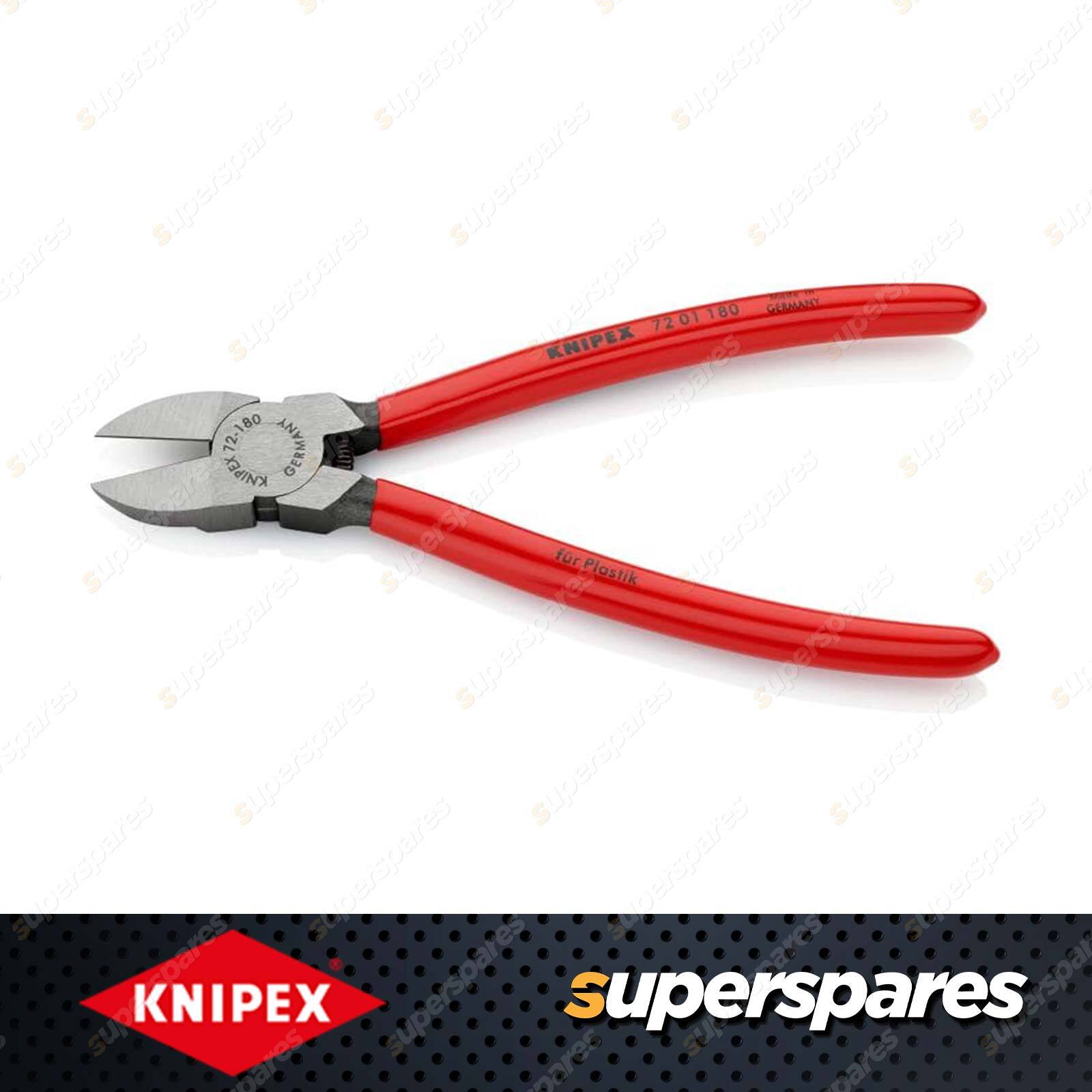

Knipex Diagonal Cutter - Length 180mm With Spring for Plastic & Soft Materials

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Diagonal Cutter

• Cutting face flush
• For nearly flush cutting of moulded plastic components from sprues
• Cuts soft materials such as lead in a flush cut
• With opening spring
• Vanadium electric steel; forged, oil-hardened

• Head : polished
• Handles : plastic coated
• Weight : 193 g
• Dimensions : 180 x 49 x 14 mm
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable

Diagonal cutters for plastic and other soft materials

Why special diagonal cutters are needed for plastic

The cutting edges of classic diagonal cutters are ground to produce a wedge-shaped cut towards the centre of the cut product. Wedge-shaped cuts as on wire would be a hindrance when deburring plastic, however. A flush cut that is as smooth as possible is needed when separating moulded parts and sprues, in order to create the least finishing work when deburring.

Diagonal cutters used here must not have any bevel towards the component, in order to create a straight cut surface. The Knipex diagonal cutters have been specially developed for plastics and other soft materials. Their cutting edges are surface ground.

For flush deburring after injection moulding

The Knipex diagonal cutter is used in plastics production when, for example, larger plastic moulded parts need to be mechanically separated from sprue after demoulding. The surface ground cutting faces permit the clean, flush disconnection of extruded plastic injection moulds and sprues or sprue residues. The sprue is cut off directly on the moulded part, because the cutting edge runs parallel to the component.

Compact and stable - with opening spring to reduce strain for the user

In many cases, work steps in plastic injection moulding and other production processes repeat. Anyone who frequently separates sprues from moulded parts therefore appreciates the opening spring on the Knipex diagonal cutter. At 180 mm long and weighing 193 g, the Knipex diagonal cutters for plastics are ideal for workstations in industrial production. They are designed for many years of hard use. We forge the 72 01 180 diagonal cutters from vanadium electric steel. We give them their high strength by heating and then quenching them in oil.
