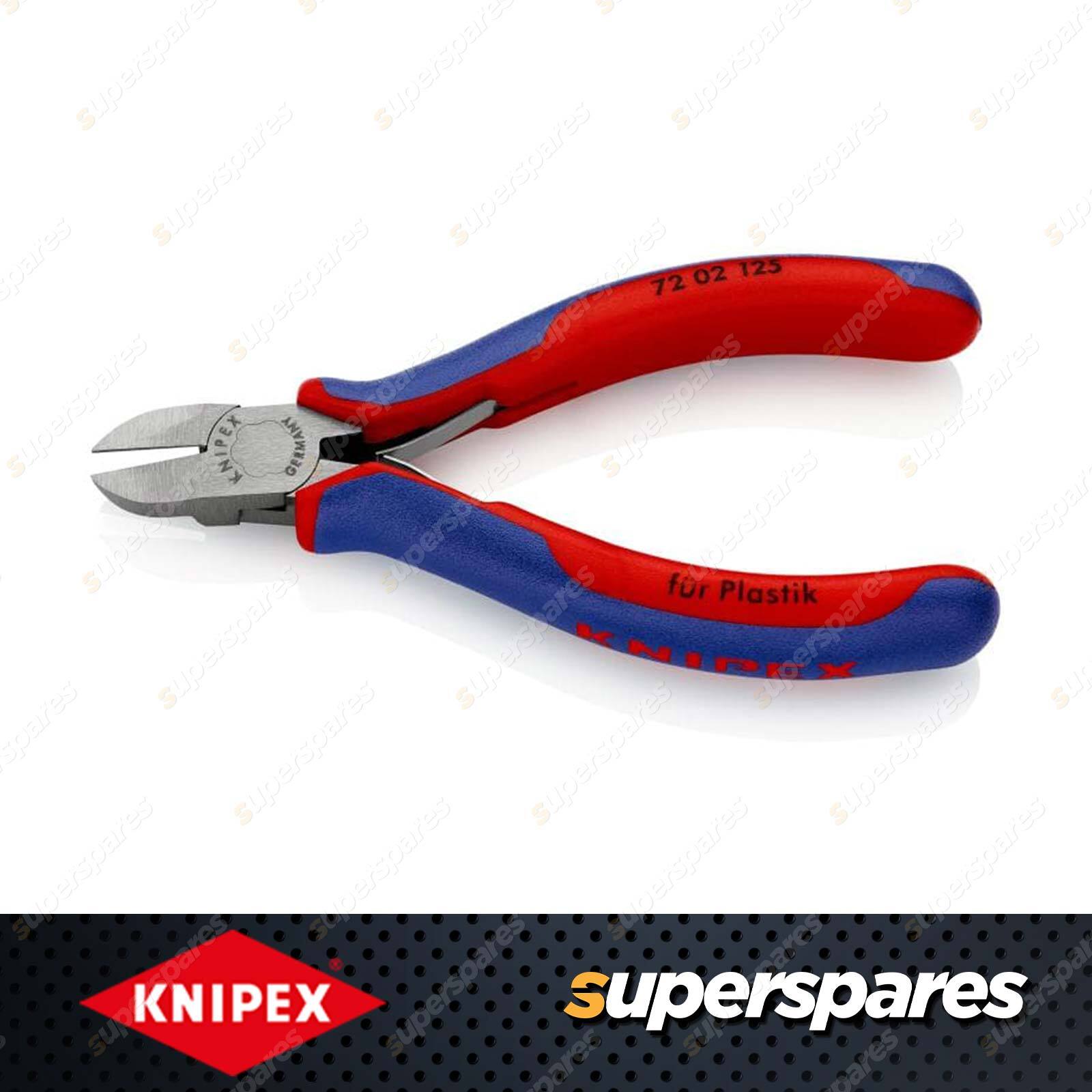

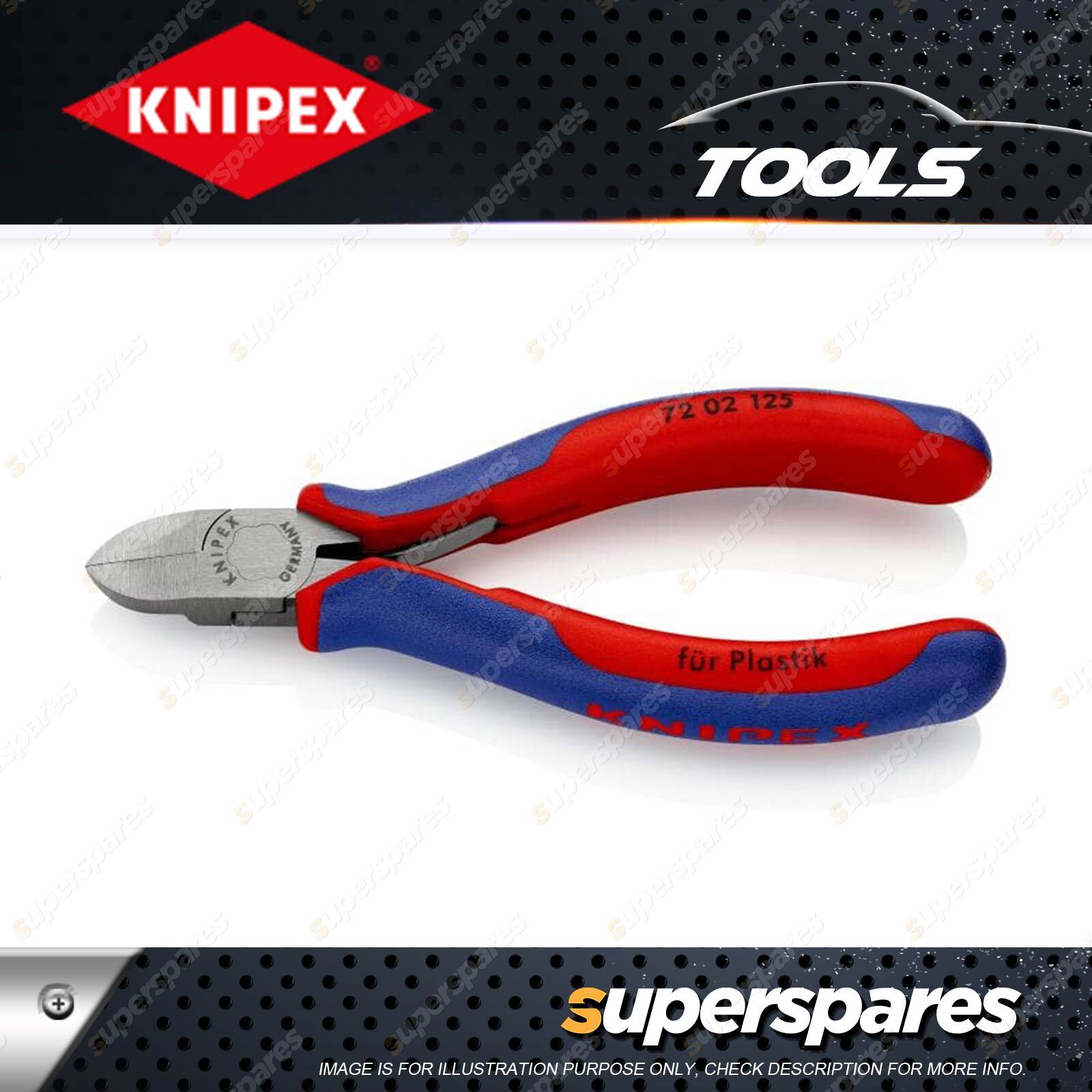

Knipex Diagonal Cutter - Length 125mm With Spring for Plastic & Soft Materials

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Diagonal Cutter

• Cutting face flush
• For nearly flush cutting of moulded plastic components from sprues
• Cuts soft materials such as lead in a flush cut
• With opening spring
• Vanadium electric steel; forged, oil-hardened

• Head : polished
• Handles : with multi-component grips
• Weight : 109 g
• Dimensions : 125 x 59 x 19 mm
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable

Small diagonal cutters for plastic and other soft materials

Why special diagonal cutters are needed for plastic

The cutting edges of classic diagonal cutters are ground to produce a wedge-shaped cut towards the centre of the cut product. This wedge actually splits the cut material apart, and the wire ends have wedge-shaped cut surfaces. A flush, smooth cut is desired when separating moulded parts and sprues, however, in order to create the least finishing work when deburring. Diagonal cutters for processing plastic must not have any bevel towards the component to create a straight cut surface. The Knipex diagonal cutters have been specially developed for plastics and other soft materials. Their cutting edges are surface ground.

For flush deburring after injection moulding, for model making

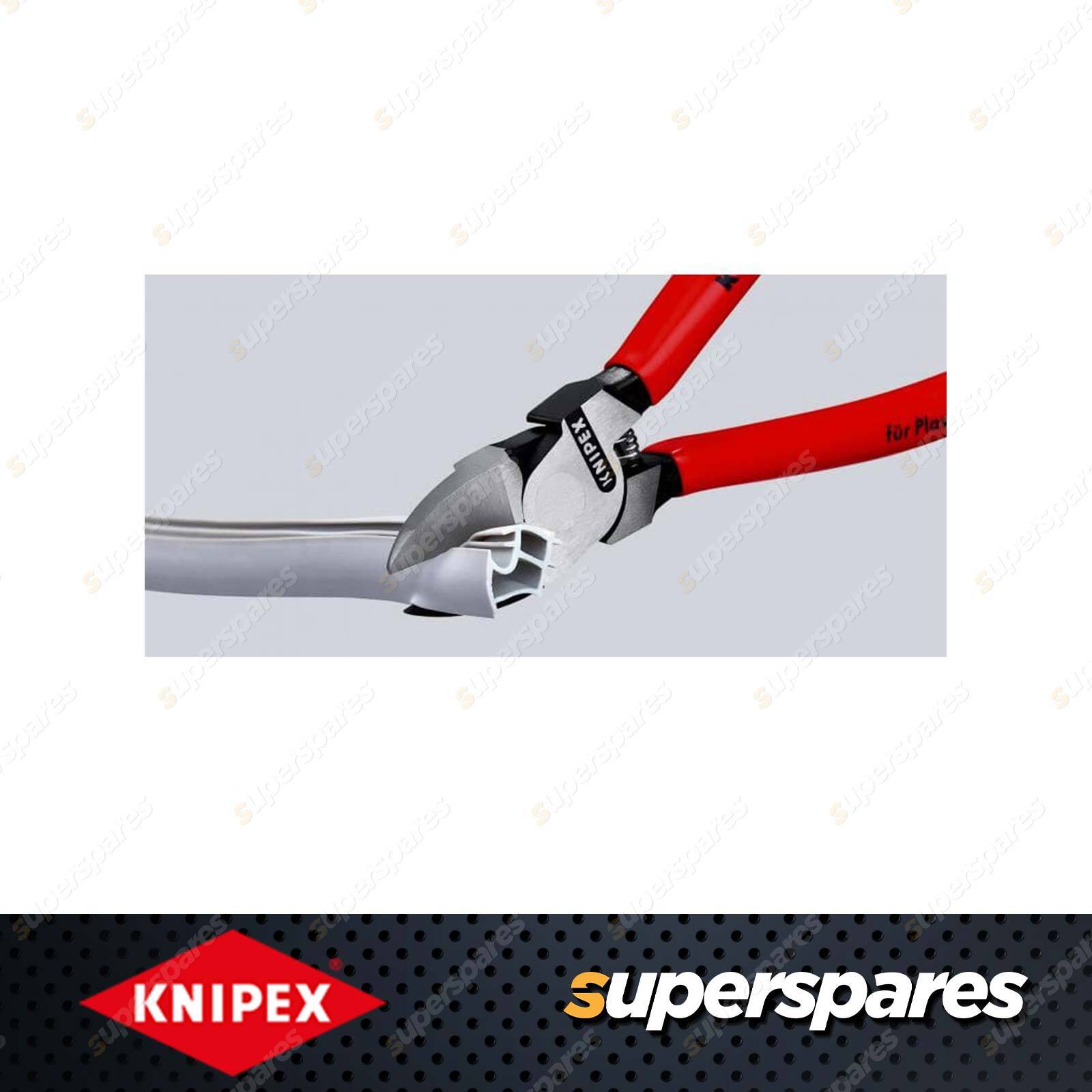

The Knipex diagonal cutter are the smallest Knipex diagonal cutters for plastic. They are used when moulded parts need to be mechanically separated from sprue after demoulding. They are also suitable for delicate work, e.g. in model making. Their surface ground cutting faces produce a clean, flush separation of extruded plastic injection moulds and sprues or sprue residues. The sprue is cut off directly on the moulded part, because the cutting edge runs parallel to the component.

With opening spring to relieve strain on the user - compact and stable

The opening spring makes work easier for the user, especially where work steps repeat frequently. Users, who often deburr plastic parts in 3D mould construction for example, therefore appreciate the opening spring. At 125 mm long and with a weight of 109 g, the diagonal cutter are the smallest diagonal cutters for plastics from Knipex. Although these mini diagonal cutters fit in any pocket, when it comes to durability they are as good as any other diagonal cutters for plastics from this range. We forge the Knipex diagonal cutter from vanadium electric steel and give them high strength by warming them and then quenching them in oil.
