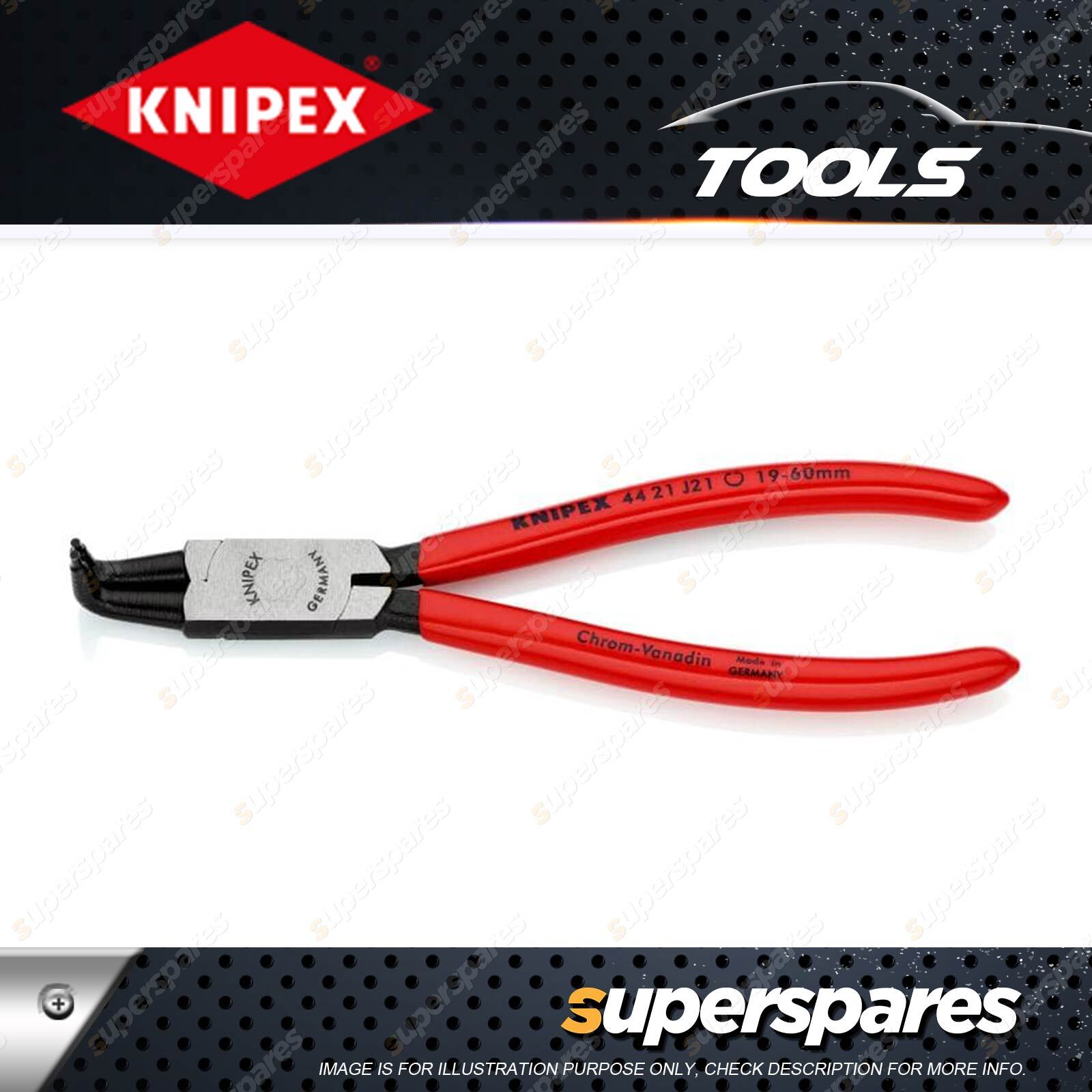

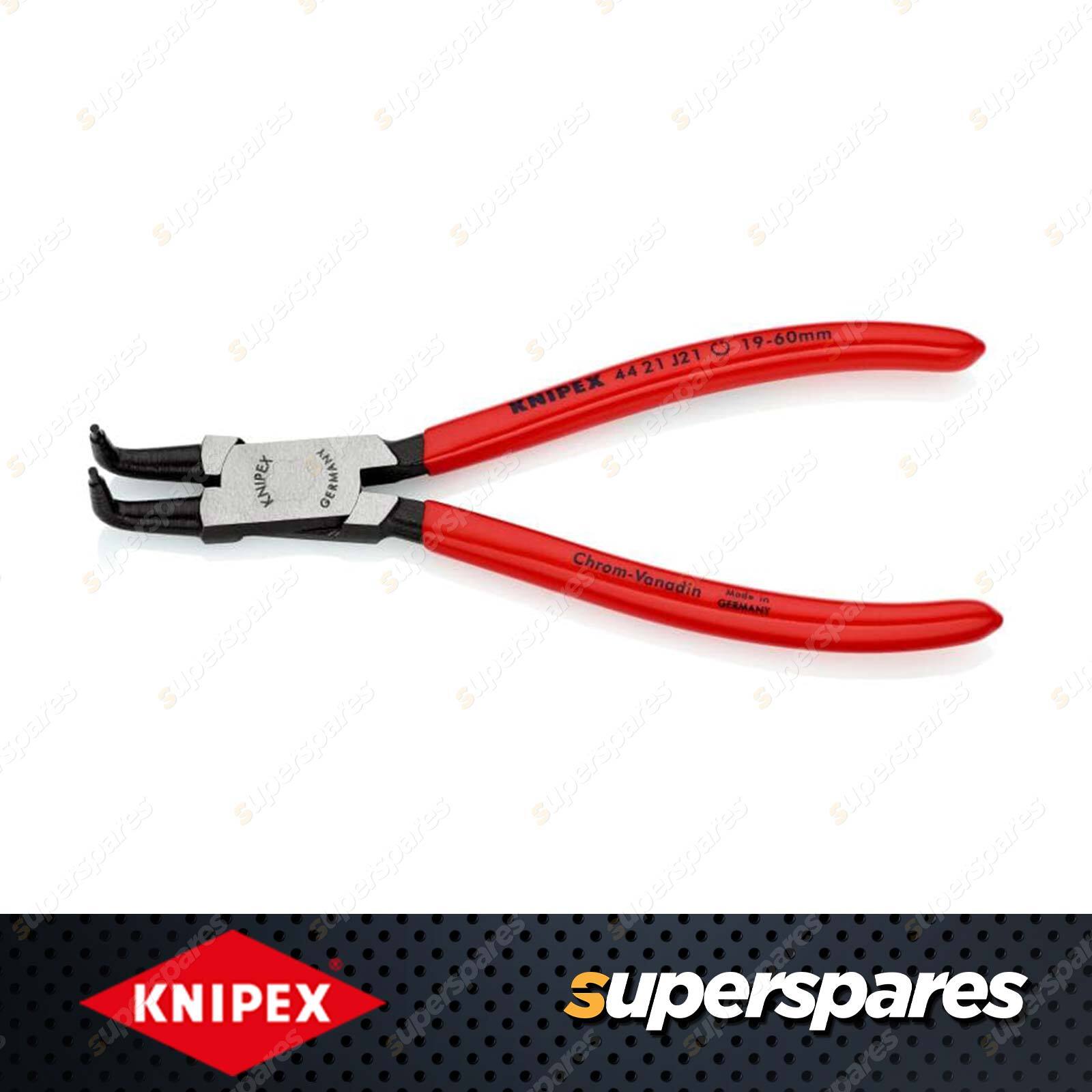

Knipex Circlip Plier 90 Degree Bent - 170mm for Internal Circlips in Bore Holes

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Circlip Plier

• Solid style, forged
• Non-slip, solid tips
• DIN 5256 D; 90° angled tips
• Pliers body and tips: chrome vanadium steel, forged, oil-hardened

• Pliers : black atramentized
• Head : polished
• Handles : plastic coated
• Weight : 139 g
• Dimensions : 170 x 44 x 18 mm
• Standard : DIN 5256 D
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Size of bore : Ø 19 - 60 mm
• Tips (diameter) : Ø 1.8 mm

Firmly grip, dismantle and fit concealed internal circlips

Accurate and stable, forged tips for an ideal hold

The precision of the pliers tips is the crucial factor when fitting and dismantling circlips, because the installation holes in the circlips offer the tips of the circlips pliers very little room for manoeuvre. The tips must overcome the ring tension and securely hold the circlip after removal or before insertion. This places high demands on the accuracy and stability of the pliers tips.

With the Knipex circlip plier the handle and tips are forged in one piece, which produces correspondingly high durability. The very accurately twisted tips are also machined so they slant inwards slightly, so that the circlips are held firmly on the tips of the pliers.

Reinforced, measured manual force precisely into the installation holes

With pliers, the measurable force that reaches the component is just one of many parameters. Of prime importance is that the manual force is applied to the component in an accurate, well-measured manner. This applies especially to circlips as they are under tension when fitted and removed. Thanks to quality machining, balanced tool geometry and precise joint, manual force reaches the circlip in a manner that enables the user to work in the best way: accurately, and gentle on hands.

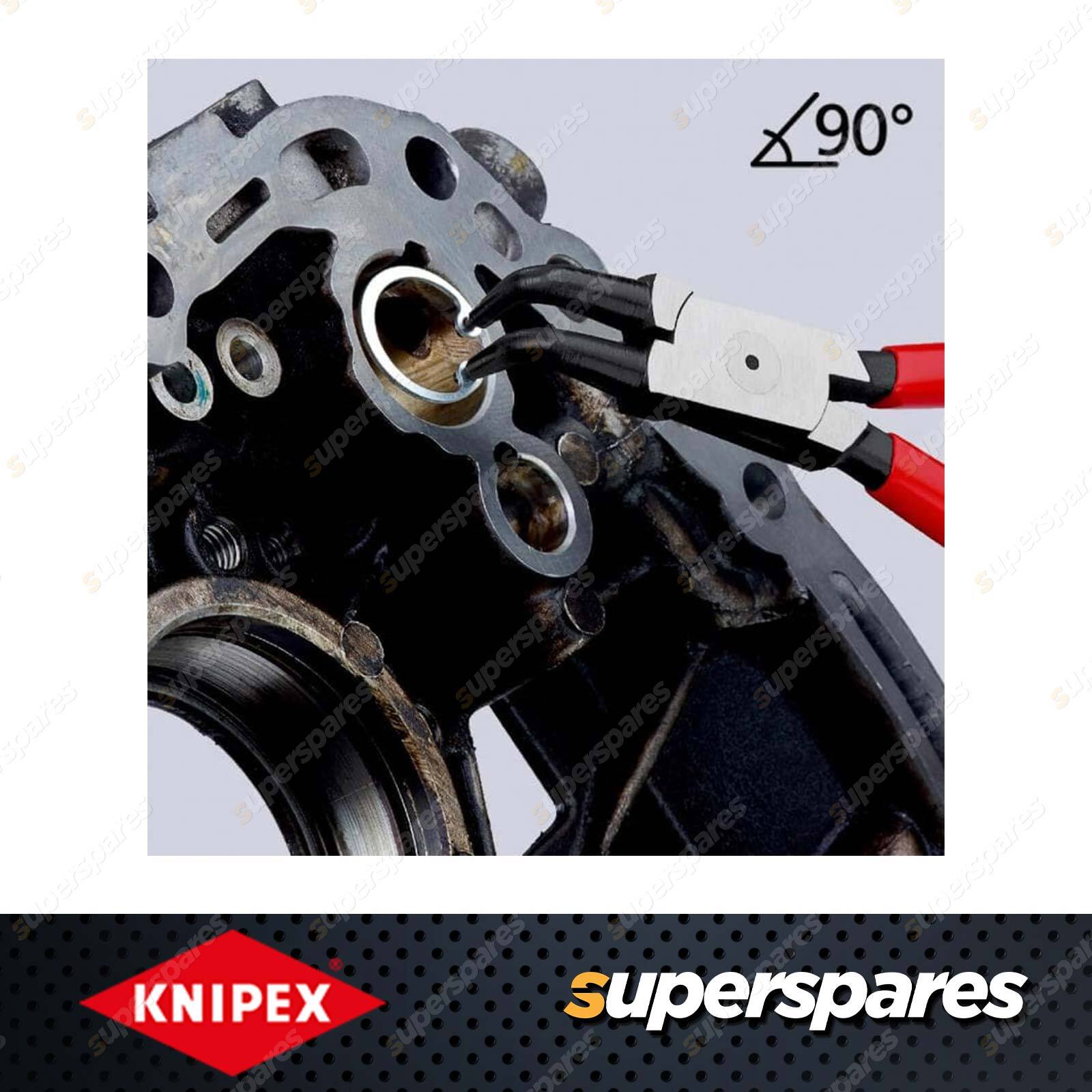

Poorly accessible circlips can be reached well thanks to angled tips

Reliable circlip pliers like the Knipex circlip pliers noticeably simplify work. They are narrow at the front and at a 90° angle for ideal access also to circlips that are difficult to reach. The pliers sit comfortably in the hand, can be positioned accurately in the circlip installation holes and hold the circlips firmly. Working with first-class circlips pliers such as the Knipex circlip plier saves a great deal of time, as anyone who has tried to extract a circlip from a drilled hole using makeshift tools, working round corners in the process, will know. Having to search the workshop for a circlip that has sprung off because the tips of poorly machined circlip pliers have failed to hold it well can also take a long time. With the Knipex circlip plier, every circlip and every hand movement sits properly.
