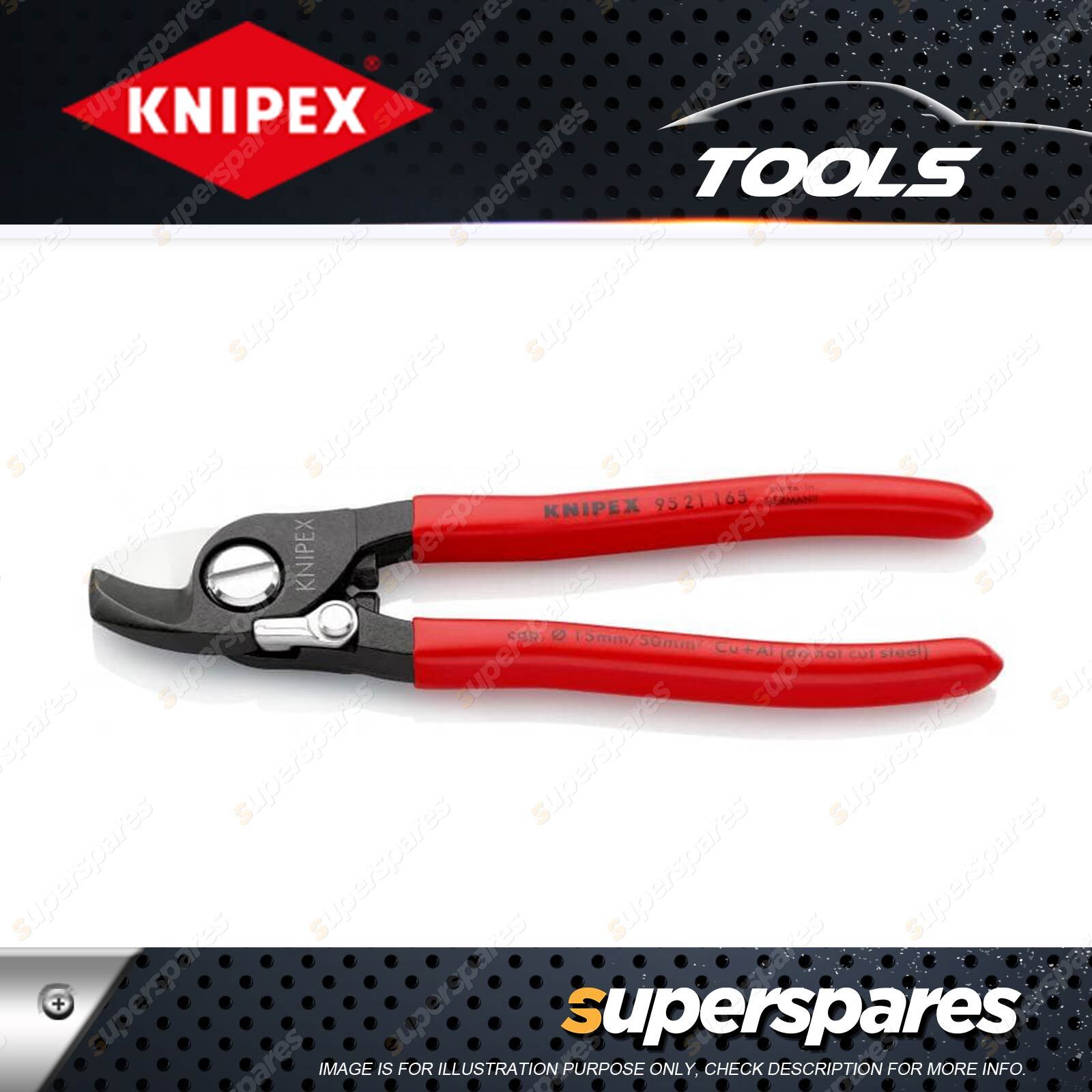

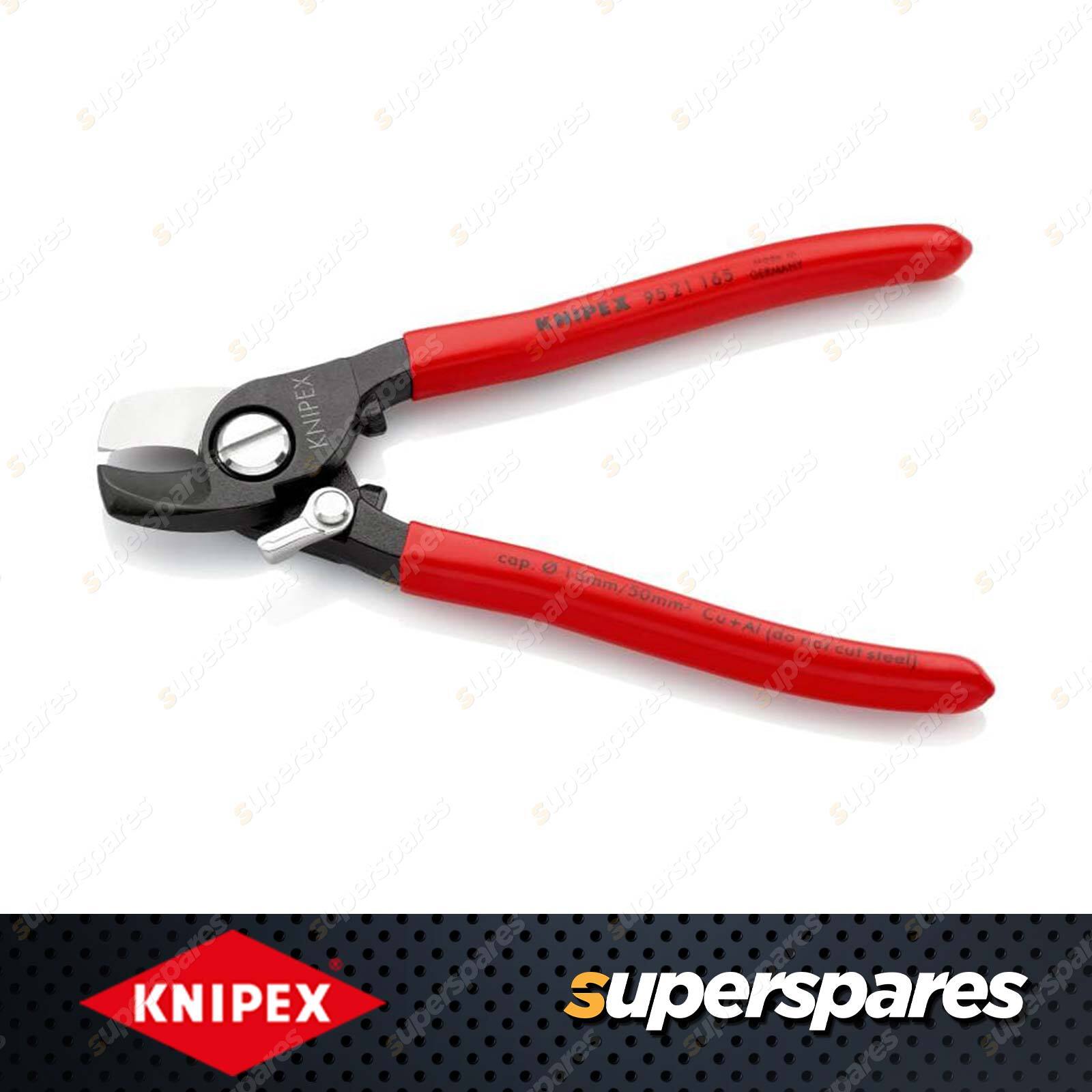

Knipex Cable Shears - with Opening Spring Plastic Coated Handles Length 165mm

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Cable Shears

• For cutting copper and aluminium single conductors as well as multiple stranded cables
• Clean and smooth cut without crushing and deformation
• Not suitable for steel wire and hard drawn copper conductors
• Precision-ground, hardened blades
• Easy cutting with one-hand operation
• With guard
• Adjustable bolted joint, self-retaining screw
• Internal opening spring, protected and captive
• High-grade special tool steel, forged, oil-hardened

• Shears : burnished
• Handles : plastic coated
• Weight : 215 g
• Dimensions : 165 x 42 x 14 mm
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacity copper cable, multiple-stranded : 50 mm²
• Cutting capacity copper cable, multiple-stranded : Ø 15 mm
• AWG : 1 / 0

Cut cable in a professional and non-tiring way, ideal for installation work

Why cable should only be cut using cable shears

Unlike diagonal cutters with blades that meet at an obtuse angle, for example, Knipex cable shears cut using a scissors action. This principle produces a substantially better result, because cables are cut very smoothly and cleanly. They are therefore excellent for shortening cable, e.g. in house wiring work.

They can, for example, also be used to professionally cut NYM-J 3x1.5 mm or NYM-J 5x2.5 mm and all other standard and finely stranded Cu and Al cable up to 50 mm². Due to the nature of their cutting edges, the cable shears should not be used to cut hard wire.

Knipex cable shear: cable cutting requiring little physical effort

Protect hands and material: thanks to the very sharp cutting edges, compared to conventional diagonal cutters, the user only needs around one third of the physical effort when cutting using the Knipex cable shear. Especially during prolonged use, e.g. building installation work, less tiring work substantially reduces strain for the fitter. Thanks to a scissors action and the precision ground cutting edges, the result is a clean, technically perfect cut -the ideal condition for subsequent connection work.

Screwed joint with easy operation - opening spring to make work easier

These cable shears have the precisely running, bolted joint to thank for their very easy operation. The self-locking joint bolt can be tightened if necessary. These cable shears can also be deployed for the less tiring cutting of larger cable cross-sections. The protected inset captive opening spring helps here, saving one hand movement during every operation using the Knipex 95 21 165.
