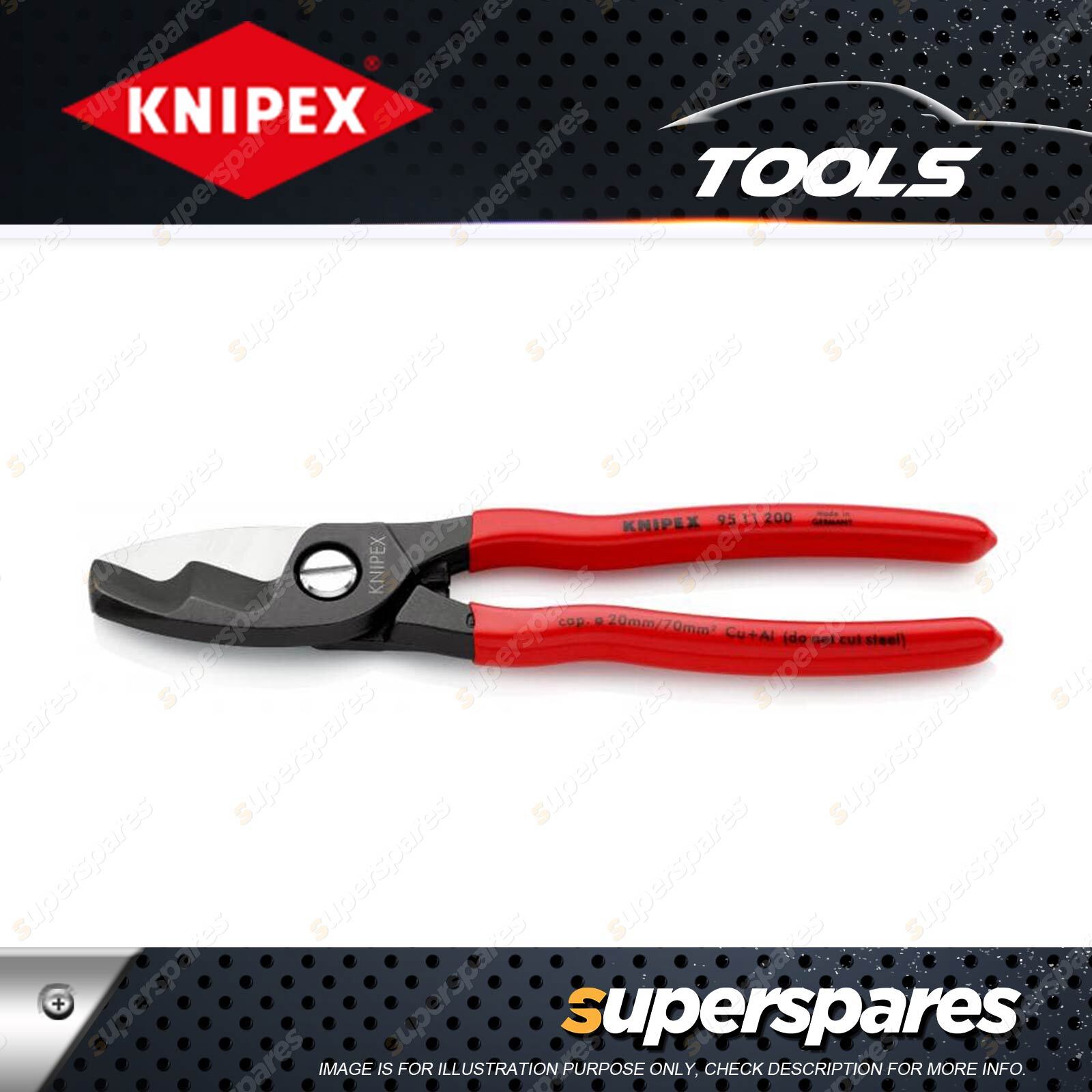

Knipex Cable Cutter Shears - Length 200mm for Cutting Copper & Aluminium Cables

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Cable Cutter Shears

• For cutting copper and aluminium cables
• Not suitable for steel wire and hard drawn copper conductors
• Precision-ground, hardened blades
• Clean and smooth cut without crushing and deformation
• By dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables up to Ø 20 mm can be cut in one-hand operation
• Low handforce required due to favourable lever ratio and special blade geometry
• Pinch guard prevents operators' fingers being pinched
• Adjustable bolted joint, self-retaining screw
• High-grade special tool steel, forged, oil-hardened

• Shears : burnished
• Handles : plastic coated
• Weight : 283 g
• Dimensions : 200 x 21 x 15 mm
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacity copper cable, multiple-stranded : 70 mm²
• Cutting capacity copper cable, multiple-stranded : Ø 20 mm
• AWG : 2 / 0

Professional cutting of cables with large cross-sections

Cut stranded Cu and Al cable up to 70 mm² in two operations

In the front cutter profile of the Knipex cable cutter shears there is an initial cut into the insulating sheath on larger cable cross-sections; the metal conductors are subsequently cut in the back cutter profile. This division of work on the twin cutting edge makes work easier for the user. The initial cut in the front profile also provides a hand-friendly grip position for large cross-sections.

Always use cable shears when cutting cable

Knipex cable shears cut with the twin cutting edge using a scissors action, and therefore cut very smoothly and cleanly. Diagonal cutters, with blades that meet at an obtuse angle, and which crush cable insulation and deform cable ends are not really suitable for cutting cable. The Knipex cable shears demonstrate their qualities when shortening stranded and finely stranded Cu and Al cables, also with large cross-sections. For reasons of design, the cable shears must not be used to cut steel wire or hard drawn copper conductors.

Knipex cable shear: ergonomic and technically ideal for house wiring work

Thanks to the precision ground twin cutting edge, the cable shears with twin cutting edge deliver a lasting clean, even cutting result.

Comparatively little effort is required due to the favourable transmission ratio, thereby conserving the manual force of the fitter. The precisely running bolted joint also contributes to comfortable work using these cable shears. The bolted joint is self-locking and can be adjusted where necessary.
