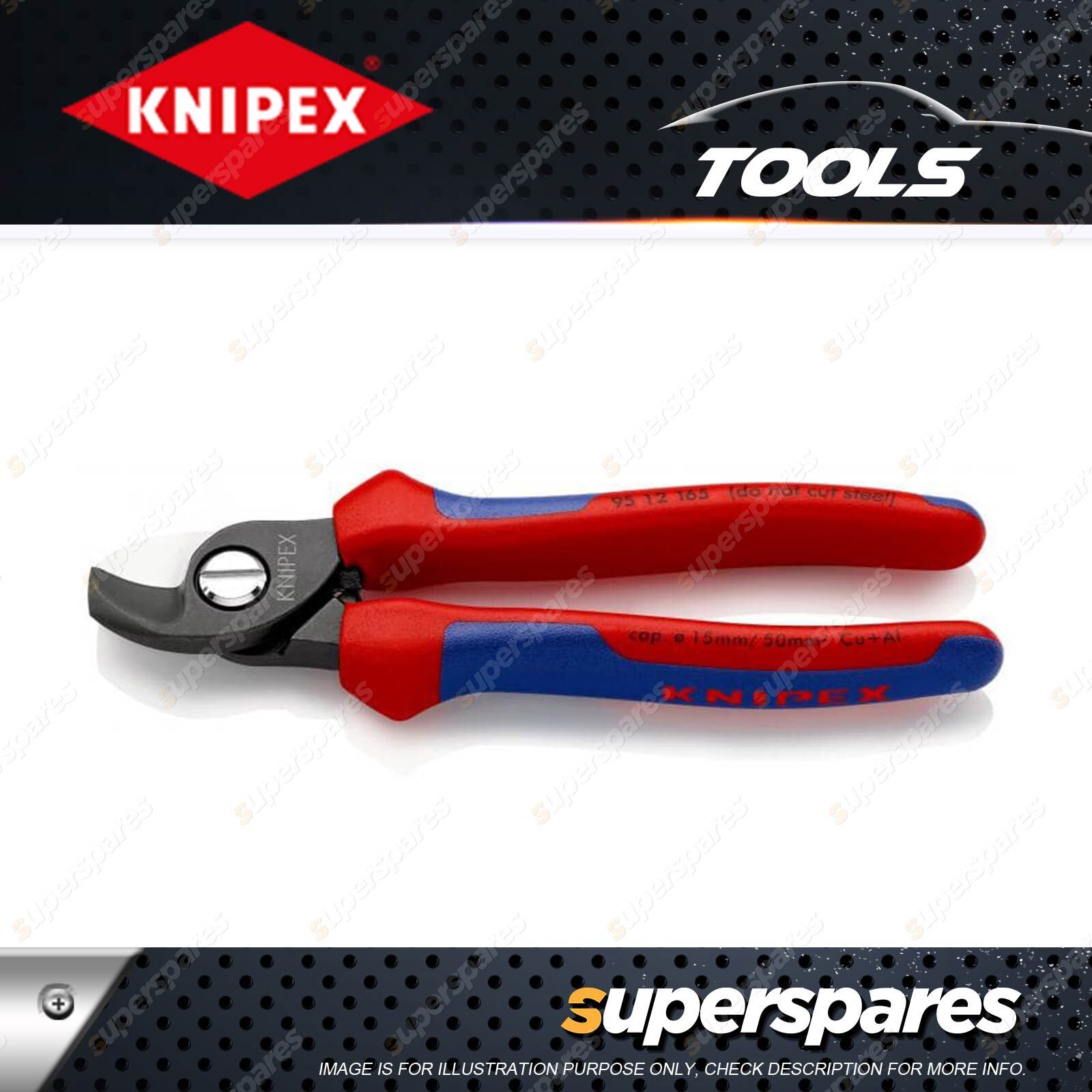

Knipex Cable Cutter Shears - Length 165mm with Multi-component Grips Handles

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Cable Cutter Shears

• For cutting copper and aluminium single conductors as well as multiple stranded cables
• Clean and smooth cut without crushing and deformation
• Not suitable for steel wire and hard drawn copper conductors
• Precision-ground, hardened blades
• Easy cutting with one-hand operation
• With guard
• Adjustable bolted joint, self-retaining screw
• High-grade special tool steel, forged, oil-hardened

• Shears : burnished
• Handles : with multi-component grips
• Weight : 250 g
• Dimensions : 165 x 52 x 22 mm
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacity copper cable, multiple-stranded : 50 mm²
• Cutting capacity copper cable, multiple-stranded : Ø 15 mm
• AWG : 1 / 0

Cut cable professionally, ideal for electricians

Why cable should only be cut using cable shears

With a tool that is not ideally suited to cable cutting, such as diagonal cutters, the blades meet at an obtuse angle. For this reason, diagonal cutters should only be used to cut single conductors and wire.

By contrast, the cable shears from Knipex cut with a scissors action. This means they are therefore excellent for shortening cable, e.g. in house wiring work, such as NYM-J 3x1.5 mm or NYM-J 5x2.5 mm and all other stranded and finely stranded Cu and Al cable up to 50 mm². Due to the nature of their cutting edges, cable shears should not be used to cut hard wire.

Knipex cable shear : protects the hands of the fitter as well as the end of the cable

Thanks to their very sharp cutting edges, the effort needed to cut cable with the Knipex cable shear is just one third of that using diagonal cutters. This reduced effort substantially reduces strain for the fitter, particularly when using the cable shears for prolonged periods, e.g. for house wiring work. Due to a scissors action and the precision ground cutting edges, the ends of cables are also protected because they are not crushed. A clean, technically perfect cut is the condition for subsequent connection work - and a certain result with the Knipex cable shear.

Bolted joint - adjustable, self-locking and with smooth operation

These cable shears are particularly smooth operating thanks to the precisely running bolted joint. The bolted joint is self-locking and can be adjusted where necessary. Users appreciate how easy it is to cut even larger cable cross sections using the cable shears: the product of interaction between all the qualities of these cable shears.
