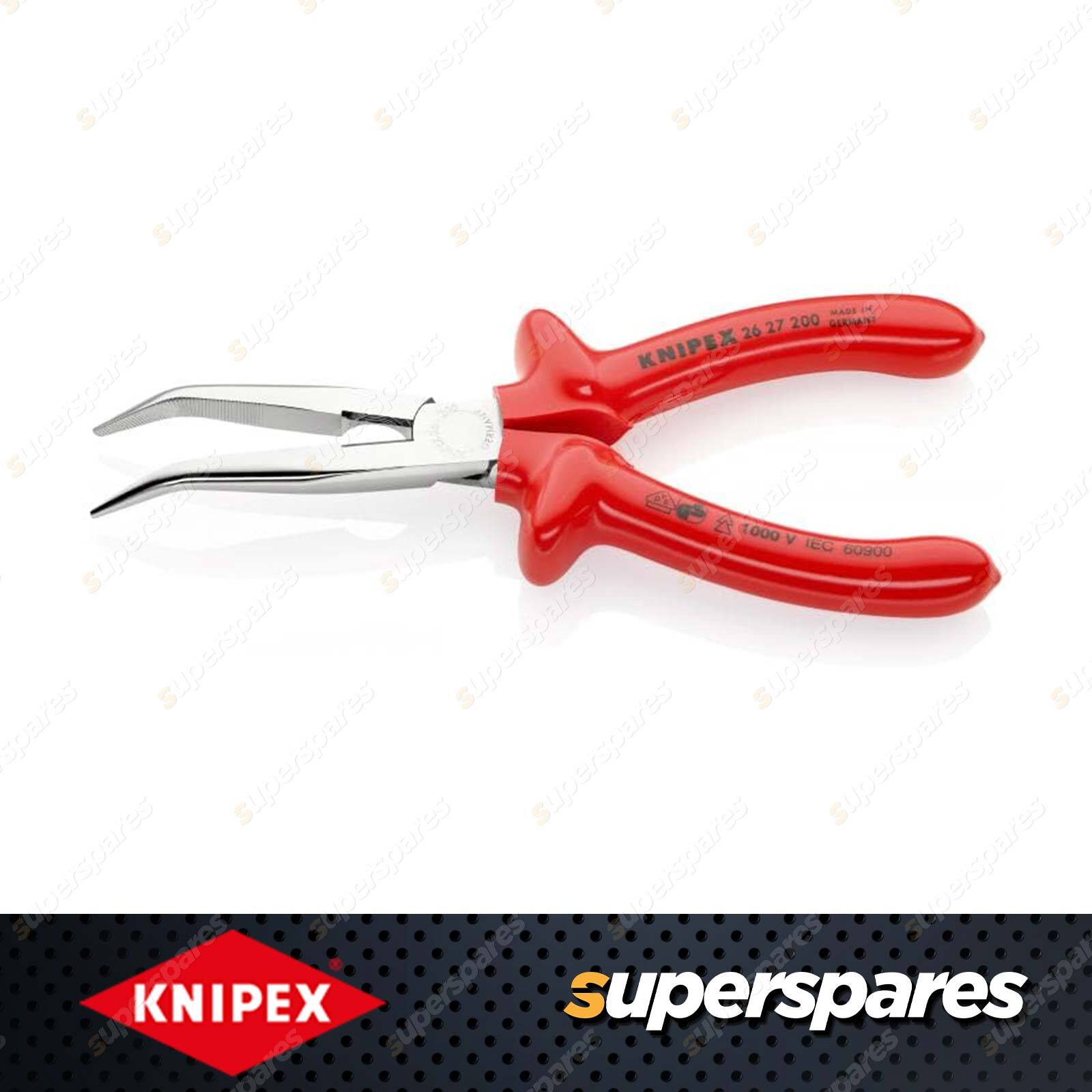

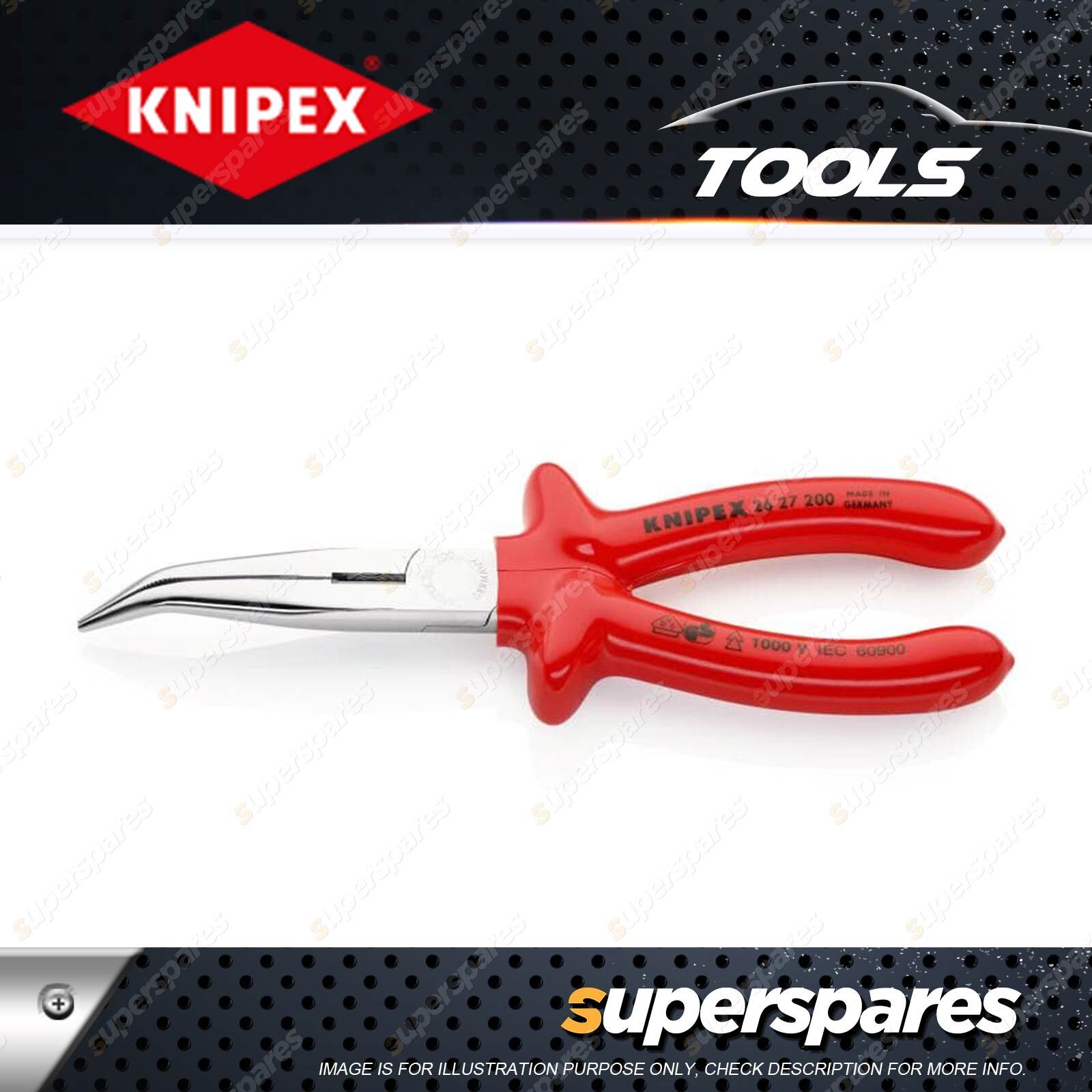

Knipex 1000V Snipe Nose Cutting Plier - 200mm Stork Beak Chrome-plated Pliers

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Snipe Nose Cutting Plier

• Elastic tips: dimensionally stable even when twisted
• Distortion-tolerant, elastic precision tips
• Half-round, long, tapered jaws
• With cutting edges for soft, medium-hard and hard wire
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
• 40° angled jaws
• Vanadium electric steel, forged, multi stage oil-hardened

• Pliers : chrome-plated
• Head : chrome-plated
• Handles : with dipped insulation, VDE-tested
• Weight : 220 g
• Dimensions : 200 x 59 x 28 mm
• Standard : DIN ISO 5745 DIN EN 60900 IEC 60900
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities medium hard wire (diameter) : Ø 3.2 mm
• Cutting capacities hard wire (diameter) : Ø 2.2 mm

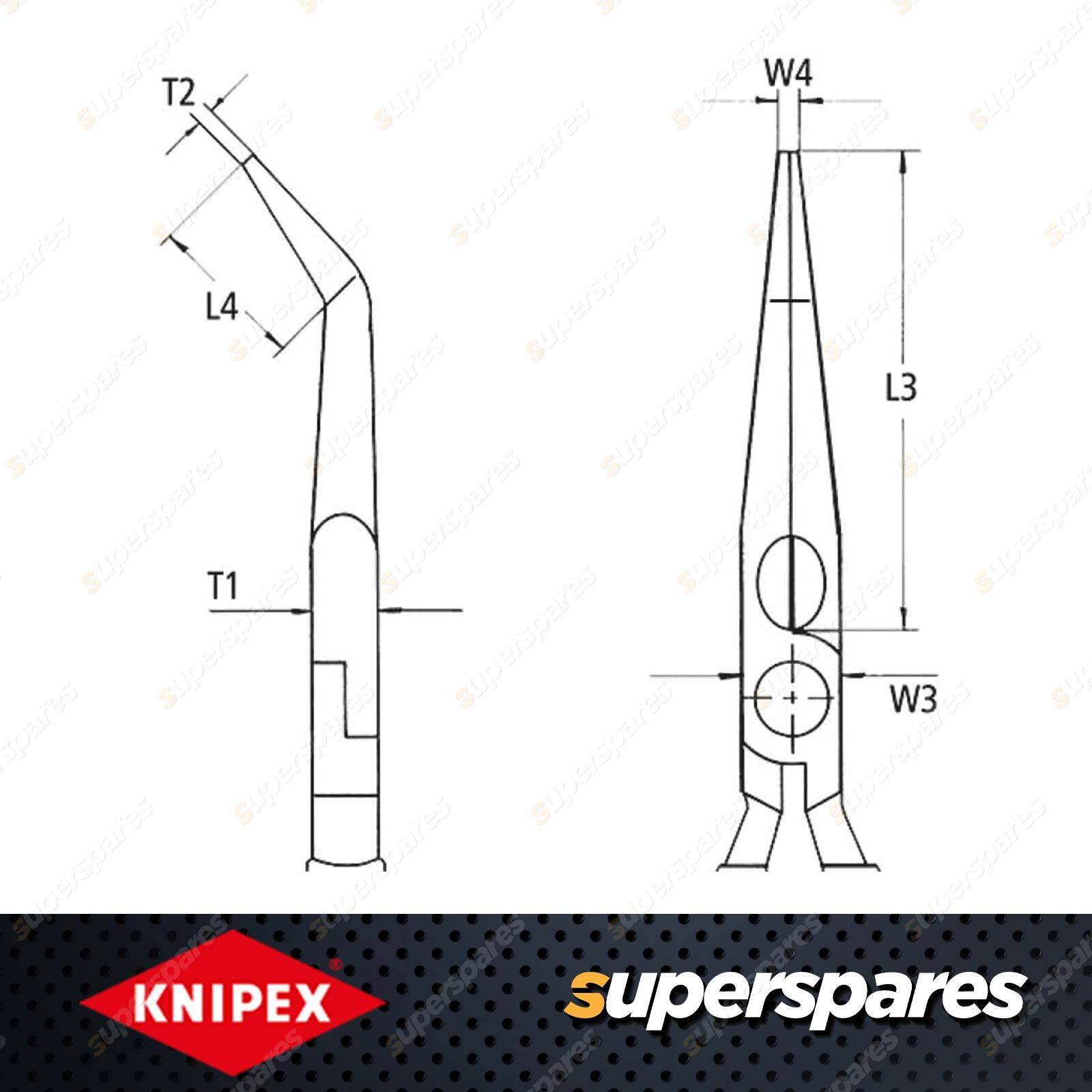

• Jaw thickness (joint) (T1) : 9.5 mm
• Tips width (W4) : 3.0 mm
• Tips thickness (T2) : 2.5 mm
• Gripping surface length (L4) : 23.0 mm
• Jaw length (L3) : 73.0 mm
• Head width (W3) : 18 mm
• VDE tested : yes

Ideal for professional users from the electrical and installation trade

VDE tested pliers for installation and assembly work and for cutting

Knipex manufactures these forged, oil-hardened snipe nose side cutting pliers with dip-insulated handles for installation, supply and assembly work and for powerful cutting.

The cutting edges of the pliers are shaped to produce a bite type cut. The cutting edges are additionally induction hardened to approx. 61 HRC so that the plier can even be used to cut hard wire.

Inherently stable when twisted - particularly strong when cutting

The precision tips at an angle of 40° made of vanadium electric steel are elastic and stable when twisted. This allows the manual force deployed to be well measured - forcefully where necessary. The cutting edges are near the joint which is advantageous for the transmission of force. This produces impressive, high cutting capacities of Ø 3.2 mm for medium-hard wire and Ø 2.2 mm for hard wire.

In the contr. cabinet, on a machine, on an electr. motor: components and wires can be reached easily

The very long tips of this VDE tested plier allow you to work efficiently wherever space is tight. Whether this is on unfavourably positioned terminals, in junction boxes or in control cabinet construction: when using these pliers, their advantages will become clear. Wherever lines and wires need to be held, fed and cut, the qualities of the snipe nose side cutting pliers from Knipex will be appreciated. The quality chrome plating offers good protection against dirt and corrosion.
