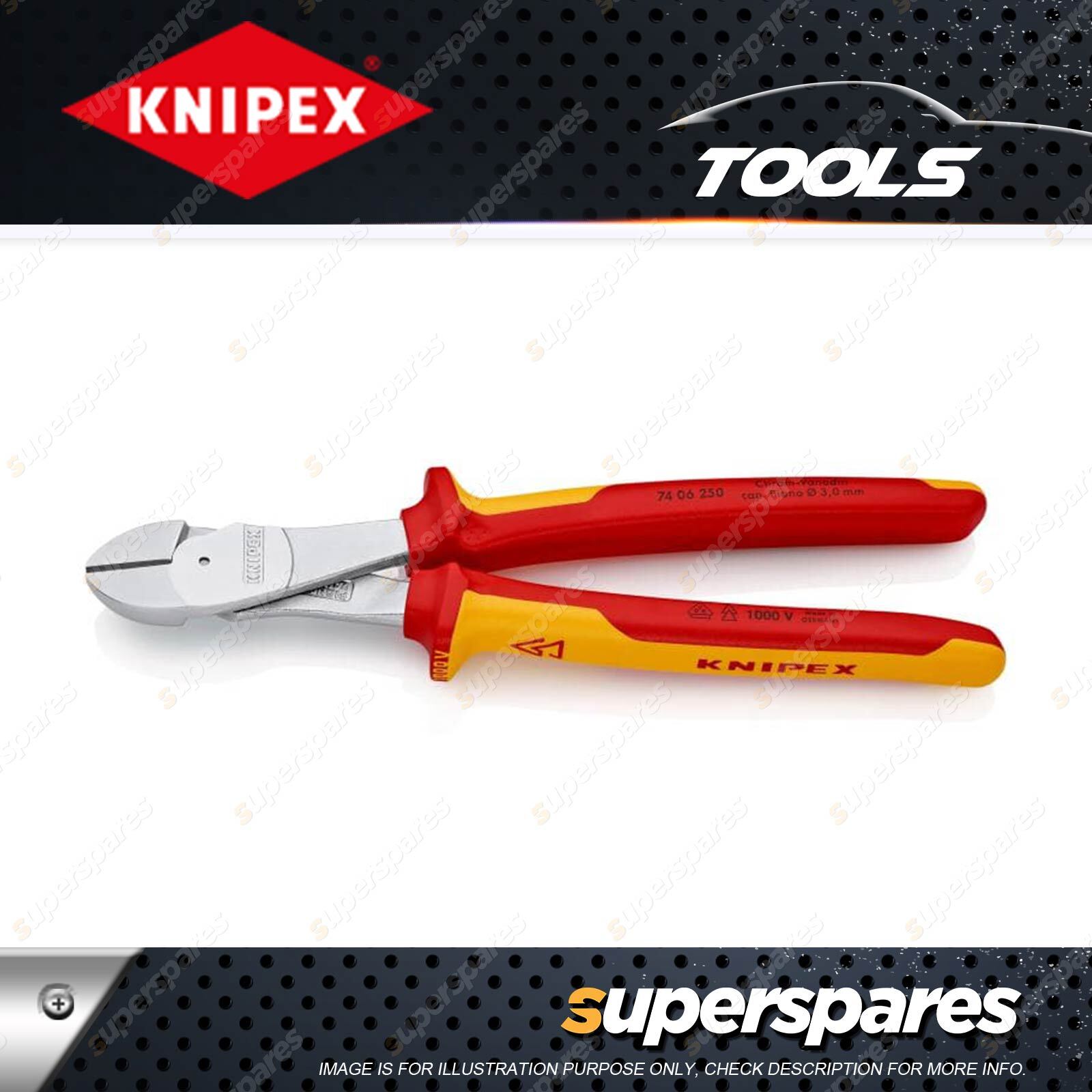

Knipex 1000V High Leverage Diagonal Cutter - 250mm Chrome-plated Head & Pliers

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex High Leverage Diagonal Cutter

• For very tough, continuous use
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire
• Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened

• Pliers : chrome-plated
• Head : chrome-plated
• Handles : insulated with multi-component grips, VDE-tested
• Weight : 453 g
• Dimensions : 250 x 63 x 22 mm
• Standard : DIN ISO 5749 DIN EN 60900 IEC 60900
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacities medium hard wire (diameter) : Ø 4.6 mm
• Cutting capacities hard wire (diameter) : Ø 3.5 mm
• Cutting capacities piano wire (diameter) : Ø 3.0 mm
• VDE tested : yes

Large high leverage diagonal cutters for hard constant use

Reliable tool for the professional user: tough and strong, insulated

Thanks to their high cutting capacity and indestructible strength, the Knipex high leverage diagonal cutters are highly valued especially by craftsmen and industrial mechanics.

In the insulated version with a length of 250 mm, they are frequently used on building sites, in manufacturing and in electrical installation.

Hard materials such as piano wire up to 3.0 Ø mm and Cu conductors up to 16 mm² and Al conductors up to 35 mm² can also be cut effortlessly.

The chrome plating contributes to the durability of these high leverage diagonal cutters: as effective rust protection and as dirt-repellent layer (makes it easier to clean the tool).

Comparatively low weight, optimum geometry and a 20% energy saving

Compared to conventional diagonal cutters of the same size, the Knipex high leverage diagonal cutter offers a much better ratio between the force required and cutting capacity.

The geometry of the cutting edges, joint and the handles have been designed for efficiency. During hard constant use, e.g. in industry, this tool is also the first choice because its ergonomic design makes work much easier for the user.

Thanks to the hand-friendly shape of the handle, the benefits of using these high leverage diagonal cutters are plain to feel and see. The insulating multi-component grips ensure added comfort.

The Knipex high leverage diagonal cutter is extremely stable due to its robust design with forged joint axle, but its weight in relation to the high cutting capacity is low at 453 g.
