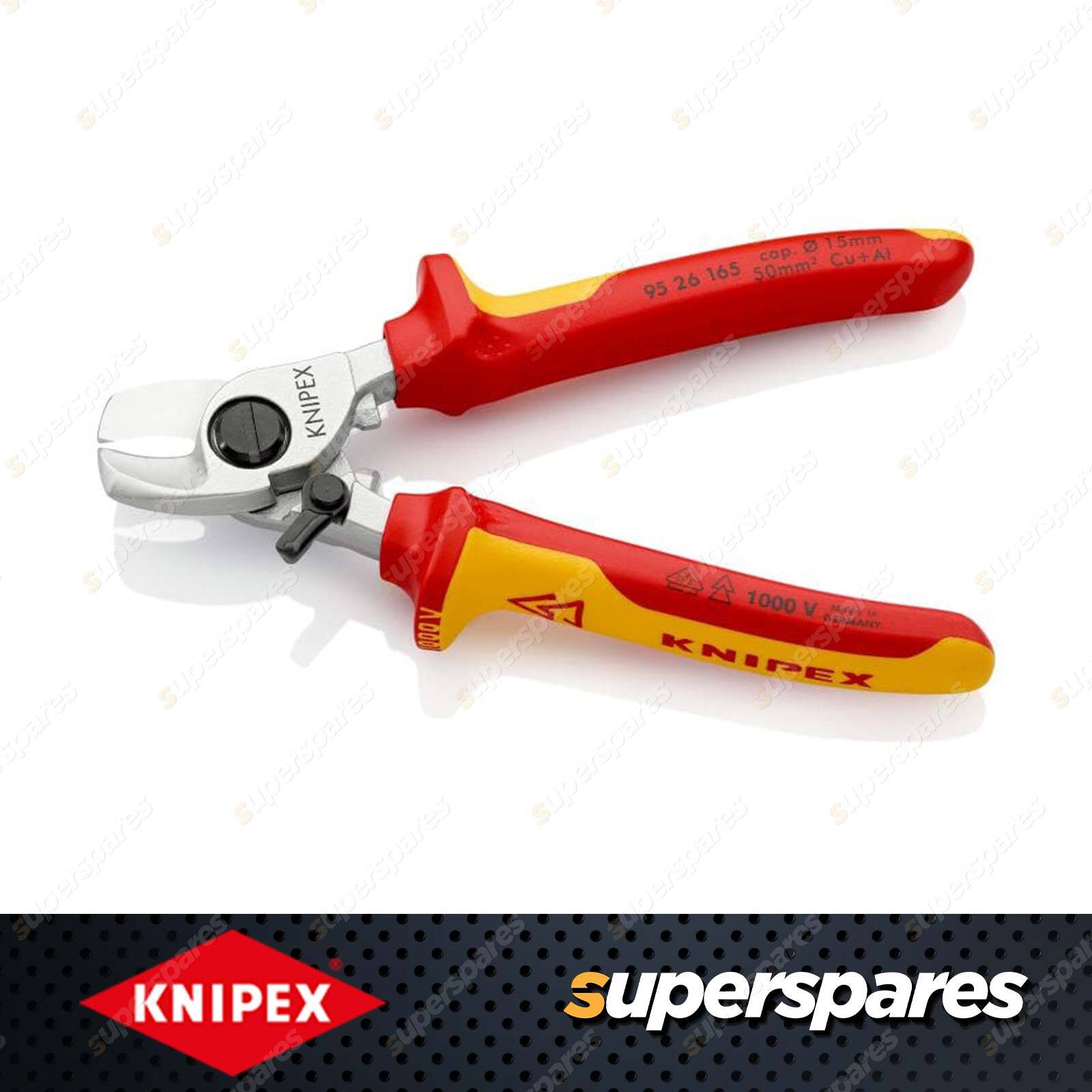

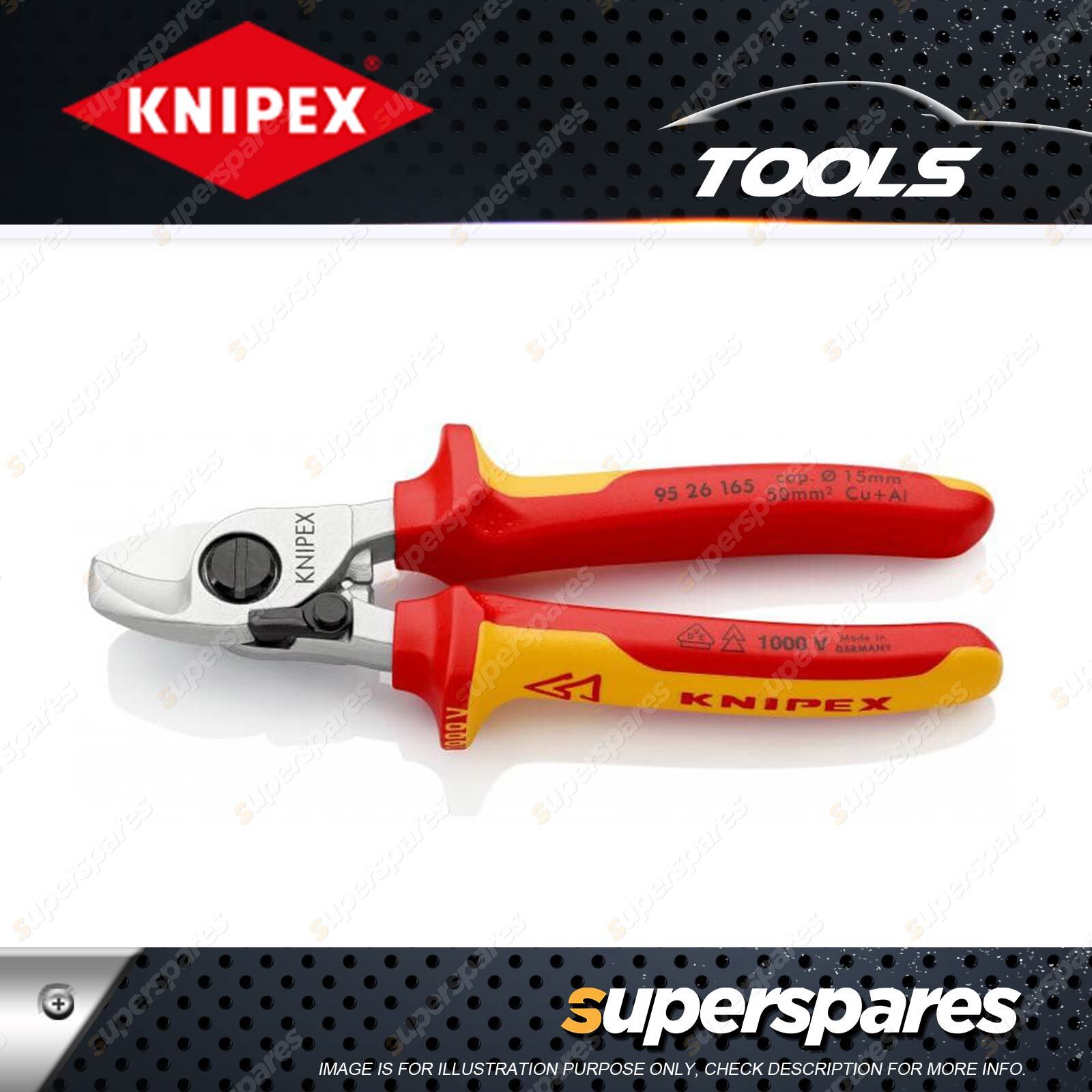

Knipex 1000V Cable Shears - with Opening Spring Hardened Blades Length 165mm

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Cable Shears

• For cutting copper and aluminium single conductors as well as multiple stranded cables
• Clean and smooth cut without crushing and deformation
• Not suitable for steel wire and hard drawn copper conductors
• Precision-ground, hardened blades
• Easy cutting with one-hand operation
• With guard
• Adjustable bolted joint, self-retaining screw
• Internal opening spring, protected and captive
• High-grade special tool steel, forged, oil-hardened

• Shears : chrome-plated
• Handles : insulated with multi-component grips, VDE-tested
• Weight : 275 g
• Dimensions : 165 x 63 x 26 mm
• Standard : DIN EN 60900 IEC 60900
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacity copper cable, multiple-stranded : 50 mm²
• Cutting capacity copper cable, multiple-stranded : Ø 15 mm
• AWG : 1 / 0
• VDE tested : yes

Professional cable shears: VDE tested and ideal for electricians

Why cable shears should be used to cut cable

Due to their design, diagonal cutters are not ideal for cable cutting, for example, because their blades meet at an obtuse angle.

By contrast, Knipex cable shears cut using a scissors action, producing a smooth and clean result, because the cable is not crushed, but is cut very smoothly and cleanly. They are therefore excellent for shortening cable, e.g. in house wiring work. For example, they cut NYM-J 3x1.5 mm or NYM-J 5x2.5 mm and all other stranded and finely stranded Cu and Al cables up to 50 mm² professionally. The cable shears should not be used to cut hard wire, however, as their cutting edges have not been designed for this.

Knipex cable shear : cable cutting with little physical effort

Compared to the physical effort required with conventional diagonal cutters, the user only needs around one third of the manual force with the Knipex cable shears due to the very sharp cutting edges. There is substantially less strain for the fitter, particularly during prolonged use of the cable shears, e.g. for house wiring work. Thanks to a scissors action and precision ground cutting edges, the ends of the cable are not deformed. A clean, technically perfect cut for work steps following the shortening of cables - and a reliable result with the Knipex cable shear .

Bolted joint, insulated handles and inset opening spring

The bolted joint permits the extremely easy operation of the cable shears. The self-locking joint bolt can be tightened if necessary. These cable shears are particularly appreciated because of the internal, captive opening spring, which reduces every operation for the user by one step. The insulating multi-component grips additionally protect the user from an electric shock during work on live parts.
