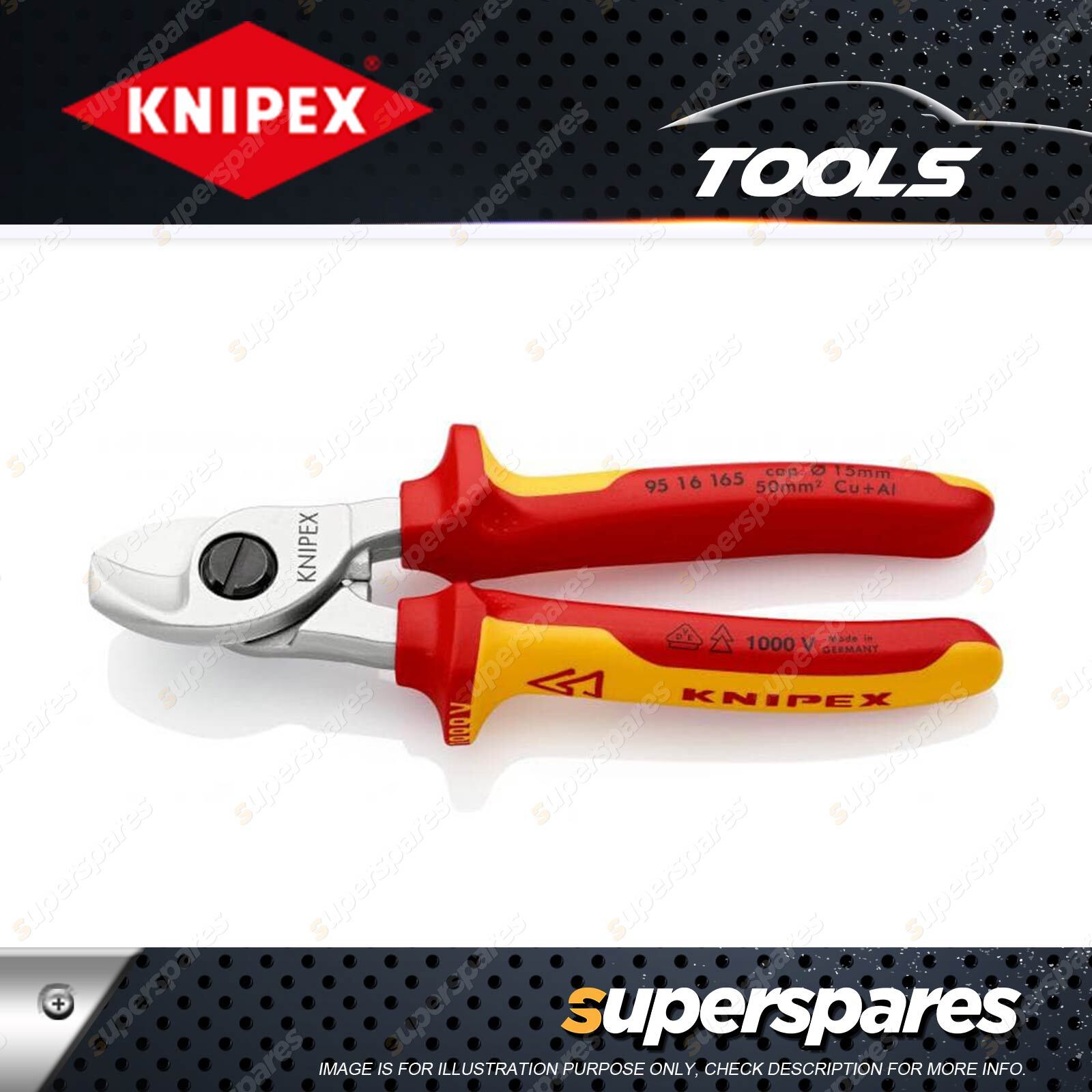

Knipex 1000V Cable Shears - 165mm Insulated with Multi-component Grips Handles

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

Contents : Knipex Cable Shears

• For cutting copper and aluminium single conductors as well as multiple stranded cables
• Clean and smooth cut without crushing and deformation
• Not suitable for steel wire and hard drawn copper conductors
• Precision-ground, hardened blades
• Easy cutting with one-hand operation
• With guard
• Adjustable bolted joint, self-retaining screw
• High-grade special tool steel, forged, oil-hardened

• Shears : chrome-plated
• Handles : insulated with multi-component grips, VDE-tested
• Weight : 262 g
• Dimensions : 165 x 47 x 21 mm
• Standard : DIN EN 60900 IEC 60900
• REACH compliant : does not contain SVHC
• RoHS compliant : not applicable
• Cutting capacity copper cable, multiple-stranded : 50 mm²
• Cutting capacity copper cable, multiple-stranded : Ø 15 mm
• AWG : 1 / 0
• VDE tested : yes

Professional cable shears: VDE tested and ideal for electricians

Why cable should only be cut using cable shears

Diagonal cutters are not ideal for cable cutting, because their blades meet at an obtuse angle. By contrast, the cable shears from Knipex cut using a scissors action. They are therefore excellent for shortening cables in house wiring work.

They professionally cut, for example, NYM-J 3x1.5 mm or NYM-J 5x2.5 mm and all other stranded and finely stranded Cu and Al cable up to 50 mm². Due to the nature of their cutting edges, the cable shears must not be used to cut hard wire, however.

Knipex cable shear: cable cutting with little physical effort

Compared to conventional diagonal cutters, thanks to the very sharp cutting edges, only around one third of the physical effort is needed when using the Knipex 95 16 165 cable shears. This reduced effort substantially reduces strain for the fitter, particularly when using the cable shears for prolonged periods, e.g. for house wiring work. Due to a scissors action and precision ground cutting edges, the user gets a clean, technically perfect result after cutting cable, which is the ideal condition for work steps following the shortening of cables.

Screwed joint and insulated multi-component grips

The bolted joint permits very easy operation. The self-locking joint bolt can be adjusted if necessary. These cable shears are particularly appreciated because they can be used to cut larger cable cross-sections. The insulating multi-component grips additionally protect the user from an electric shock during work on live parts.
