EFS Xtreme Shock Absorbers + Coil + Leaf 50mm Lift Kit for Ford Ranger PX3 18-On

EFS-SLK-C2202-G004

In Stock 1 Business Day Dispatch or Click to Collect

Hurry. Stock Selling Fast

Free Delivery

Free Shipping Storewide excludes heavy, bulky items & regional areas

Seen It Cheaper?

Ask for a Superspares deal.

Call us 1300 791 058

National Warranty

Genuine manufacturer warranty, claimable online Australia wide.

Delivery Options

Local Pickup Available

Standard Shipping - FREE
Additional freight charges may apply for heavy, bulky items or deliveries to rural and remote areas, with customer service adjusting costs as needed.

Local Pickup - FREE
Pick Up is Available from Sydney, Melbourne and Brisbane warehouses upon receival of confirmation.

Calculate Shipping

Afterpay
Bank Deposit
PayPal Express
Web Payments
Web Payments
American Express
MasterCard
Visa

Product Description

Note:eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2024 Superspares. All rights reserved.

Please note at the moment our couriers can only deliver to business addresses, if you put a residential address we'll contact you for a business address for FREIGHT items. We can get it dropped at nearby depots for collection if that is more convenient.Calculated shipping price at checkout is for Metro Brisbane, Sydney, Melbourne ONLY. If you are out of these areas either contact us for freight quote or we will call you prior to shipping for the extra freight charge.

EFS_SHOCKS

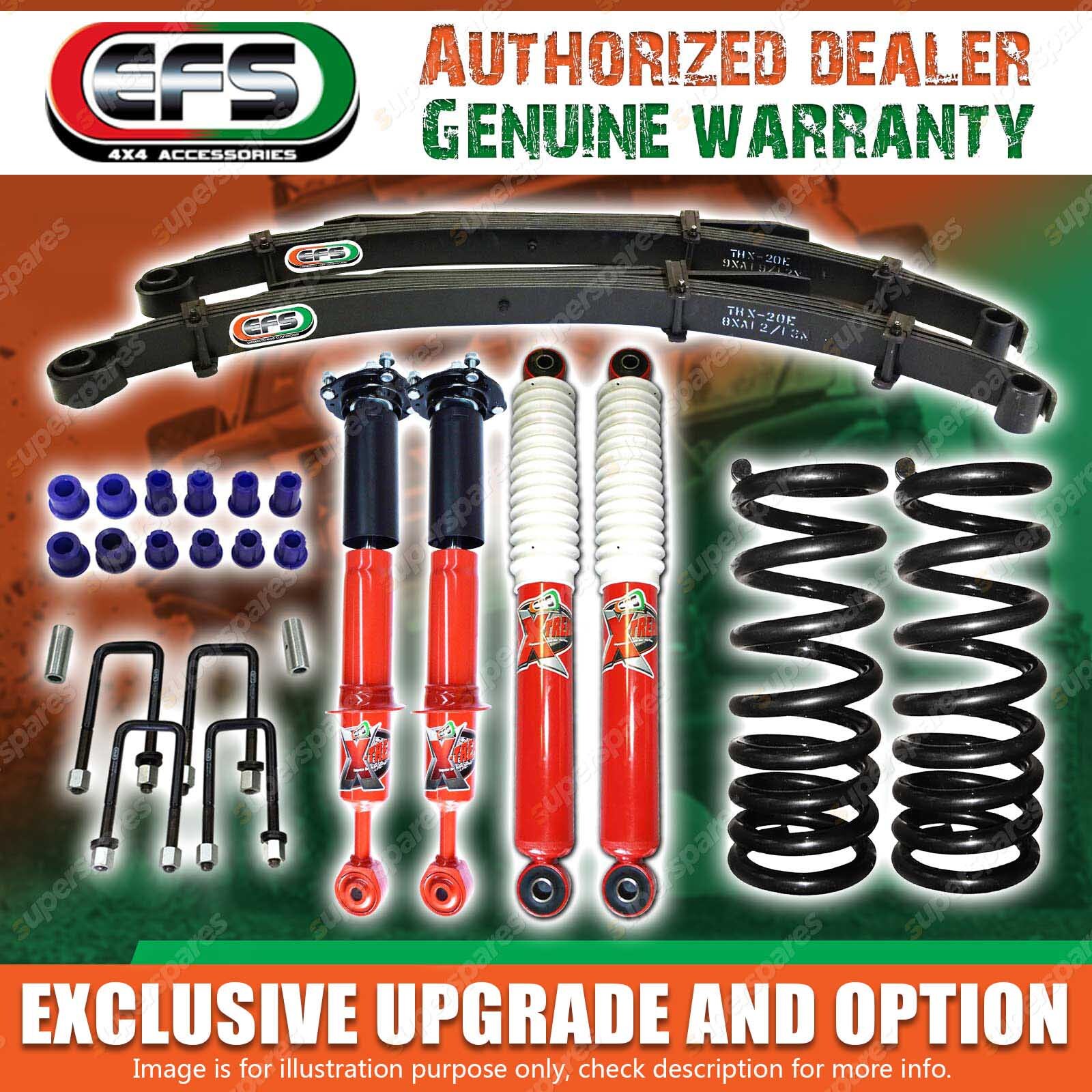

EFS 50mm SUSPENSION LIFT KIT CONTENTS:

LOCATION	DESCRIPTION	QTY	NOTE	Ebay Link
Front	EFS Shock Absorbers	2	X-Treme	Click here to buy separately
Front	EFS Medium Duty Coil Springs	2	Up to 60kg	Click here to buy separately
Rear	EFS Shock Absorbers	2	X-Treme	Click here to buy separately
Rear	Leaf Springs + U Bolts + Bushes Kit	2	Constant 100kg	Click here to buy separately

TO SUIT:

Ford Ranger PX3 2WD 4WD High Chassis 07/2018 Onwards

EFS_SHOCKS

Available Upgrade&Options:

LOCATION	SPRING RATING OPTION	QTY	PRICE	LINK
Front	HD Coil springs 65-120Kg	2	+40 Pair	Click here to upgrade
Rear	HD Leaf Springs constant 300kg	2	+80 Pair	Click here to upgrade
Rear	Extra HD Leaf Springs constant 500kg	2	+120 Pair	Click here to upgrade
Rear	EFS Shackles	2	GR389	Click here to upgrade

EFS_SHOCKS

Specifications:

EFS X-Treme Shock Absorber----The EFS X-Treme Shock Absorber has taken over three years to develop and test. During this period, it's had countless trips along unsealed corrugated roads, highly strenuous technical off-road situations and has seen many laps of 4wd race tracks in competition vehicles. During this period the X-Treme has exceeded our expectations and has been pushed beyond the boundaries that a normal 4wd shock absorber can endure.

EFS_SHOCKS

EFS X-Treme Shock Absorbers

More than 3 years in development the X-Treme EFS Shocks are the heavy duty specialists. Big 45mm bore construction with 20mm hardended chrome piston rod,Perfect for your heavy laden outback tourer.

* Over-sized Eye Rings & Pin Mounts
* 20mm Hardened Chrome Piston Rod
* Durable Over-sized Concertina Dust Boot
* 2mm H/D External Wall Thickness
* Internal Hydraulic Rebound Stop
* Bonded Rubber Eye Bushes
* Special High Temperature Fluid
* Quality Multi-lip Viton Seal
* High Strength Iron Piston Rings
* Large 45mm Bore
* Twin Tube Hydraulic Design
* Dynamic Motion Control Valve

EFS Coil Springs

EFS Coil Springs are produced in a variety of raised heights, from standard to 125mm & also a variety of spring rates to suit different applications - towing, load bearing, ride height & competition.

* Shot Peened - To stress relieve the outer surface of the Coil, so the Coil can operate under higher fatigue & repeated load conditions to ensure longevity.

* Scragged for Quality Control -This is a process where the Coil is compressed beyond its yield point; this compression will set-up residual stresses and increase the elastic limit of the spring.

* Powder Coated - To resist corrosion & to protect the spring steel from minor damage.

EFS_SHOCKS

EFS Leaf Springs

EFS Multi-Leaf Springs are made from high quality Japanese grade SUP9 & SUP9A Alloyed Carbon spring steel.

* Tapered Leaf Ends - To reduce the inter-leaf friction & to improve pressure distribution in the load bearing area.
* Bolt Clip Liners - To reduce noise & friction.
* Inter-Leaf Graphite Coating - For further reduction of friction.
* Shot Peened & Scragged Tested - To reduce stress & ensure longevity.
* Leaf Inserts Pads - For further reduction of friction.
* Bolt Clips & Military Wraps - To prevent leaf spread & provide safety.

EFS_SHOCKS

EFS U-BOLTS

Powder coasted for protection against corrosion & made from quality carbon steels with rolled threads to increase strength, due to a uniform grain finish.Deep nuts are supplied for safety & strength with flat washers to provide a smooth contact surface area to reduce plate friction.EFS have a vast variety of U-bolts on offer for most Makes and Models of 4wd's. We also can custom bend U-Bolts to order.

EFS_SHOCKS

EFS PINS & SHACKLES

Engineered to be stronger than the original equipment & greaseable for ease of service. The EFS Pins & shackles are made from medium & high grade carbon steels then case hardened & gold cadmium plated or black oxided for increased strength & corrosion protection EFS offers standard replacements and a small range of anti-inversion std and extended shackles.

* Engineered with increased strengthGreaseable for ease of maintenance
* Case hardened & gold cadmium plated
* Extended & standard anti-inversion shackles
* 3 years / 100, 000 km warranty

EFS_SHOCKS

EFS POLYURETHANE BUSHES

EFS Polyurethane Bushes are made from high quality elastomers which gives the EFS Polyurethane Bush a high isolating strength & durable.

EFS poly bushes have an elastomer rating of 80 Duro to give improved suppleness & grease channels for increased distribution of lubrication.properties.
