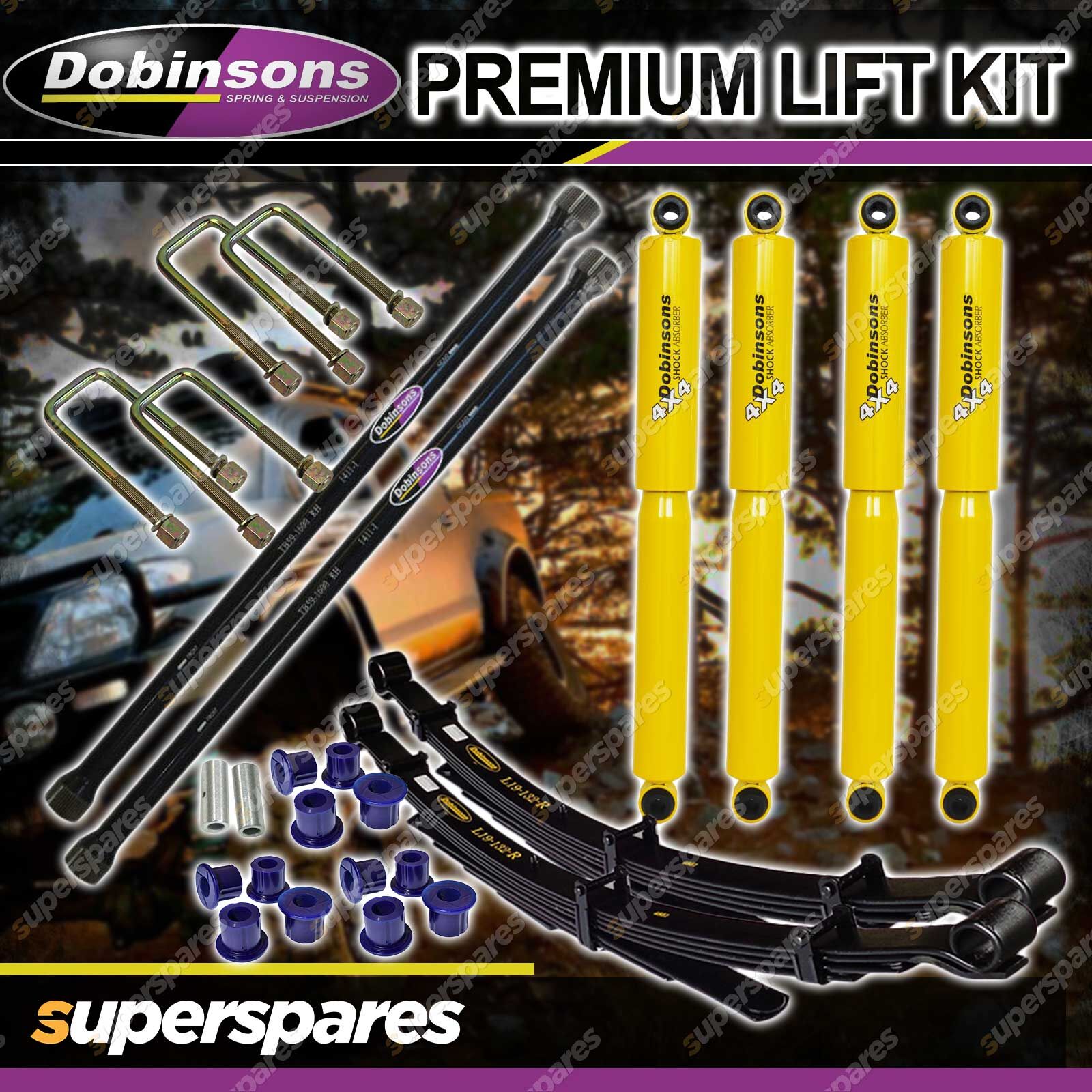

Dobinsons Raised Shocks Torsion Bar Leaf Springs Lift Kit for Holden MU USC55D

Holden - Gm - Isuzu MU USC55D 07/1990 - 1995
Detail : 3 Door

Dobinsons Twin Tube Nitrogen Gas charged shock absorbers are made from the world's highestquality external and internal parts sourced worldwide. They provide a significant increase inperformance over the standard shock absorbers.

Features Include:

• Tough twin tube design has the benefit of holding larger volume of oil (keeping the internal workings cooler) and improved protection of internal working components
• Low pressure nitrogen gas which eliminates aeration within the oil reservoir, meaning no bouncing, sloppiness nor deterioration of ride
• Teflonned piston rings produce less wear and heat to the bore and increase the life of the shock absorber
• Special anti-bump stops preserve the piston from extreme impacts when fitted to vehicles with coil spring suspension systems
• Valve coding maximises off-road and on-road performance
• Valve stacking system controls dampening laws and permits a record response time in any situation, enhancing safely and comfort
• Polyurethane paint, gives extended life against the elements
• have a 2 year warranty

Dobinsons Spring & Suspension's range of heavy duty 4WD torsion bars are manufactured from high quality micro alloy steel with a thicker bar diameter than the original vehicle torsion bars to improve performance when accessories are fitted. When vehicles are fitted with additional accessories such as steel bullbars, winches, dual battery kits and other frontal accessories the weight placed on the torsion bars can be dramatically increased.

Features Include:

• Dobinsons heavy duty 4wd torsion bars feature increasedspring rate (thicker bar diameter) to better handle theadditional weight and provide far improved handling, rideheight and offroad performance.
• Dobinsons torsion bars feature an increased bar diameter,thicker than the original vehicle torsion bars.
• Dobinsons torsion bars feature cold rolled splines toincrease strength, reliability and ensure a perfect fit.
• A thick durable powdercoat provides protection againstcorrosion.
• As torsion bars have load applied in a particular directionduring compression travel, Dobinsons have their torsionbars directionally preset and scragged to prevent saggingand breakage.
• Dobinsons heavy duty torsion bars have precision endfitment and are marked both left and right hand side, andalso importantly front and rear to ensure correct simplefitment the first time.

With over 60 years of experience manufacturing in Australia, Dobinsons Spring & Suspensionare no strangers to providing the highest quality spring and suspension components, and ourrange of leaf springs are no exception.

Dobinsons Leaf Springs Feature Include:

• Stringent quality control procedures for Heat Treatment (Tempering) processes at all phases of the manufacturing processes ensures Dobinsons Springs are made the same exceptional way every time.
• All leaf lengths are designed and calculated to achieve High Performance spring. Inappropriate leaf lengths will concentrate stress in one particular area and will cause premature sagging or breaking.
• To assist in Load Distribution and reduce Inter Leaf Friction which occurs at the end of the leaves.
• Where possible, a Military Wrapper is used as a safety mechanism to aid the vehicle's steering in the case of the main leaf breaking.
• Scragging is a process where the spring is load tested to 90% of the Yield Stress of the material used. This process helps to relieve and prevent sagging.
• Reduce friction at the tip of the leaves where the Load is greatest in the spring.

4x4 U-bolts are made from high quality, 10.9 gradehigh tensile steel and supplied with hardened deep nuts formaximum clamping pressure and reliability. It is recommendedthat when replacing leaf springs that new u-bolts are fitted.

Supplied in anti corrosion zinc finish.

Spring and Suspension's polyurethane bushes havebeen designed and manufactured from the highest quality rawmaterials and unlike other competitors have been designed tosuit both leaf springs and the original vehicle leafsprings.

Polyurethane-Bushes.Polyurethane leaf springbushes provide a smooth comfortable ride and when combinedwith 4x4 greasable shackles provide a far superiorservice life than the original vehicle bushes.

Spring & Suspension's range of 4wd shacklesand pins offer have been designed and manufactured tomaximize the life of both the polyurethane bushes andshackles. Incorporating a recessed twin hole greasable designthe ensure both halves of the polyurethane bush receiveeven grease distribution. Greasing polyurethane bushes notonly reduces friction and wear, it also reduces the chancesof corrosion on the shackle pins and reduces squeaking.

4wd shackles and pins are a heavy duty design andprovide simple servicing through external grease nipples.

In some cases also provide anti-inverse shacklesto prevent the shackles from inverting on lifted leaf springvehicles.
