2" 3" 4" lift Kit Diff Drop kit Direct Bolt in for Isuzu MU-X 2013-2021

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 Superspares. All rights reserved.

CONTENT: 1 set Diff Drop Kit

SUIT: ISUZU MU-X (2012-on) lifted 2-4?/p>

When lifting IFS Vehicles, the Constant Velocity (CV) joints are put on an increased angle. This increased angle of the CV joint during operation can accelerate the wear on the joint, as well as putting additional stress on the CV boots leading to splitting and eventually premature failure of the CV. This wear is accelerated furtherif larger (wider) wheels and tyres are fitted.
The IFS Diff Drop Kits are application specific and supplied complete to get the job done. The bolt on kit corrects the geometry on the front driveshaft and CV?, lowering the front diff by approx. 25mm, thus reducing the angles the CV joints need to operate on, and avoiding the expensive replacements of CV? and boots. Allows the bash plate to be refitted.

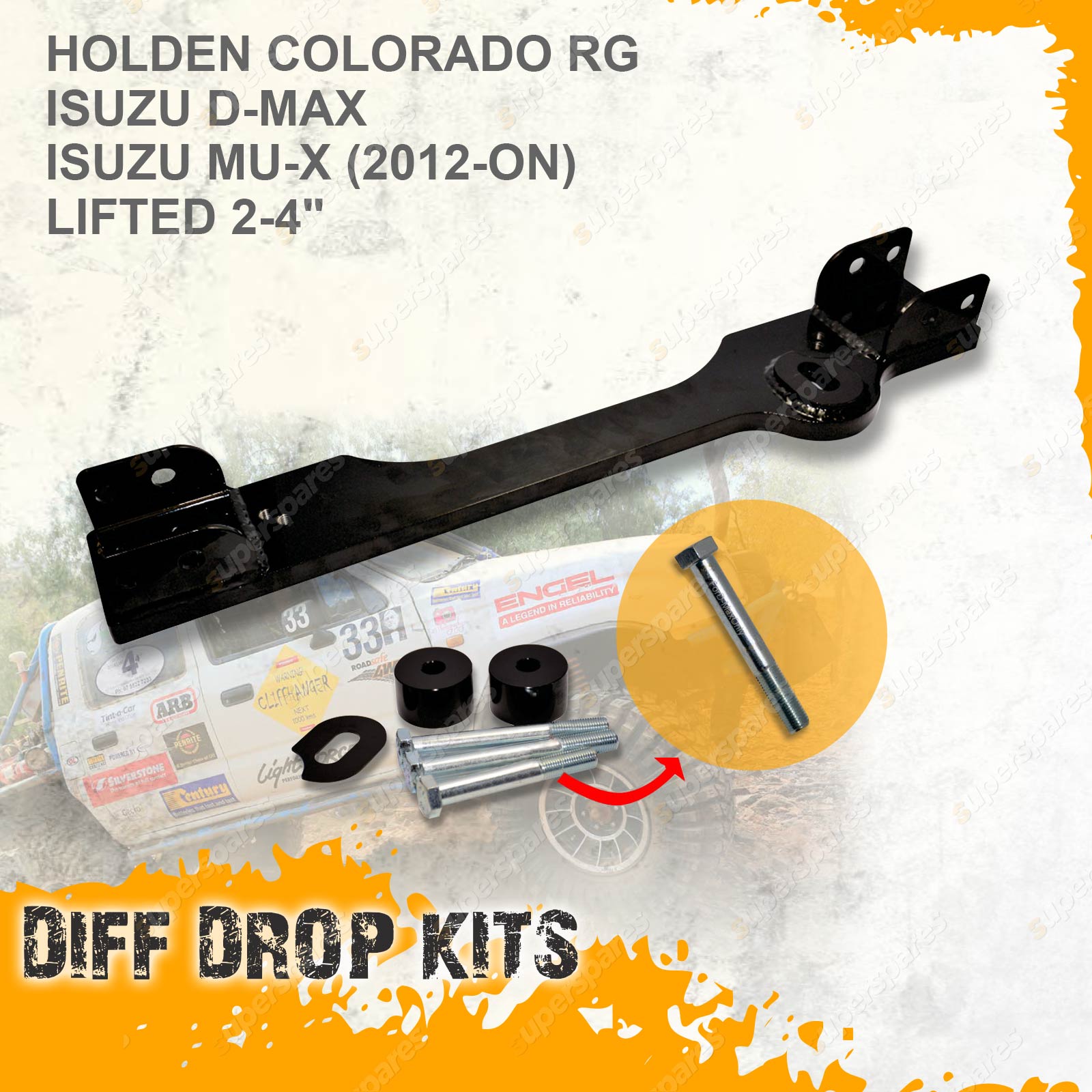

DDCOL02 INCLUDES SOLID FLAME CUT 15MM STEEL CROSSMEMBER, AND ALLOY SPACERS. DROP INNER CV JOINT APPROX. 30MM.
