EFS Enforcer Shocks Leaf 50mm Lift for DAIHATSU ROCKY F70 F75 F80RV

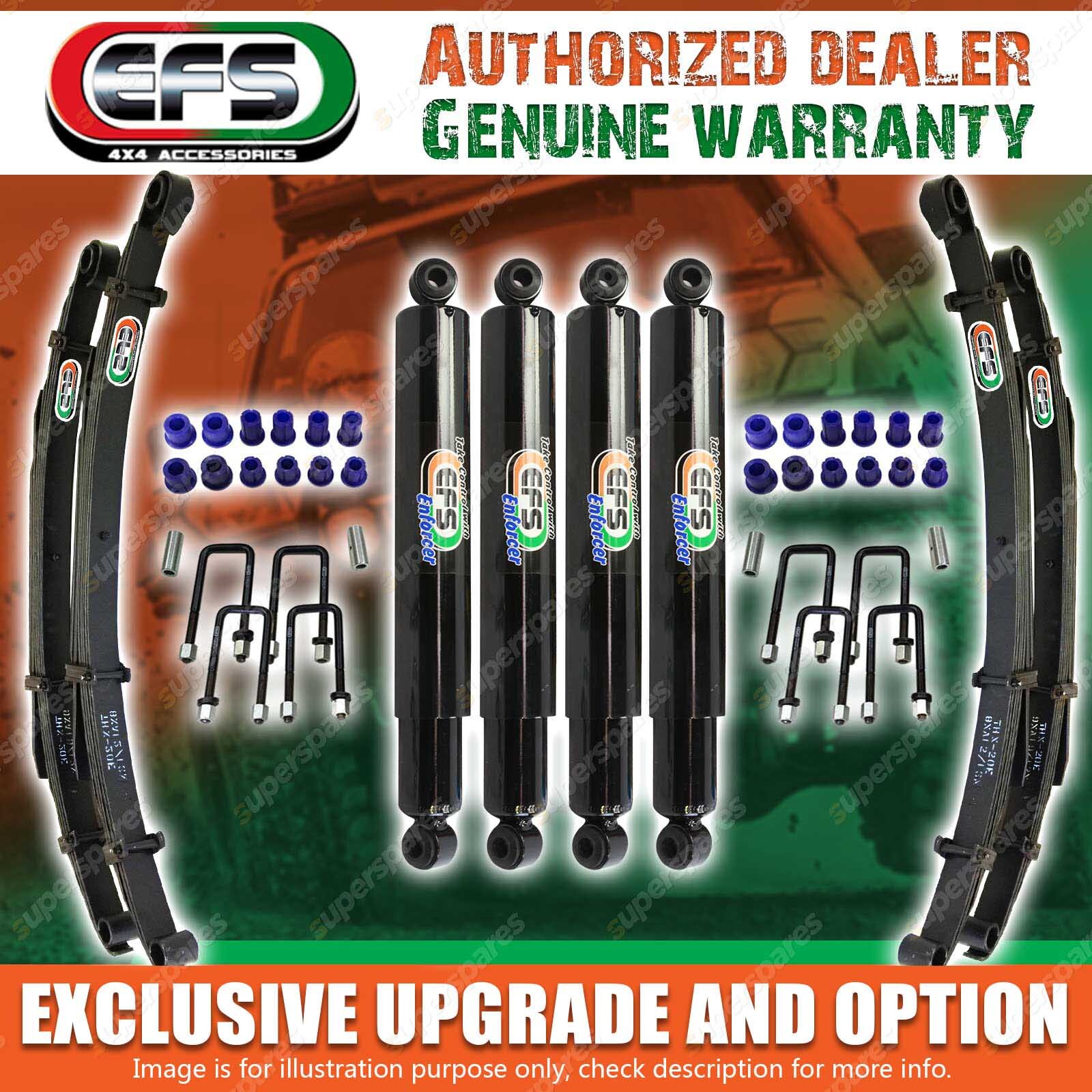

EFS 50mm SUSPENSION LIFT KIT CONTENTS:

TO SUIT:

DIAHATSU ROCKY HARD TOP F70 F75 F80RV 1984-8/1993

EFS Enforcer Shock Absorbers

EFS Enforcer is designed for the price conscious 4wd enthusiasts, who need a shock absorber that gets the job done. 51mm External Tube -For greater oil capacity & to keep the valve at a lower operating temperature.

* Low Pressure Nitrogen Gas -To prevent the oil from cavitation (foaming)
* Long Travel Design -To maximise wheel travel when a vehicle is raised and increase articulation
* 32mm Piston, Twin Tube Construction - Greater control of the spring during the rebound and compression cycles
* 15mm Quality Hardened Chromed Piston Rod -Increased durability
* 1.2mm Outer and Inner Wall Thickness -For greater durability and strength
* Dynamic Motion Control Technology - Adjusts to different road and off road conditions
* High Quality Internal & External Components - To prevent fade under harsh conditions and long life poly bushes for durability.

EFS Leaf Springs

EFS Multi-Leaf Springs are made from high quality Japanese grade SUP9 & SUP9A Alloyed Carbon spring steel.

* Tapered Leaf Ends - To reduce the inter-leaf friction & to improve pressure distribution in the load bearing area.
* Bolt Clip Liners - To reduce noise & friction.
* Inter-Leaf Graphite Coating - For further reduction of friction.
* Shot Peened & Scragged Tested - To reduce stress & ensure longevity.
* Leaf Inserts Pads - For further reduction of friction.
* Bolt Clips & Military Wraps - To prevent leaf spread & provide safety.

EFS U-BOLTS

Powder coasted for protection against corrosion & made from quality carbon steels with rolled threads to increase strength, due to a uniform grain finish.Deep nuts are supplied for safety & strength with flat washers to provide a smooth contact surface area to reduce plate friction.EFS have a vast variety of U-bolts on offer for most Makes and Models of 4wd's. We also can custom bend U-Bolts to order.

EFS PINS & SHACKLES

Engineered to be stronger than the original equipment & greaseable for ease of service. The EFS Pins & shackles are made from medium & high grade carbon steels then case hardened & gold cadmium plated or black oxided for increased strength & corrosion protection EFS offers standard replacements and a small range of anti-inversion std and extended shackles.

* Engineered with increased strengthGreaseable for ease of maintenance
* Case hardened & gold cadmium plated
* Extended & standard anti-inversion shackles
* 3 years / 100, 000 km warranty

EFS POLYURETHANE BUSHES

EFS Polyurethane Bushes are made from high quality elastomers which gives the EFS Polyurethane Bush a high isolating strength & durable.

EFS poly bushes have an elastomer rating of 80 Duro to give improved suppleness & grease channels for increased distribution of lubrication.properties.

Enforcer 31mm Bore

A no fuss application to get the job done. Great for the occasional 4WDer with great performance at a great price.

Elite 35mm Bore

The EFS Elite Shock Absorber Range has been developed for the 4wd owner who only pursues the best for his/her 4WD.

XTR 40mm Bore

The EFS XTR Shock Absorber Range is developed specifically for the Outback Offroad Tourers with heavily laden 4WDs. Improved with increased oil capacities to reduce operating temps and incorporating a highly robust construction to take on the Australian Outback

X-Treme 45mm Bore

The EFS X-Treme Shock Absorber has taken over three yrs to develop and test. During this period its had countless trips along unsealed corrugated roads, highly strenuous technical offroad situations & has seen many laps of 4WD race tracks in comp vehicles. The X-Treme has exceeded our expectations and has been pushed beyond the boundaries a normal 4WD shock absorber can endure.
