Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2024 Superspares. All rights reserved.

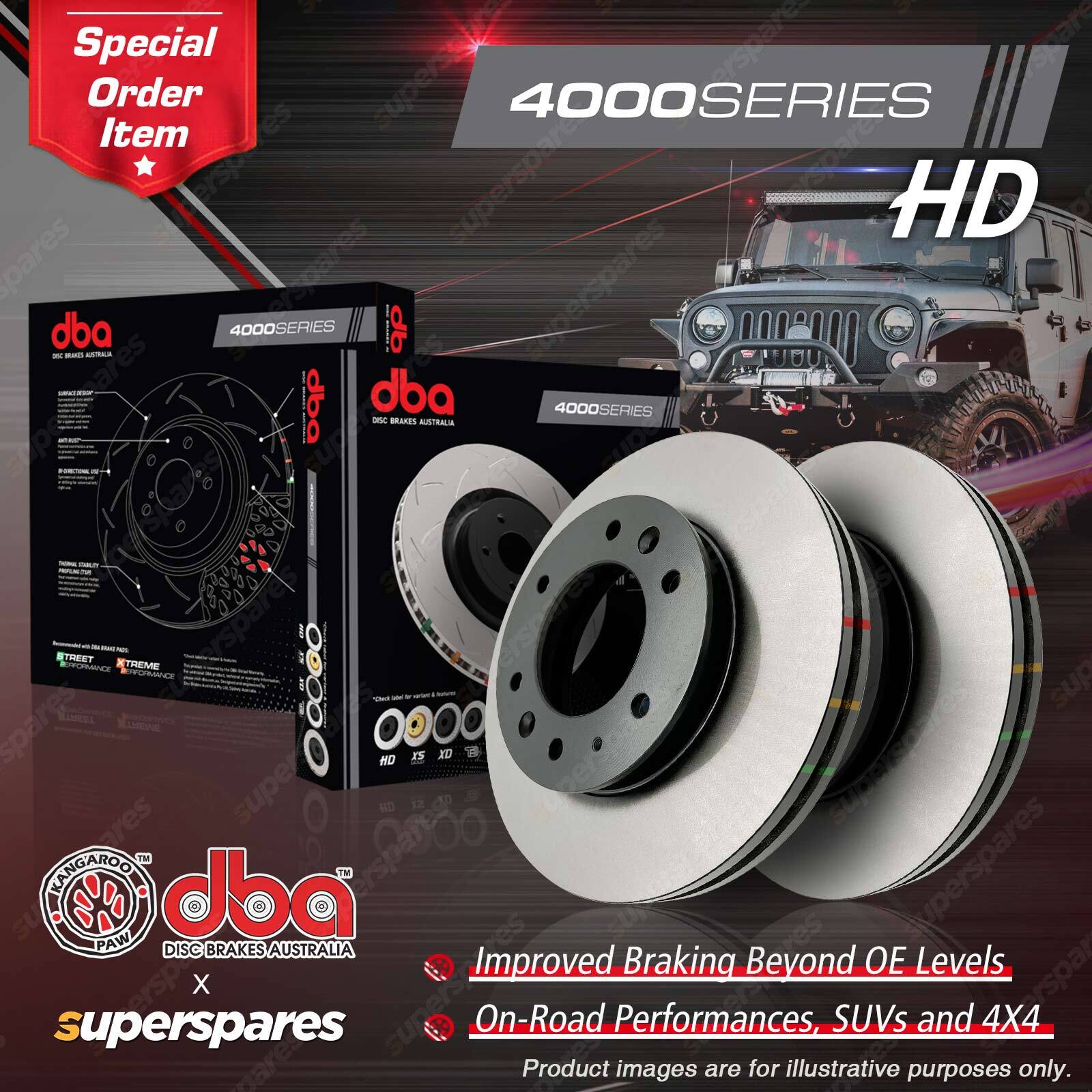

Contents : 2x DBA 4000 Series Heavy Duty Disc Brake Rotors
Position : Rear
Brake Rotors Type : Vented
Rotors Dimension :
Diameter [mm]:352
Original Height [mm]:71
Original Thickness [mm]:22
Minimum Thickness [mm]:20.4
Centre Hole Diameter [mm]:78.4
Number of Bolt Holes:5
Suit Vehicle:
DODGE RAM 1500 2002-2018 & DURANGO 2005-on
Disc Note :
This is a custom & special order item, may need additional 10 - 15 business days for delivery.
Please contact us for availability & dispatch times.
Return will Not Accept.
![](https://www.justsuspension.com.au/ebaydesign/car-egg/2021/DBA/Description/211115_DBA_rotor_4000_N_fea_01.jpg)
|
![](https://www.justsuspension.com.au/ebaydesign/car-egg/2021/DBA/Description/211115_DBA_rotor_4000_N_fea_04.jpg) |
4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded performance braking above and beyond standard OE levels.
Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA' s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again. |
![](https://www.justsuspension.com.au/ebaydesign/car-egg/2021/DBA/Description/211115_DBA_rotor_4000_N_fea_07.jpg)
SURFACE DESIGN - 1
Symmetrical slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.
ANTI RUST - 2
Painted non friction areas to prevent rust and enhance appearance.
BI DIRECTIONAL USE - 3
Symmetrical slotting and/or drilling for universal use. |
HIGH CARBON ALLOYED IRON - 8
Formulation allows for optimal interaction with DBA's thermal stability profiling (TSP). Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods.

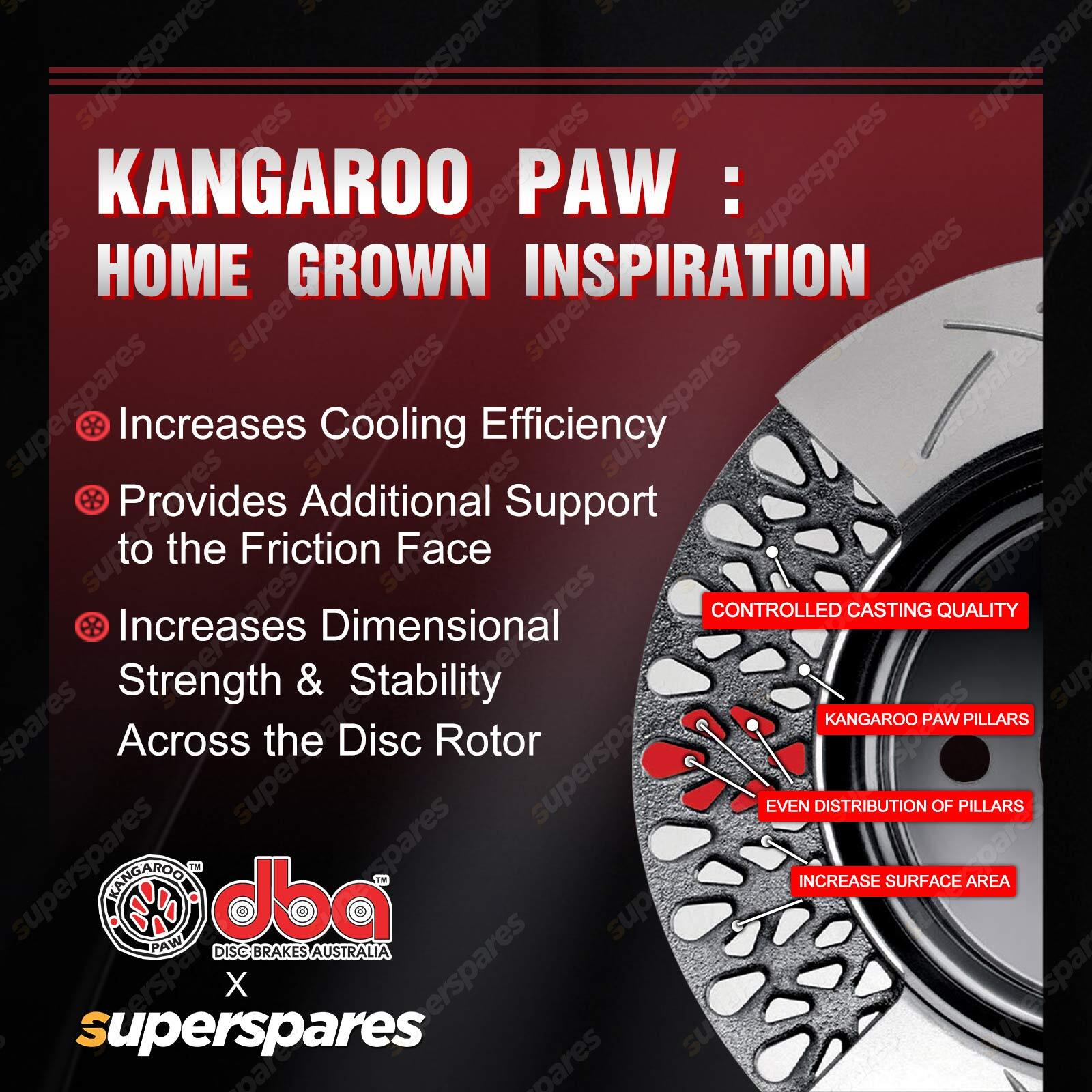

KANGAROO PAW - 9
Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.
|
THERMAL STABILITY PROFILING - 4
Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability.
THERMAL EFFICIENCY - 5
Centre split core castings for increased heat transfer and thermal efficiency.
CBN - 6
CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad "knock" and resulting premature wear.
THERMOGRAPHIC HEAT PAINT - 7
Paint markings change colour at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue.
*Some variants may not contain all features. |
