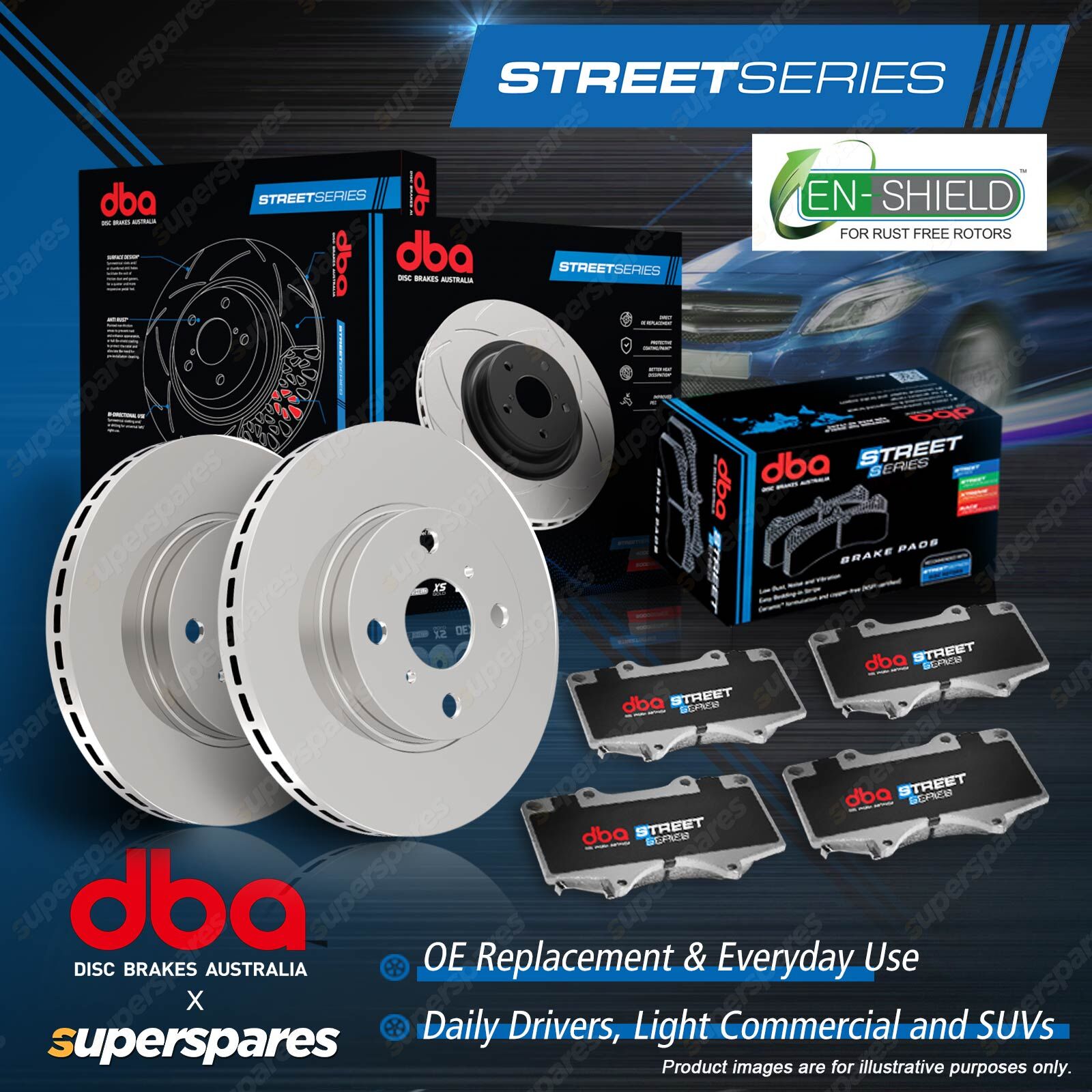

Contents : DBA Street Series En-Shield Disc Brake Rotors & Brake Pads
Product Quantity : 2 Rotors & 4 Pads
Position : Front
Brake Rotors Type : Vented
Rotors Dimension :
Diameter [mm]:294
Original Height [mm]:57
Original Thickness [mm]:24
Minimum Thickness [mm]:22
Centre Hole Diameter [mm]:58
Number of Bolt Holes:5
Pad Dimensions : 4 Pads 137.1 x 56.8 x 16.8 mm
Suit Vehicle:
| Make |
Model Name |
Type Name |
PowerKw |
Year |
| Subaru | FORESTER SUV (SG_) | 2.5 AWD (SG9) | 121 | 06/2005 - 05/2008 |
| Subaru | FORESTER SUV (SG_) | 2.5 AWD (SG9) | 155 | 12/2003 - 05/2005 |
| Subaru | FORESTER SUV (SG_) | 2.5 AWD (SG9, S11SG, S12SH) | 169 | 06/2005 - 05/2008 |
| Subaru | FORESTER SUV (SH_) | 2.0 D AWD (SHH) | 108 | 09/2008 - 09/2013 |
|
 |
Street Series direct replacement rotors are ideal for drivers seeking an OE level performance upgrade.
Street Series rotors are the perfect option for drivers looking for a direct OE replacement disc rotor that is built using the highest quality manufacturing processes, materials and proven safety, thanks to DBA' s over 40 years' experience in braking.
We gives you 100% confidence in fitment every time, not a cheap inferior alternative! |

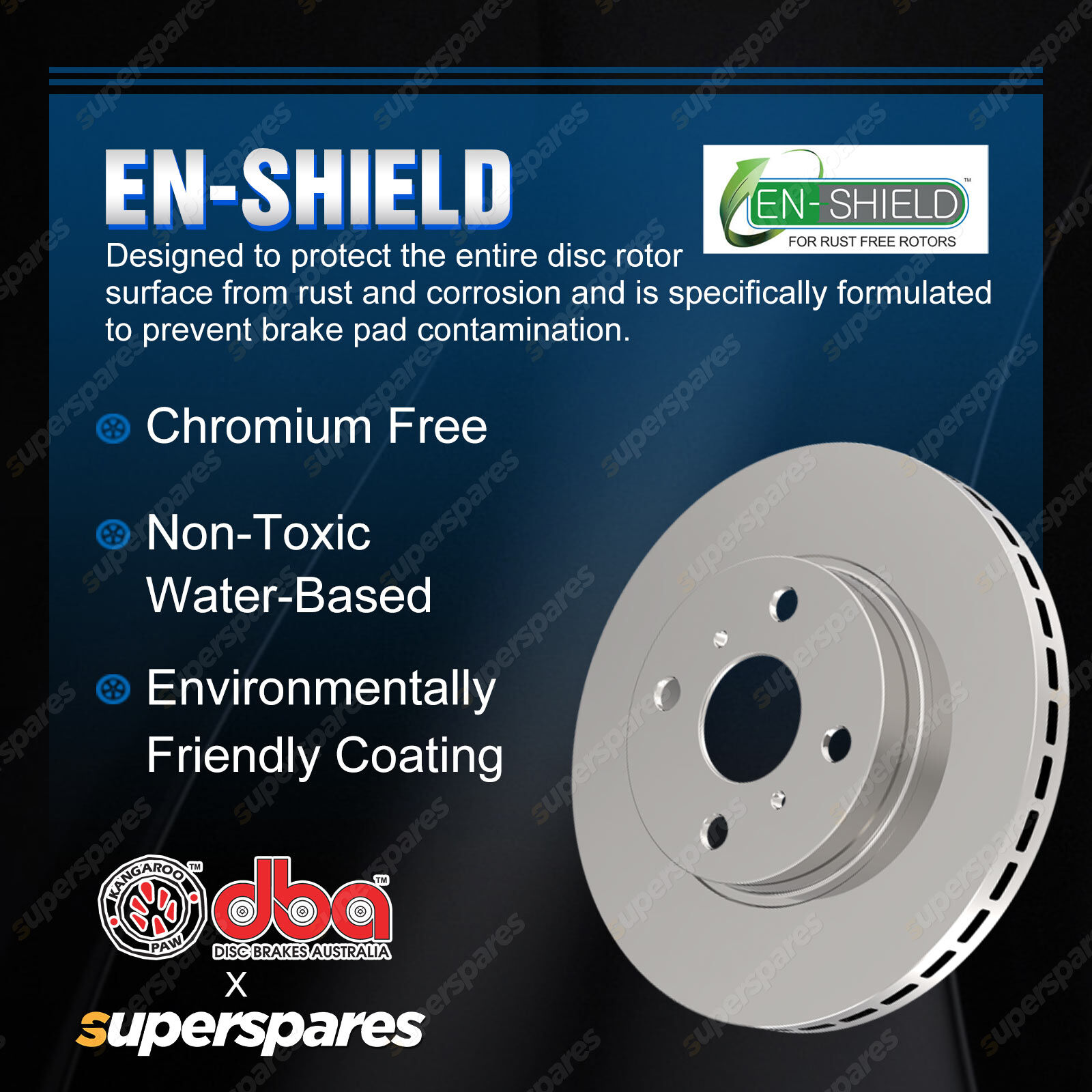

STREET SERIES - EN-SHIELD
|
 |
Traditionally only seen on OE product, DBA's En-Shield coating is a chromium free, non-toxic water-based, environmentally friendly coating designed to protect the entire disc rotor surface from rust and corrosion and is specifically formulated to prevent brake pad contamination. |
SURFACE DESIGN - 1
Symmetrical slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.
ANTI RUST - 2
Painted non-friction areas to prevent rust and enhance appearance, or full En-shield coating to protect the rotor and alleviate the need for pre-installation cleaning. |
|
 |
BI-DIRECTIONAL USE - 3
Symmetrical slotting and/or drilling for universal left/right use.
THERMAL EFFICIENCY - 4
Centre-split core castings for increased heat transfer and thermal efficiency.
CBN - 5
CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad "knock" and resulting premature wear.
KANGAROO PAW - 6
Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.
*Some variants may not contain all features |
STREET SERIES brake pads are the latest addition to DBA's comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind-create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA's long-established, market-leading range of STREET SERIES disc rotors.DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time. |
Street Series - Features
|
 |
* OE-style post-cured process for optimal braking performance over the pad life.
* Ceramic formulation and copper-free (NSFI certified) for low dust emission & clean wheels.
* High-friction stripe for easy bedding-in.
* Application-specific NVH shims, slots and chamfers for less vibration and noise. |
