Armor Bullbar Lights Winch Side Step for Toyota LandCruiser 79 Dual Cab 07-16

Name: Armor Bullbar Lights Winch Side Step for Toyota LandCruiser 79 Dual Cab 07-16
Brand: 4X4FORCE
Price: 2465.00 AUD
Availability: InStock

SKU: 4X4FORCE-BLWS-S2402-EL102

$2,465.00

List Price $2,958.00

SAVE $493.00 (17%)

In Stock Online 1 Business Day Dispatch or Click to Collect

Hurry. Stock Selling Fast

Will this part fit?

Select Vehicle

Free Delivery

Free Shipping Storewide excludes heavy, bulky items & regional areas

Seen It Cheaper?

Ask for a Superspares deal.

Call us 1300 791 058

National Warranty

Genuine manufacturer warranty, claimable online Australia wide.

Delivery Options

Local Pickup Available

Standard Shipping - FREE
Additional freight charges may apply for heavy, bulky items or deliveries to rural and remote areas, with customer service adjusting costs as needed.

Local Pickup - FREE
Pick Up is Available from Sydney, Melbourne and Brisbane warehouses upon receival of confirmation.

Calculate Shipping

Afterpay
Bank Deposit
PayPal Express
Web Payments
Web Payments
zipPay
American Express
MasterCard
Visa

Product Description

Features


Bull Bar 4X4FORCE bull bars help protect your vehicle from animal strikes when driving on remote roads,and provide convenient locations to mount other 4x4 accessories such as winches,lights and aerials. 4X4FORCE bull bar is carefully crafted from premium grade materials and components to deliver the most comprehensive frontal protection and styling available. Each 4X4FORCE bull bar is specifically designed to complement the unique contours of individual vehicle models.This ensures the best possible fit,look and functionality for a particular vehicle.All 4X4FORCE bars are finished in a durable powder coat.
	Features : Winch compatible Parker / Indicator included A-Frame triple loop design Tough polyurethane bumpers Steel construction

Side Steps & Brush Bar 4X4FORCE Steel Side Steps Brush Rail Bars Rock Sliders is Manufactured Using Heavy Duty Steel and this Means a Heavy Duty Construction That Can Most Offorad Incidents,Giving Your Side Seals the Maximum Protection,Unlike Aluminum Side Steps. The Frame is Powder Coated in Order to Prevent Rust And Corrosion.
	Features : Black Powder Coated Finish - Long Lasting Manufactured using Heavy Duty Steel Kit Comes with brackets,bolts.Easy to fit on Steel construction Specially designed for Australian Road

Drive Light 4X4FORCE LED Light is Your Wise Choice. Using a special design of the LED constant current source power supply circuit,the performance is very stable,long life,50,000 hours, the protection of the environment,you can enjoy using it. Each light has using OSRAM P8 chip,and it is durable,low power consumption.Safe to use.

Features :

Lifespan:up to 50,000 h
Easy to install
IP68 dust Waterproof
Heavy duty powdercoated steel mount
Extended illumination distance
Blistering bright performance
Tough alloy housing,pc lens and steel mount

Armor Bullbar Lights Winch Side Step for Toyota LandCruiser 79 Dual Cab 07-16

4WD Recovery Winch Kit

WINCH'S CLASSIFICATION AND FEATURES

13500LB WINCH SPECIFICATIONS
Rated Line Pull	13500LBS(6123kgs) single line
Motor	5.3kw/7.2hp, series wound
Control	Remote switch, 9.8ft(3m)lead
Gear train	3 Stage Planetary
Gear train ratio	265:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The-Drum
Drum Size	Φ2.5"(64)mm x 8.8"(223.5)mm
Cable	Φ9.3mm x 26m
Overall Dimensions	19.8"x6.3"x8.5"(529mm x 160mm x 217mm)
Mounting Bolt Pattern	255mm x 114mm Φ 11
Weight	N.W.25kg G.W.26Kg
Packing Size	615 x 355 x 265mm

PULL. SPEED. AMPERES. VOLTS
Line pull lbs(kgs)	Line speed ft/min(m/min)	Current A
0	24.9(7.6)	70
1500(680)	17.1(5.2)	160
3500(1588)	11.5(3.5)	220
5500(2495)	9.2(2.8)	260
7500(3402)	7.9(2.4)	310
13500(6123)	6.2(1.9)	380

LINE PULL AND ROPE CAPACITY IN LAYER
Layer	Rated Line Pull lbs(kgs)	Total Rope on Drum ft(m)
1	13500(6123)	13(5)
2	10200(4636)	23(11)
3	8705(3956)	69(21)
4	7310(3323)	92(28)

Armor Bullbar Lights Winch Side Step for Toyota LandCruiser 79 Dual Cab 07-16

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Contents:

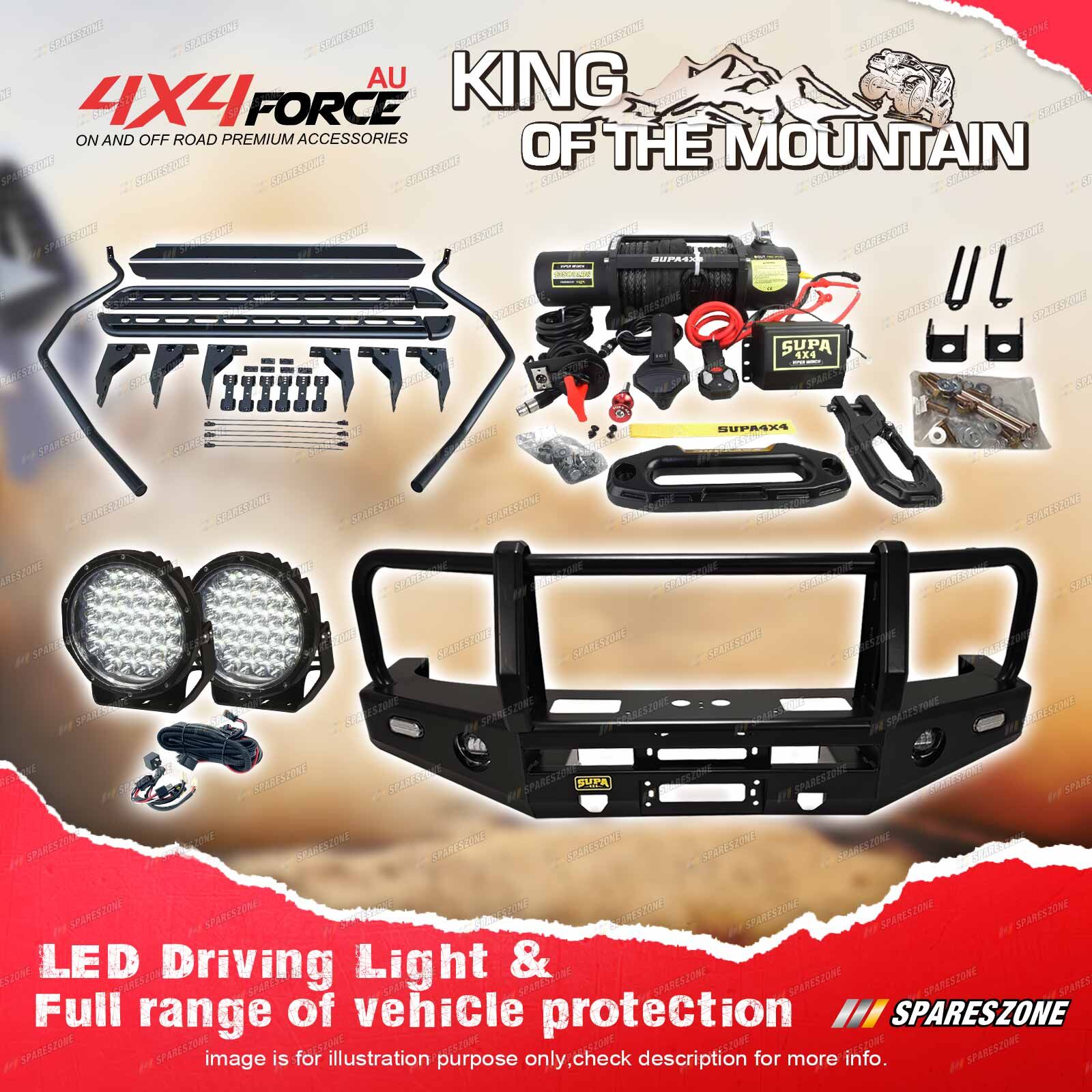

1 Set 4X4FORCE Front Armor Bumper Bullbar Winch Bar With 3 LOOP

Pair 4X4FORCE 9 Inch Round Drive Light Osram Lamp Beads

1 Set 4X4FORCE 2-Way Deutsch Wiring Loom Harness Kit With Flush Mountable ON/OFF Switch

1 Set 4X4FORCE Steel Side Steps & Brush Rail Bars Rock Sliders

4X4FORCE Electricity 4WD Recovery Winch Kit

Suits: Toyota Landcruiser 79 Series Dual Cab 2007-2016

Parameter(Bull Bar):

Style: With 3 LOOP

Material: Heavy Duty Steel ; Powder Coated

Parameter(Light):

Photometrici(LX): 1 LUX@970M	Beam Patttern:25 Spot + 5 Flood
Lumen(Pair): 17400LM	Ingress Rating: IP68
Amp Draw: 4A@24V	Pemp Colour: 6300-6800K
Power(Each): 96W	Voltage: 12V/24V
Candela(CD): 940900 Pair	Qty(Each Light): 30 Pcs Cree Leds

Parameter(Wire Kit):

Length: 2-Meter	Switch Relay:12V DC 40A
Blade Fuse: 25A	Feature: 2 Way Deutsch
Switch Type: Flush Mountable on/off	Wire#:12#

Parameter(Side Step):

Kit Comes with brackets, bolts

Material:Heavy Duty Steel ; Black Powder Coated
